4-колесный 3 тонный портативный вилочный погрузчик высокая эффективность Heli Электрический для строительных
- Категории: Forklifts >>>
- Поставщик: Guangzhou,Sunrise,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
4-wheel 3 Ton Portable Forklift Truck High Efficiency Heli Electric Forklift for Construction Works/Warehouse
Product Description
| No. | Specifications | Unit | CPD25 | CPD30 | CPD35 | ||||
| 1 | Characteristics | Power | battery | battery | battery | ||||
| 2 | Capacity | kg | 2500 | 3000 | 3500 | ||||
| 3 | Center of load | mm | 500 | 500 | 500 | ||||
| 4 | Lifting height | mm | 3000 | 3000 | 3000 | ||||
| 5 | Free lifting height | mm | 145 | 145 | 150 | ||||
| 6 | Forks L×W×H | mm | 1070×122×40 | 1070×125×45 | 1070x125x50 | ||||
| 7 | Mast tilt angle Forward/Backward | . | 6/12 | 6/12 | 6/12 | ||||
| 8 | Min.turning radius | mm | 2090 | 2245 | 2385 | ||||
| 9 | Min. right angle stacking width | mm | 3760 | 3930 | 4065 | ||||
| 10 | Min. right angle Aisle width | mm | 2040 | 2120 | 2290 | ||||
| 11 | Min.ground clearance | mm | 110 | 120 | 120 | ||||
| 12 | Overhead guard height | mm | 2150 | 2170 | 2300 | ||||
| 13 | Height from seat to overhead guard | mm | 1005 | 1005 | 1100 | ||||
| 14 | Front overhang | mm | 470 | 475 | 485 | ||||
| 15 | Perf | Max.traveling speed(loaded) | km/h | 13 | 13.5 | 13 | |||
| 16 | Max.lifting speed(loaded) | mm/s | 270 | 300 | 280 | 320 | 280 | ||
| 17 | Gradeability | % | 15 | 15 | 12 | ||||
| 18 | Dimensions | Overall length (without fork) | mm | 2310 | 2511 | 2630 | |||
| 19 | Overall width | mm | 1150 | 1225 | 1225 | ||||
| 20 | Mast extended height(with bracket) | mm | 4030 | 4264 | 4264 | ||||
| 21 | Mast lowered height | mm | 1990 | 2055 | 2095 | ||||
| 22 | Chassis | Tire | Front | 7.00-12-12PR | 28×9-15-12PR | 28x9-15 | |||
| 23 | Front | 7.00-12-12PR | 28×9-15-12PR | 28x9-15 | |||||
| Rear | 18×7-8-14PR | 18×7-8-14PR | 18x7-8 | ||||||
| 25 | Wheelbase | mm | 1450 | 1600 | 1720 | ||||
| 26 | Tread width | Front/Rear | mm | 960/950 | 1000/980 | 1000/980 | |||
| 27 | Curb weight | None-load | kg | 4050 | 4810 | 5300 | |||
| 28 | Powertrain | Battery | Voltage/Capacity | V/Ah | 48/630 | 80/500 | 80/560 | ||
| 29 | Motor | Traveling | KW | 11 | 12 | 12 | |||
| 30 | Lifting | KW | 10 | 14 | 12 | 14 | 14 | ||
| 31 | Controller | CURTIS | CURTIS | CURTIS | |||||
| 32 | Control type | 50%AC | 100%AC | 50%AC | 100%AC | 100%AC | |||
| 33 | Working pressure | Mpa | 17.5 | 17.5 | 17.5 | ||||

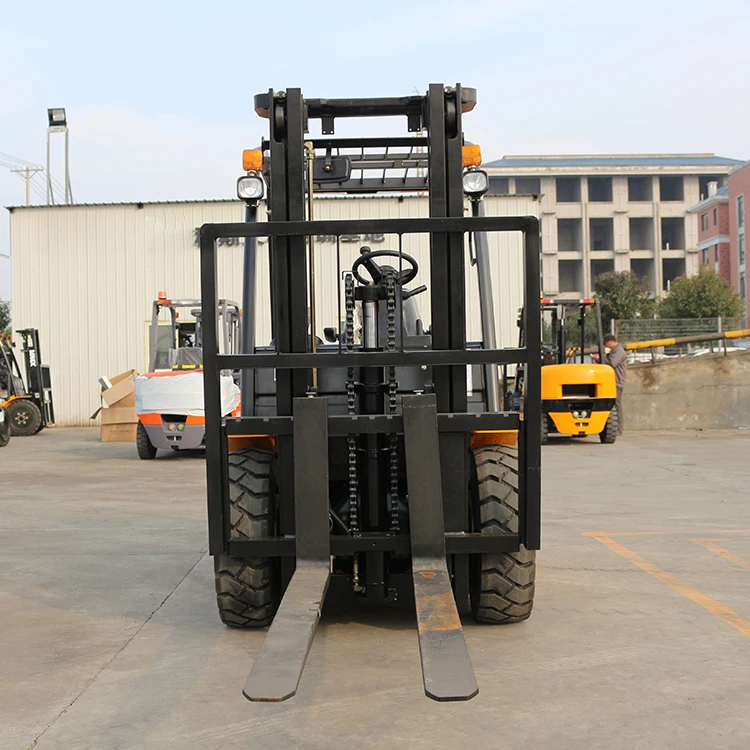

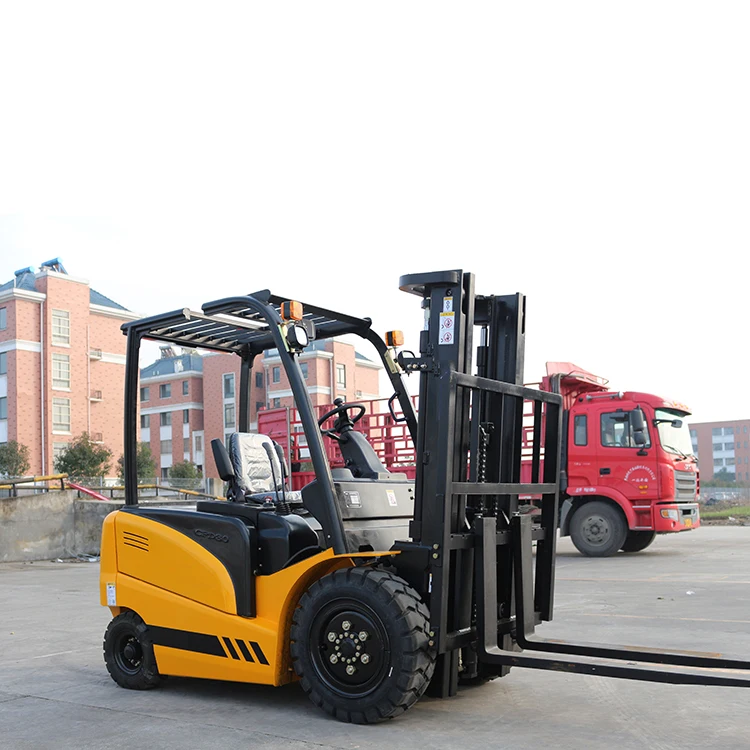

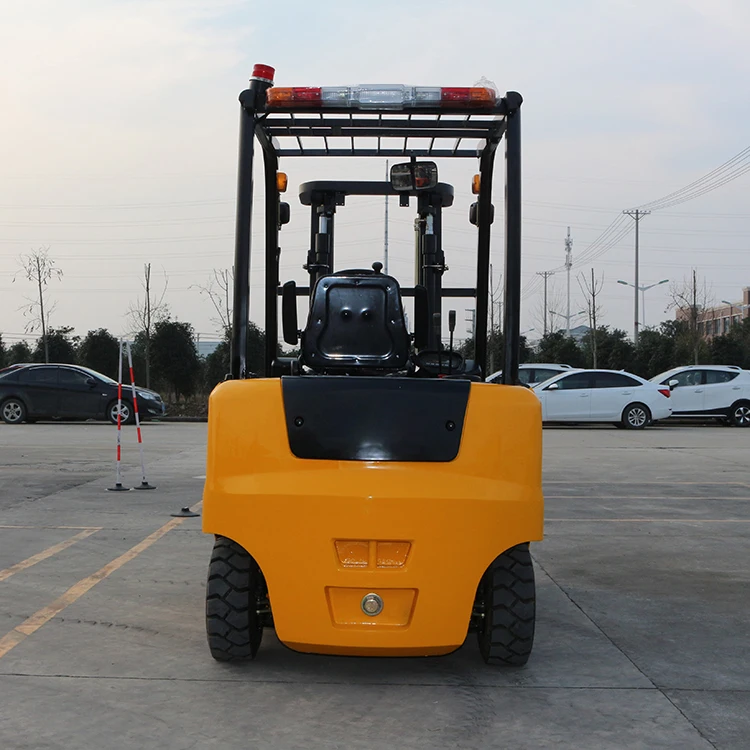

Product show
Customer Feedback
Company Information
Welcome to visit our factory!!!
Packaging & Shipping
