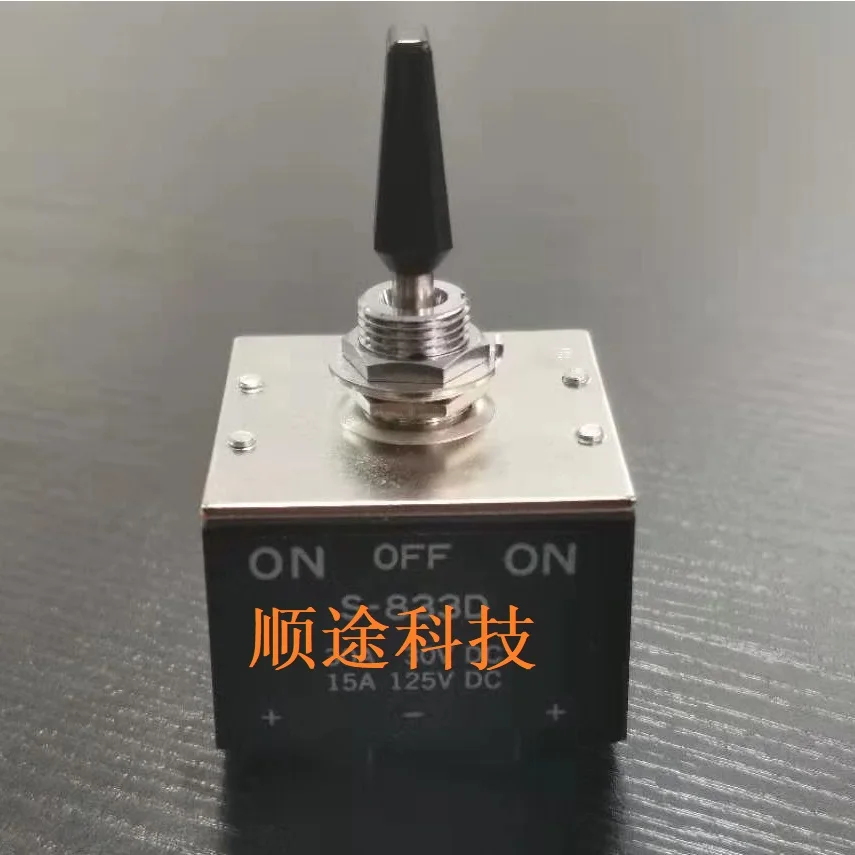

30A DC 12mm on-on 4-way NKK heavy duty toggle switch S-833D
high capacity models with ratings ranging 30A @ 48V DC.30A @ 30V DC. 125 VDC
S833D Sturdy construction with high torque bushings and zinc plated steel covers.
The 12mm bushing is designed for panel mount applications;
mounting hardware is included with each switch.
4 poles . 4PDT or 4P2T
Case of heat resistant resin meets UL 94V-0 flammability standard
provides high arc and insulation resistance.
Varied design of contact mechanisms in these models assures long life.
screw lug terminals.
Contact Resistance: 10 milliohms maximum
Insulation Resistance: 1,000 megohms minimum @ 500V DC
Dielectric Strength: 2,000V AC minimum for 1 minute minimum for S800s & S800Ds
3,000V AC minimum for 1 minute minimum for S732
Mechanical Life: 50,000 operations minimum
Electrical Life: 10,000 operations minimum for S800Ds
25,000 operations minimum for S800s & S732
Operating Temp Range: –10°C through +70°C (+14°F through +158°F)
Mounting Torque: 2.94Nm (26 lb•in) for double nut
Maximum Panel Thickness: 4.5mm
