Машина для выдувания полиэтиленовой пленки

Категории: Blown Film Production Line >>>
Поставщик: Zhejiang,Chovyting,Machinery,Co.,Ltd.

Цена:20 000,00 $ - 21 500,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

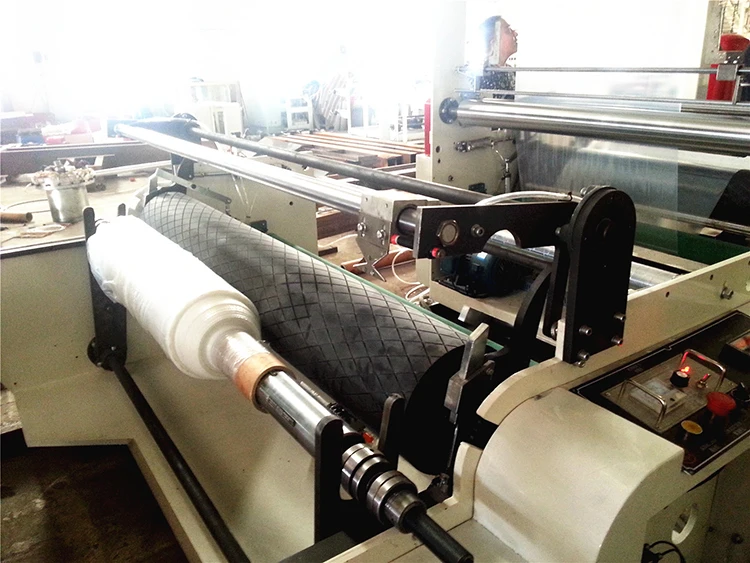

PE HDPE LDPE plastic pvc film blowing machine

Product details

Automatic	Yes
Weight	4500kg
Servo motor	China
Inverter	China
Main motor	China
Blow Moulding Type	Extrusion Blow Moulding
Power(W)	180KW

Functions and Features:

This machine is used for blowing plastic film like HDPE, LDPE, LLDPE etc. The extruder system has super strong mechanism intensity, good capability. And the special design of screw and die increase the capacity.

Main Technical Parameters:

Model		MD-HL50	MD-HL55	MD-HL60	MD-HL65
Suitable Material		HDPDE/LDPE/LLDPE	HDPDE/LDPE/LLDPE	HDPDE/LDPE/LLDPE	HDPDE/LDPE/LLDPE
Max Film Width(mm)		600	800	1000	1200
Film Thickness(mm)		HD:0.008-0.08 LD:0.02-0.15
Max Extrusion Output	HD	40kg/hr	50kg/hr	60kg/hr	80kg/hr
Max Extrusion Output	LD	50kg/hr	60kg/hr	70kg/hr	100kg/hr

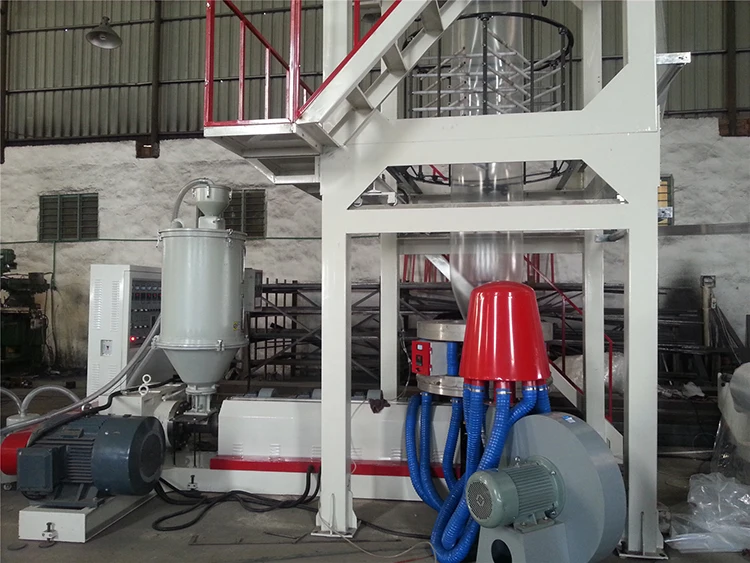

Extrusion Unit
Gear Box		146	173	173	200
Screw Diameter(mm)		ø50	ø55	ø60	ø65
Screw L/D Ratio		28:1	28:1	28:1	28:1
Screw's Material		38CRMOALA	38CRMOALA	38CRMOALA	38CRMOALA
Barrel's Material		38CRMOALA	38CRMOALA	38CRMOALA	38CRMOALA
Barrel's Cooling Fan		25W*2	25W*2	25W*2	25W*2
Thermo Control(zone)		3	3	3	4
Driving Motor(kw)		11	18.5	22	30
Extrusion Die
Die size(mm)		HD:ø60	HD:ø80	HD:ø80	HD:ø120
Die size(mm)		LD:ø150	LD:ø180	LD:ø180	LD:ø250
Die Rotary Device		360°Continue Rotary
Screen Changer		Standard Manual
Thermo Control(zone)		2	2	2	2
Air Ring(mm)		ø620	ø760	ø760	ø760
Cooling Blower(kw)		1.5	2.2	2.2	3
Center Steady Stick		1PCS	1PCS	1PCS	1PCS
Take-UP Unit
Roller Width(mm)		ø138*650	ø138*850	ø138*1100	ø138*1300
Embossing Roller Width		550mm	750mm	1000mm	1200mm
Take-UP Motor(kw)		0.75	1.1	1.1	1.5
Take-UP Speed(M/min)		10-60	10-60	10-60	10-60
Height Adjustable Type		700mm	700mm	700mm	700mm

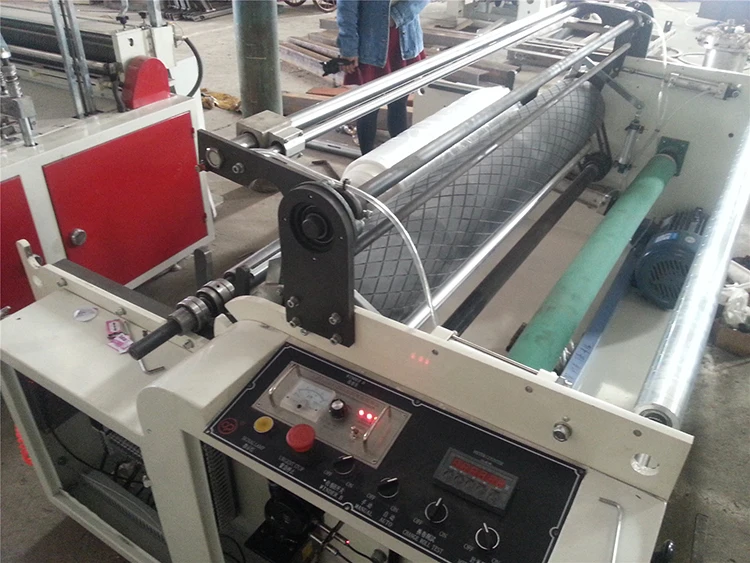

Winding Unit
Type OF Winder		Surface Friction Winder
Roller Width(mm)		700	900	1000	1300
Winding Motor(N.M)		6	10	10	16
Winding Speed(M/min)		10-60	10-60	10-60	10-60
Voltage		380V,50HZ,3PHASW	380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE
Cover Dimensions(m)		4.52.02.3	4.52.24.5	52.54.8	5.52.85.2

Application:

This kind of machine is widely used in PE plastic film blowing plant.

Accept customization or not:
1.Double winder
2.Corona
3.Air shaft
4.Manual mechanics screen changer
5.Full automatic rewinder
6.Automatic air supply

OUR ADVANTAGES

QUICK

CHOVYTING exclusive technology (the multiplier bag making machine), maximum output reaches 2370 pcs/min. It is 97.5% higher than the world's fastest bag making machine.

ACCURATE

By using CHOVYTING special program algorithms, the printing bag accuracy can change smoothly. The precision of bag size when produce in high speed be 15% higher than peers.

STABLE

All CHOVYTING machines are made of high-strength steel plate which gives stable body and enable stable bag making. The qualified rate of bag making can be over 99.995%.

FULL

CHOVYTING products are more than 65% broader than peers in the same industry and covering more than 95% of global packaging application range.

Packaging & Shipping

plastic machines bag making

FAQ

1) Is your company a factory or a trading company?

We are a factory.

2) Where is your factory? How can i visit your company?

Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.

3) What is the suitable material for your machines?

PE, OPP, laminated material ,etc are suitable for our machines

4) What kind of machine do you have ?

We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...

5) How many years of your factory?

Our company is established since 1999.

6) What certificate of machine do you have?

CE, ISO 2008, more than 50 pieces Patent of machine

7) What about the development of your company?

Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.

8) How many exhibition do you take part in?

We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
