Shantui forklift 3-3.5ton diesel fork lift truck


with good condition





Product Description


 Product features
Ergonomic design by Shantui engineers includes built-in tilt cylinder and adjustable shock-absorbing seat to reduce
driver fatigue. Also the wide-field mast provides excellent operational vision.
Shock-absorbing Shantui design adopts floating overhead guard and shock-absorbing steering axle to reduce
vibration by 30% to enhance the driver operation comfort.
High quality transmission components match the hydraulic system effectively. The forklift is more efficient and
energy-saving as a result.
Shantui uses a reliable electronically monitored combination dashboard with LCD and waterproof inserted structure
wiring system to enhance safety and reliability.








Performance Paramete






































































































































The spec of the forklift
 ModelA-SF30
Generalload capacity 3000kg
Load centre500mm
Power typeDiesel
SizeLift height3000mm
Free lift height150mm
Fork size1070*125*45mm
Mast tilte angle6
For overhang483mm

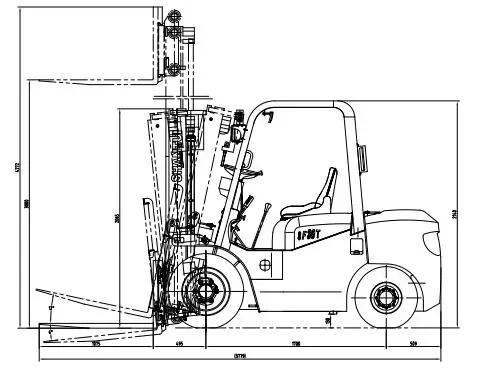

overall dimensions Length to face of fork3873mm
overall width1226mm
overall height fork lowered2120mm
overall height fork raised4212mm
overall guard height2140mm
PerformanceTravel speed(Full/no load)Hydraulic19/20km/h
Lift speed with speed470mm/sec
Max gradeablity20%
selfweight4160kg
under wheelFront Tires28*9-15-12PR
Rear tires6.50-10NHS
Front Tread1000mm
Front Tread980mm
wheelbase1770L
Engine typeEngine model4D27G31-029
Engine power36.8/2500(kw/rpm)
Rated torque156/1700(N.M/rpm)
No.of cylinder4
Bore*stroke90*105mm
Displacment2.67L

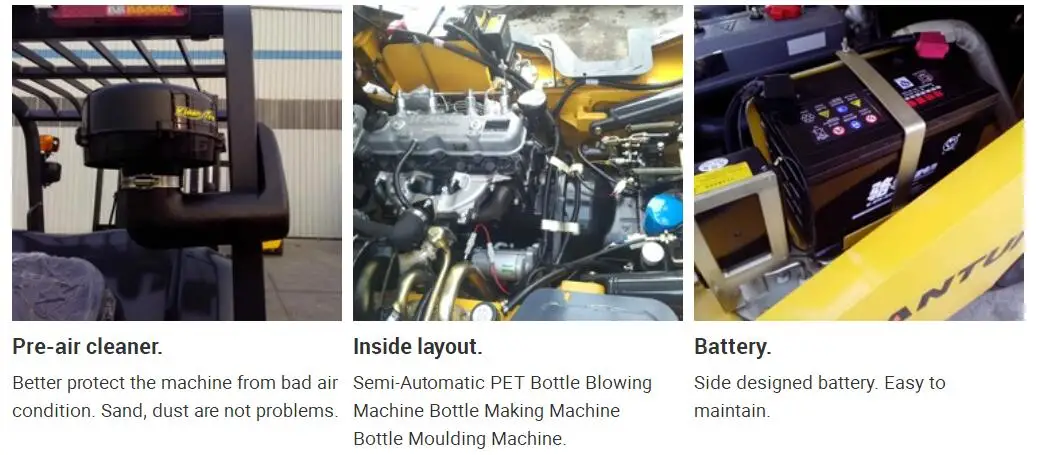

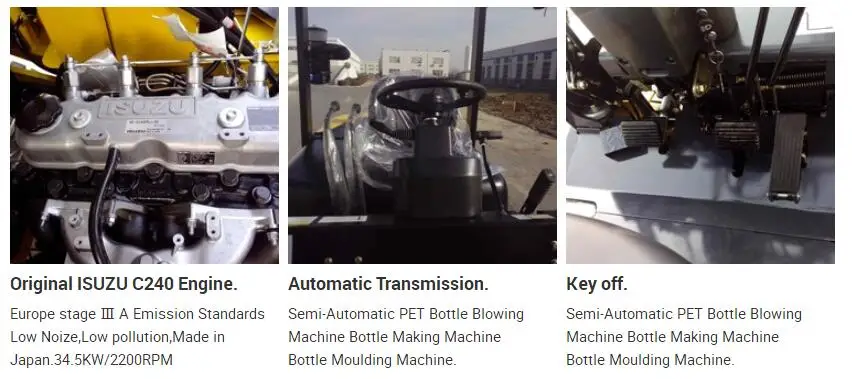

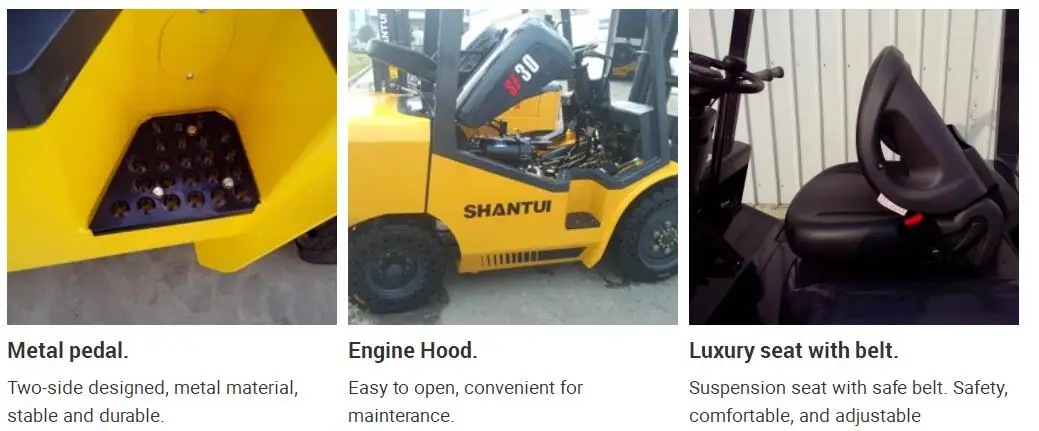

11.pngDetailed Images

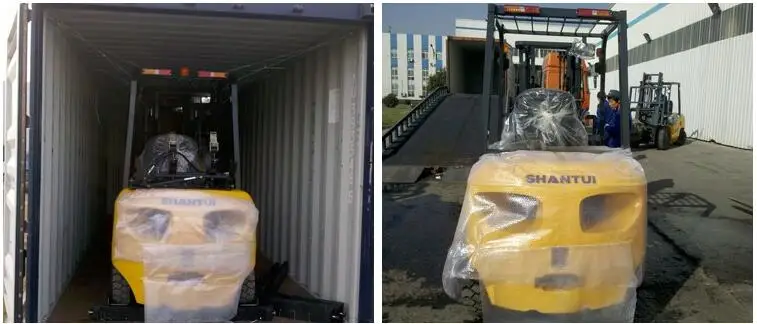

Packaging & Shipping



























hippingBy Container
2 sets per 20 feet container
5 sets per 40 feet container
PackingNude Packing,Four tires fixed
No. of packetsForklift    1  set            Fork     2   pcs.                Tool box   1 Set
Measurement7.7CBM
Weight4350KGS
