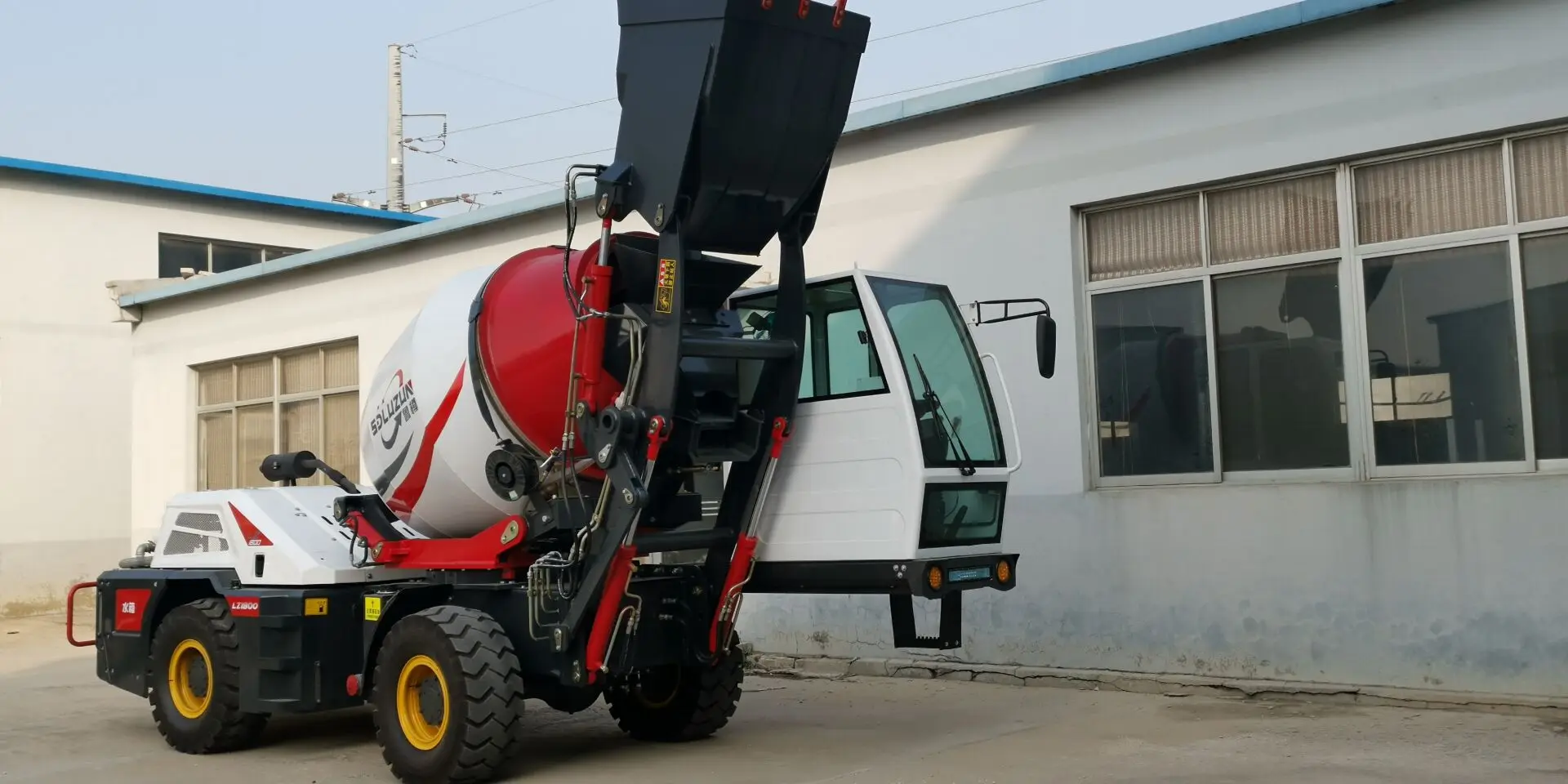

LUZUN новый дизайн 1 8 куб. М самозагружающаяся Бетономешалка с обратным

LUZUN новый дизайн 1 8 куб. М самозагружающаяся Бетономешалка с обратным

Категории: Бетоновоз >>>
Поставщик: Laizhou,Longyi,Machinery,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

Product Application

Self loading concrete mixer truck is the combination of concrete mixer truck and cement mixer.

It can automatically feed, measure, mix and discharge concrete mixture.

Equipped with a powerful engine and 4 wheel steering . Operator can drive it to where it needs to go.

It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

Functions:

* steel wire engineering tyre
* the machine with reverse bucket
* the shovel with arc design
* high pressure washing pump
* more flexible turning bridge
* improved bucket, no dead end, discharging material completely
* LED lamp
* the machine controlled by instrument panel display
* Auto Weighting Scale system
* Drum Bottom lifting up for increasing speed of discharging concrete
* Self-priming water pump
* 270 degrees discharge angle
* Articulated Steering Mode

HIGH PRESSURE WAHSER:

Specification

Diesel Engine	>Model: YCD4T22T-105 >Total displacement, no Cylinders: 4330cc-4 in line >Cooling: water, dry air filter >Max. power: 78Kw(106Hp) >Max. torque: 330Nm@2400rpm
Electric System	>Alternator:28V--500Wa (18A) >Battery: 2x12V--60Ah (272A)
Steering	>4 steering wheels, Assisted by means of load-sensing power steering on 4 steering wheels.
4x4 Four-wheel Drive	2 forward gears: Ist 0-7.0Km/h, IInd 7-20kph 2 reverse gears: Ist 0-7.0Km/h, IInd 7-20kph
Axles and Wheels	>Front wheel fixed stable >Rear wheel is controlled by two cylinders as articulated type with 30 degrees steering angle. >Tires: 20.5-16-12PR
Water System	>24V "Self-priming" volumetric water pump with quick-suction >Maximum capacity: 90 liters/minute >Two tank with a total capacity of 2*230 liters.
Mixing and Unloading	>Double-cone drum with double-spiral mixing screws and convex bottom >Geometrical drum volume: 2600 liters >Drum rotation speed: 18rpm >Concrete produced as: 1.6 m³
Equipment Hydraulic System	>Gear pump: DEHONG (brand) >Maximum flow rate: 20/50 liters/min. >Maximum pressure: 16MPa
Loader	>Volumetric capacity: 300 liters >Number of loading times: around 6
Service Refill Capacities	>Fuel tank: ......................100liters >Total hydraulic system capacity: .......100 liters >Engine oil: ...................16 liters
Weights	5500 kg

Diesel Engine	>Model: YCD4T22T-105 >Total displacement, no Cylinders: 4330cc-4 in line >Cooling: water, dry air filter >Max. power: 78Kw(106Hp) >Max. torque: 330Nm@2400rpm
Electric System	>Alternator:28V--500Wa (18A) >Battery: 2x12V--60Ah (272A)
Steering	>4 steering wheels, Assisted by means of load-sensing power steering on 4 steering wheels.
4x4 Four-wheel Drive	2 forward gears: Ist 0-7.0Km/h, IInd 7-20kph 2 reverse gears: Ist 0-7.0Km/h, IInd 7-20kph
Axles and Wheels	>Front wheel fixed stable >Rear wheel is controlled by two cylinders as articulated type with 30 degrees steering angle. >Tires: 20.5-16-12PR
Water System	>24V "Self-priming" volumetric water pump with quick-suction >Maximum capacity: 90 liters/minute >Two tank with a total capacity of 2*230 liters.
Mixing and Unloading	>Double-cone drum with double-spiral mixing screws and convex bottom >Geometrical drum volume: 2600 liters >Drum rotation speed: 18rpm >Concrete produced as: 1.6 m³
Equipment Hydraulic System	>Gear pump: DEHONG (brand) >Maximum flow rate: 20/50 liters/min. >Maximum pressure: 16MPa
Loader	>Volumetric capacity: 300 liters >Number of loading times: around 6
Service Refill Capacities	>Fuel tank: ......................100liters >Total hydraulic system capacity: .......100 liters >Engine oil: ...................16 liters
Weights	5500 kg

Detailed Images

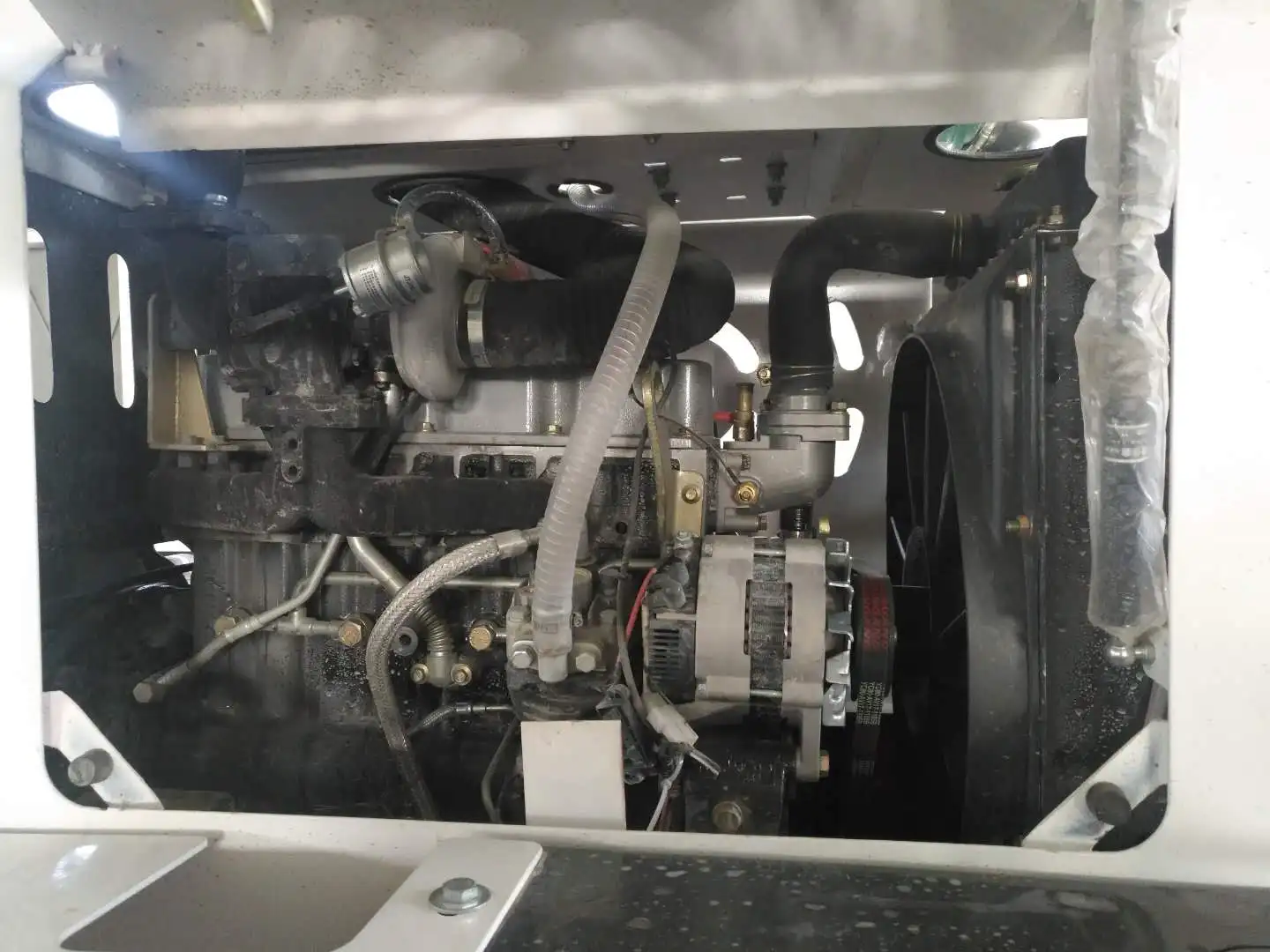

Diesel Engine

YUCHAI Diesel engin,85KW,116HP, Turbo-changed

water-cooled

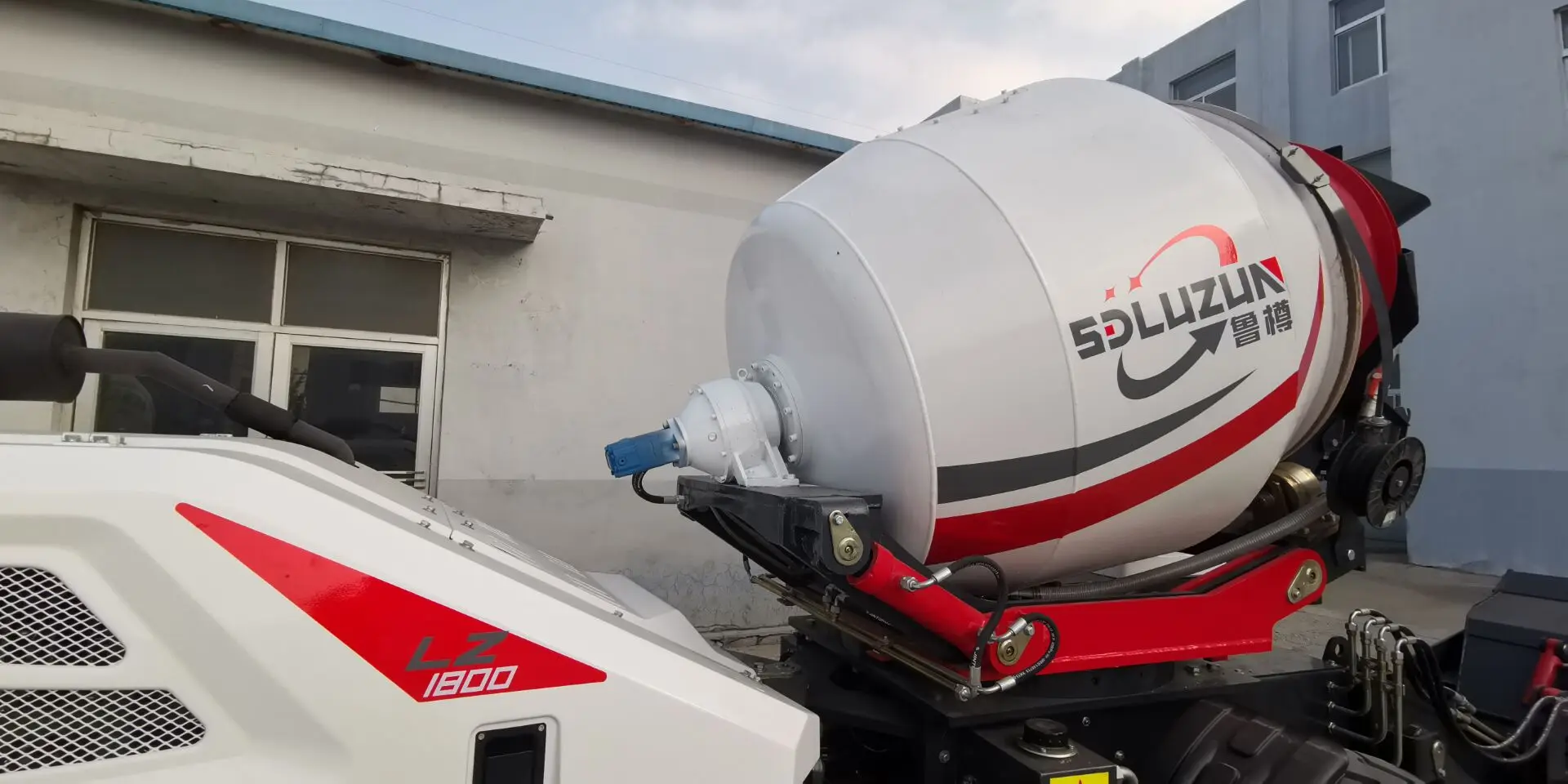

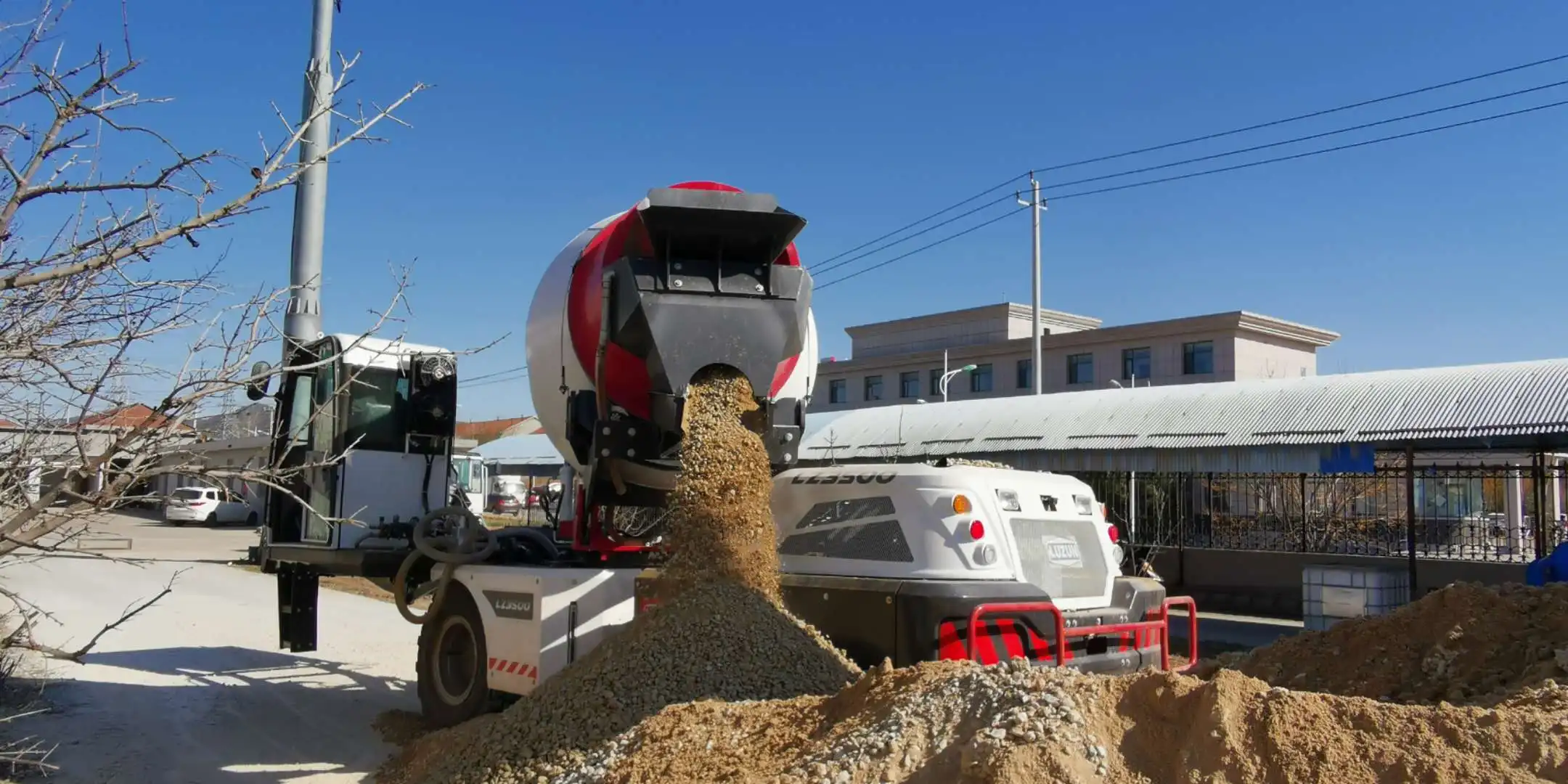

Mixing barrel

The drum can slew up to 270 degrees, four directions. with bottom hydraulic lifting mechanism can lift the drum up to 17 degrees while the drum is reversing for discharge, this way can make the material discharge more complete.

Arm & Shovel

Special designed arm, meet engineering mechanics,strong,freely,stretched

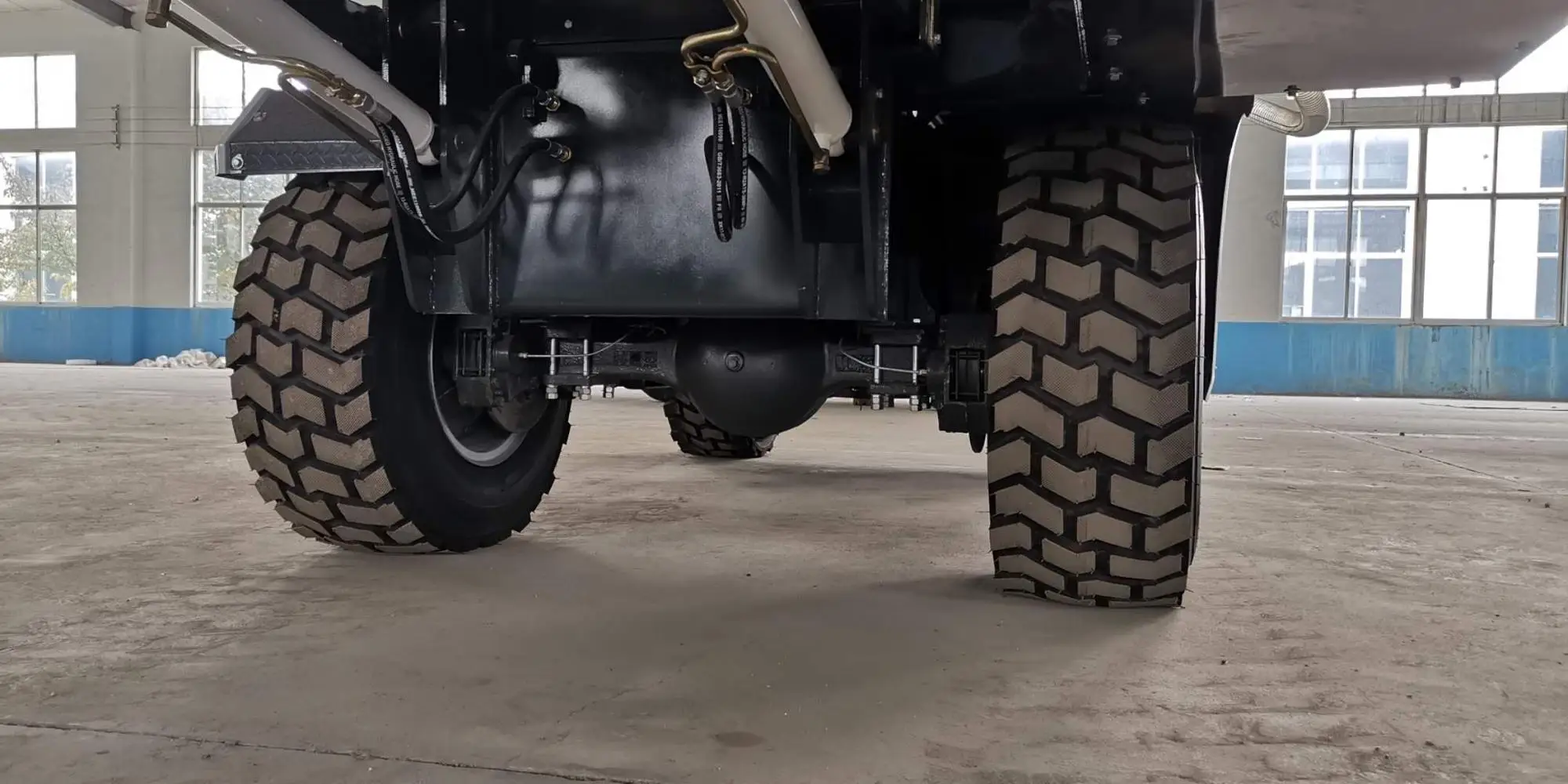

4X4 FOUR-WHEEL DRIVE

Hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.

Steel wire super-resistant engineering tire

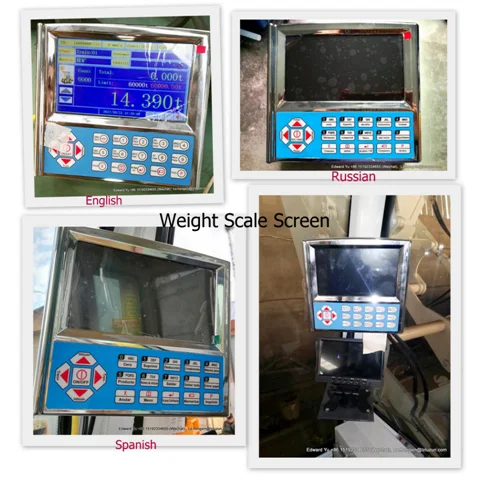

Weighing system

Automaticaly control and display the weight of material

Discharging system

Adopt revoluionary solution,build-in blade and madatary steering system.

Full-sealed feeding and discharging device,no leak during the process

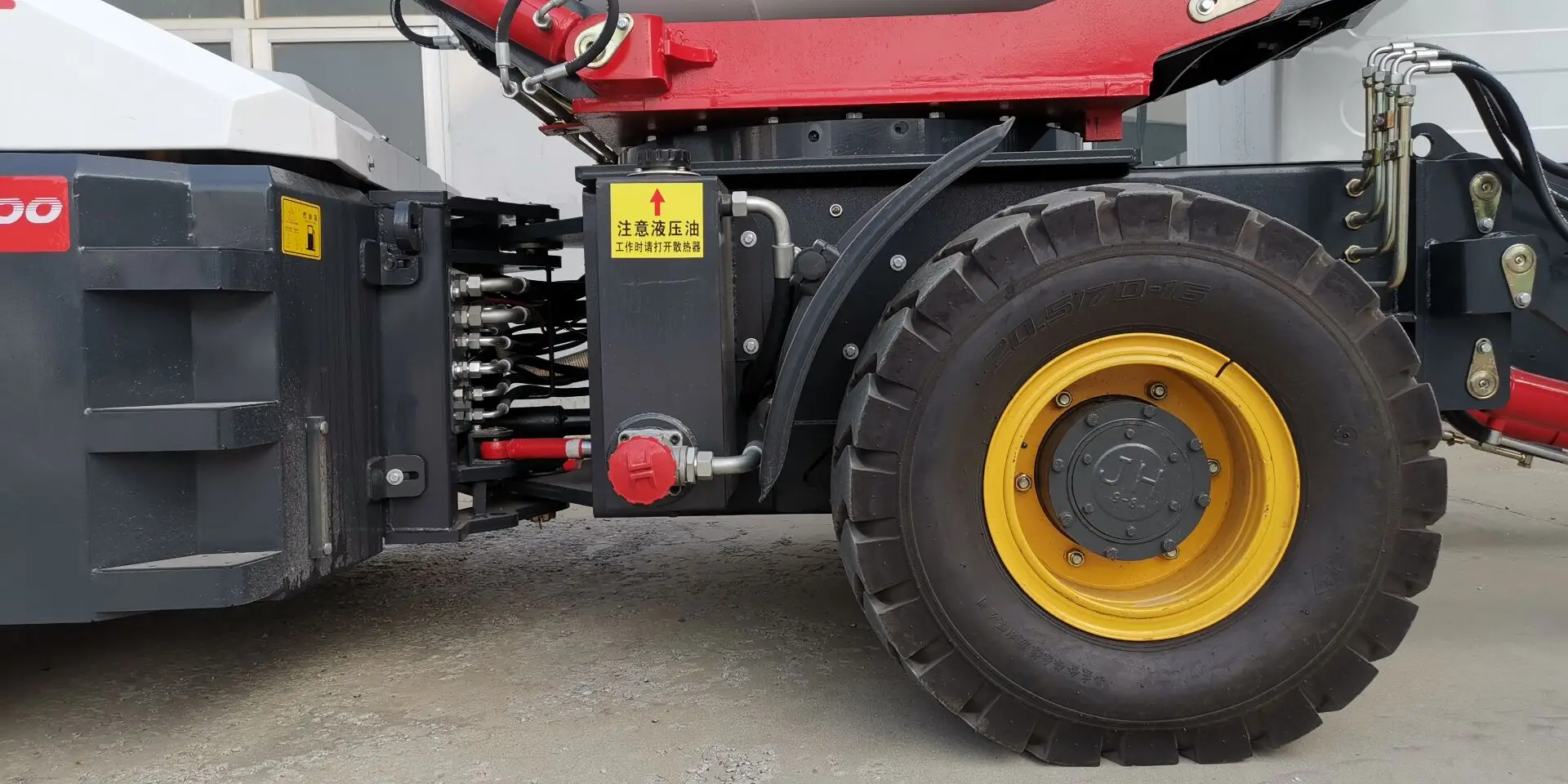

Hinged structure

This frame can be more flexible

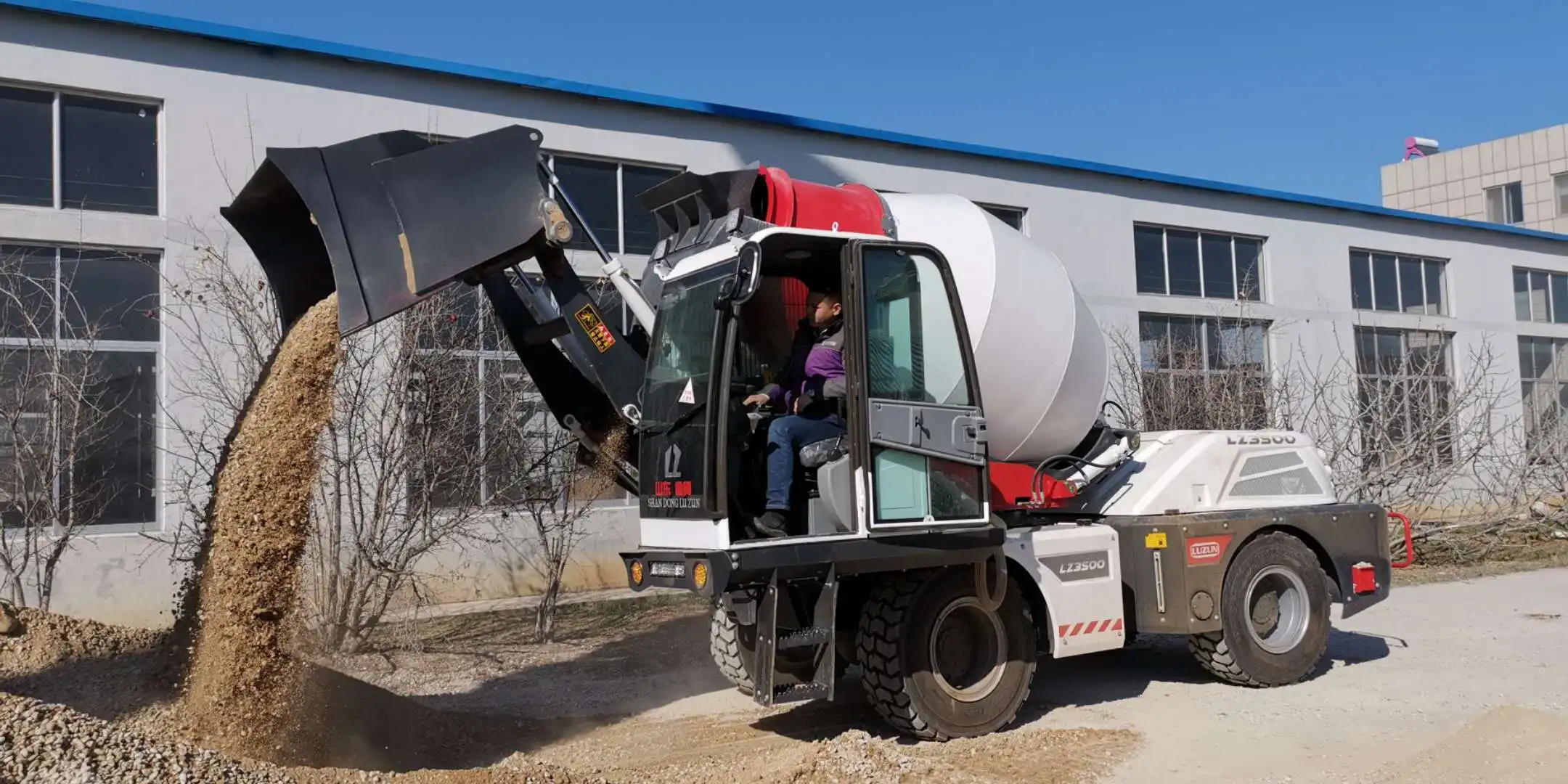

The bucket with reverse function

it could overturn and discharge material at high postion

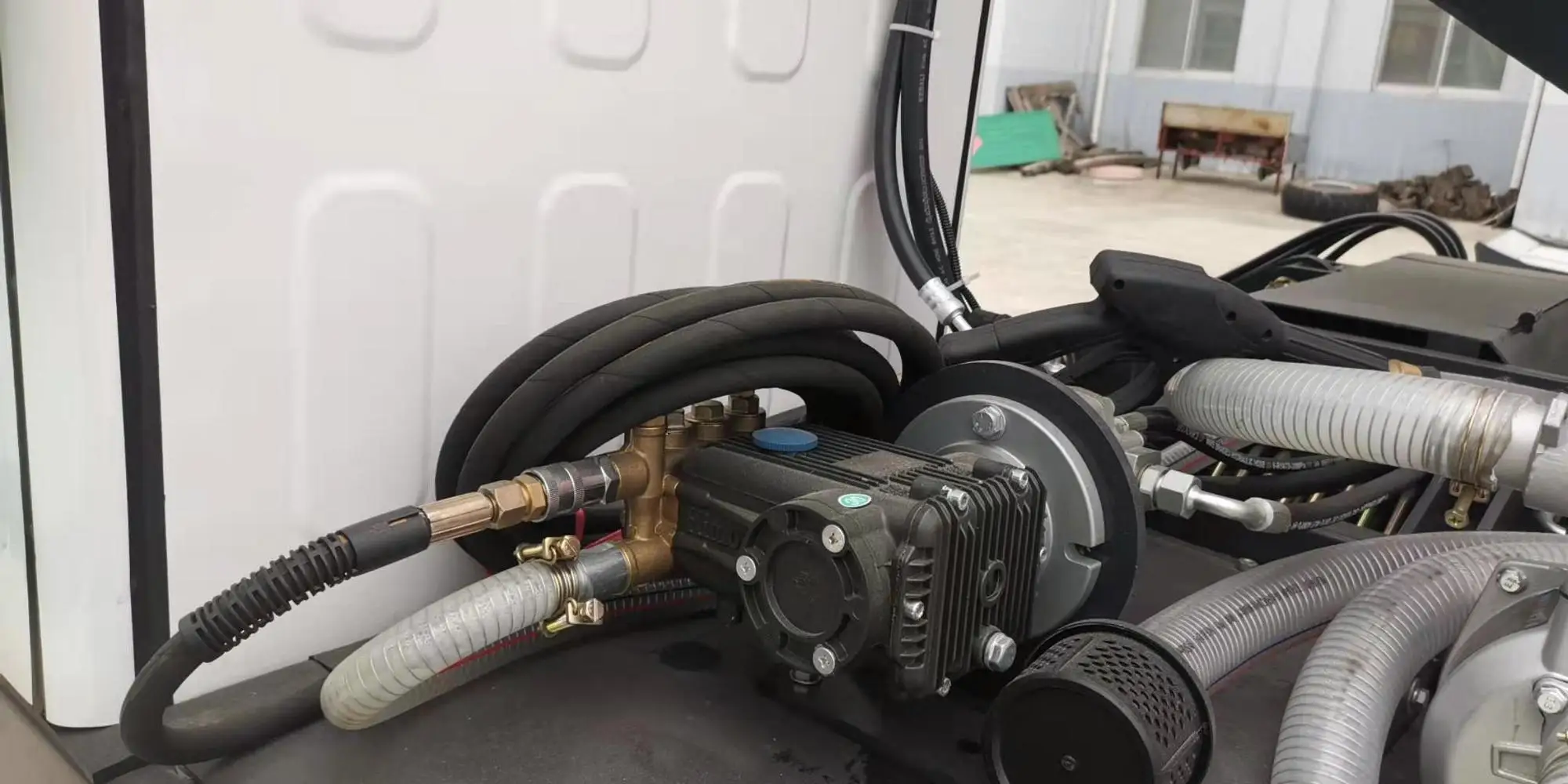

High pressure washer

convenient to clean the machine after working

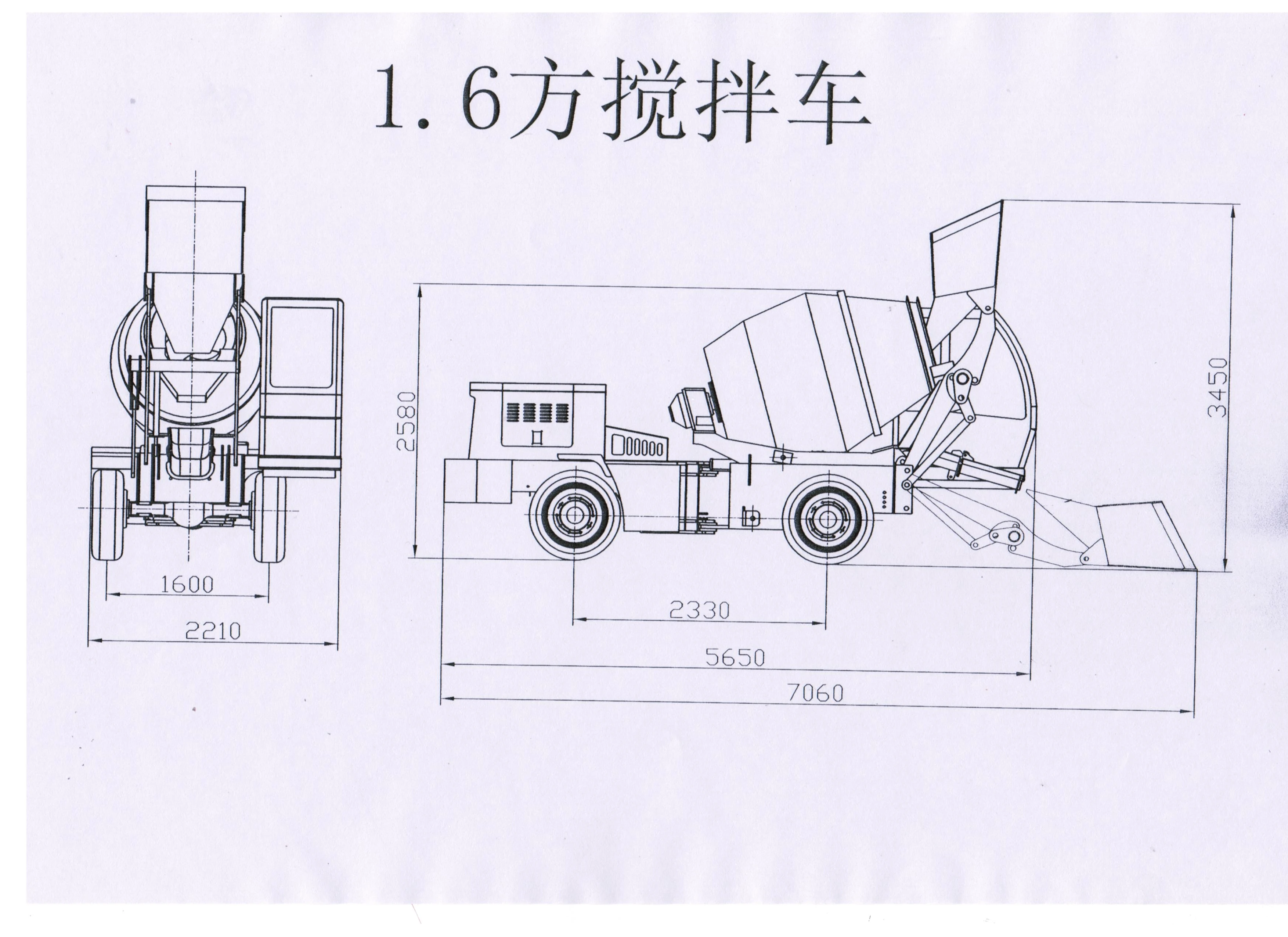

Overal Dimensions

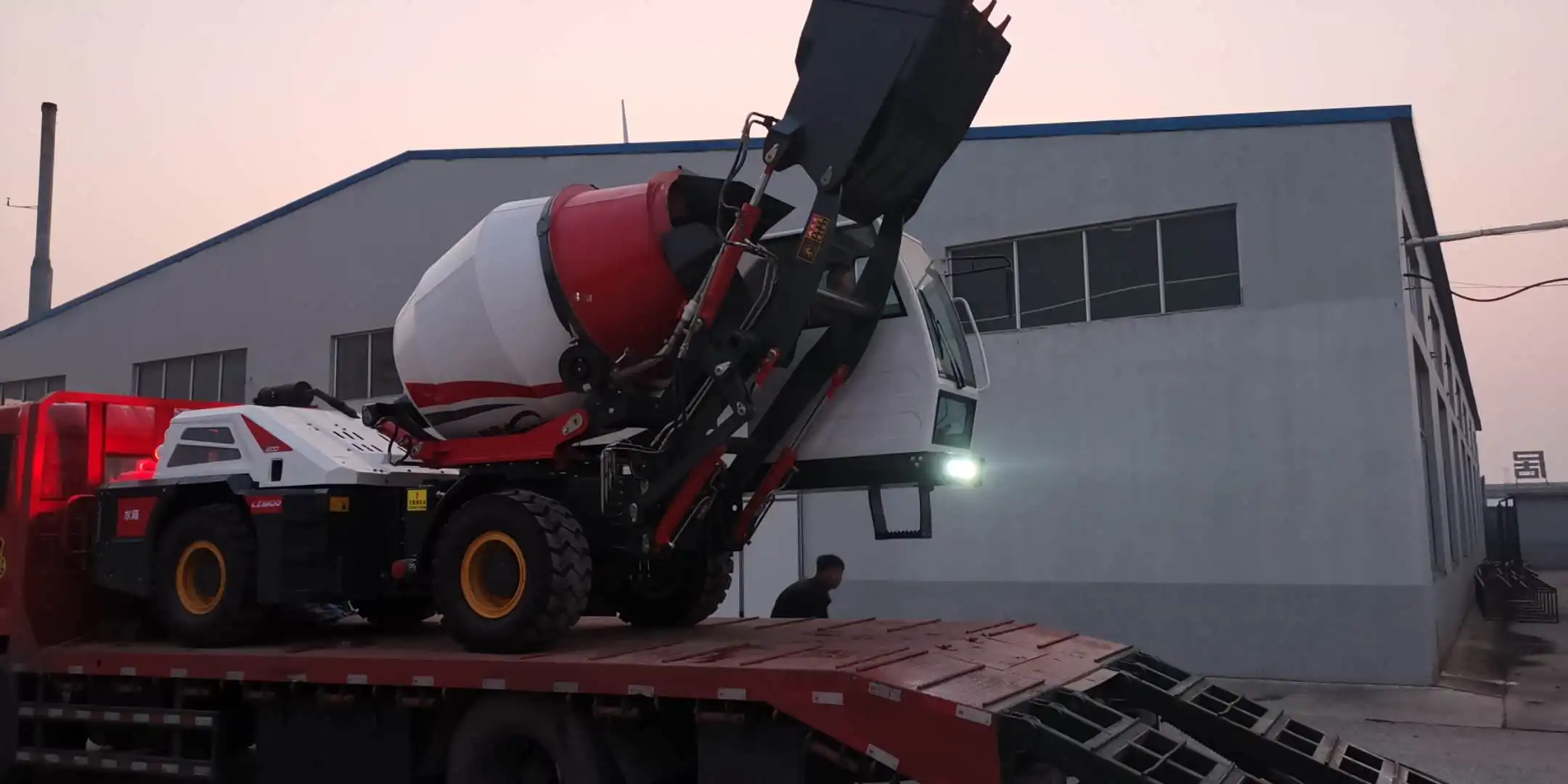

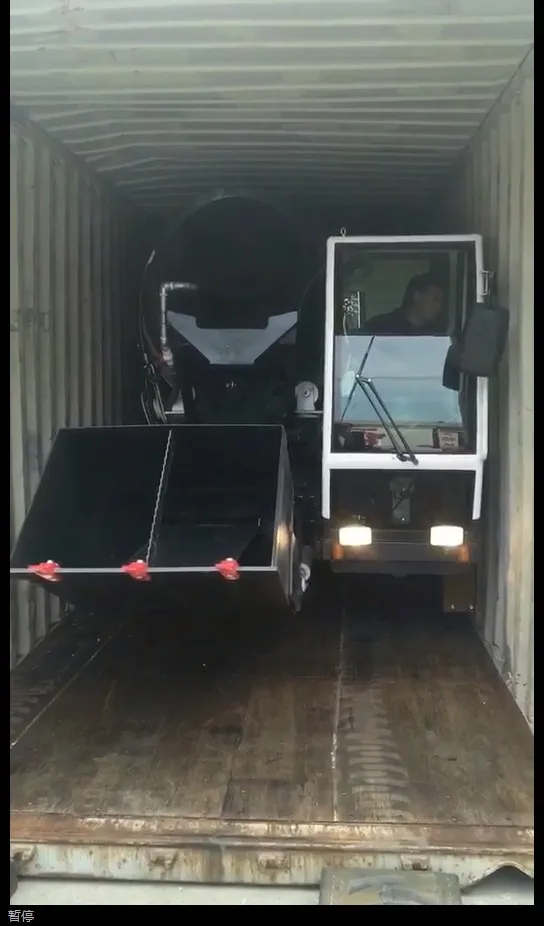

Packing & Delivery

Company introduction

Laizhou Longyi Machinery Company is located in Laizhou,Shandong province, the national construction machinery production base. Founded in 2009. It is a manufacture which specialized in self loading concrete mixer including R&D engineering design, manufacturing and marketing, Company covers an area of more than 30000square meter and owns over 300 employees and more than 30 excellent engineers and technicians, having a complete R&D system, and the advanced production,the manufacture,the processing equipment as well as the excellent product examination system.

Products, self loading concrete mixer truck, brand name is " LUZUN",are widely used in construction projects, railway construction, road construction, rural construction, water conservancy projects and other workplaces. Output capacity of concrete mixer is from 1.0cbm to 4.0cbm, After several years of developing, we have owned mature technology and obtained 16 national technical patents and CE certification.At the moment,we still engage in the R&D of new process,new equipment and new technology.

Mature technology,excellent quality,efficient after-sales service and reasonable price make us gain more and more client's trust,has occupied a bigger domestic market and exported to Russia,Malaysia,South Africa,Philippines,Dubai,Uzbekistan and other countries.

We warmly welcome customers at home and abroad to establish cooperation and create a bright future together with us!

Company Qualifications:
