mobile mercury gold mining equipment amalgam barrel cylinder separator
Product Description
amalgam separator, as a type of internal amalgamating equipment that is widely used in gold processing plant, is used to process heavy sand containing gold of gravel mine and gold concentrate of vein gold mine, presenting a gold recovery rate of higher than 98%.amalgam separator is the best way to separat the gold from ore concentrate, heavy sand and various ores.
Although most of the gold in gold concentrate is in free form, the surfaces of gold grains are usually polluted to a greater or less extent, and some gold exists with other minerals or vein rocks in adherent form. . When gold concentrate is processed with amalgamation barrel, steel balls are usually added to the cylinder for grinding operation to remove the film on gold grain surfaces and separate the gold grains from adherent bodies.
When the heavy sand ore concentrate of free gold grains with clear surfaces is treated, we usually use light-duty amalgamation cylinder with extremely small quantity of steel balls. . When processing the heavy sand ore concentrate with high adherent body content and serious gold grain surface contamination, we usually use heavy duty amalgamation cylinder, for which 1-2 kg of steel balls need to be loaded for 1kg of heavy sand ore concentrate. . The loading quantity of concentrate and steel balls of amalgamation cylinder is related to material grain size and gold content.
During non-alkaline medium amalgamation, heavy sand ore concentrate may produce magnetic mercury amalgam due to the interfusion of Fe substances. . Hence, internal amalgamation is usually operated in alkaline mediums. The quantity of lime is 2%-4% of loading capacity, and water quantity is usually 30%-40% of loading capacity; alternatively, the usual grinding concentration can also be used.
Parameter list
amalgam separator Technical Specification
Type | Inner Size | OreLoading (kg)
| Speed (r/min)
| Power (kw)
| Ball Weight (kg)
| Ball Dia (mm)
| |||
Dia | Length (mm) | Volumn (m3) | |||||||
Light Type | 420 | 600 | about 0.3 | 50-90 | 20-22 | 0.75-1.5 | 10-20 | 38-50 | |
Heavy Type | 0-31 | 600 | 800 | 0.233 | 100-150 | 22-38 | 0.3-2.1 | 150-300 | 38-50 |
0-3b | 750 | 900 | 0.395 | 200-300 | 21-36 | 1.7-3.75 | 300-600 | 38-50 | |
800 | 1200 | 0.60 | 300-450 | 20-33 | 3-6 | 500-1000 | 38-50 | ||
*Notes: The model is named according to the diameter. Diameter*Thickness*Width+20mm.
detail imagins
Amalgamation barrel advantages:
1. low price, fast pay back
2. high efficient,
3. Easy operation
Related production
mercury distiller related machines:

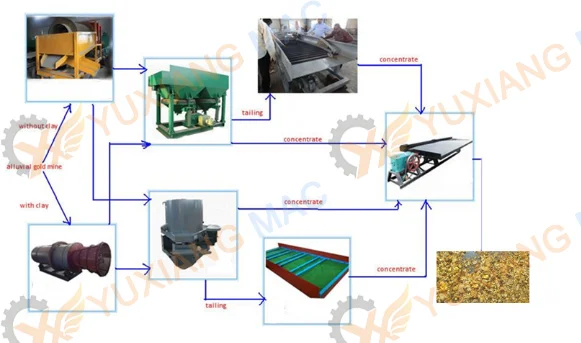

A complete production line for gold washing processing is available
Related Products
 | Jaw crusher During gold washing processing,it is a pre-mill processing,the jaw plate is a special alloy material,which can press the ore into smaller particles,in this way to save the wet pan mill wearing.
|

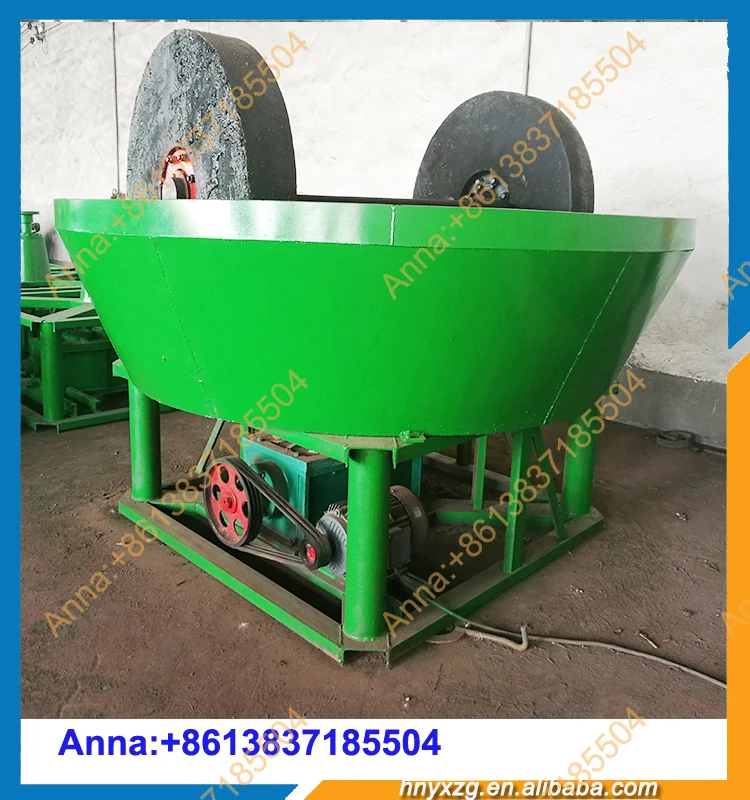

Wet pan mill Wet pan mill/Round gold grinding machine is the best equipment to replace ball mill. because it have small investment, high output, low production cost, good efficiency and easy installation. And the machine is the ideal beneficiation equipment for small and medium-sized enterprise.
|  |
| Mercury distiller mercury distiller is widely used in small gold mining plant for evaporation the Hg from the Hg+ gold mixture, and refining the pure gold.
|
Our Services
Company Information
GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
