Центробежное концентрационное оборудование серии STLB для золотой пыли концентратор добычи золота
- Категории: Минеральный сепаратор >>>
- Поставщик: Jiangxi,Hengchang,Mining,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

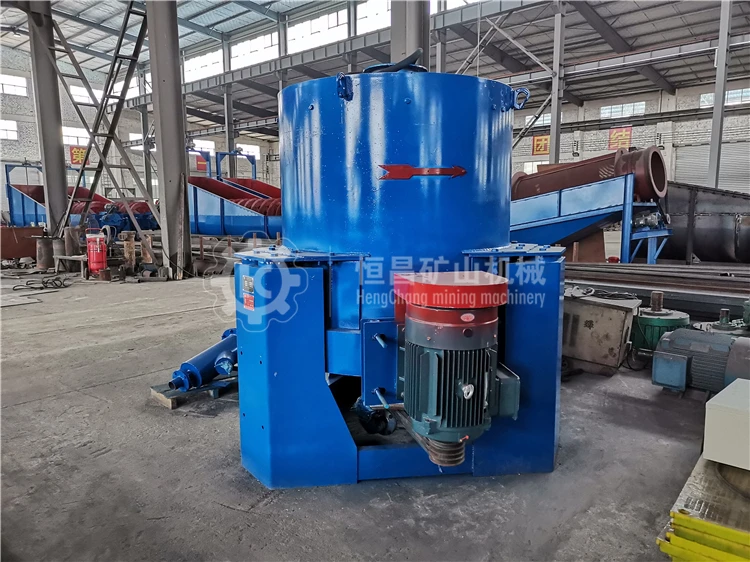

STLB Series Gold Dust Centrifugal Concentrating Equipment, Falcon Gold Mining Concentrator
Hengchang machinery Gold Mining Concentrator can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Gold Mining Concentrator Introduction:
Gold Mining Concentrator also called knelson concentrator and centrifugal concentrator is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.
Gold Mining Concentrator of Working Principle:

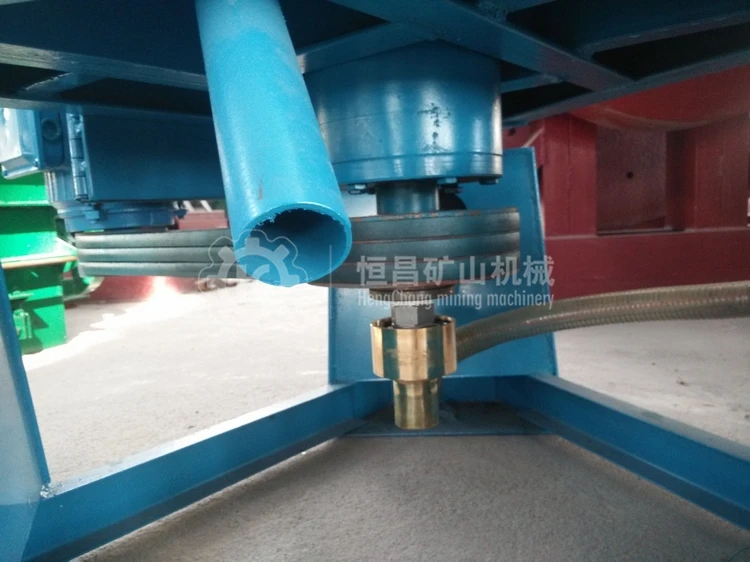

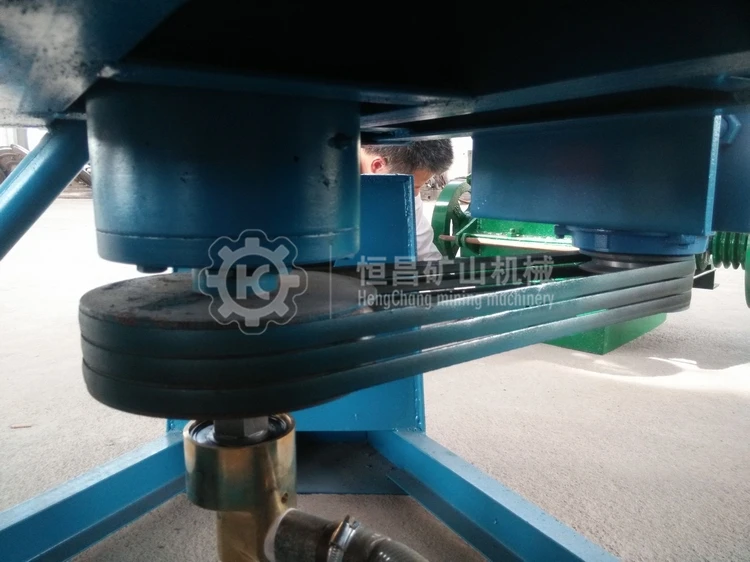

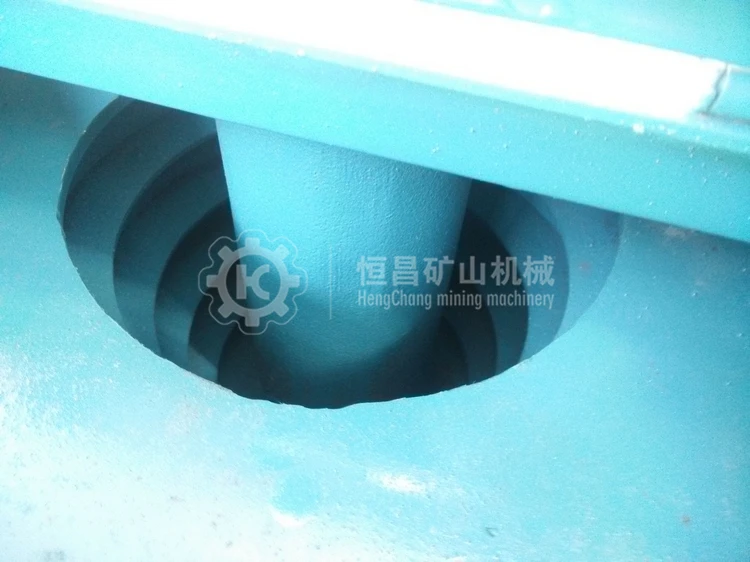

The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Gold Mining Concentrator Applications:
It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Gold Mining Concentrator also called knelson concentrator and centrifugal concentrator is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.
Gold Mining Concentrator of Working Principle:
The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Gold Mining Concentrator Applications:
It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Model | STL-30 | STL-60 | STL-80 | STL-100 |
Capacity (t/h) | 2-3 | 10-20 | 35-45 | 60-120 |
Feeding size (mm) | 0-4 | 0-6 | 0-6 | 0-6 |
Feeding density (%) | 0-50% | 0-50% | 0-50% | 0-50% |
Backwash water (t/h) | 4-6 | 10-15 | 17-25 | 40-60 |
Output(kg/time) | 10-20 | 30-40 | 60-70 | 70-80 |
Motor power(kw) | 1.5 | 5.5 | 11 | 18.5 |
Revolution ® | 600 | 460 | 400 | 360 |
Pressure water(Mpa) | 0.12 | 0.25 | 0.35 | 0.4 |
Dimension(mm) | 1180x1140x1250 | 1970x1670x1750 | 2300x1800x2200 | 2500x2000x2400 |
Weight (kg) | 400 | 1300 | 2000 | 2500 |
