Промышленный программируемый образовательный Универсальный Робот работающий вместе с рукой

Описание и отзывы

Характеристики



Need other robotic arms, provide working scenes, and consult customer service.

Model	HK5404
Working radius	540mm
Number of axis	3 Axis/4 Axis
Installation	floor
N.W.	13kg
Repeat Positioning Accuracy	±0.05mm
Maximum load	1kg
Power Consume	0.4KVA
Power supply	Input:Single phase 110V-240V  50Hz    Output:DC 24V(400W)
Voltage rating	220V
External communication	WIFI/Ethernet

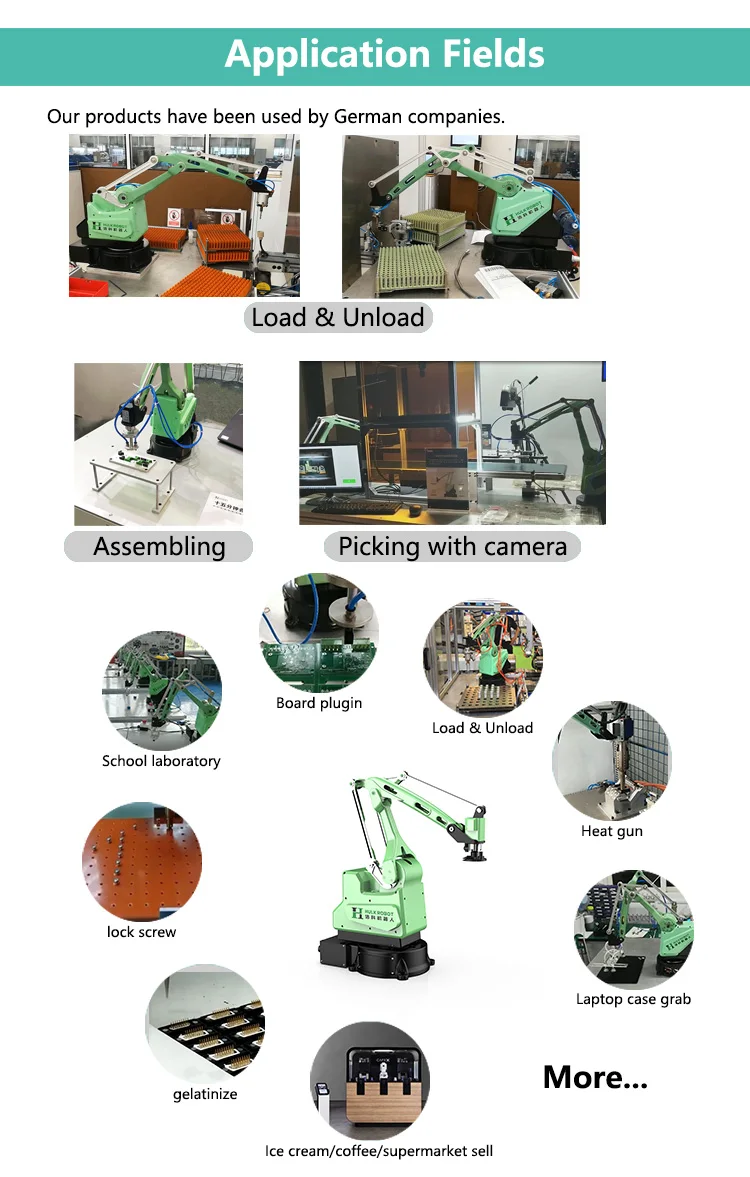

Application	Picking, Loading, Casting, Polishing Etc
Safety standard	ISO 9001-2015
Control software	Hulkbot Studio
Drive System	Steper motor
Working condition	-10°C~60°C
I/O	Input 5/Output 5



Axis	Working Range	Max Speed
Axis 1	±160°	360°/s
Axis 2	-42°~85°	360°/s
Axis 3	-20°~100°	360°/s
Axis 4	±165°	500°/s







Q1: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.



Q2: How long is your lead time?
A: Normally, it is about 15 working days. If we have robots in stock, we can send out immediately.



Q3: Can your robots work with vision system?
A: Yes. Our robots can work very well with vision system.



Q4: Can you provide a technical document?
A: Yes. we do. And it’s in English.



Q5: Which language does your system support?
A: The user interface is in English.



Q6: How to solve the problems when using the product?
A: We provide free online support, if not solved, will return to the factory for maintenance.
