Product Description
5000tpd cement production line by Jiangsu Pengfei Group
Jiangsu Pengfei Group is one of the laregest cement equipments manufactuer in China with 1000 workers, 500,000 square meter machining workshop and more than 50 years experience in cement industry. Our group has been equipments supplier to FLSmidth and Polysius for more than 3 years. And we have got certificates from ISO, CE and etc. And our factory is one hour to Nantong Port by car. Based on these advantages, our products were sold to more than 50 countries, such as Germany, America, Australia, Russia, Brazil, Egypt, Bangladesh, Turkey, Pakistan, Myanmar, Vietnam, Colombia, Bolivia, Middle East, Tailand etc.and major market share in China.
Contact information
Ms Wang Yanyan
Cel:0086 13606277932
Weichat:pf88758898
What's App:0086 13606277932
Skype:pengfeiwyy

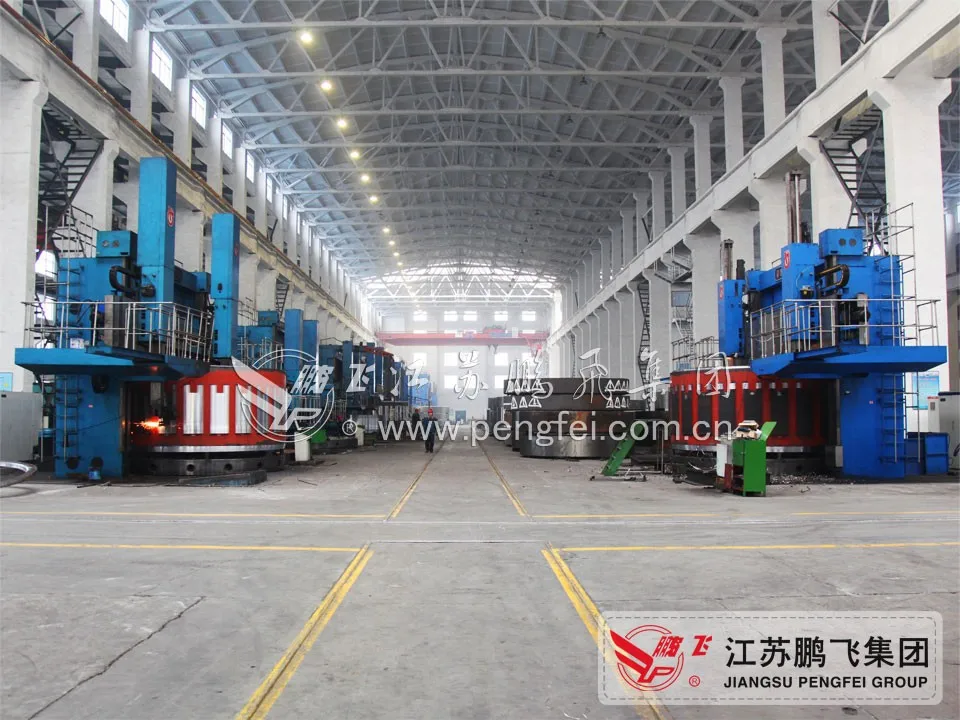

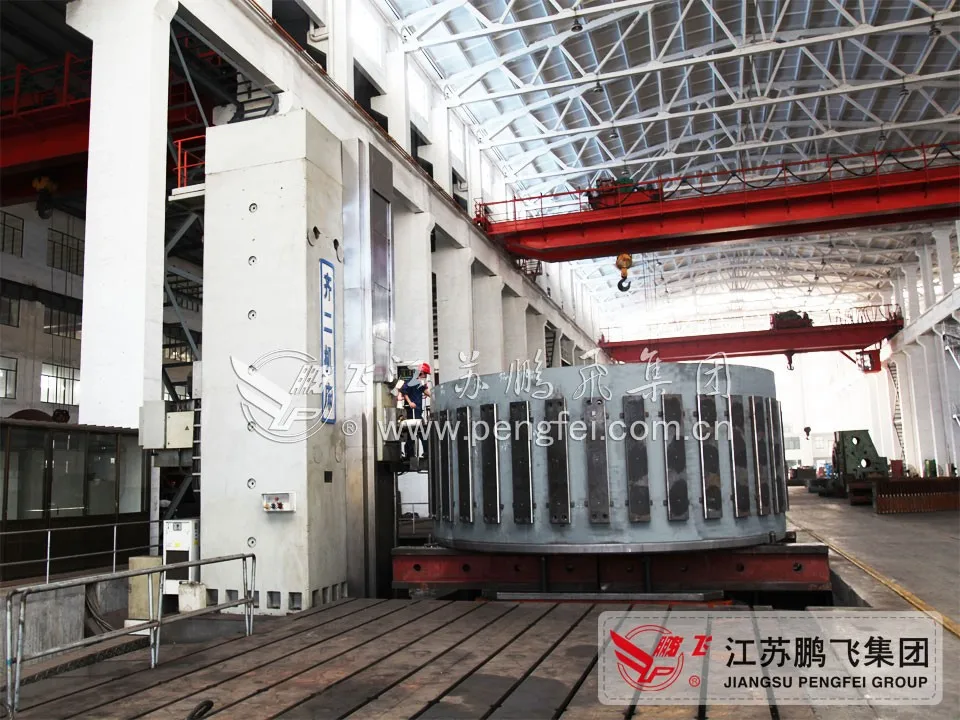

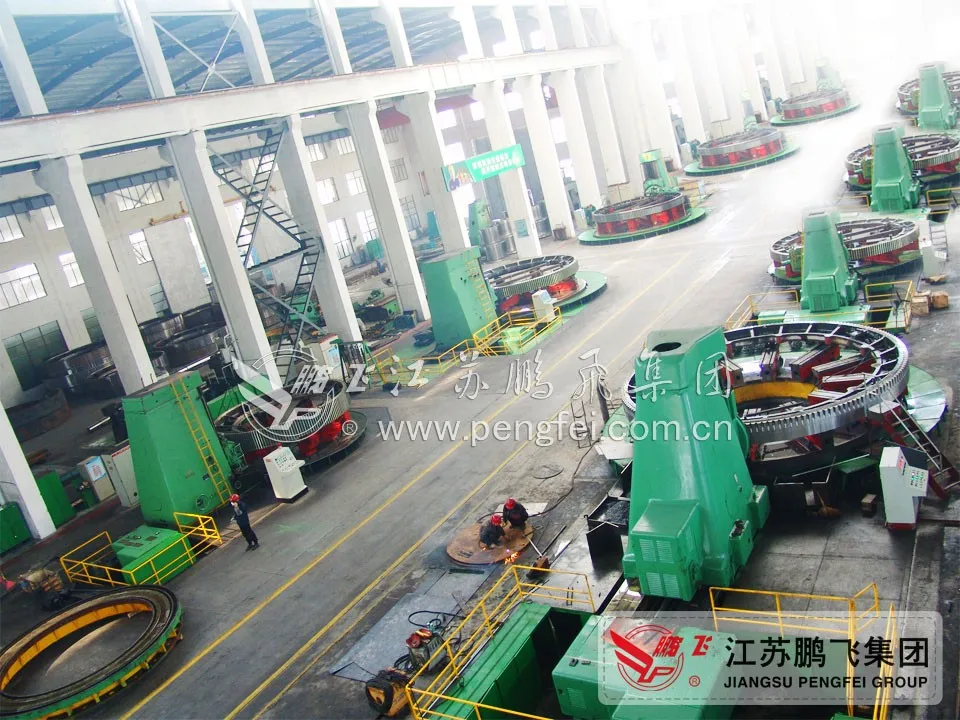

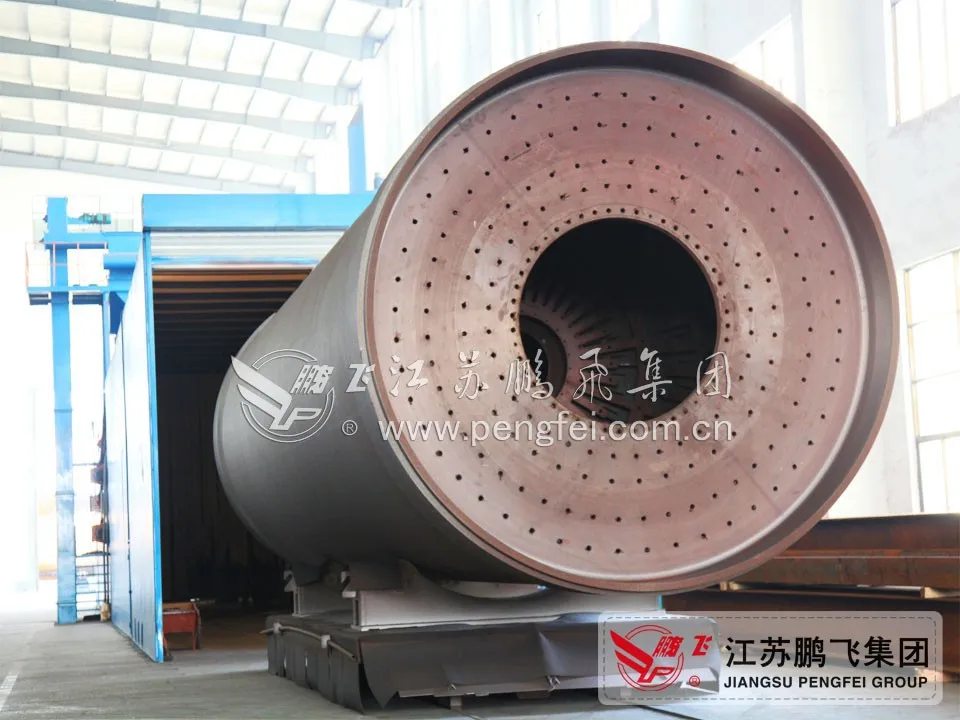

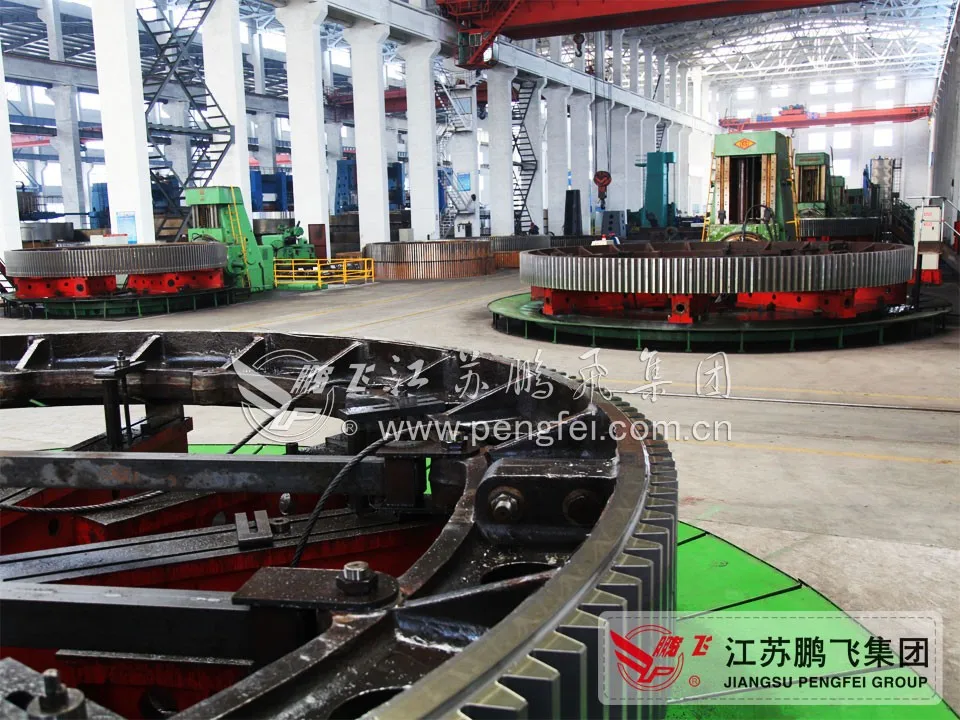

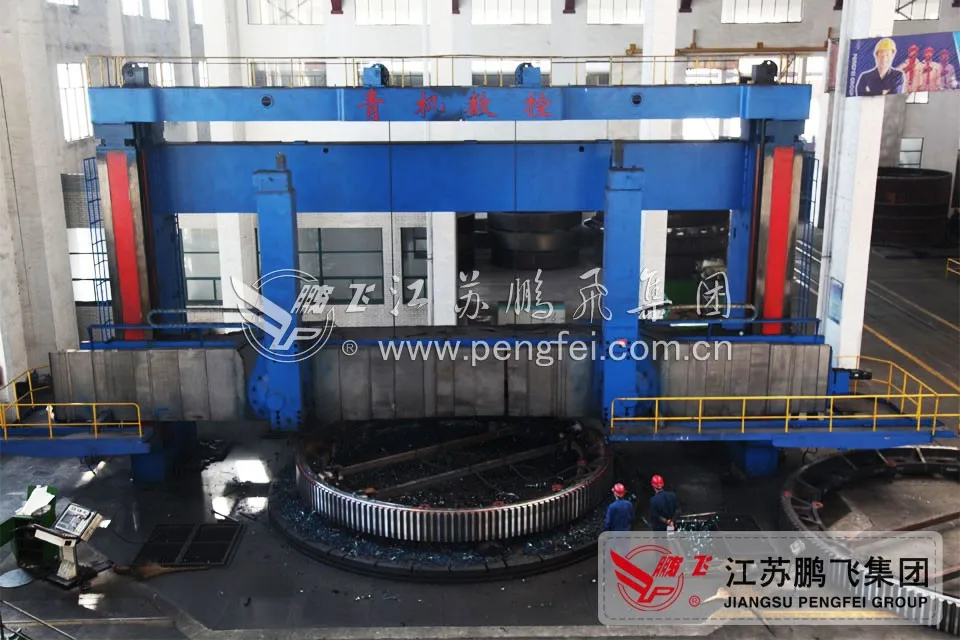

Following is some views of our factory
WORKSHOP VIEW
Main equipments:
No. | Departments |
Equipment
| Specification | Q’ty | Daily Running Hours (h) | Shifts | Hour/Year |
1 | Limestone crushing | Hammer crusher | 1200 t/h Feed size: 1200x1200x1200mm grain size: less than 75 mm(90%) | 1 | 5.32 | 6×16 | 1649 |
2 | Clay crushing | Double Rotor toothed crushing | 400 t/h Feed size:400mm grain size: less than 70 mm(90%) | 1 | 2.98 | 6x16 | 924 |
3 | Limestone preblending | Stacker | 1500 t/h | 1 | 5.32 | 6×16 | 1649 |
Reclaimer | 600 t/h | 1 | 10.6 | 7×24 | 3298 | ||
4 | Corrective preblending | Stacker | 500 t/h | 1 | 3.77 | 5×8 | 1226 |
Reclaimer | 300 t/h | 1 | 6.29 | 7×24 | 1951 | ||
5 | Coal/Additive preblending | Stacker | 400t/h | 1 | 2.86 | 5×8 | 887 |
Reclaimer | 250 t/h | 1 | 4.58 | 7×24 | 1420 | ||
6 | Raw grinding | Vertical roller mill | 400 t/h Fineness of product: 0.090mm Residue ≤10% Moisture of product: ≤1.0% | 1 | 19.25 | 7×24 | 5966 |
7 | Clinker burning system | Preheater | Double string, five-stage cyclone C1: 4-Φ4700 mm C2: 2-Φ6800 mm C3: 2-Φ6800 mm C4: 2-Φ6800 mm C5: 2-Φ6800 mm | 1 | 24 | 7×24 | 7920 |
Calciner | TTF without gooseneck Dia7.6m x 45.8m | ||||||
Rotary kiln
| Φ4.8×72m 5000 t/d | ||||||
4th Generation Cooler | Cooler 5000t/d(Max:5500t/d) TCFC5500 Grate Area:136.2 m2 Clinker temperature of outlet: 65°C+ambient | ||||||
8 | Coal grinding | Vertical roller mill | 40 t/h Fineness of product: 0.090 mm Residue ≤10%, Moisture of product: ≤1% | 1 | 14.8 | 7×24 | 4591 |
9 | Cement grinding | Roller Mill | 2x175 t/h Fineness of product (Blaine): 3600cm2/g | 1 | 18.9 | 7×24 | 5859 |
10 | Cement packing | 8-spout rotary packer | 120t/h German HB packer with auto bag feeder (RADIMAT), auto bag destroyer and Check weigher | 2 |
| 7×16 |
|
11 | Bagged cement truck loading | Cement truck loader | 120 t/h | 4 |
| 7×16 |
|
12 | Bulk cement truck loading | Cement truck loader | 250 t/h | 8 |
|
|
