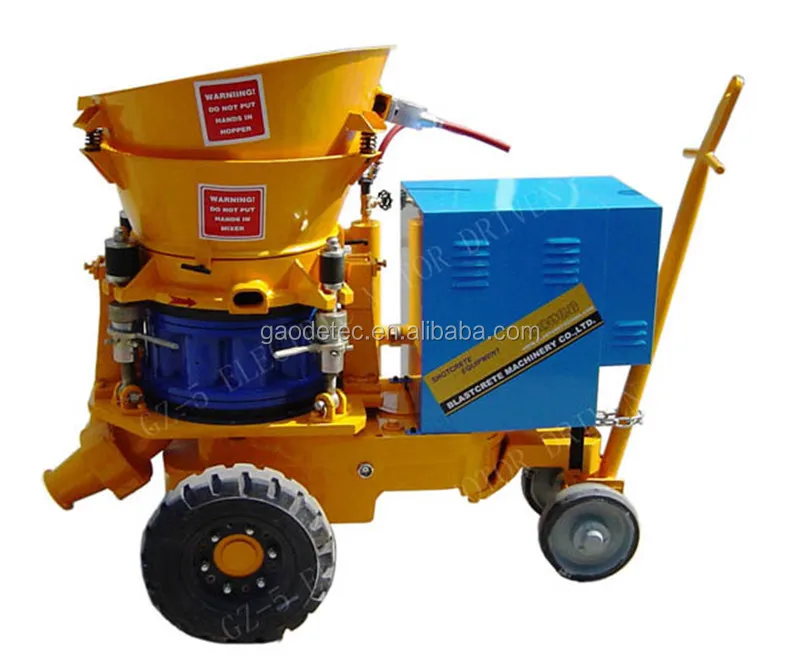

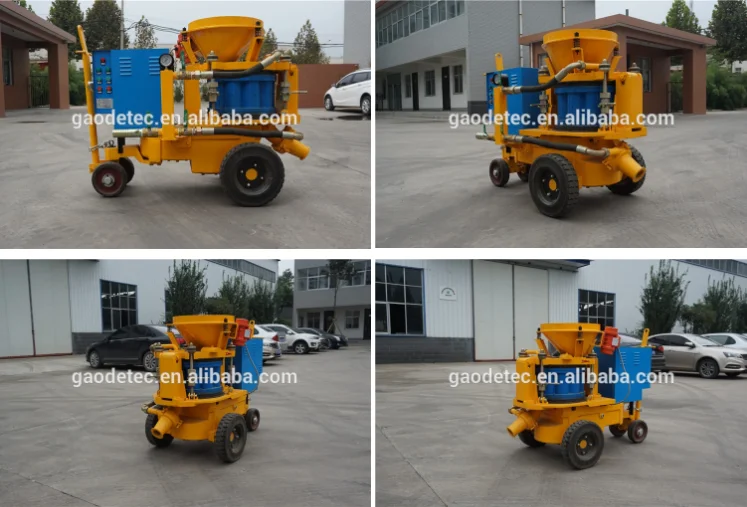

GZ-9E Output 9m3/h Electric Motor Shotcrete Machine for sale
Product Description
GZ-9 concrete spraying machine for sale is large-sized shotcrete machine for the spraying process.
GZ-9 concrete spraying machine for sale can be used for large-section tunnel building, mine, etc
GZ-9 concrete spraying machine for sale is available in following versions:
Basic: electric drive can be combined with tyre chassis.

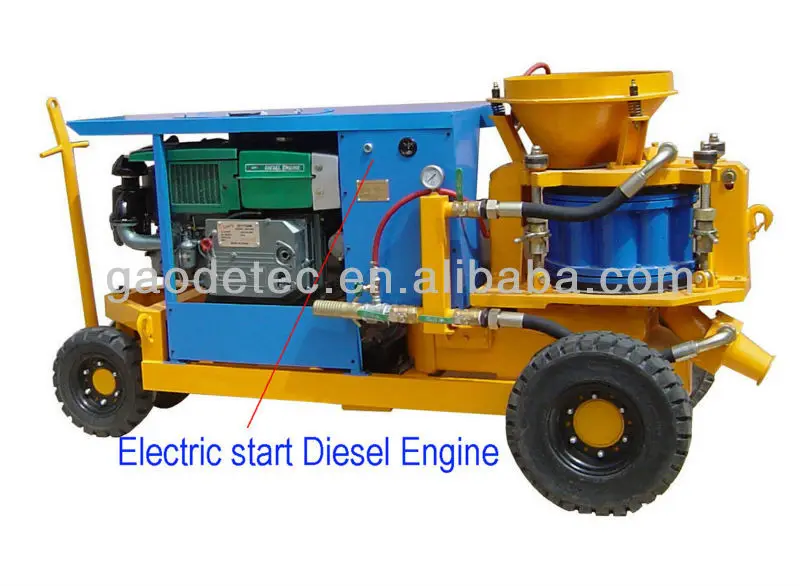

Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
GZ-9E concrete spraying machine advantages:
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
Technical data
Electric drive:
Output Capacity | 9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Electric Motor | 7.5kW,Y132M-4,IP55 |
Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
Net Weight | 900kg |

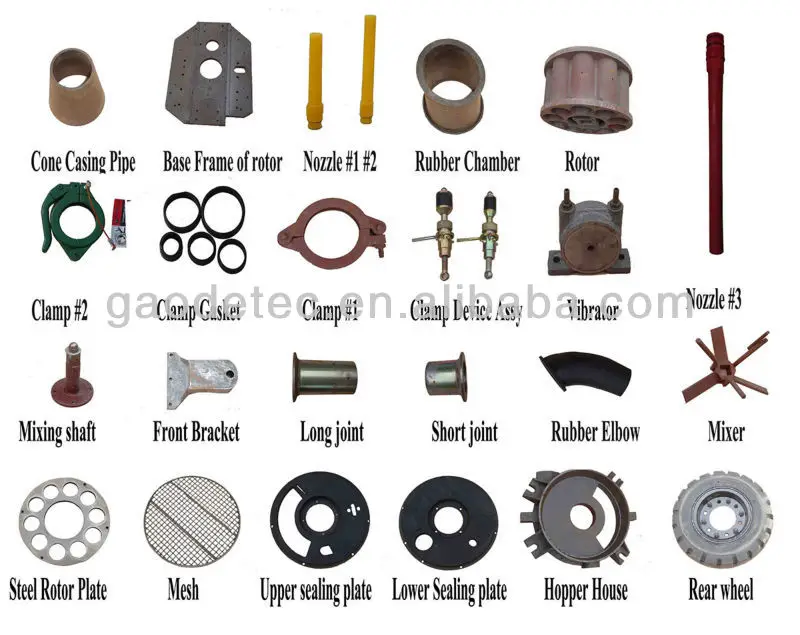

Accessories
Related Products
Packaging & Shipping

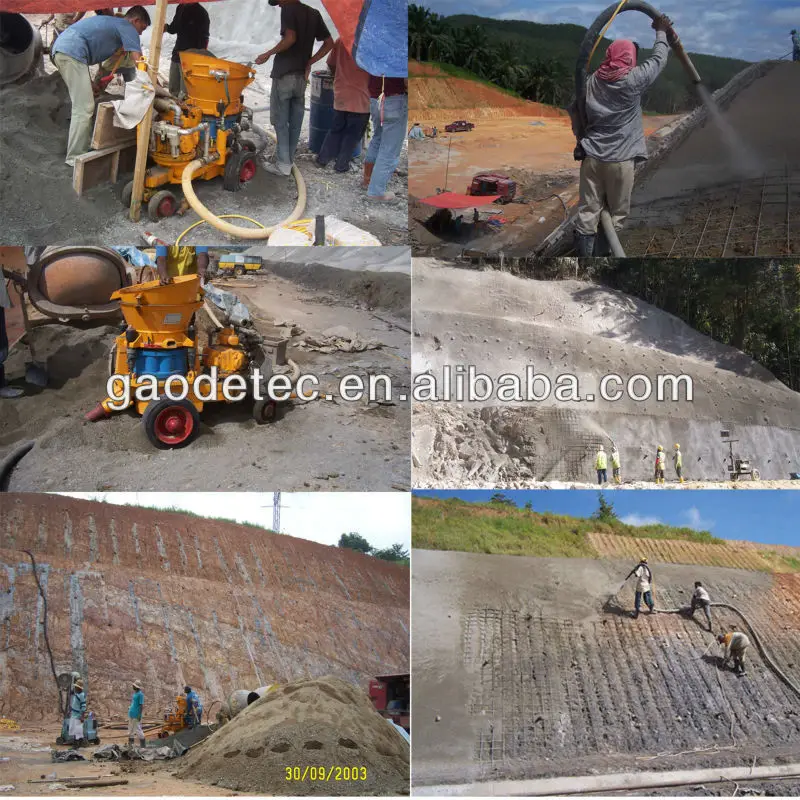

Application
1. Tunnel building.
2. Mining operations.
3. Hydropower projects.
4. Hill side projects.
5. Swimming Pool.
6. Concrete repair.
7. Soil retention and retaining walls.
8. Underground excavation engineering etc.
