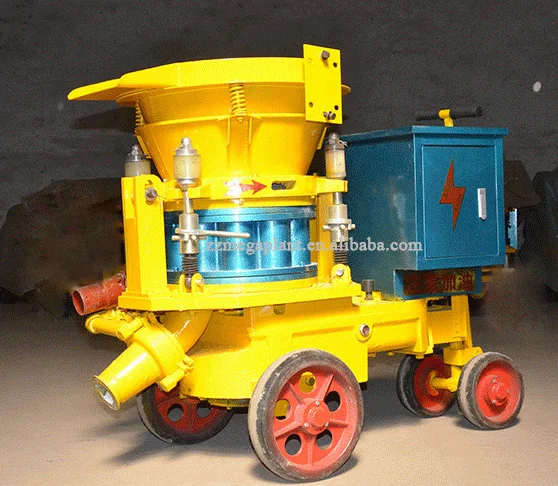

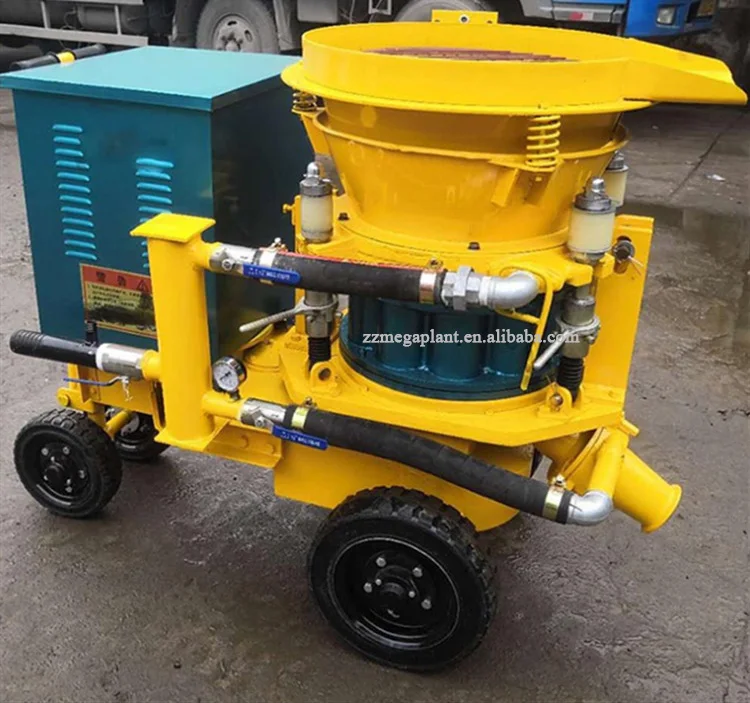

Concrete cement shotcrete machine
Instruction of Concrete cement shotcrete machine
Shotcrete machine widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, high marsh mines and roadways sprayed concrete construction operations; various wall reinforcement sprayed fine stone concrete.
Parameter of Concrete cement shotcrete machine
Model | MGPZ-5 | MGPZ-6 |
Capacity | 5.5m³/h | 6m³/h |
Transmission distance | 200m | 200m |
Water-cement ratio | <0.4 | <0.4 |
Aggregate diameter | 20 | 20 |
Inside diameter of delivering pipe | 51 | 51 |
Working pressure | 0.2-0.4Mpa | 0.2-0.4Mpa |
Air consumption | 7-8m³/min | 7-8m³/min |
Power | 5.5kw | 5.5kw |
Voltage | 380v/660v | 380v/660v |
Dimension | 1520*820*1280mm | 1520*820*1280mm |
Weight | 500kg | 500kg |
Model | MGPZ-6F | MGPZ-7 |
Capacity | 6-6.6m³/h | 7.5m³/h |
Transmission distance | 200m | 200m |
Water-cement ratio | <0.4 | <0.4 |
Aggregate diameter | 20 | 20 |
Inside diameter of delivering pipe | 51 | 51/64 |
Working pressure | 0.2-0.4Mpa | 0.6-0.8Mpa |
Air consumption | 7-8m³/min | 8-9m³/min |
Power | 7.5kw | 7.5kw |
Voltage | 380v/660v | 380v/660v |
Dimension | 1520*820*1280mm | 1830*1118*1288mm |
Weight | 600kg | 800kg |

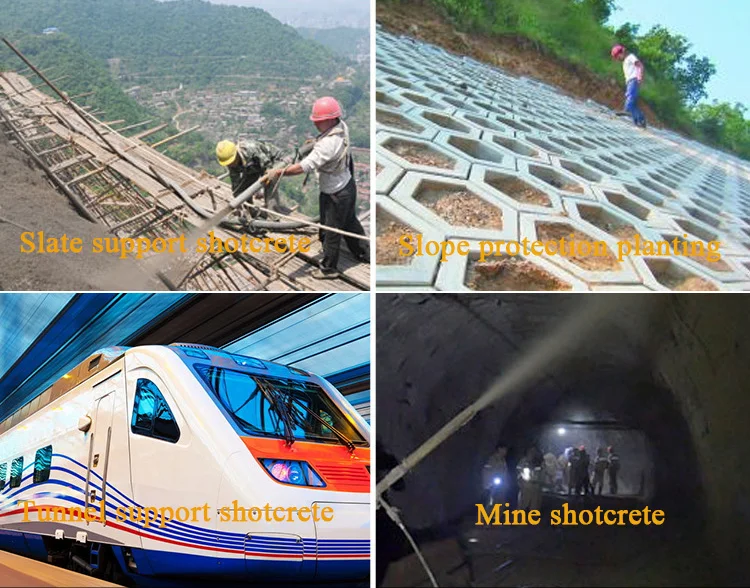

Use of real life display for Concrete cement shotcrete machine
