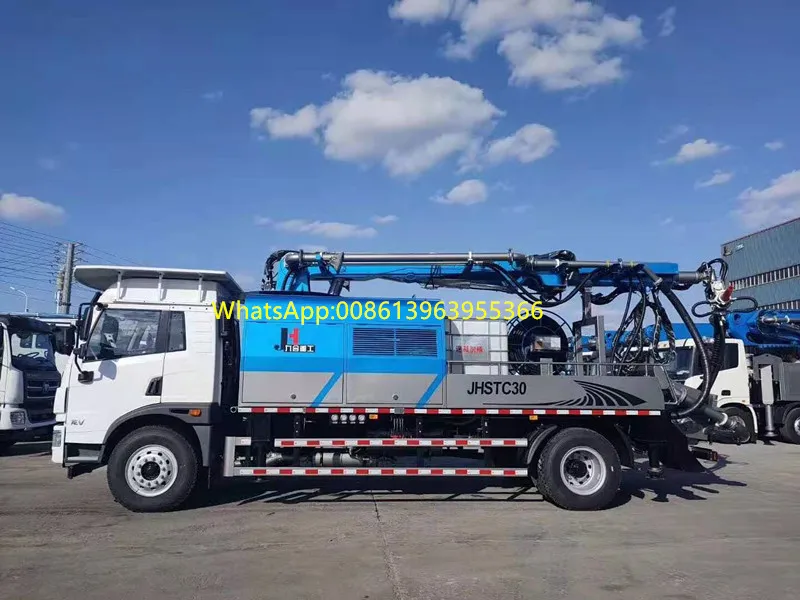

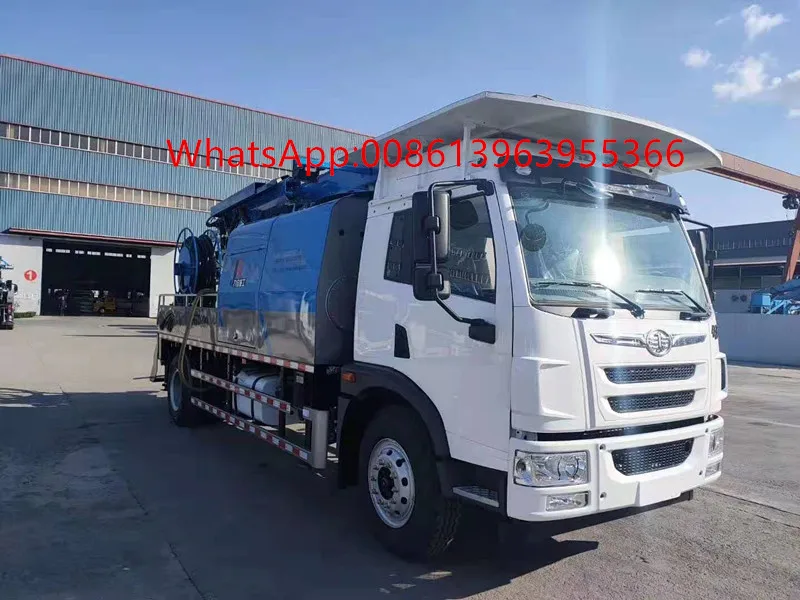

Shotcrete Machine Brief introduction

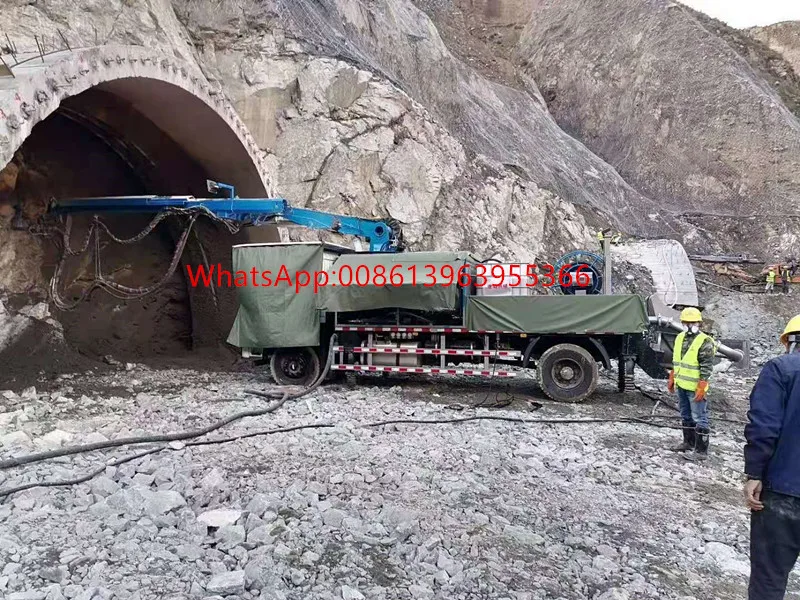

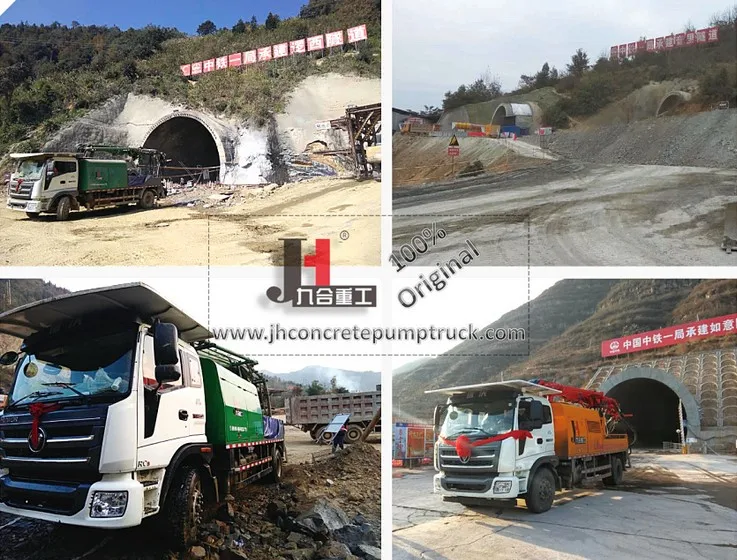

As a new generation JIUHE produced engineering chassis wet shotcrete machine, which is researched and developed after synthesizing wet shotcrete machine technology domestic and oversea, solving spraying deficiency that traditional small shotcrete machine cannot meet concrete spraying need in long and big tunnel, vastly improving the working environment for workers inside tunnel, increasing working efficiency, reducing concrete consumption, truly ensuring working quality, double power working system, lower carbon emission, Suiting environmental protection concept. JIUHE engineering chassis wet shotcrete machine is best choice for tunnel construction like water conservancy and hydropower, railway, highway and so on.









Concrete Spraying MachineTechnical data



1.whole machine data
Model	JHSTC30
total length	7800mm
total width	2480mm
total height	3240mm
rated weight	20T

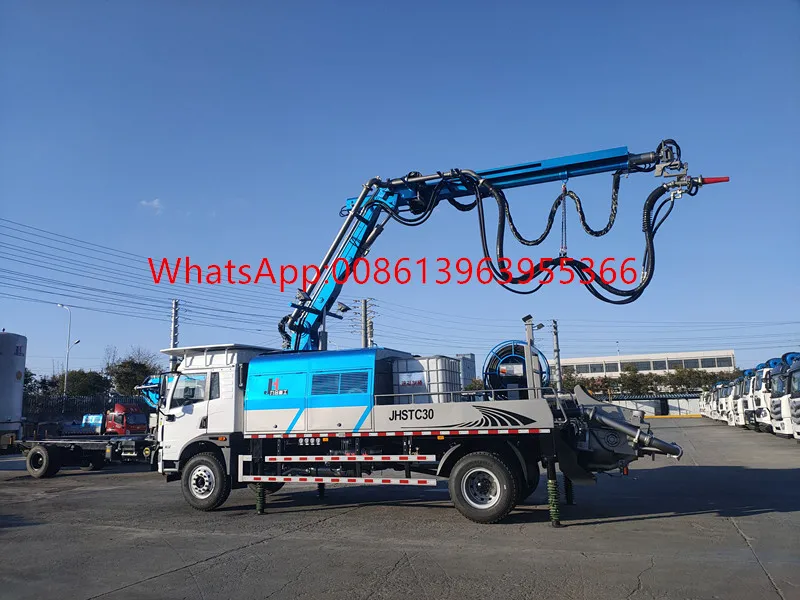

2. Boom & support legs data
spraying height	16m
big boom pitching angle	-30°~+60°
mid boom pitching angle (compare with big boom)	-120°~+30°
small boom rotation angle	-60°~+180°
Rear boom Stretch length	2000mm
turret rotation angle	-5°~+290°
3. pumping system data
driving mode	Motor
Motor rated power	75kw
Motor working voltage	380V
concrete delivery capacity	30m³/h
hydraulic system	Open
delivery pipe dia.	Φ125~φ80mm reducing
spray nozzle dia.	Φ50mm
