Top quality Concrete shotcrete machine for sale
Product Description
Yugong PZs rotor type shotcrete machine is a kind of concrete spraying machine which use the air power or diesel power to spray the concrete or cement to the surface of some project; for make a protecting coat for the projects.

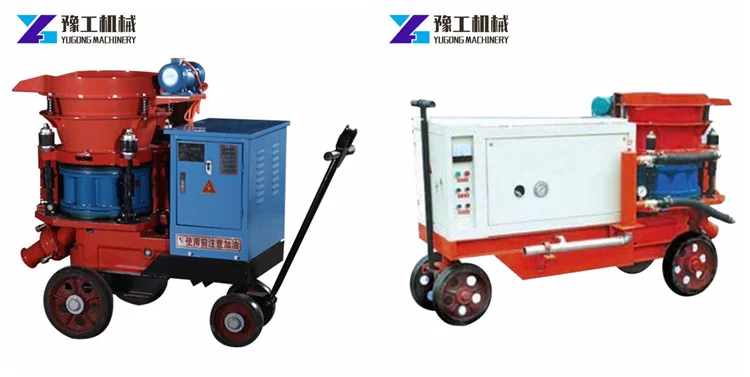

Dry type Wet type
Technical parameter
Dry shotcrete machine
Model | PZ-3 | PZ-5 | PZ-7 |
Capacity (cubic m/h) | 3 | 6 | 7 |
Rotor diameter (mm) | 350 | 440 | 480 |
Max conveying distance | 200m | 200m | 200m |
Max Aggregate (mm) | 20 | 20 | 20 |
Air Consumption | 3-4m3/min | 6-8m3/min | 7-8m3/min |
Air Pressure (mpa) | 0.4-0.6 | 0.4-0.6 | 0.6-0.8 |
Motor Power(kw) | 3 | 5.5 | 7.5 |
Dimension (mm) | 1040*550*950
| 1300*705*1300
| 1600*750*1200
|
Weight (kg) | 260 | 600 | 700 |
Wet shotcrete machine
Model | HSP-5 | HSP-7 |
Capacity (cubic m/h) | 5 | 7 |
Max Aggregate (mm) | 15 | 15 |
Max conveying distance | 30m(Horizontal) 20m (Vertical) | 30m(Horizontal) 20m (Vertical) |
Max Aggregate (mm) | 15 | 15 |
Air Consumption | 7-10m3/min | 7-10m3/min |
Air Pressure (mpa) | 0.2-0.6 | 0.2-0.6 |
Motor Power(kw) | 5.5 | 7.5 |
Weight (kg) | 700 | 800 |
Dimension(mm) | 1280*700*1280 | 200*800*1300 |

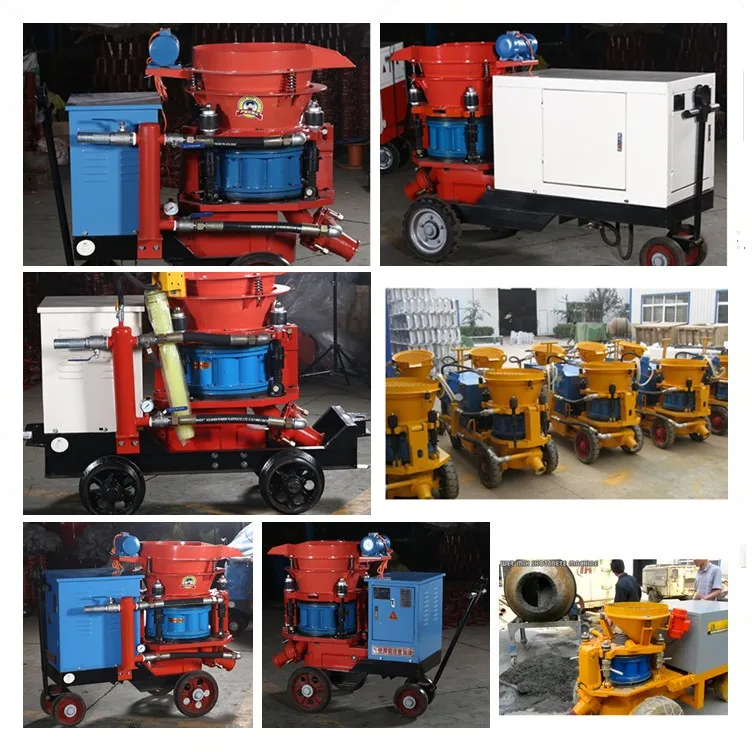

Product Overviews

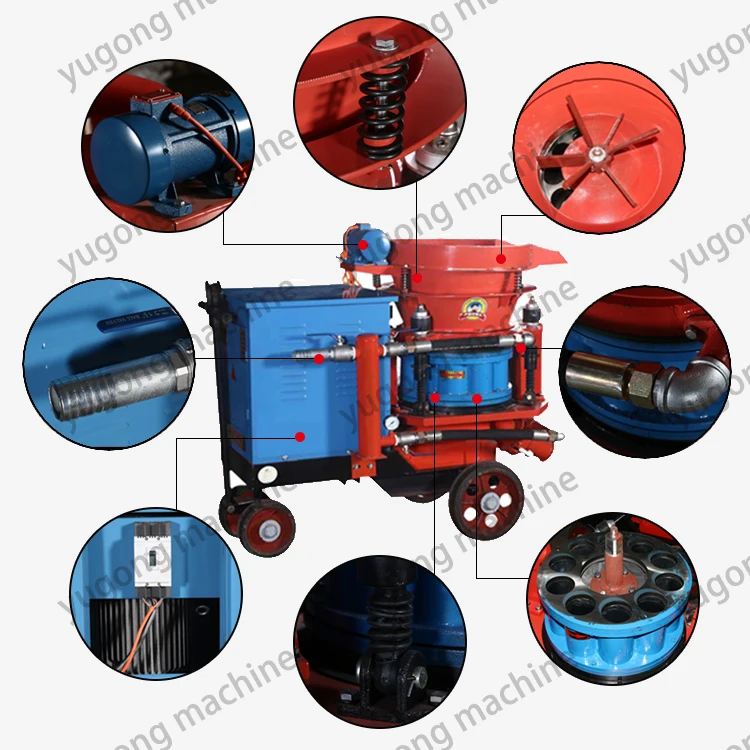

Brief structure

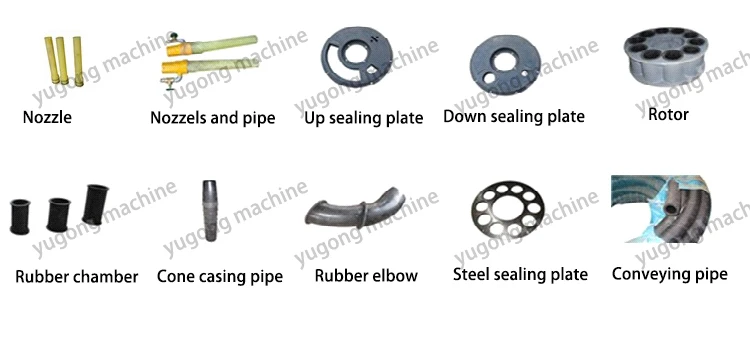

Spare parts

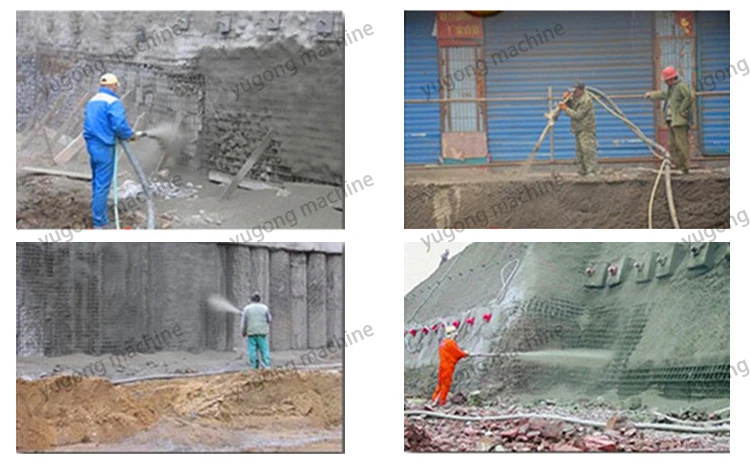

Working show
Packaging & Shipping
FAQ
Q1: How long is your delivery time?
A2: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
Q2: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
