Product Description


concrete spray machine shotcrete


What called shotcrete machine?
Wet spraying machine is a comprehensive anchor support tool for reducing dust concentration, reducing rebound and saving materials.
The wet spraying machine is a device used for wet spraying concrete. It is to mix the aggregate, cement and water uniformly according to the design ratio, and press the wet spraying machine to the spray head, and then add the quick-setting agent to the spray head and spray.


Model
KSP-7
KSP-9
Capacity
5~7m³/h
7~9m³/h
Conveying distance
35m(wet)/120m(dry)
30m(wet)/100m(dry)
Max. aggregate size
20mm
20mm
Concrete slump
8~15cm
8~15cm
Conveying Pipe ID.
57mm
57mm
Rebound rate
≤10%(on average )
≤10%(on average )
Rated working pressure
0.3-0.6Mpa
0.3-0.6Mpa
Air consumption
9-10m³/min
10m³/min
Motor power
7.5kw
7.5kw
Max. Pump discharge of accelerator
35-200L/h
35-200L/h
Voltage rating of accelerator
0.6Mpa
0.6Mpa
Voltage
380V/660V
380V/660V
Dimension
2050*950*1180(mm)
2100*900*1200(mm)
Weight
1200kg
1200kg


Features of wet spraying machine:
The special vibrating hopper makes the material transported into the feed chamber, and the reasonable four-point compression method improves the sealing effect, and the wear of wearing parts is small. The use of new type elbows Make the feeding port smoother, use the hose-type metering pump to add the accelerator, make the addition of the accelerator more reliable, pure wind transportation, low pressure work can add various fiber spray operations, low dust, less rebound, concrete strength high.   


  • Advantages:

  Concrete mixture gets well mixed. Water and cement ratio is accurately controlled.
  Quicker cement hydration, fewer dusts, lower rebound rate, good mixing uniformity and high concrete strength.
  Reasonable structure, stable performance, convenient operation and maintenance, long service life.


The difference between the dry spray machine and the wet spray machine:
The dry type is that the material is dry, you can add a little water to avoid so much dust, but you can not add too much moisture, the nozzle needs to add water, and it can convey up to 200 meters , Can also be more than 200 meters, but the effect is different. The wet feeding is already mixed with viscosity, this conveying is only 20 meters, the spray should accelerate the coagulant. The above are all transported by wind pressure, and sprayed onto the work surface through the pipeline, and the minimum wind pressure is 13 cubic meters.

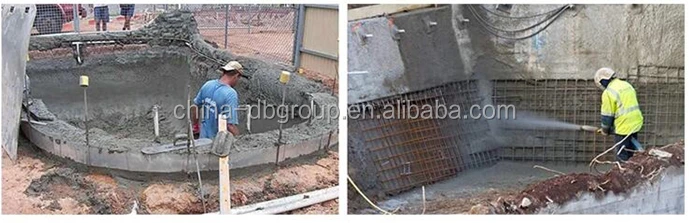

Application range of wet spraying machine:
Wet spraying machine is generally used in underground mining operations, also known as mine wet spraying machine. In fact, the wet spraying machine has a wide range of uses. In addition to being used in mining areas, it can also be used for daily care and soil improvement such as irrigation, fertilization, spraying of pesticides. In addition, the wet spraying machine is also suitable for greening and spraying in areas where plants are difficult to grow, such as rocks, hard soil, sandy soil, barren land, acid soil, arid zone, coastal dams, etc., used for highway slope greening, high-speed railway Projects such as edge greening, mine greening, ecological restoration, desert management, etc.

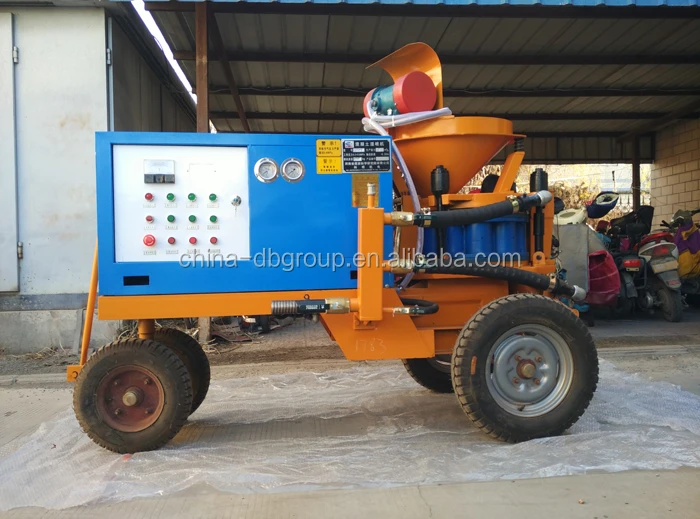

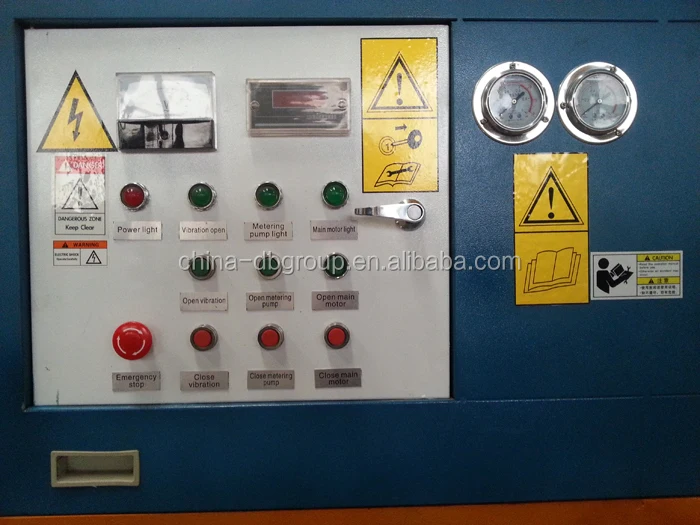

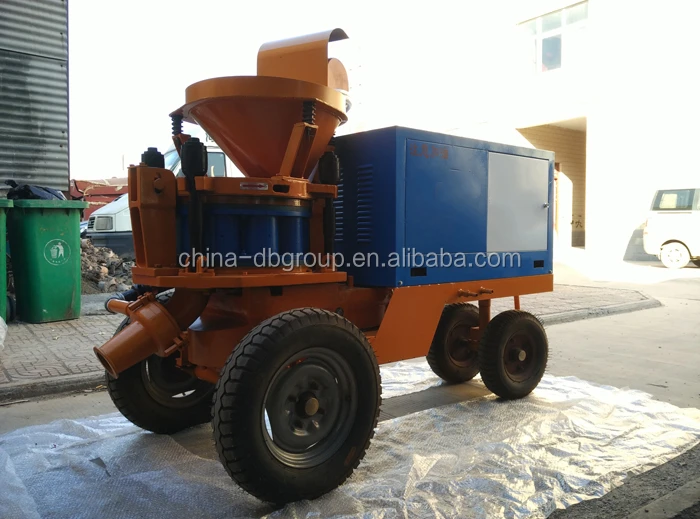

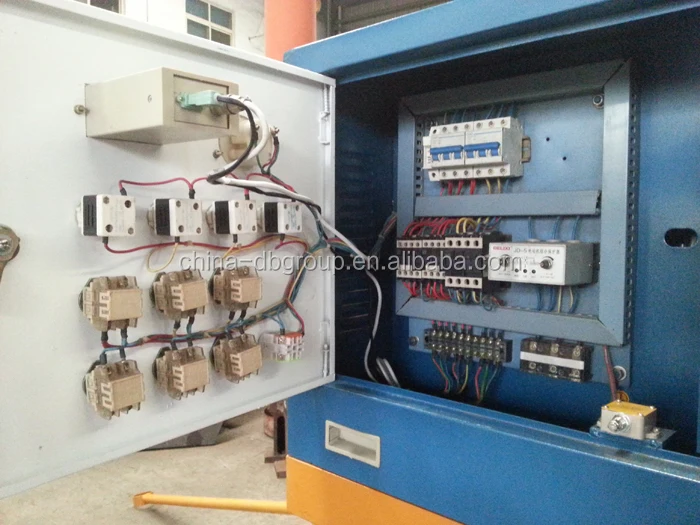

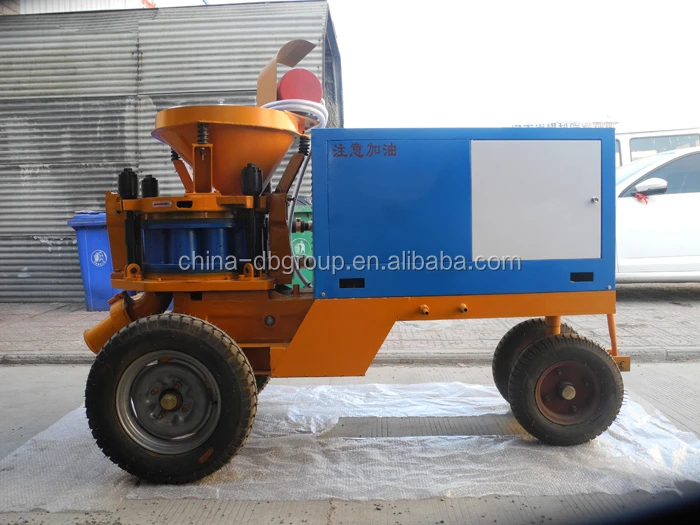

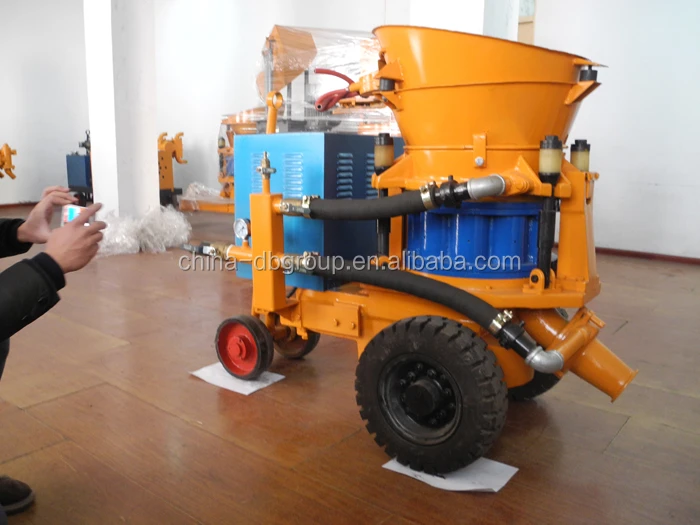

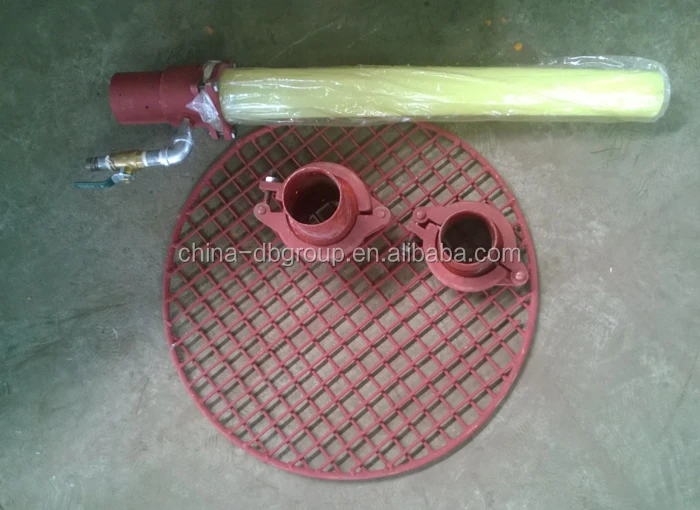

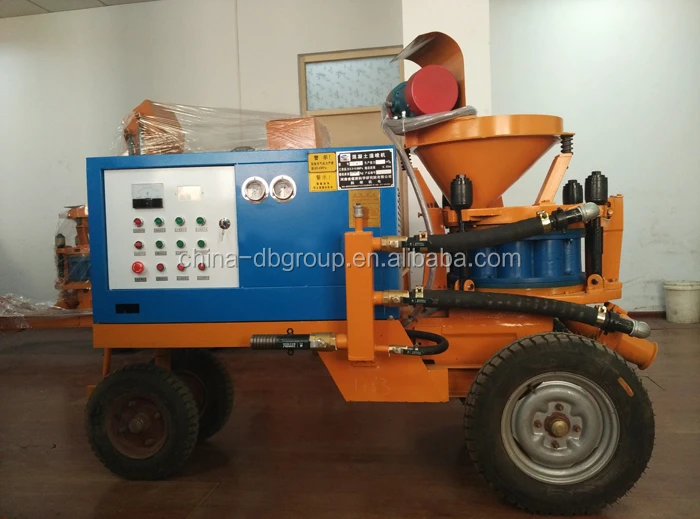

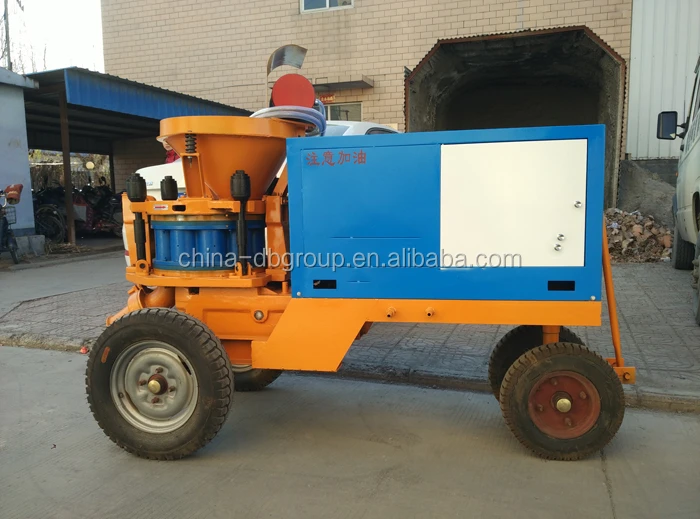

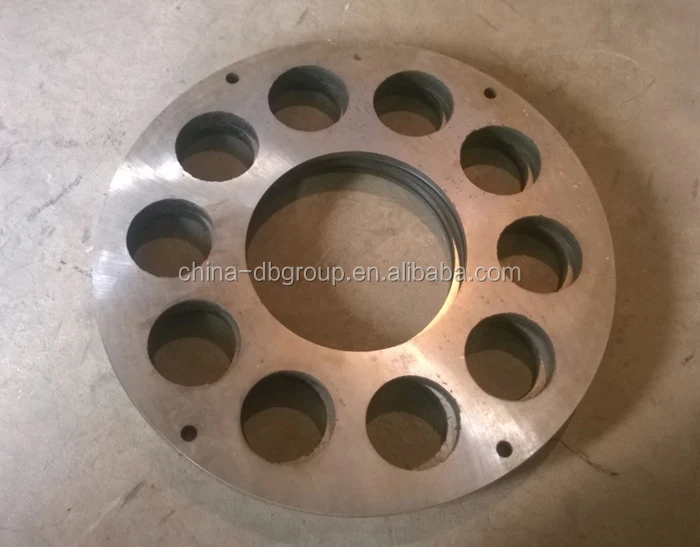

Detailed Images






Recommend products:

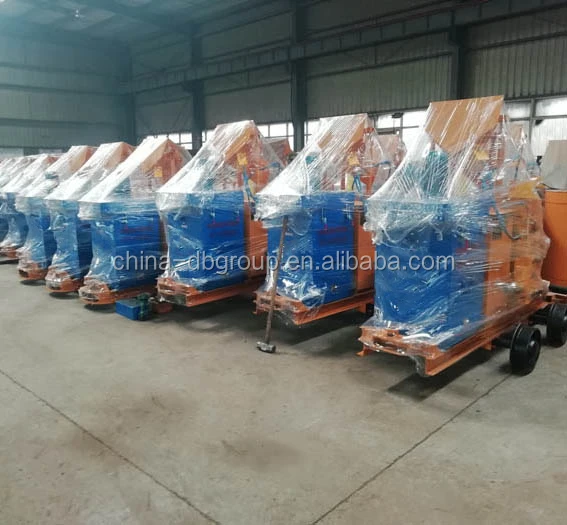

Packing&Shipping


Package:  Packed in wooden cases.
Shipping: 7-10 days after the order confirmed.




After Sales Service
