Комплект разработчика NVIDIA Jetson Ксавье NX Малый суперкомпьютер с искусственным интеллектом для вычисления краев охлаждающим вентилятором и источником


Поделиться:

Цена:1 258,00 $ - 1 260,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики









DESCRIPTION





NVIDIA Jetson Xavier NX Developer Kit, Small AI Supercomputer For Embedded And Edge Systems

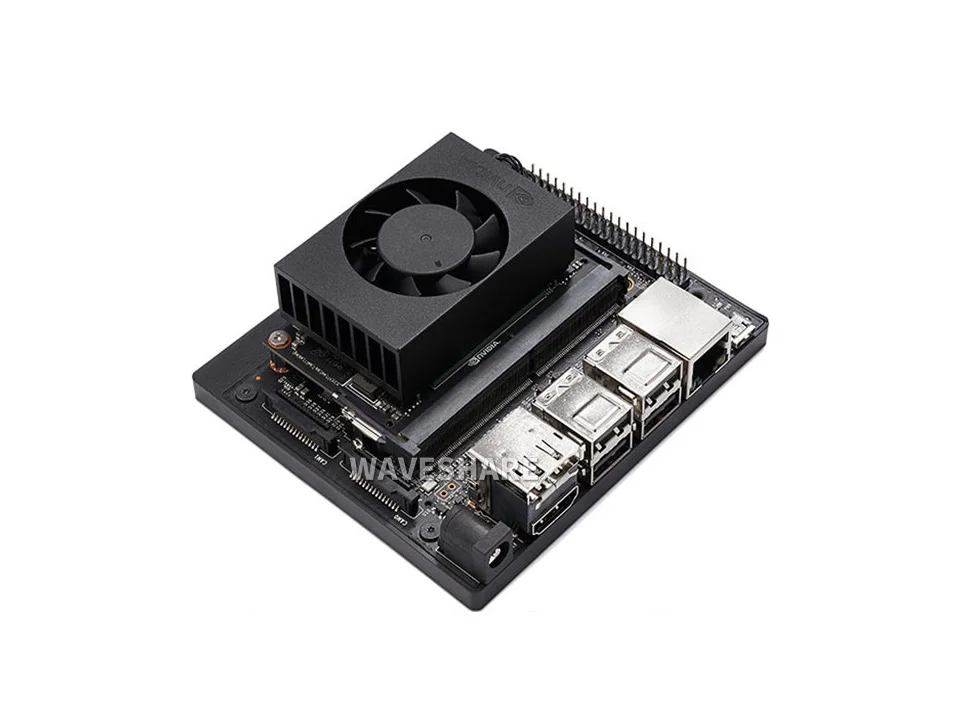

Jetson Xavier NX Developer Kit

Brings Supercomputer Performance To The Edge In A Small Form Factor SOM



NVIDIA Jetson Xavier NX Developer Kit brings supercomputer performance to the edge in a small form factor system-on-module (SOM). Up to 21 TOPS of accelerated computing delivers the horsepower to run modern neural networks in parallel and process data from multiple high-resolution sensors—a requirement for full AI systems. Jetson Xavier NX Developer Kit is production-ready and supports all popular AI frameworks.



Compact, Powerful Performance At The Edge

At 70 mm x 45 mm, Jetson Xavier NX packs the power of the NVIDIA Xavier SoC into a module the size of a Jetson Nano. This compact module combines exceptional performance and power advantage with a rich set of IOs—from high-speed CSI and PCIe to low-speed I2Cs and GPIOs. Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.


PERFORMANCE: POWERFUL 21 TOPS AI PERFORMANCE

Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 51GB/s of memory bandwidth, video encoded, and decode, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.


POWER: INCREDIBLE POWER EFFICIENCY

Jetson Xavier NX supports multiple power modes, including low-power modes for battery-operated systems, and delivers up to 14 TOPs for AI applications in as little as 10 W. This leaves more of your power budget for sensors and peripherals, while still letting you use the entire NVIDIA software stack. You now have the performance to run all modern AI networks and frameworks with accelerated libraries for deep learning, computer vision, computer graphics, multimedia, and more.


SIZE: XAVIER PERFORMANCE. NANO SIZE.


What's On Board



Ideal For Critical Embedded Applications

Jetson Xavier NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.




Specifications






































































GPUNVIDIA Volta architecture
with 384 NVIDIA CUDA cores and 48 Tensor cores
CPU6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6 MB L2 + 4 MB L3
MEMORY8 GB 128-bit LPDDR4x 51.2GB/s
STORAGEmicroSD (Card not included)
POWER10W | 15W
PCIE1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*
CAMERA2x MIPI CSI-2 D-PHY lanes
VIDEO ENCODE2x 4Kp30 | 6x 1080p 60 | 14x 1080p30 (H.265/H.264)
VIDEO DECODE2x 4Kp60 | 4x 4Kp30 | 12x 1080p60 | 32x 1080p30 (H.265)
2x 4Kp30 | 6x 1080p60 |16x 1080p30 (H.264)
DISPLAYHD-MI and DP
DLA2x NVDLA Engines
VISION ACCELERATOR7-Way VLIW Vision Processor
CONNECTIVITYGigabit Ethernet, M.2 Key E (WiFi/BT included), M.2 Key M (NVMe)
USB4x USB 3.1, USB 2.0 Micro-B
OTHERSGPIO, I2C, I2S, SPI, UART
MECHANICAL103 mm x 90.5 mm x 34 mm



Resources & Services

Wiki: www.waveshare.com/wiki/Jetson_Xavier_NX


Selection Guide


































JETSON NANOJETSON TX2JETSON XAVIER NXJETSON AGX XAVIER
NVIDIA Maxwell architecture
128 NVIDIA CUDA cores
NVIDIA Pascal architecture
256 NVIDIA CUDA cores
NVIDIA Volta architecture
384 NVIDIA CUDA cores
48 Tensor cores
NVIDIA Volta architecture
512 NVIDIA CUDA cores
64 Tensor cores
MODULE

69.6×45mm
260-pin edge connector

87×50mm
400-pin connector
with Thermal Transfer Plate

69.5×45mm
260-pin edge connector

100×87mm
699-pin connector
Integrated Thermal Transfer Plate
DEVELOPER KIT

100×80×29mm

170×170×15.6mm

103×90.5×31mm

105×105×65mm



NVIDIA Official Partner

As An NVIDIA Official Authorized Partner, Waveshare Is Capable Of Providing Genuine Products And Reliable Tech Support













PACKAGE CONTENT


Weight: 0.768 kg




  1. Jetson Xavier NX Developer Kit
