Specification
Compute Module 3+ lite (CM3+/lite), Raspberry Pi 3 Model B+ In A Flexible Form Factor, With 8GB EMMC Flash | ||||||||
Overview
The CM3+/lite Compute Module contains the guts of a Raspberry Pi 3 Model B+ (the BCM2837 processor and 1GB RAM) as well as an 8GB
eMMC Flash device (which is the equivalent of the SD card in the Pi).
This is all integrated onto a small (67.6mm × 31mm) board that fits into a standard DDR2 SODIMM connector. The Flash memory is
connected directly to the processor on the board, but the remaining processor interfaces are available to the user via the
connector pins. You get the full flexibility of the BCM2837 SoC (which means that many more GPIOs and interfaces are available
than with a standard Raspberry Pi), and designing the Module into a custom system should be relatively straightforward because the
Pi Foundation has put all the tricky bits onto the Module itself.
CM3+ Features
* Broadcom BCM2837B0 * Cortex-A53 (ARMv8) 64-bit SoC @ 1.2GHz
* 1GB RAM
* eMMC Flash * CM3+/Lite: None, but brings the SD card interface to the Module pins so a user can wire this up to an eMMC or SD
card
* CM3+/8GB: 8GB
* CM3+/16GB: 16GB
* CM3+/32GB: 32GB
* 200PIN SODIMM connector (35U hard gold plating I/O pins) * 48 x GPIO
* 2 x I2C
* 2 x SPI
* 2 x UART
* 2 x SD/SDIO (1x SD has been used for eMMC Flash on non-Lite variants)
* 1 x HDMI 1.3a
* 1 x USB2 HOST/OTG
* 1 x DPI (parallel RGB display)
* 1 x NAND(SMI)
* 1 x 4-lane CSI Camera Interface (up to 1Gbps per lane)
* 1 x 2-lane CSI Camera Interface (up to 1Gbps per lane)
* 1 x 4-lane DSI Display Interface (up to 1Gbps per lane)
* 1 x 2-lane DSI Display Interface (up to 1Gbps per lane)
* Compared to CM1, the CM3+ supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)
The CM3+/lite Compute Module contains the guts of a Raspberry Pi 3 Model B+ (the BCM2837 processor and 1GB RAM) as well as an 8GB
eMMC Flash device (which is the equivalent of the SD card in the Pi).
This is all integrated onto a small (67.6mm × 31mm) board that fits into a standard DDR2 SODIMM connector. The Flash memory is
connected directly to the processor on the board, but the remaining processor interfaces are available to the user via the
connector pins. You get the full flexibility of the BCM2837 SoC (which means that many more GPIOs and interfaces are available
than with a standard Raspberry Pi), and designing the Module into a custom system should be relatively straightforward because the
Pi Foundation has put all the tricky bits onto the Module itself.
CM3+ Features
* Broadcom BCM2837B0 * Cortex-A53 (ARMv8) 64-bit SoC @ 1.2GHz
* 1GB RAM
* eMMC Flash * CM3+/Lite: None, but brings the SD card interface to the Module pins so a user can wire this up to an eMMC or SD
card
* CM3+/8GB: 8GB
* CM3+/16GB: 16GB
* CM3+/32GB: 32GB
* 200PIN SODIMM connector (35U hard gold plating I/O pins) * 48 x GPIO
* 2 x I2C
* 2 x SPI
* 2 x UART
* 2 x SD/SDIO (1x SD has been used for eMMC Flash on non-Lite variants)
* 1 x HDMI 1.3a
* 1 x USB2 HOST/OTG
* 1 x DPI (parallel RGB display)
* 1 x NAND(SMI)
* 1 x 4-lane CSI Camera Interface (up to 1Gbps per lane)
* 1 x 2-lane CSI Camera Interface (up to 1Gbps per lane)
* 1 x 4-lane DSI Display Interface (up to 1Gbps per lane)
* 1 x 2-lane DSI Display Interface (up to 1Gbps per lane)
* Compared to CM1, the CM3+ supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)
Product Description

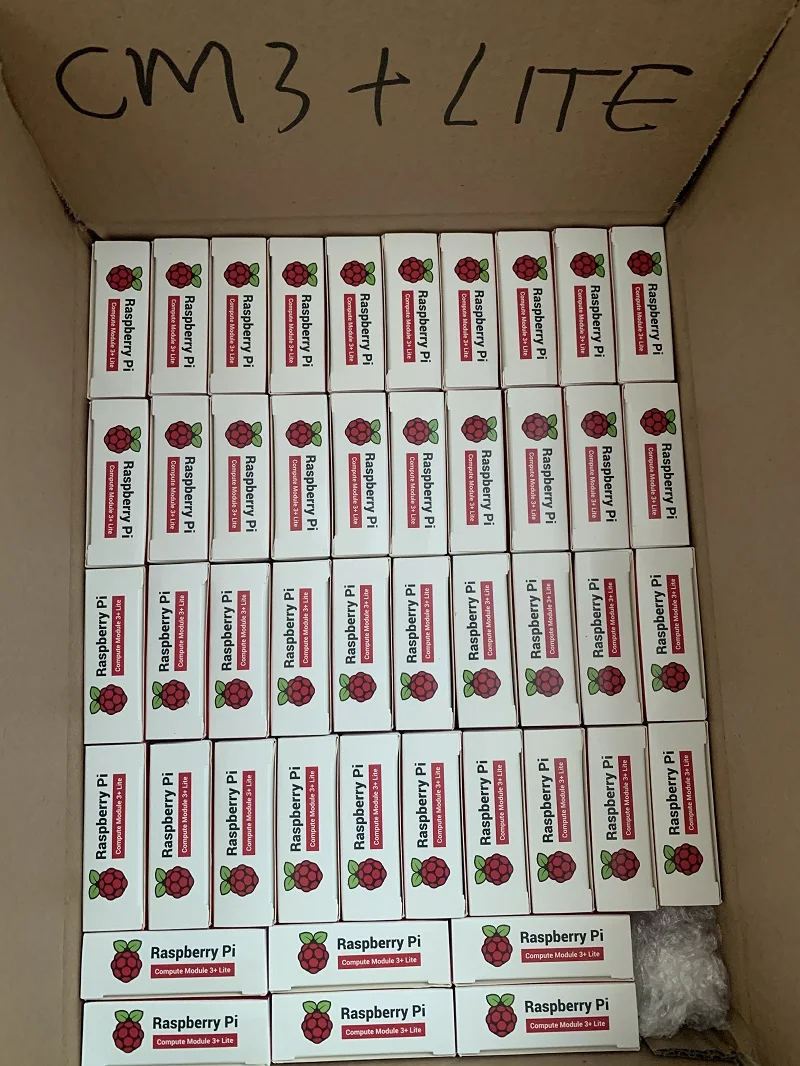

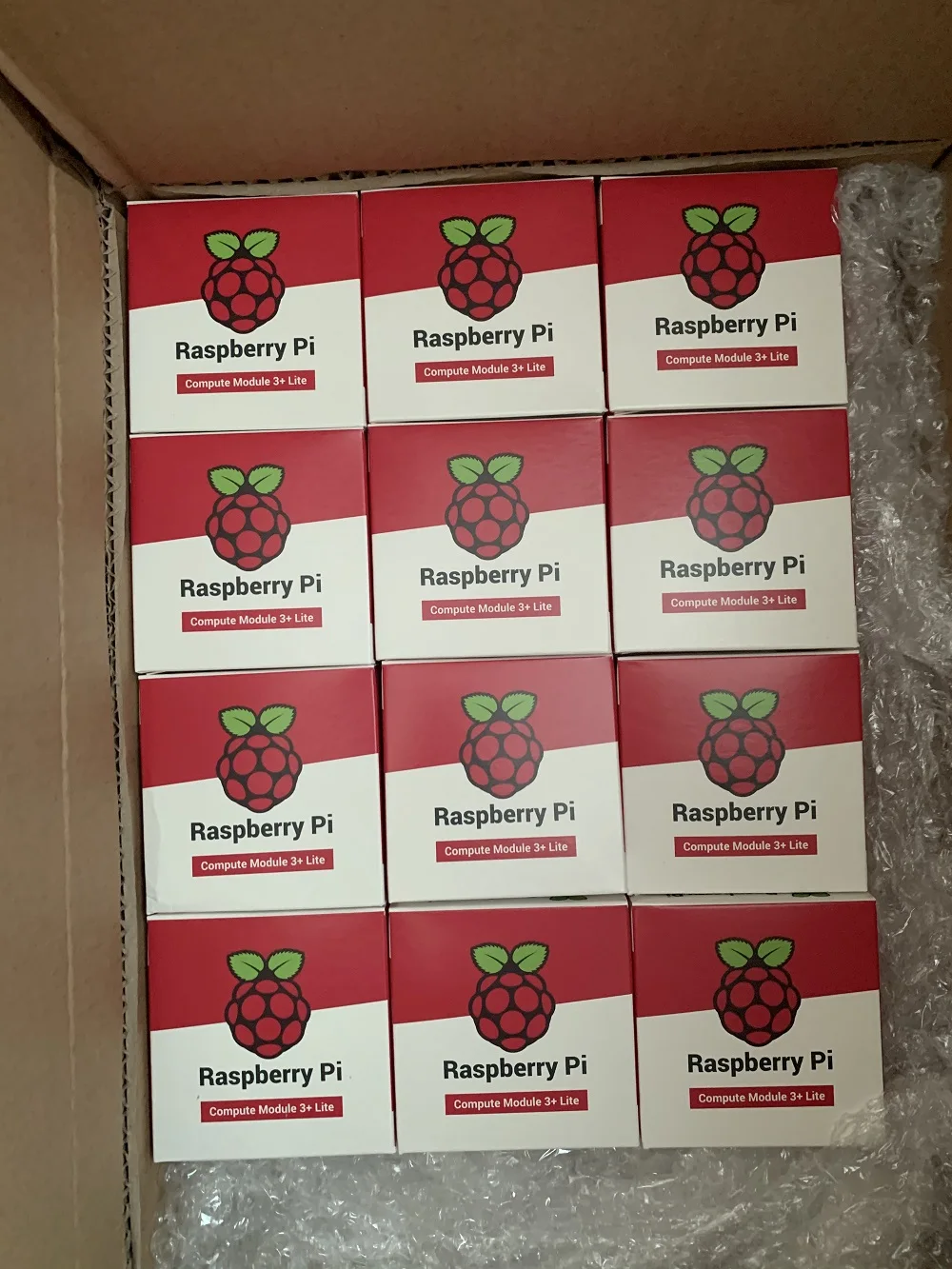

Packaging
Company Profile
FAQ
Q 1： Can I get free sample ?
A:：You can buy a sample , the sample fee will deduct by mass order .freight is needed.
A:：You can buy a sample , the sample fee will deduct by mass order .freight is needed.
Q 2： Are they all are original new ?
A ：Sure ,we only do with original parts.if not ,you can get full refune from us by Alibaba after you tested.
Q 3： why should you buy from us not from other suppliers?
1A：We can provide you competitive price ,quick reply ,best sevice and fast delivery.
Q 4：What is the shipping method?
A ： It could be by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.
Q 5： What is your payment term?
A ：T/T, Western Union, Cash, and Paypal. This is negotiable
Q 6： how can we guarantee quality?
A ：we always final inspection and test before shipment.
A ：Sure ,we only do with original parts.if not ,you can get full refune from us by Alibaba after you tested.
Q 3： why should you buy from us not from other suppliers?
1A：We can provide you competitive price ,quick reply ,best sevice and fast delivery.
Q 4：What is the shipping method?
A ： It could be by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.
Q 5： What is your payment term?
A ：T/T, Western Union, Cash, and Paypal. This is negotiable
Q 6： how can we guarantee quality?
A ：we always final inspection and test before shipment.
