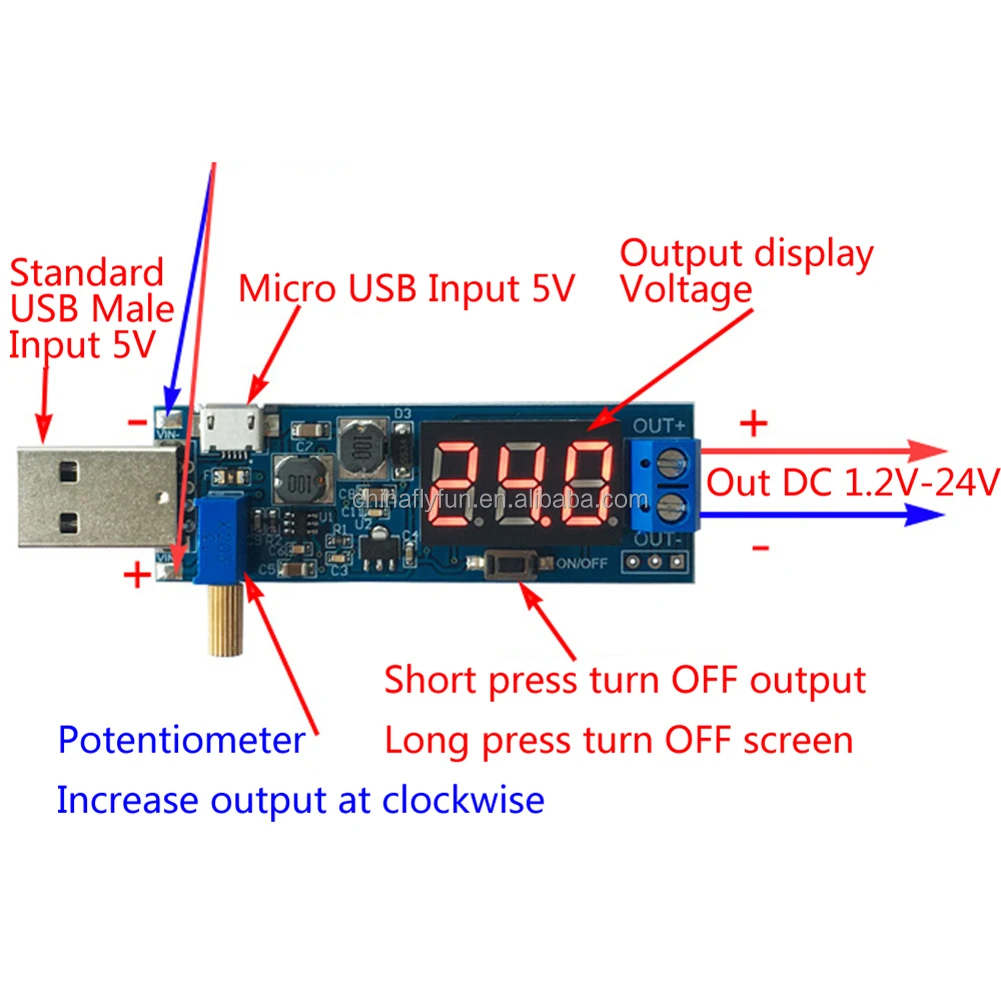

USB Step UP/Down Power Supply Module DC-DC 5V to 3.3V 9V 12V 24V Adjustable Out DC 1.2V-24V Boost Buck Converter

1.Description:

    USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.

2.Features:

    1.One button to turn off the output;
    2.Supply ON/OFF display screen;
    3.Support low power mode;
    4.Support sleep mode;
    5.Support both standard USB and Micro USB and pads input voltage;
    6.Potentiometer with rotating handle.

3.Parameters:

    1.Input voltage: DC 3.5-12V;
    2.Output voltage:DC 1.2-24V;
    3.Output power:
        Input 1.2-2V,output power within 2W;
        Input 2V-20V,output power within 3W;
        Input 20V-24V,output power with in 2.5W;
    4.Display:3Bit digital tube display;
    5.Size:80*20*14mm.

4.Use steps:

    1.Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’;
    2.Turn ON display screen;
    3.Adjust potentiometer to get the required voltage;
    4.Connect load.

5.Application:

    1.Ordinary power supply;
    2.Battery charger;
    3.LED drive power;
    4.Instrument voltage display;
    5.Test meter;
    6.Circuit test;
    7.Power conversion.

6.Please Note:

    1.It is not a high power supply, please use it within the power range.

7.Package:

    1pcs Boost Buck Converter
