2020 новый продукт цвет по индивидуальному заказу WSD-50/1200 вверх-оберег механические компенсации машина прессующая и формирующая листы для кровли с laimore системы
- Категории: Кромкогибочный пресс >>>
- Поставщик: Oha,Machinery,Industry,&,Trade,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
WSD up-action Mechanical Compensation Bending Machine

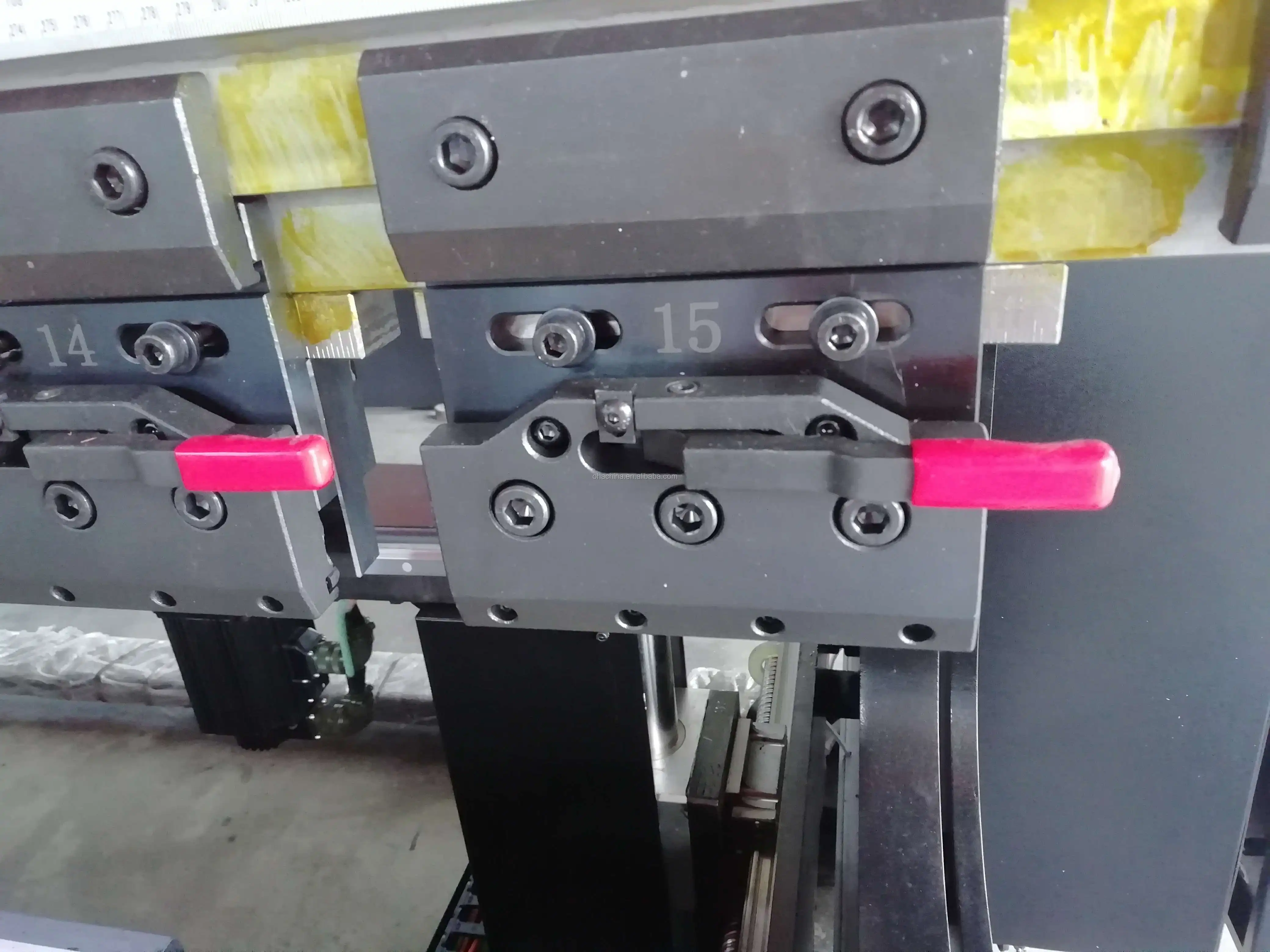

Clamping
The punch quick clamping and insert-type die can be made based on the customer's requirement to reduce work load and improve productivity

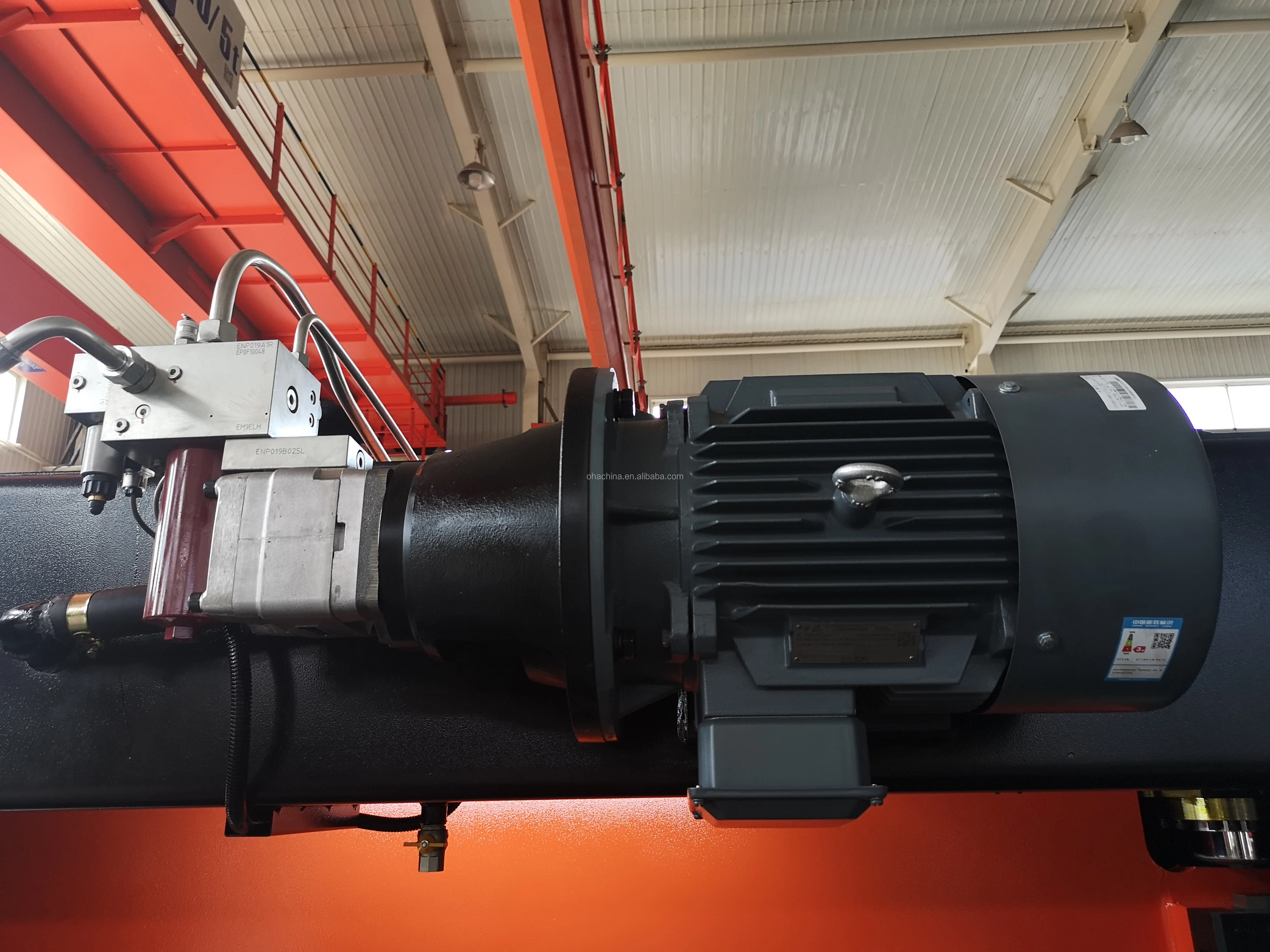

Hydraulic System
1.With proportional servo valve drive, high synchronization control accuracy can be obtained.
2. Blade motor with Siemens technology is used for the motor with strong power and low noise.
3. The sealing ring is made of Japanese NOK, with good sealing performance, reliable operation and long service life.
4.PARKER is the original American connector to ensure no leakage in the hydraulic system

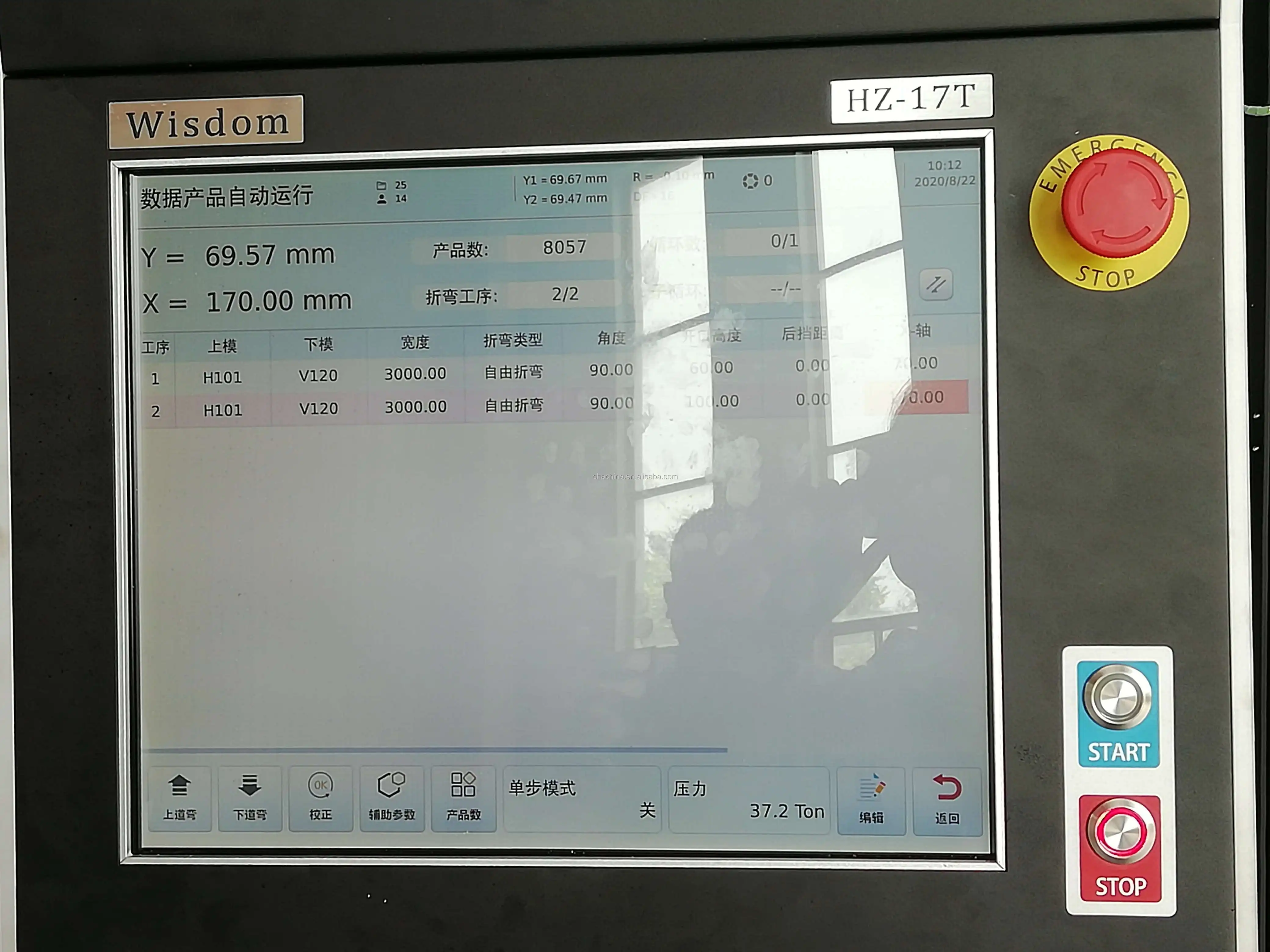

HZ-17T CNC control system
1.No keyboard operation, navigation guidance, precise bending, large screen, just a few seconds to start up
2.Smooth operation, one without any bending experience can use it in two hours studying, the fighter commander in the sheet metal
bending, 3years warranty.
bending, 3years warranty.

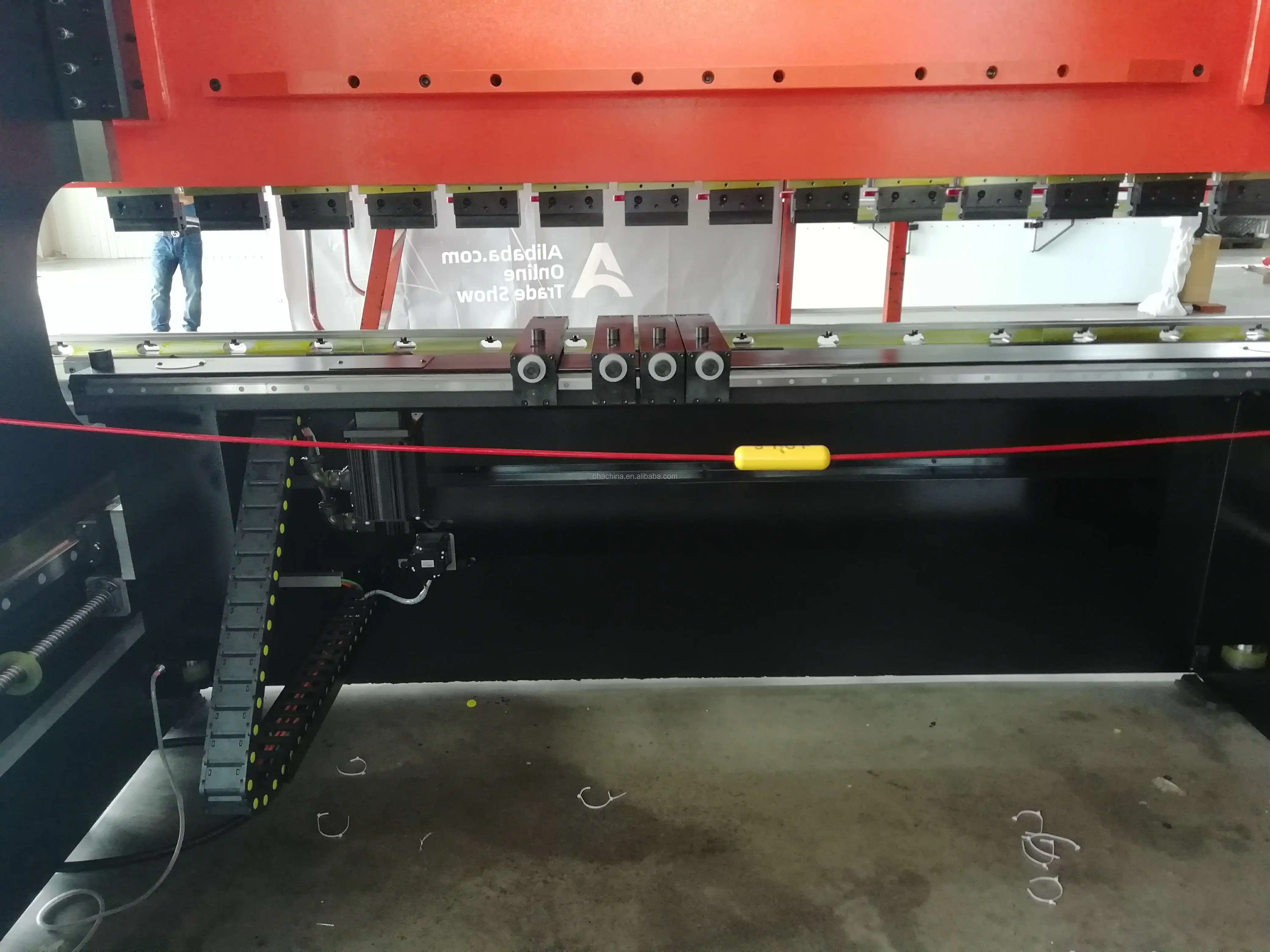

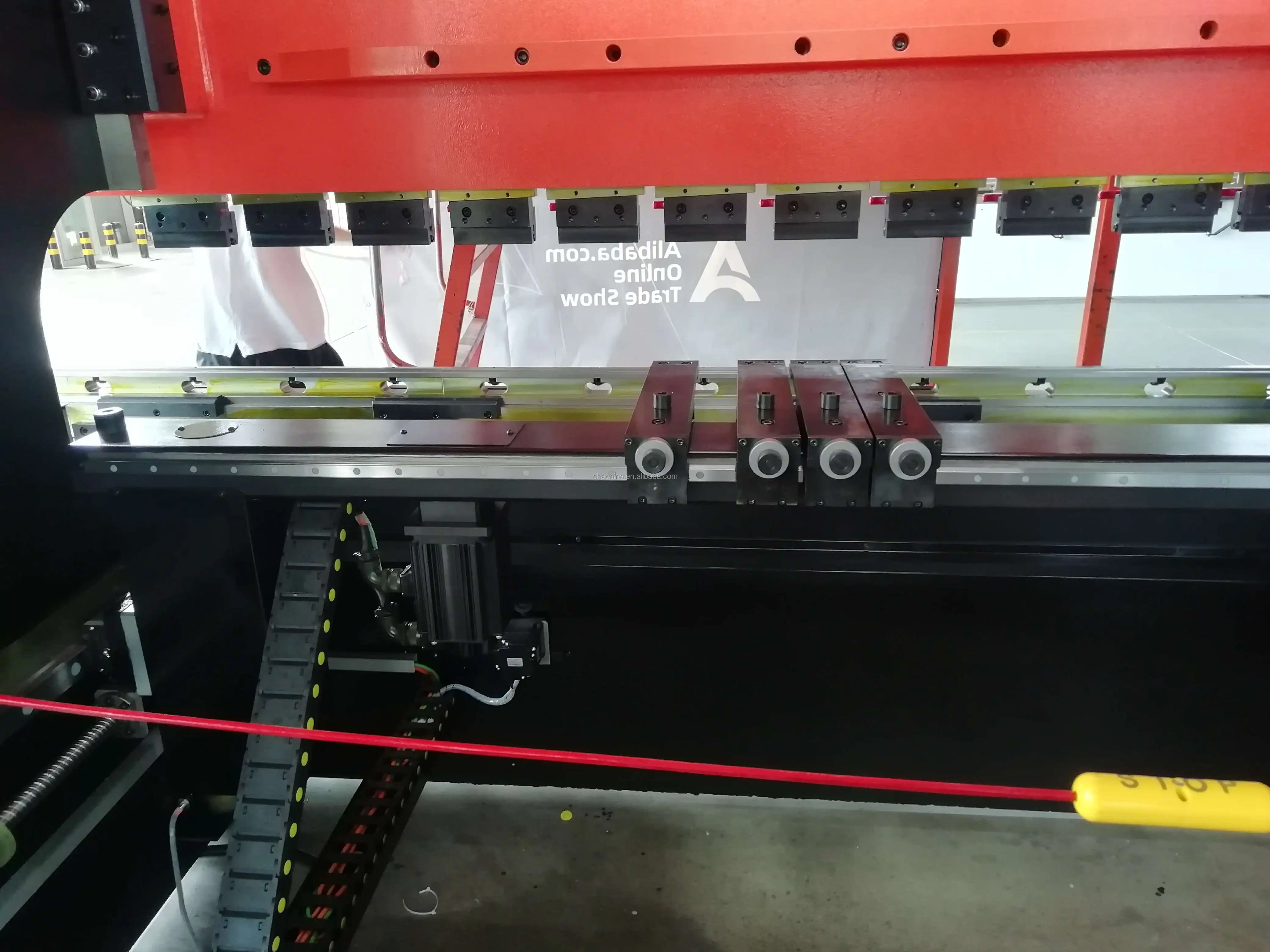

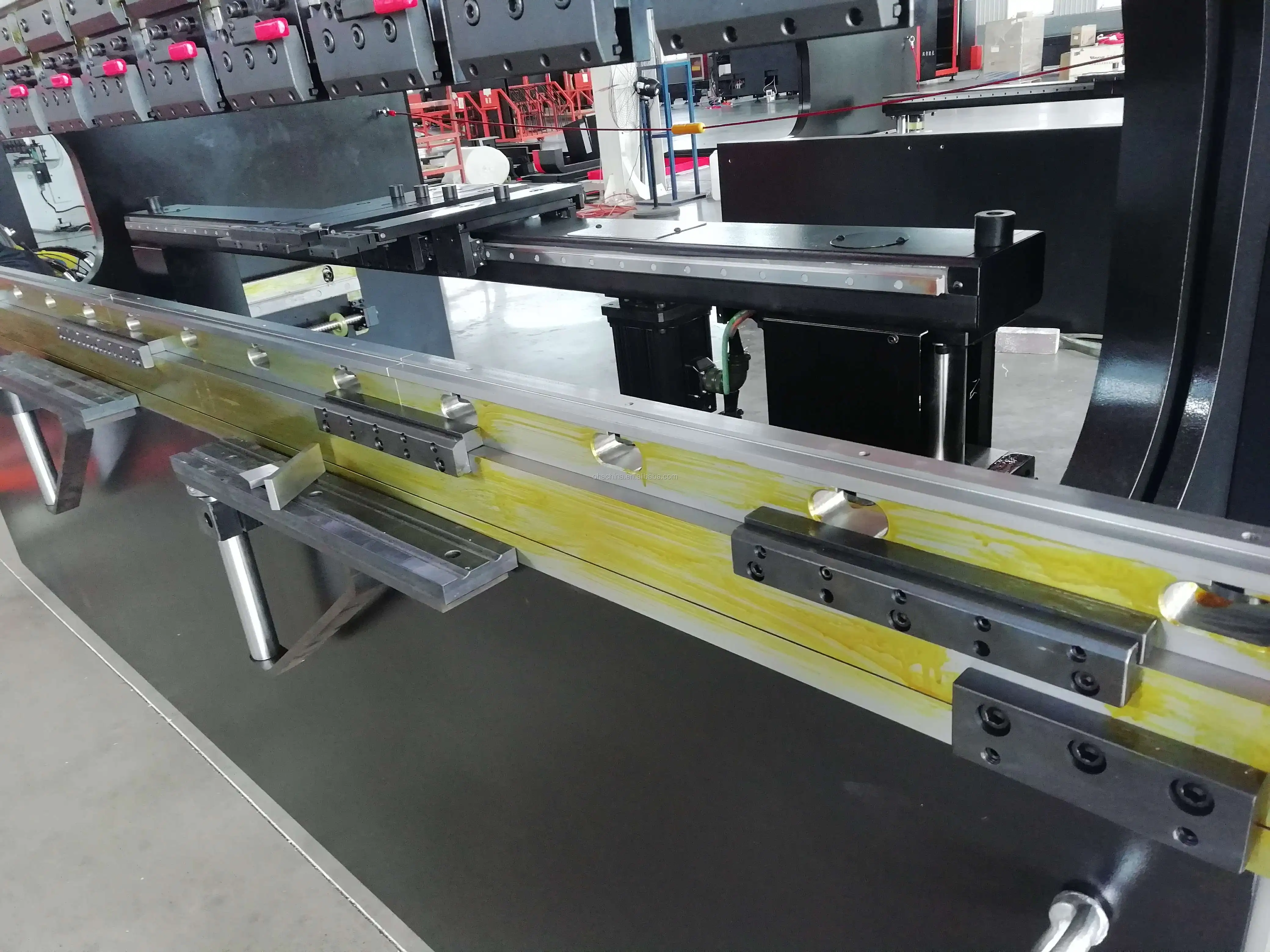

Feeding System
1.Standard positioning X axis front and rear, upper and lower positioning R axis, double finger.
2.Compact structure, fast moving speed and high positioning accuracy.
3.Infraed safety induction device will give a signal, and the motor oil pump will stop running immediately, so as to play the role of safety protection.

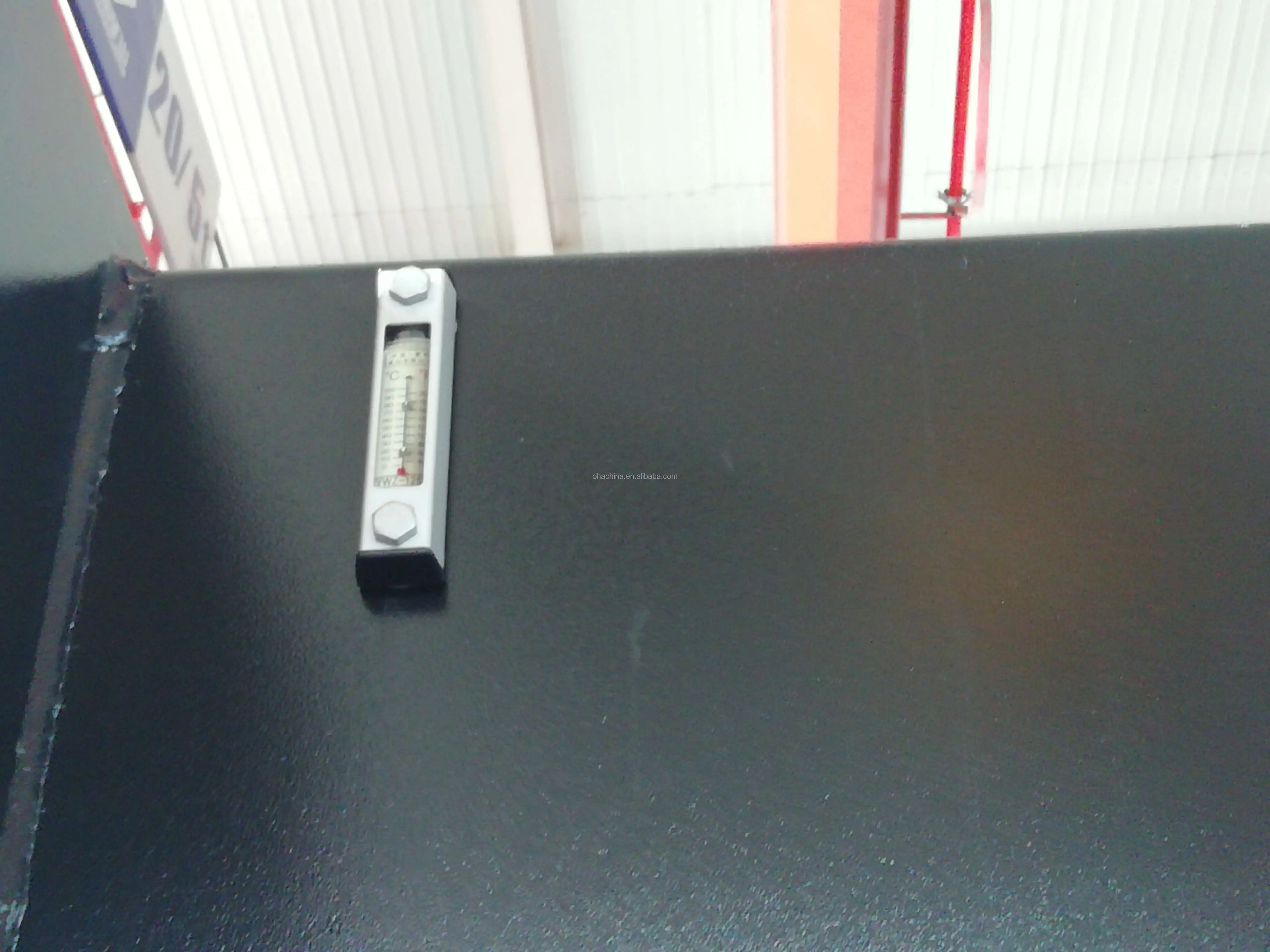

Detailed Images
Machine Parameters
Main specification | Data |
Nominal Pressure | 500KN |
Working length | 1220mm |
Distance between columns | 1160mm |
Working height | 770mm |
Stroke of ram | 200mm |
opening height | 410mm |
Throat Depth | 255mm |
Throat Height | 540mm |
Speed | Approaching 180mm/s |
working 15mm/s | |
return 180mm/s | |
X axis stroke | 500mm |
Third gauge | 900mm |
Main power | 5.5KW |
Weight | 4000KG |
Dimension | 1600x1580x2470mm |
Related Products
Packing&Shipping
Certifications
Exhibition
Our clients
Our Services
You can contact me at anytime,we will provide you fast and professional service
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At OHA, our priority has always been providing our clients with great quality products and superior customerservice.
Quick lead Time: We are dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met.
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you!
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into allof your potential customers.
Special Offers: In order to maintain our competitive edge, we are constantly running special offers on our Best –selling pressbrake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money.
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At OHA, our priority has always been providing our clients with great quality products and superior customerservice.
Quick lead Time: We are dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met.
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you!
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into allof your potential customers.
Special Offers: In order to maintain our competitive edge, we are constantly running special offers on our Best –selling pressbrake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money.
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
FAQ
1. Inquiry-Professional quotation. | ||||||||
2. Confirm the price, lead time, type, payment term etc. | ||||||||
3. OHA sales send the Proforma Invoice with OHA seal. | ||||||||
4. Customers make the payment for deposit and send us Bank receipt. | ||||||||
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the according to your request or our standard, we inform that we will arrange the production & inform the estimated time. | ||||||||
6. Middle Production-send photos to show the production line which you can see your products in. Confirm the estimated delivery | ||||||||
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection. | ||||||||
8. Clients make payment for balance and OHA ship the goods. Also can accept payment term-Balance against B/L Copy Or L/C payment | ||||||||
9. Order can be say “finish” when you receive the goods and satisfy with them. | ||||||||
10. Feedback to OHA about Quality, Service, Market Feedback & Suggestion. And we can do better. | ||||||||
