Поделиться:

Цена:8 100,00 $ - 8 300,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

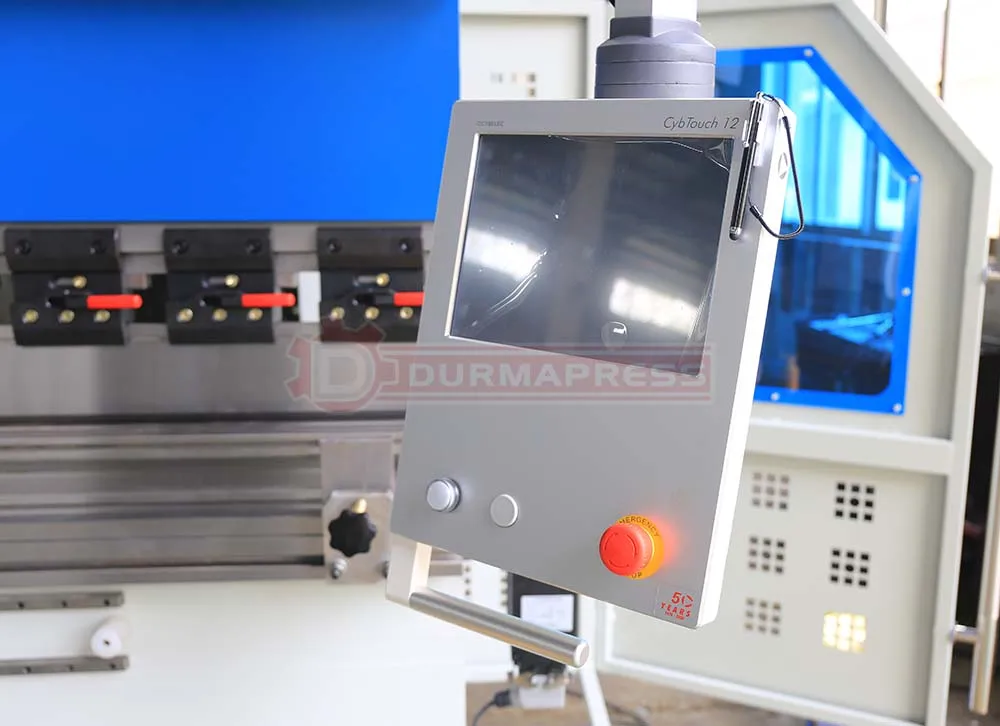

CypTouch 12 Features
1.Controls 4 axes
2.Automatic bend sequencing (option)
3.Bend allowance calculation
4.Pressure-crowning calculation
5.Modular tools for each part or bend
6.Angle and back gauge correction
7. Telemaintenance via wireless connection with PC or notebook
8. USB port for memory stick for data transfer/backup

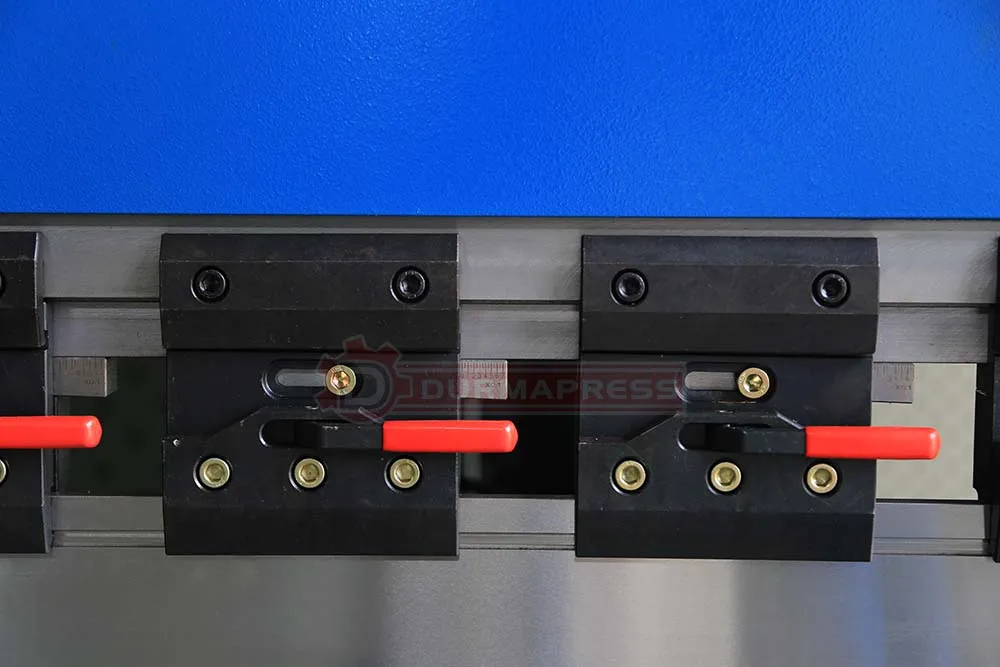

Fast Clamp
The standard equipped fast clamp will help you replace the top punch in very short time. Convenient and time-saving. Fast intermediate loading and unloading function to improve work efficiency.

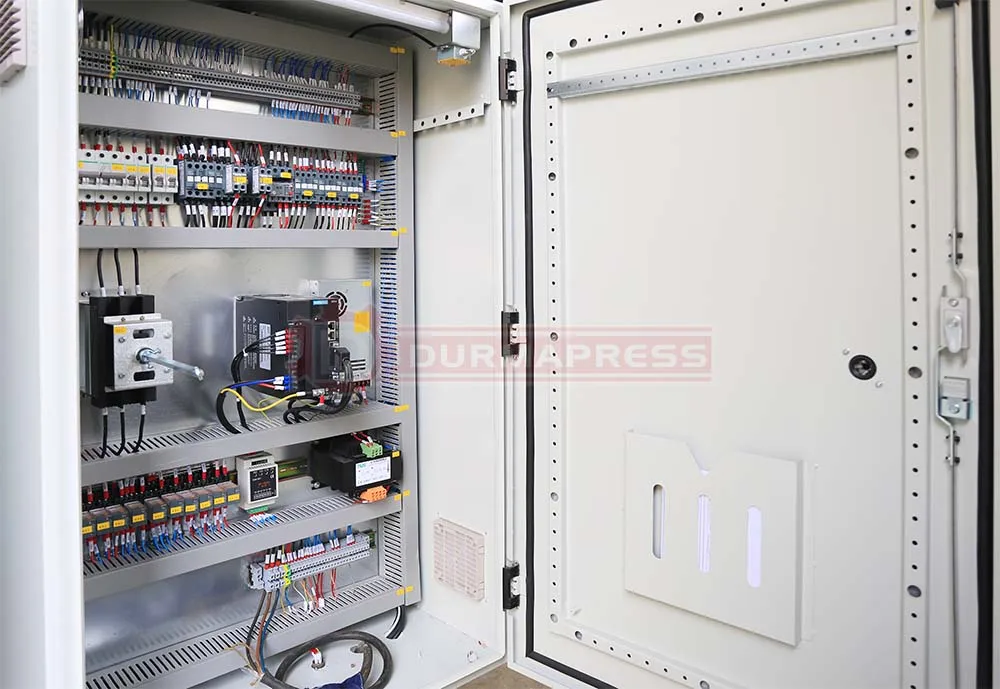

Schneider Electrical
Our press brake adopt Schneider electrical components. The high quality electric parts can make the machine performing well even the electricity is not stable and customers can easily get the replacement anywhere in the world.

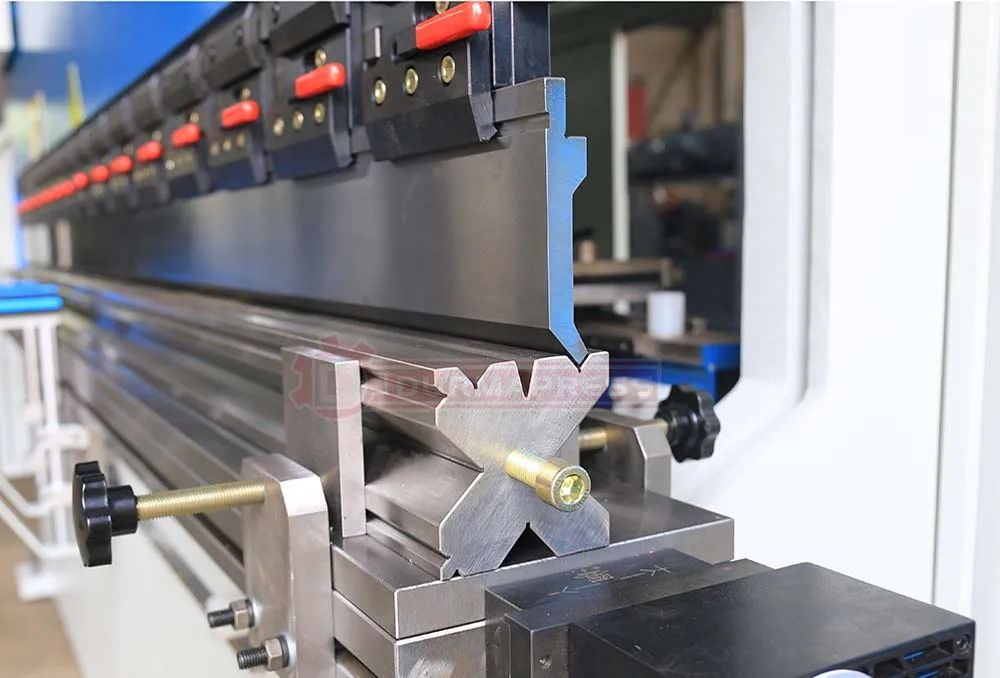

Upper punch and down Die
The standard top punch and dual-V bottom die are specially designed for bending sheet metals. More press brake toolings can be selected as per your practical use. Material and HRC47 degree values are marked on it.

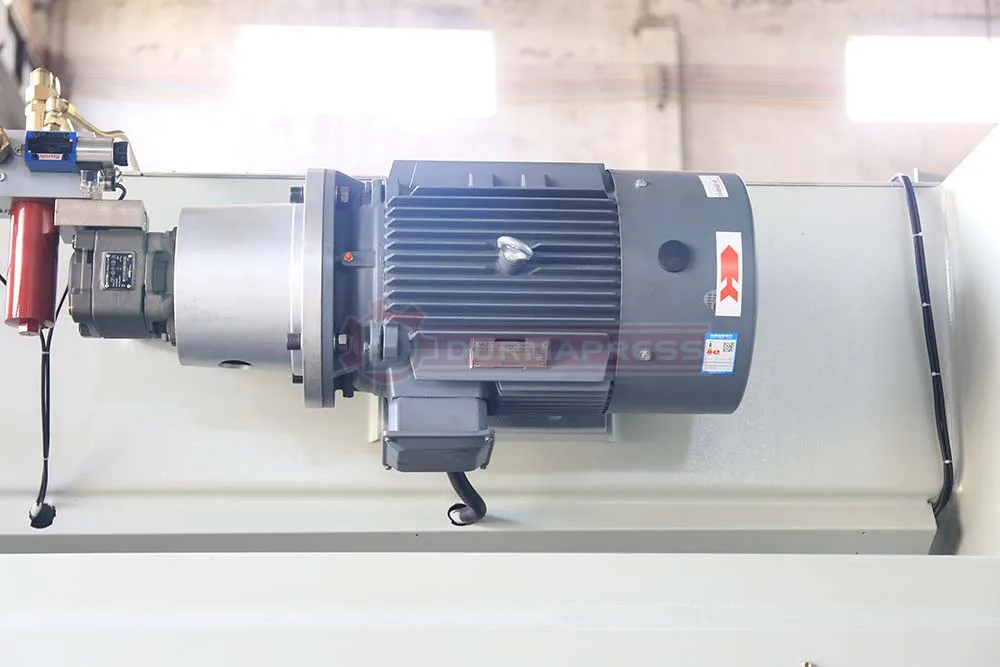

Main Motor
Compared to traditional stepper motors, the advantages of using servo motors include: improve the accuracy to ± 0.01mm, the noise
decrease to 25 decibels, reduce energy consumption by 60%, consump 70% less hydraulic oil and 30% higher efficiency.

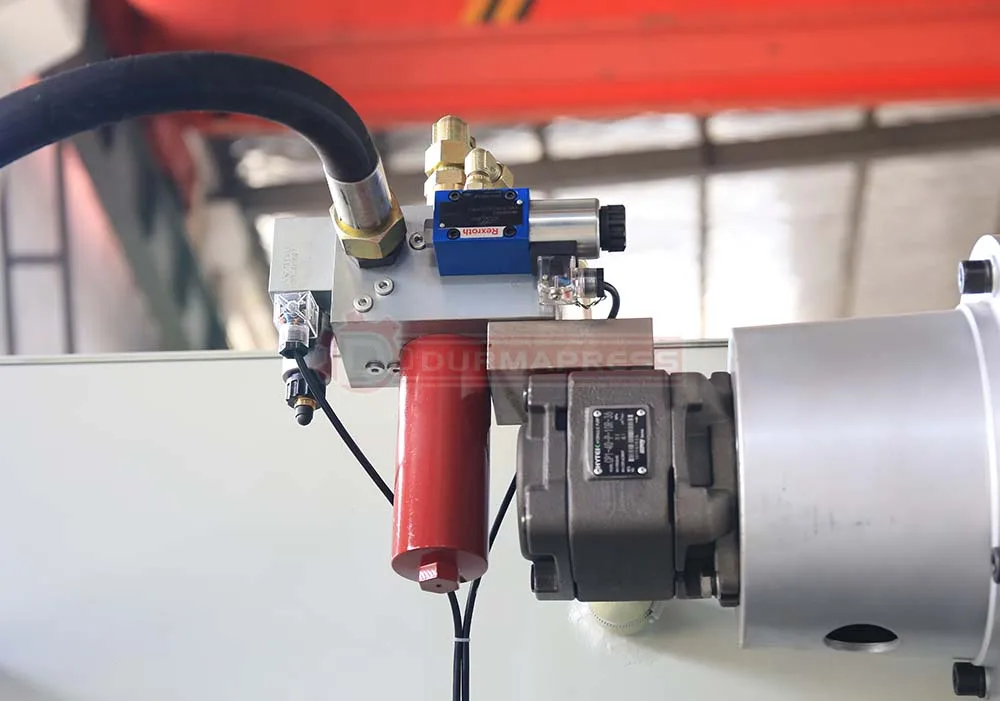

Oil Pump
Sunny From USA: Amazing low noise, made of high strength cast iron and unique design for inner noise reduction. Low sensitivity to oil pollution and assure of long service life.

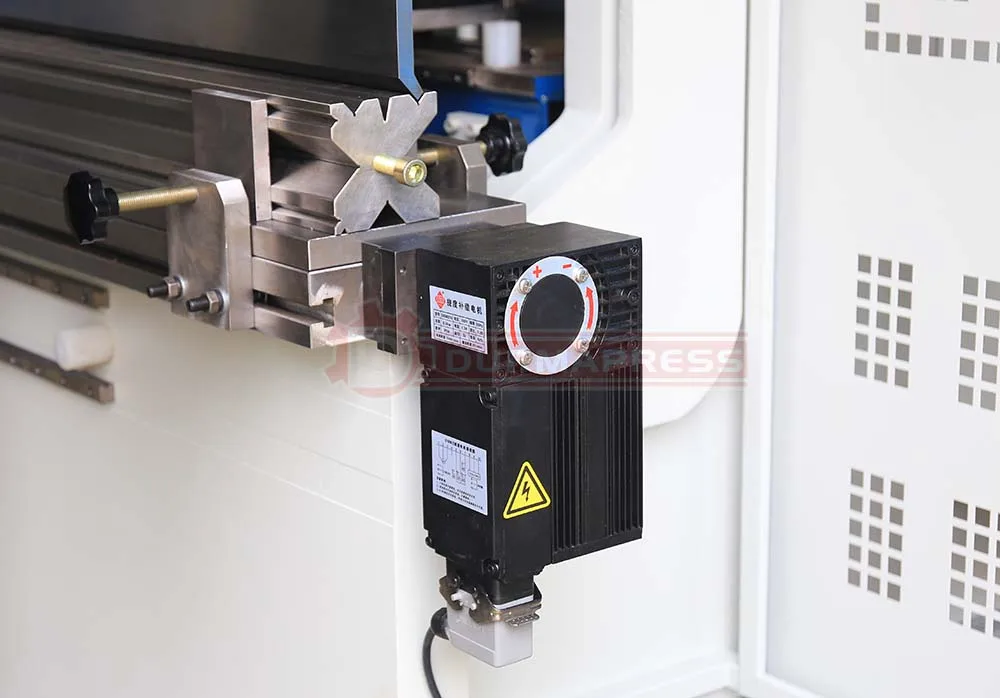

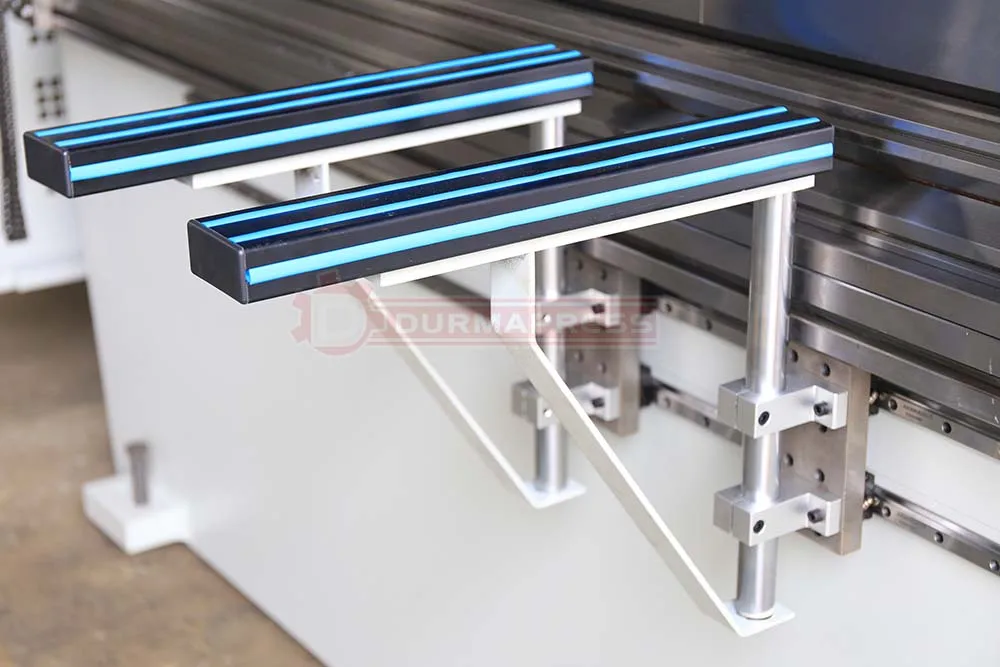

Front Support Arm
Our standard front support arm is 180° adjustable. Adopted with two Linear to keep the heavy duty plate working.







Mechanical Crowning
The motorized crowning system will adjust the parallelism and straightness automatically.


Specification


Name
Numerical value
CNC Control Axis
Y1-Y2-X-R axis & V Crowning
Nominal Force
1600KN
Bending Length
4000MM
Slider Stroke
200MM
Max. Opening Height
450MM
Throat Depth
400MM
Table Width
140MM
Y1, Y2 axis Down Speed
150MM/SEC
Machine Weight
12500KGS
X-axis Max Distance
500MM


Packing & Delivery




Company Profile




Anhui Bossor Laser Technology Co., Ltd. is one of the high-end laser processing equipment manufacturers, specializing in laser cutting equipment and bending machine and other sheet metal equipment research and development, production and sales.
Bossor laser is committed to technology research and development. The company has modern production plants, equipped with advanced processing machine tools in Germany and Spain. The company's production is based on ISO9001 quality control system, ISO14001 environmental management system, and ISO18001 occupational health and safety management system to ensure the performance and quality of products. Several product series have obtained the EU CE certification system.
In order to better serve customers, Bossor laser has established after-sales service system all over the world and has dozens of overseas agents to provide a full range of metal cutting application solutions for customers in different industries, so that the company's products and manufacturing processes in various industries can achieve seamless docking.
Bossor laser, help China intelligent manufacturing, create world quality, serve world customers!

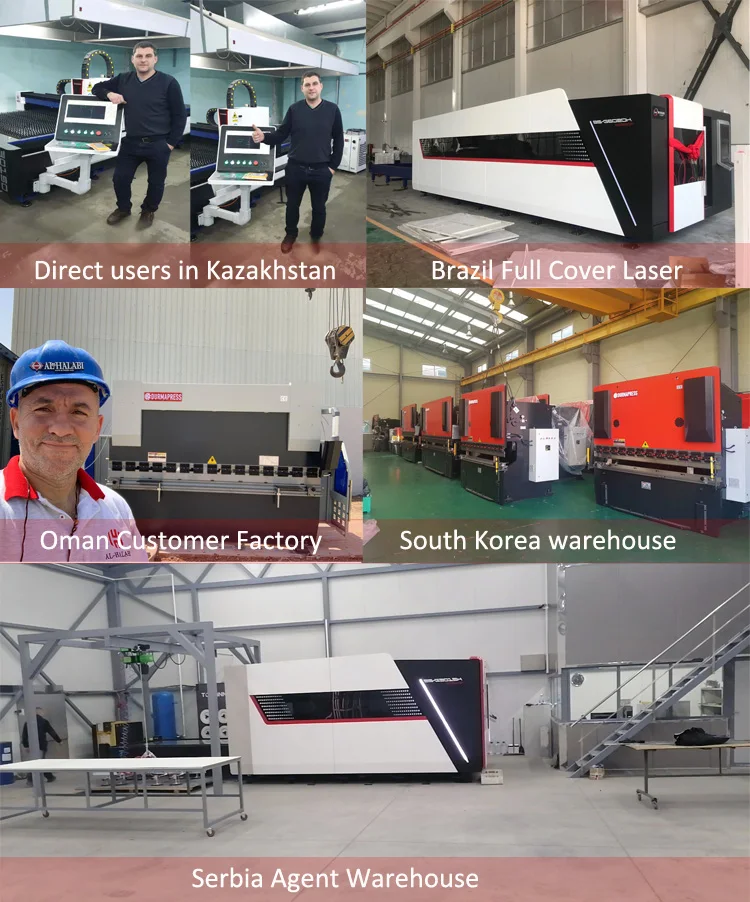

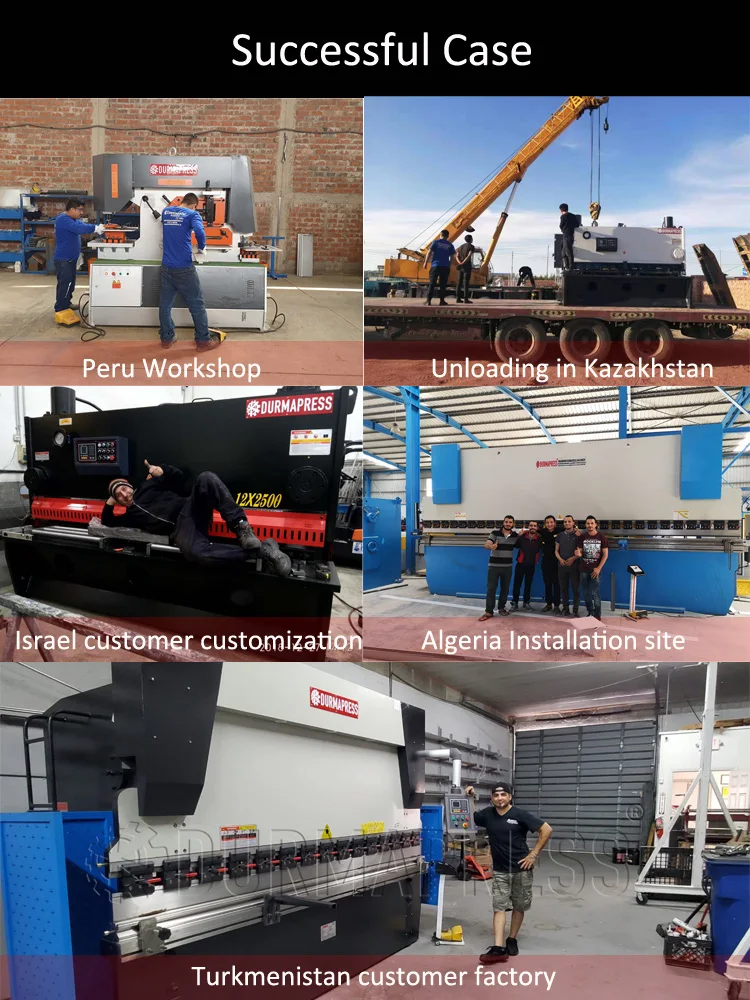

Successful Case






Our Service




FAQ


1.Are you a factory or a trading company?
Maanshan Durmapress Machinery Technology Co.,Ltd. is committed to the R&D, production and sales of CNC Press Brake , Shearing Machine , Rolling Machine , Fiber Laser Cutting Machine especially for high power laser cutting machine .

2.How about the shipping fees?
Please kindly tell us your nearest port or address with postcode. Exactly freight we can only give you if we know the details of amount, weight and way. Please contact us for further information.

3.What if we don't know how to operate your machine?
We will send video and English manual with the machine. If you still have some doubts, we can talk by whatsapp or skype and e-mail.

4.How do you guarantee your quality?
Durmapress have more than 15 years of manufacturing experience, our machines have got the European CE approval, and exported to Europe as many other countries and regions around the world.
