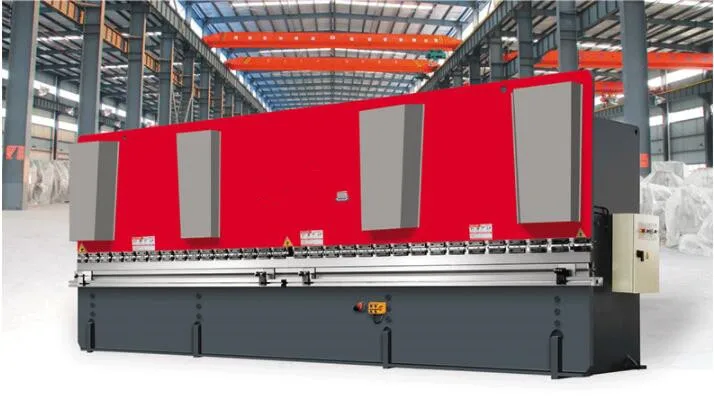

Factory supply 60 Ton 6000mm Hydraulic Press Brake machine  CNC Bending Machine

First, the use of the machine

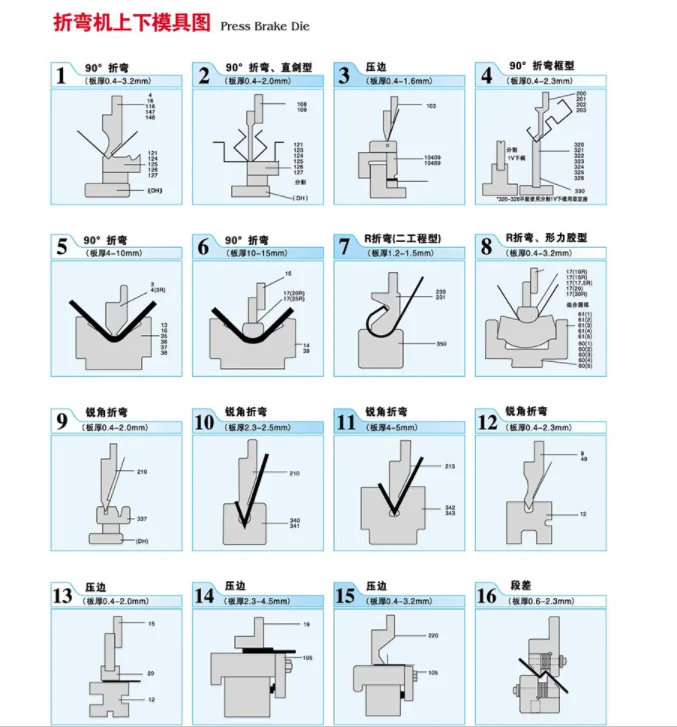

The machine has high labor productivity and high working precision for the bent metal sheet. The upper and lower molds of different shapes can be bent into workpieces of various shapes, and the sheet can be bent once in one stroke. After multiple bending, the workpiece with more complicated shape can be obtained, and when equipped with corresponding equipment, it can also be used for punching.
Second, the product shape structure
1. Using UG (Finite Element) analysis method, computer-aided optimization design, beautiful appearance.
2. The machine adopts steel plate welding structure, which has sufficient strength and rigidity. The hydraulic transmission ensures that the machine will not cause serious overload accidents due to the change of the thickness of the sheet material or the improper selection of the “V” shaped groove of the lower mold. In addition, the machine has stable operation and operation. Convenient, low noise, safe and reliable.

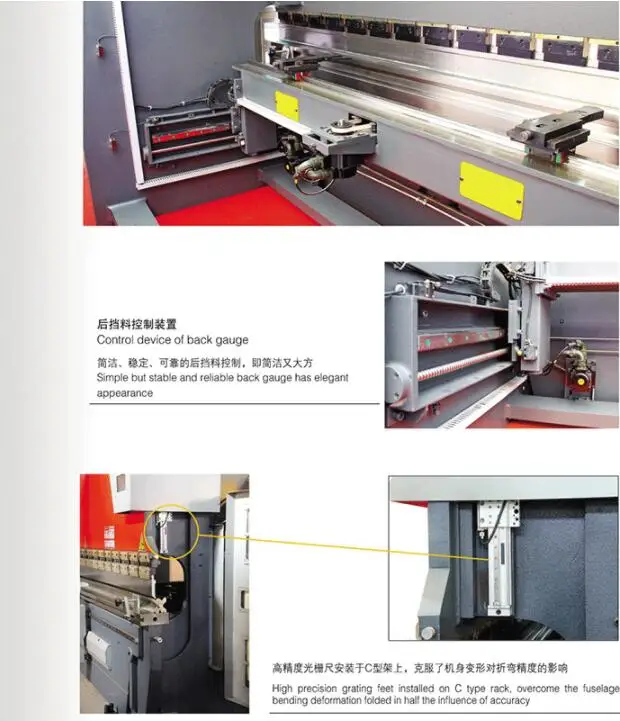

3. There are mechanical stops in the cylinder to ensure the repeating positioning accuracy of the slider to the bottom dead center to ensure the consistency of the bending angle during mass production.

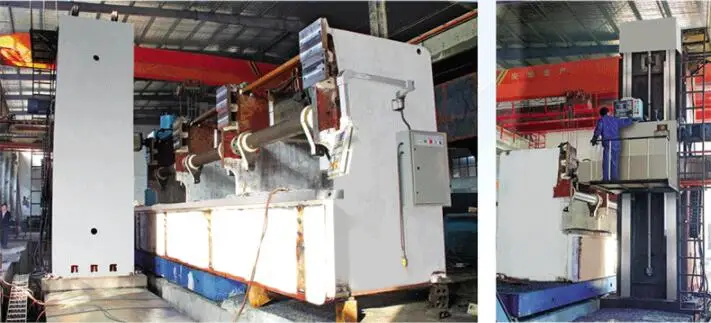

4. Use German technology for internal stress relief.

5. The overall frame is sanded to remove rust and sprayed with anti-rust paint.

Parameter

Serial number	name		Numerical value	Unit
1	Nominal pressure		1000	KN
2	Bending length		2500	mm
3	Column spacing		1900	mm
4	Maximum opening height		450	mm
5	Throat depth		320	mm
6	Workbench height		850	mm
7	Slider speed	No load	50	mm /s
8		Work	9	mm /s
9		Retrn journey	45	mm /s
10	Main motor	Model	Y160M-6
		Power	7.5	KW
		speed	960	r/min
11	Back gauge motor	power	0.55	KW
		speed	970	r/min
12	Axial piston pump	model	25MCY14-IB
		flow	25	ml/r
		pressure	31.5	Mpa
13	Hydraulic system	Maximum working pressure	20	Mpa
14	Demension	Length	2600	mm
		Width	1600	mm
		Height	2400	mm
