Product Description
Features of hydraulic press brake:
1. Hydraulic press brake all Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity.Hydraulic upper transmission, steady and reliable.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level.
hydraulic press brake back gauge can be multi-axes controlled.
4. Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust equipment, numerical display.
5. Our hydraulic press brake machine worktable full deflection compensation
6. Adopt integrated hydraulic system, more reliable and easy for maintenance.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level.
hydraulic press brake back gauge can be multi-axes controlled.
4. Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust equipment, numerical display.
5. Our hydraulic press brake machine worktable full deflection compensation
6. Adopt integrated hydraulic system, more reliable and easy for maintenance.
Product Paramenters
Slider Stroke (mm) | 200mm |
Automatic Level | Semi-automatic |
Throat Depth (mm) | 350mm |
Machine Type | Torsion Bar, cnc sheet metal bending machine |
Length of Working Table (mm) | 3200 |
Width of Working Table (mm) | 200mm |
Dimension | 2650mm*1500mm*2300mm |
Material / Metal Processed | Brass / Copper, Stainless Steel, Carbon Steel, Aluminum |
Automation | Automatic |
Extra Services | End Forming |
Certification | ce |
Weight (KG) | 12000 |
Motor Power (kw) | 5.5kw |
Key Selling Points | Competitive Price |
Core Components | Bearing, Motor, Gear, PLC, Engine, Oil cylinder |
Control system | DELEM/ESA/ estun |
Hydraulic System | Boschrexroth Germany Brand |
Electrical components | Schneider France |
Seal Ring | NOK Japan |
Motor | BEIDE Siemens/Siemens Germany |
Voltage | 220V/380V/415V/440V/customized |

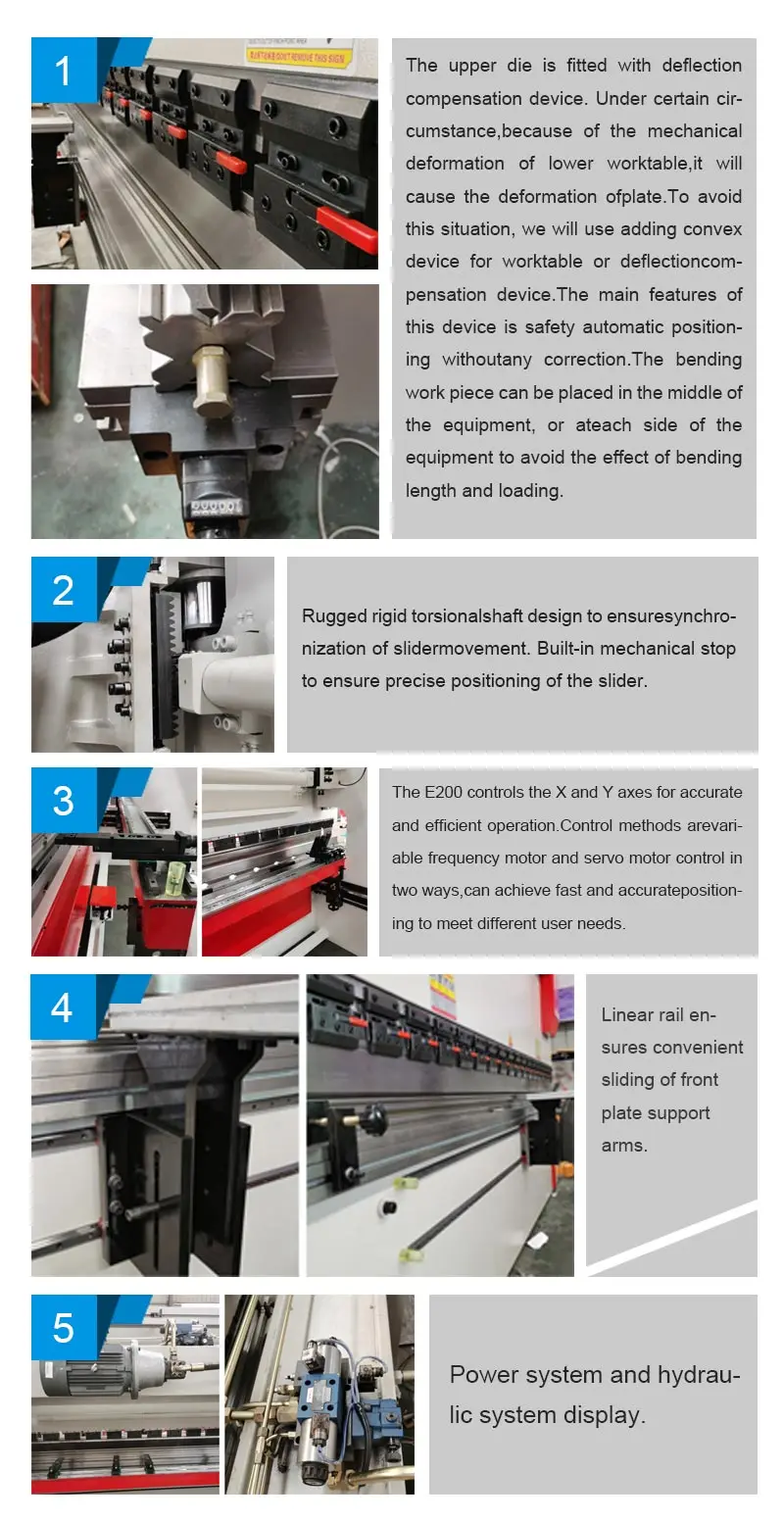

Product Accessories Introduction

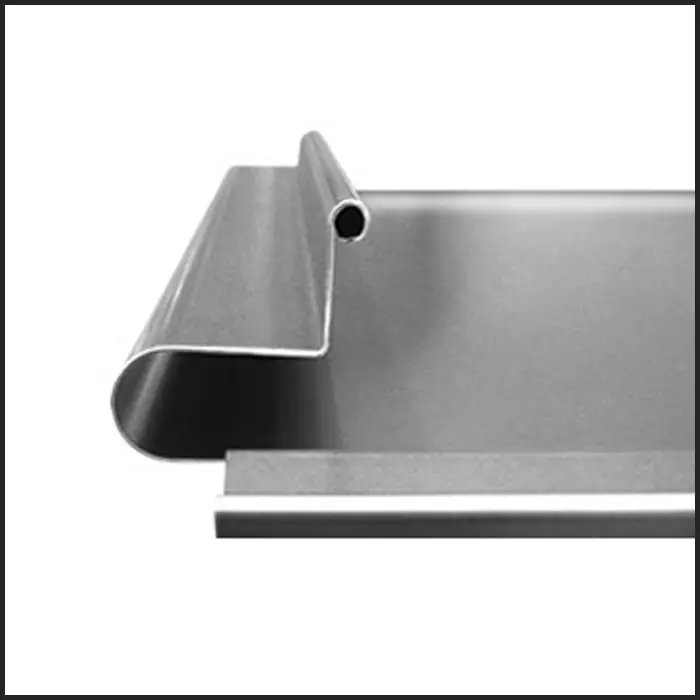

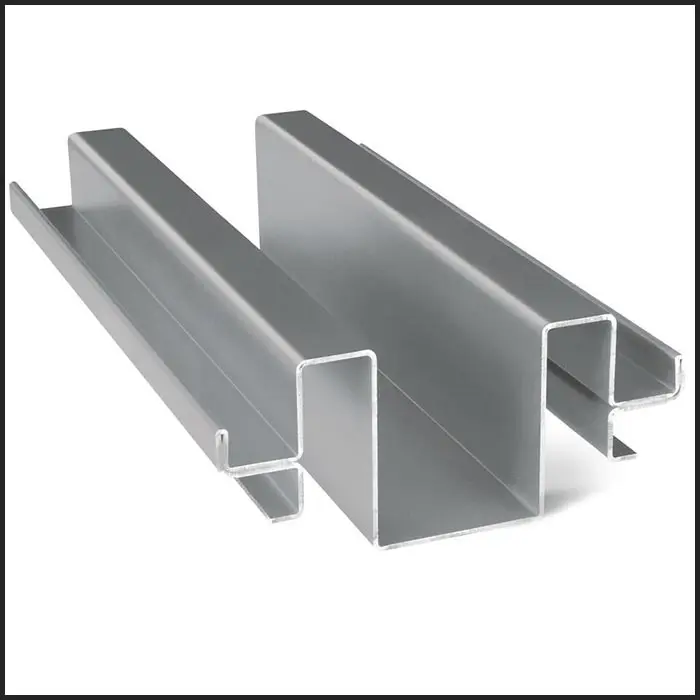

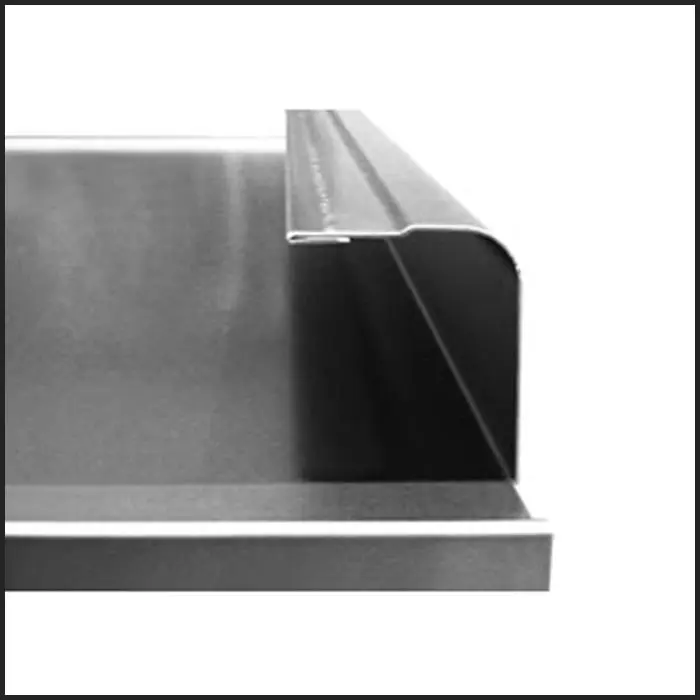

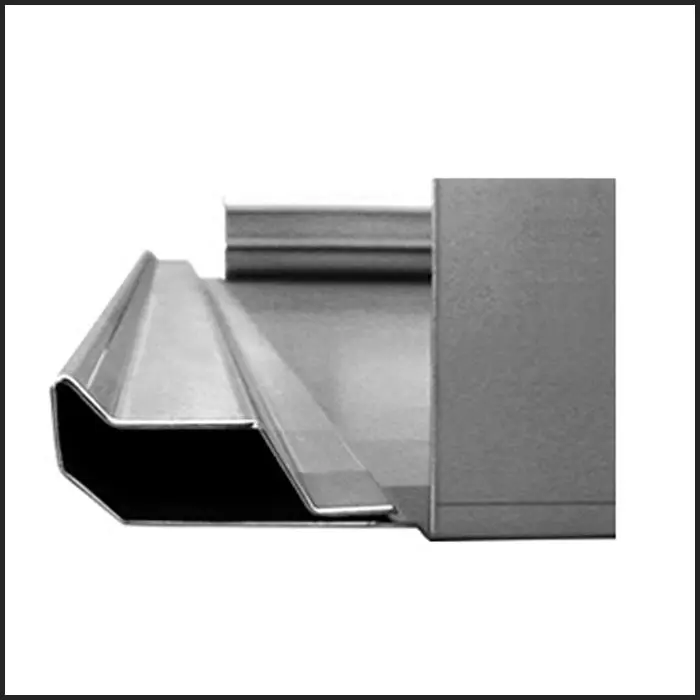

Cutting Sample
