C41-16KG воздуха/пневматический силовой кованого кузнечного
- Категории: Кузнечное оборудование для металла >>>
- Поставщик: Henan,Wadjay,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Products Description
AIR HAMMER PRODUCT FEATURES:
The air hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools

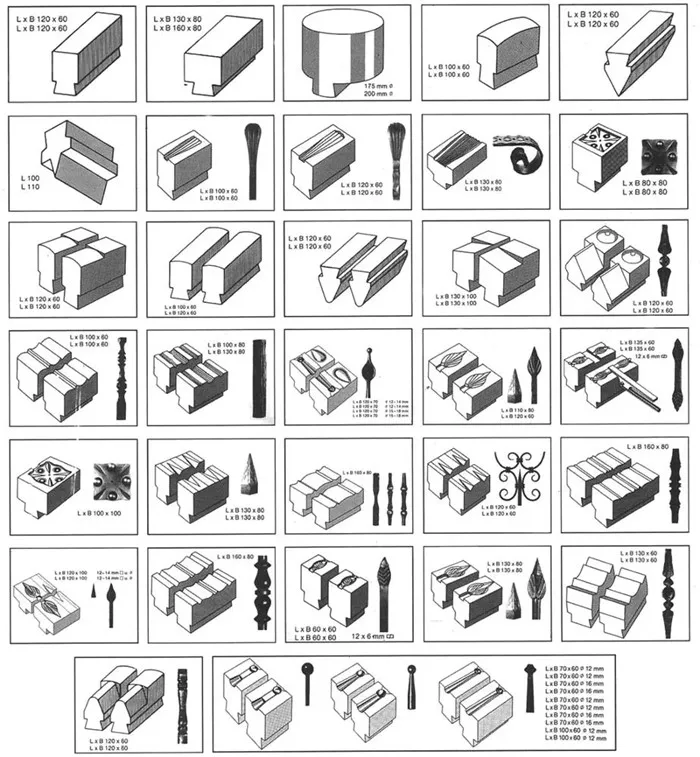

that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
The air hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
Model | C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-55KG |
Weight of failling parts(KG) | 16 | 20 | 25 | 40 | 55 |
Max.hit energy(KJ) | 0.18 | 0.22 | 0.27 | 0.53 | 0.7 |
Height of working area(mm) | 180 | 200 | 240 | 245 | 265 |
Hit number(min) | 258 | 255 | 250 | 245 | 230 |
Dimension of top and bottom die surface(LxW mm) | 70x40 | 90x50 | 100x50 | 120x50 | 120x55 |
Max. square steel can be forged(Diameter mm) | 20x20 | 30x30 | 40x40 | 52x52 | 52x52 |
Max. round steel can be forged(Diameter mm) | Φ 22 | Φ35 | Φ 45 | Φ 68 | Φ 68 |
Rate power(kw) | 1.5 | 2.2 | 3/2.2 | 4 | 5.5 |
Speed of motor(r.p.m) | 1440 | 1440 | 1440 | 1440 | 1440 |
Total weight(kg) | 240 | 380 | 560 | 880 | 1700 |
Overall dimensions(L x W x H mm) | 660x420x970 | 820x460x1110 | 980x510x1200 | 1080x600x1430 | 1320x670x1620 |
Company Profile
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
