Product Description
Specification
Features Of The Blacksmith Forging Power Hammer.
The pneumatic hammer is strong power, low noise, simple structure, convenient operation, flexible motion, and convenient
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
2, the air cyclinder has the lubricating device , before starting the machine , just shake the lubricating shank to lubricate.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.
The pneumatic hammer is strong power, low noise, simple structure, convenient operation, flexible motion, and convenient
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
2, the air cyclinder has the lubricating device , before starting the machine , just shake the lubricating shank to lubricate.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.

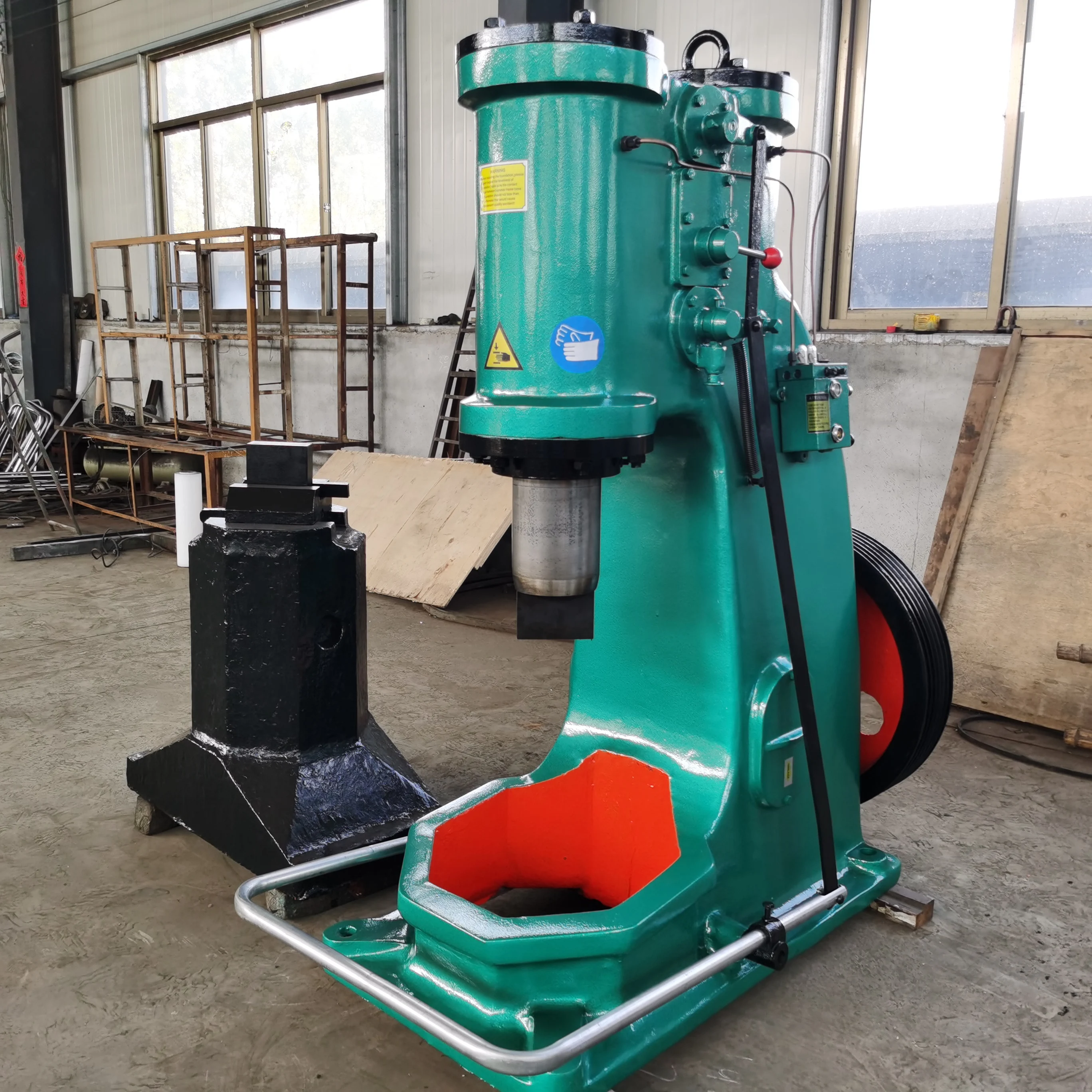

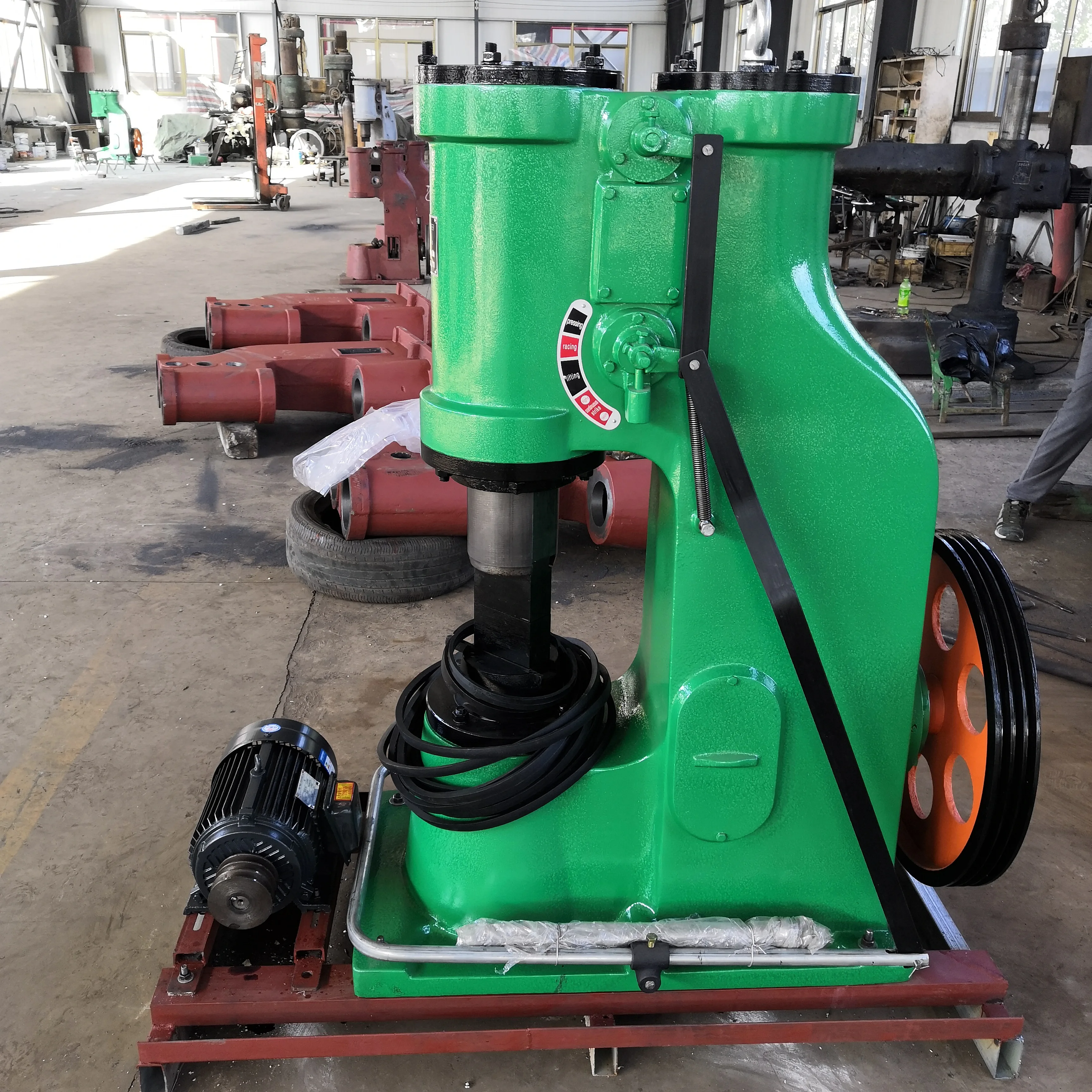

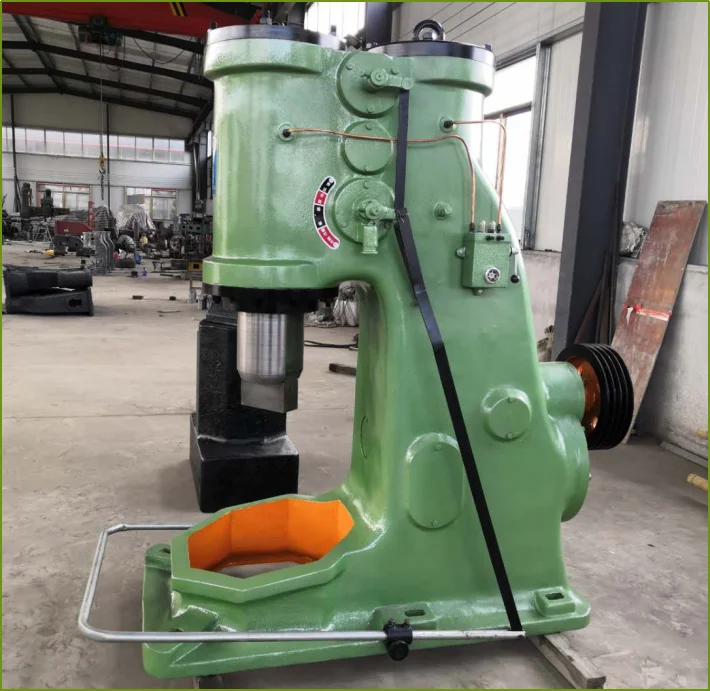

C41 25kg/40kg/65kg/75kg Pneumatic Hammer Power Hammer Forging Hammer
Blacksmith forging hammer introduction: It is a kind of free forging equipment. The air is compressed by the compressor cylinder and sent to the working cylinder through the distribution valve to drive the piston and the hammer head to move up and down for hammering. The operation is flexible. This model is suitable for various free forging, such as extension, upsetting, punching, shearing, forging welding, torsion, bending, etc. It can be used for various open die forging. The characteristics are as follows:
1. Driven by compressed air, the striking force and frequency can be controlled by adjusting the air pressure to meet the needs of safety production
2. The machine body is made of cast iron, and the large tonnage air hammer anvil is made of cast steel
3. The mechanism is simple and not easy to be damaged
Blacksmith forging hammer introduction: It is a kind of free forging equipment. The air is compressed by the compressor cylinder and sent to the working cylinder through the distribution valve to drive the piston and the hammer head to move up and down for hammering. The operation is flexible. This model is suitable for various free forging, such as extension, upsetting, punching, shearing, forging welding, torsion, bending, etc. It can be used for various open die forging. The characteristics are as follows:
1. Driven by compressed air, the striking force and frequency can be controlled by adjusting the air pressure to meet the needs of safety production
2. The machine body is made of cast iron, and the large tonnage air hammer anvil is made of cast steel
3. The mechanism is simple and not easy to be damaged
Design Of Forging Machine
The forging pneumatic hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working
cylinder, a compression piston, a falling part, a gas distribution mechanism, an anvil and other parts. The frame is the main body
of the air hammer, on which the motor, transmission device, working mechanism and control mechanism are installed. These
mechanisms are tightly combined into a whole on the frame.
cylinder, a compression piston, a falling part, a gas distribution mechanism, an anvil and other parts. The frame is the main body
of the air hammer, on which the motor, transmission device, working mechanism and control mechanism are installed. These
mechanisms are tightly combined into a whole on the frame.

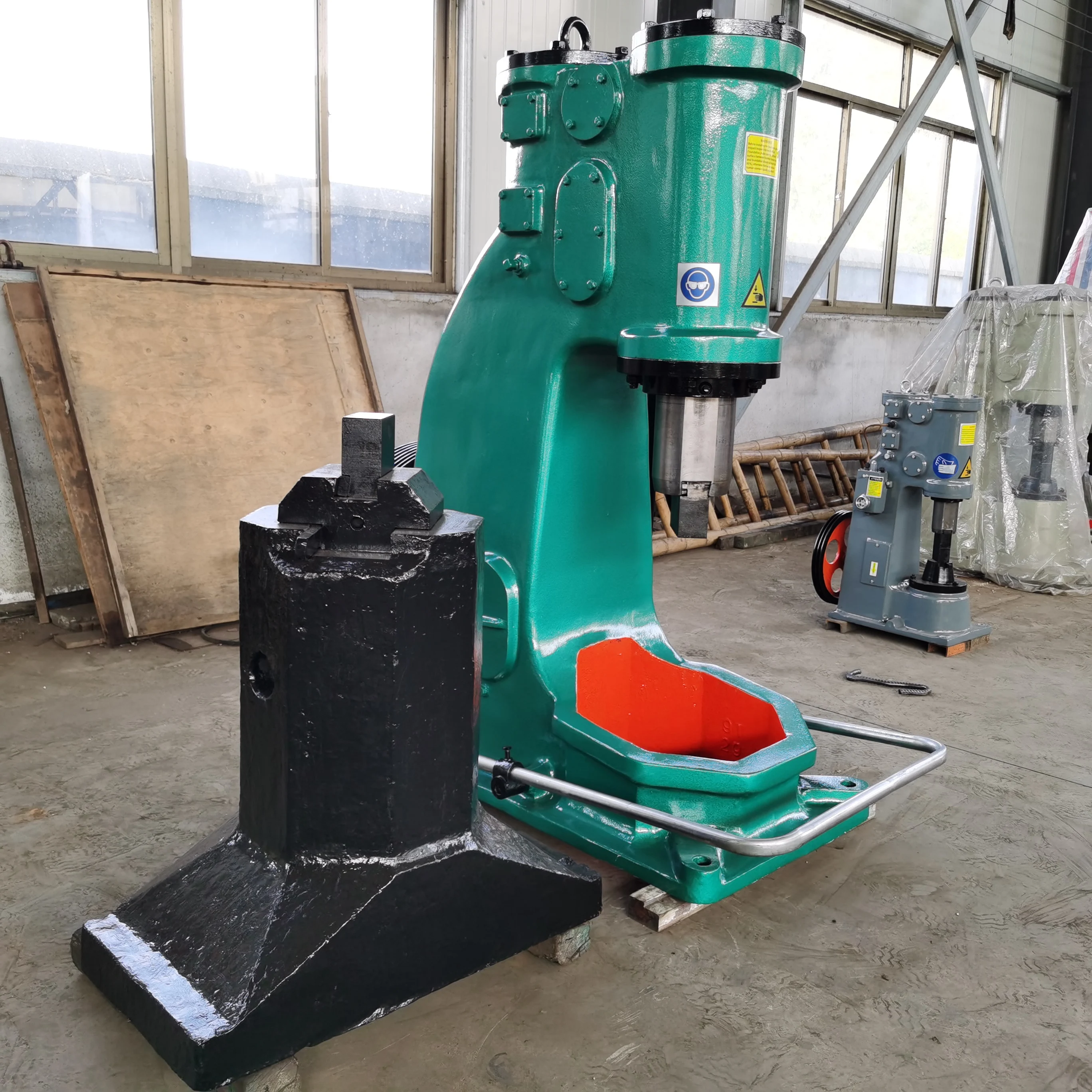

Anvil Of Forging Hammer
The anvil of forging hammer can be customized. The anvil pad and lower anvil are installed on the anvil. In order to meet the
stability of forging, the quality of the anvil is required to be 12-15 times of the weight of the falling part. It is installed on
a solid reinforced cement foundation, with a cushion wood between it, which can eliminate the vibration caused by hammering. At
the same time, there are two options for iron felt: split type and integrated type, which can be selected according to needs.
stability of forging, the quality of the anvil is required to be 12-15 times of the weight of the falling part. It is installed on
a solid reinforced cement foundation, with a cushion wood between it, which can eliminate the vibration caused by hammering. At
the same time, there are two options for iron felt: split type and integrated type, which can be selected according to needs.

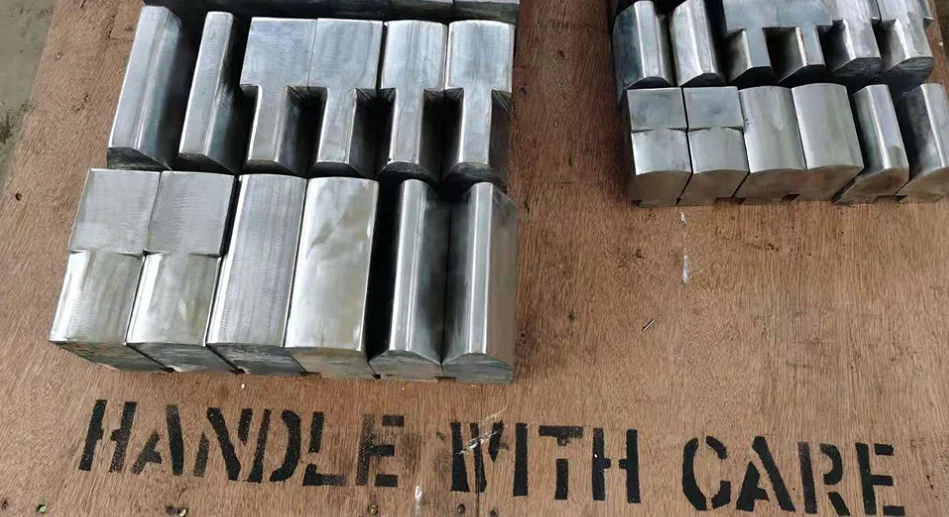

Customized Anvil Of Forging Hammer
The anvil of forging hammer can be selected according to different products processed and forged. Generally, we will provide
customized drawings of anvil for selection, or we can customize according to the customized drawings of anvil provided by
customers. This can largely solve the problem of forging different shapes without corresponding anvil
customized drawings of anvil for selection, or we can customize according to the customized drawings of anvil provided by
customers. This can largely solve the problem of forging different shapes without corresponding anvil
item | value |
Place of Origin | China |
Brand Name | FANTAI |
Condition | New |
Machine Type | Screw Making Machine |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Motor, Gear |
Voltage | 380V |
Power | 2HP;1.5KW |
Dimension(L*W*H) | 950*550*1260 |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
Showroom Location | Canada, Turkey, France, Germany, Viet Nam, Indonesia, Pakistan, Thailand, Kenya, UAE, Colombia, Algeria |
Applicable Industries | Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Energy & Mining |
Weight (KG) | 600 |
Product name | C41 Air Hammer |
Usage | Automatic Control Operation |
Application | Fasterner Part |
Keyword | Gear Cross Joint Making |
Type | C41 Blacksmith Power Hammer |
Function | Wrought Iron Processing |
Name | Air Power Forging Hammer |
Feature | Automatic Press |
Application in | Die Forging Product |
Certification | ISO CE |

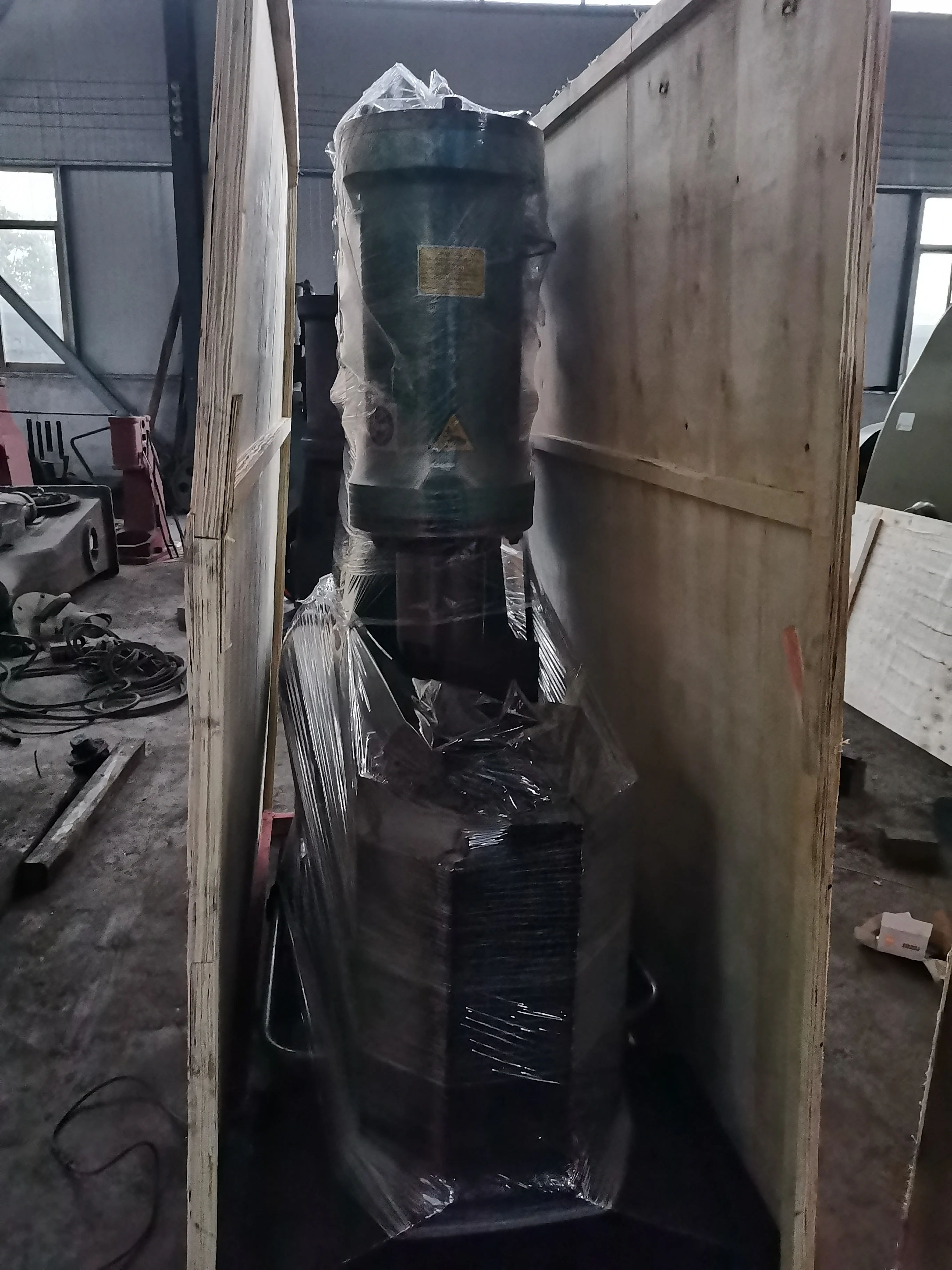

Packing & Delivery
Machine usually shipping by container ,which make sure delivery safty.
Company Profile
Henan Fantai Machinery Equipment Co. Ltd, is a supplier of machinery.We have exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc . Our products provide customer more convenient in their business and expect to have more cooperate in future.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
1. who are we?
We are based in Henan, China, start from 2021,sell to North America(30.00%),Central America(20.00%),Eastern Europe(12.00%),Western Europe(12.00%),Northern Europe(12.00%),Southern Europe(12.00%),South America(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tile making machine,Purlin machine,Tapping Machine
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DES；
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2021,sell to North America(30.00%),Central America(20.00%),Eastern Europe(12.00%),Western Europe(12.00%),Northern Europe(12.00%),Southern Europe(12.00%),South America(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tile making machine,Purlin machine,Tapping Machine
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DES；
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
