Лидер продаж пневматический молоток 16 кг 20 25 40 65
- Категории: Metal Forging Machinery >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

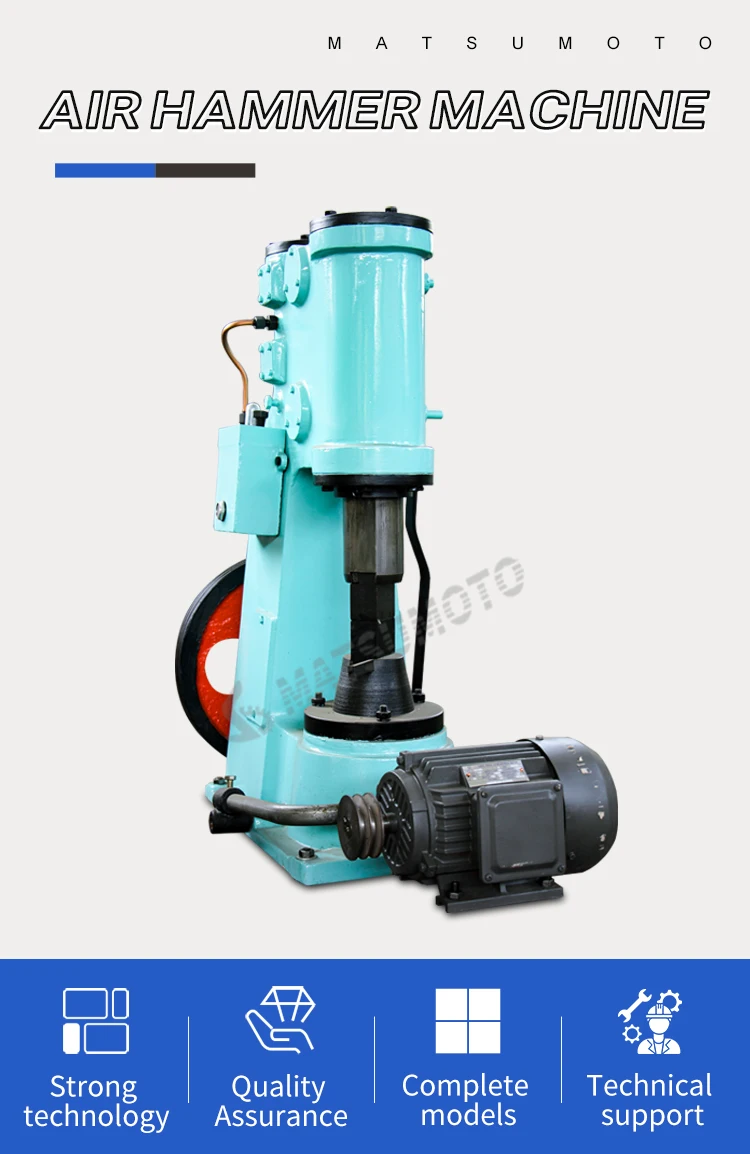

The main performance characteristics:
1.Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control.
2.The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 75KG and so on.
4. It is also used for forging in bolster dies.
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
1.Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control.
2.The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 75KG and so on.
4. It is also used for forging in bolster dies.
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Specifications | Units | C41-16kg | C41-16kg with base |
Weight of falling parts | kg | 16 | 16 |
Max.hit energy | k j | 0.18 | 0.18 |
Height of working area | mm | 180 | 180 |
Hit number | min-1 | 258 | 258 |
Anvil block size | mm | 70*40 | 70*40 |
Max. square steel can be forged | mm | 20*20 | 20*20 |
Max.round steel can be forged(diameter) | mm | 22 | 22 |
Rate power | kw | 1 phase 1.5/220V 3 phase 1.5/380V | 1 phase 1.5/220V 3 phase 1.5/380V |
Motor speed | r. p. m | 1440 | 1440 |
Base plate weight | kg | - | 40 |
Total weight | kg | 240 | 290 |
Overall dimension | mm | 660*420*970 | 800*420*1170 |
