C41-75KG Мацумото чей вес составляете до 75 ковочная машина отбойного молотка воздушные силы молоток оборудование для Ковки Металла Одноместный каяк
- Категории: Metal Forging Machinery >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

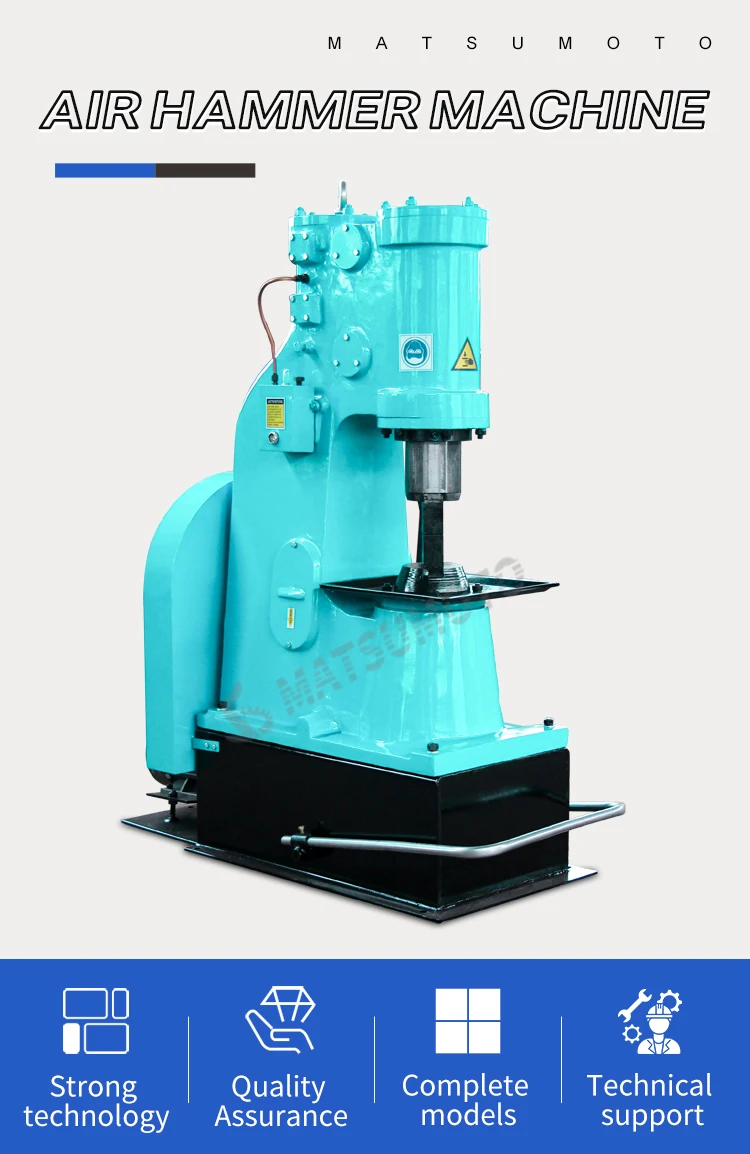

C41-75KG Pneumatic Air Forging Hammer
Specifications
1. It is used for forging and shaping work pieces. 2. It is easy to operate through controlling the travel of top swage.
Features
1. The air hammer is used for forging and shaping work pieces.
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 150KG.
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting.
5. It is also used for forging in bolster dies.
Model | C41-75KG |
Weight of failling parts(kg) | 75 |
Max.hit energy(kj) | 1 |
Height of working area(mm) | 300 |
Hit number(min) | 210 |
Dimension of top and bottom die surface(LxW mm) | 145x65 |
Max. square steel can be forged(Diameter mm) | 65x65 |
Max. round steel can be forged(Diameter mm) | Φ 85 |
Rate power(kw) | 7.5 |
Speed of motor(r.p.m) | 1440 |
Anvil weight(kg) | 850 |
Total weight (kg) | 2800 |
Overall dimensions(L x W x H mm) | 1400x760x1950 |
Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
