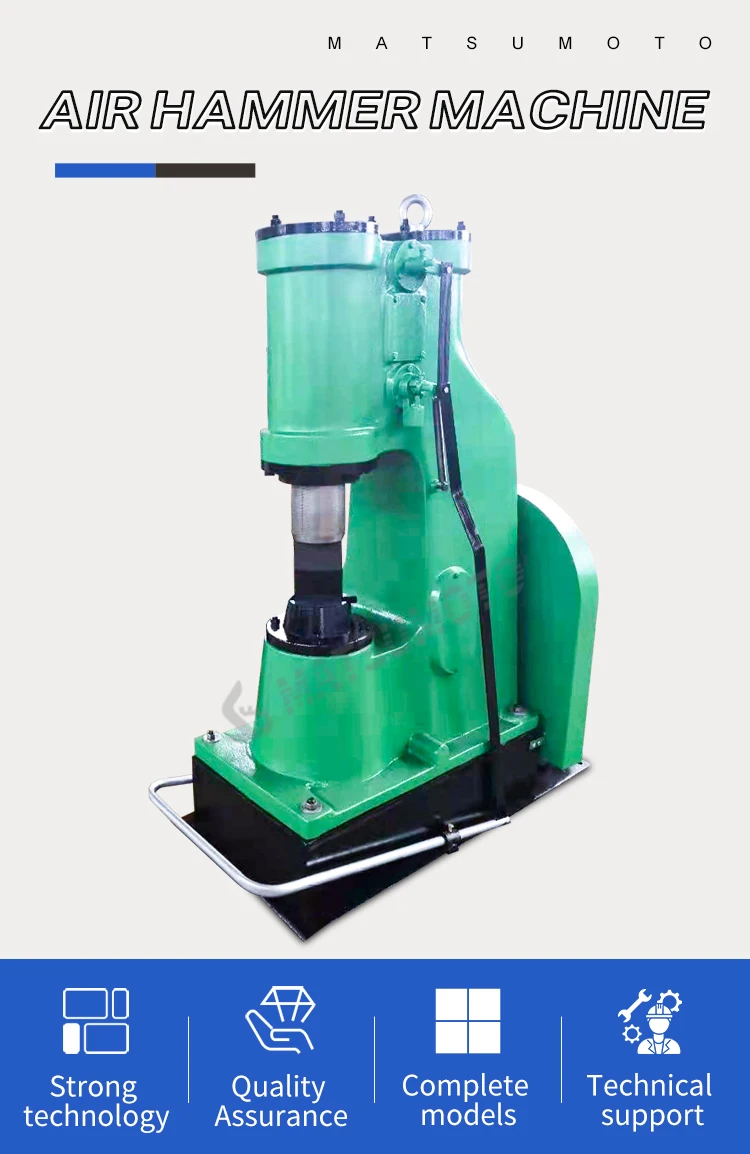

C41-25KG Мацумото ковка металла воздушный молот кузнеца воздуха кованый кузнечный в blacksmith поле воздух отбойный
- Категории: Metal Forging Machinery >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
The main performance characteristics：
1.Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
2.The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3.Simple mechanism ,Is not easy to damage.
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Model | C41-25KG | C41-25KG | C41-25KG |
Single type | Single with base | Separate type | |
Weight of failling parts(kg) | 25 | 25 | 25 |
Max.hit energy(kj) | 0.27 | 0.27 | 0.27 |
Height of working area(mm) | 240 | 240 | 240 |
Hit number(min) | 250 | 250 | 250 |
Dimension of top and bottom die surface(LxW mm) | 100x50 | 100x50 | 100x50 |
Max. square steel can be forged(Diameter mm) | 40x40 | 40x40 | 40x40 |
Max. round steel can be forged(Diameter mm) | Φ 45 | Φ 45 | Φ 45 |
Rate power(kw) | 3/2.2 | 3/2.2 | 3/2.2 |
Speed of motor(r.p.m) | 1440 | 1440 | 1440 |
Total weight (kg) | 600 | 680 | 800 |
Overall dimensions(L*W*Hmm) | 980x510x1200 | 1150x510x1400 | 900x510x1200 |
Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
