C41-400KG Мацумото 400 кг кованого железа воздушные ковки Мощность Молоток оборудование для Ковки
- Категории: Metal Forging Machinery >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

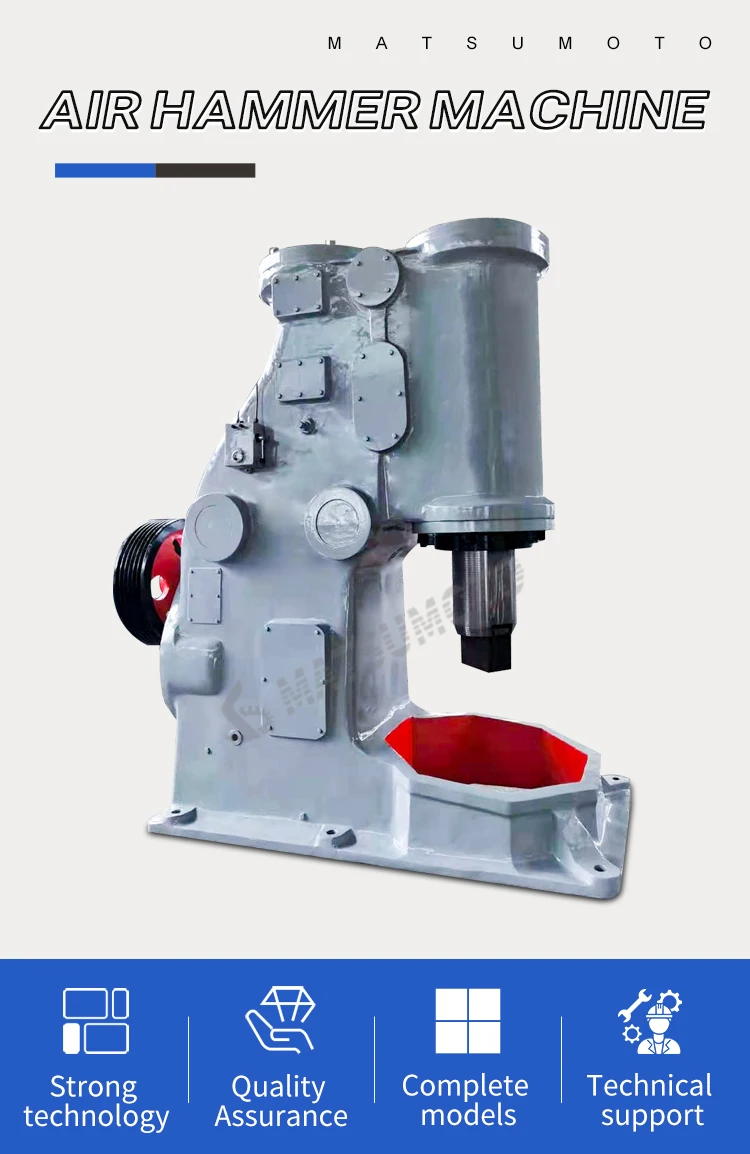

C41-400Kg Wrought Iron Air Forging Power Hammer
1.The whole hammer frame body casted once to ensure the whole hammer stable and best rigidity.
2.The Hammer is Industrial self contained.No other external air compressor needed,the hammer onlydriven by motor can work,no need other parts,so it is very economic.
3. The iron cast frame will never flex or warp.The hammer are also much heavier than any other brand hammer,so that keep the hammer frame best mass and strength on whole body.
4.Long lifetime frame warranty for 5 years.
5.Less Maintenance.The hammer are designed automatic and fully adjustable oil system.There are two grease zerks
are easy to fill with grease.Large tapered roller bearings in crank case for long trouble free life.
6.The hammer is easy and controllable operation.
7.Easy to install according to the foundation drawing.
Specifications | C41-400KG |
Weight of falling parts | 400 KG |
Max.hit energy | 9500 j |
Hit number | 120min-1 |
Distance from bottom die surface to bottom surface of lead | 530mm |
Tup axis to hammer body | 530mm |
Dimension of top and bottom die surface | 260x120mm |
Distance from bottom die surface to base | 770mm |
Motor Power | 37 KW |
Motor speed | 1470 r.p.m |
Overall dimension | 2875x1405x2840 mm |
Anvil weight | 4800 Kg |
Total weight | 12800 KG |
