Product Description

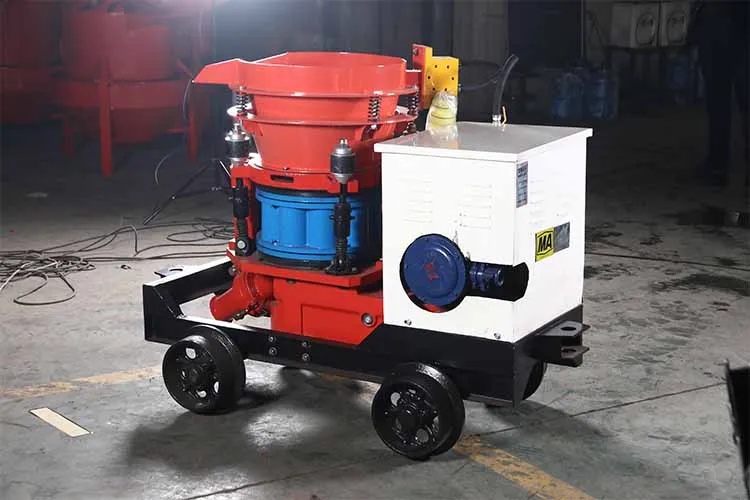

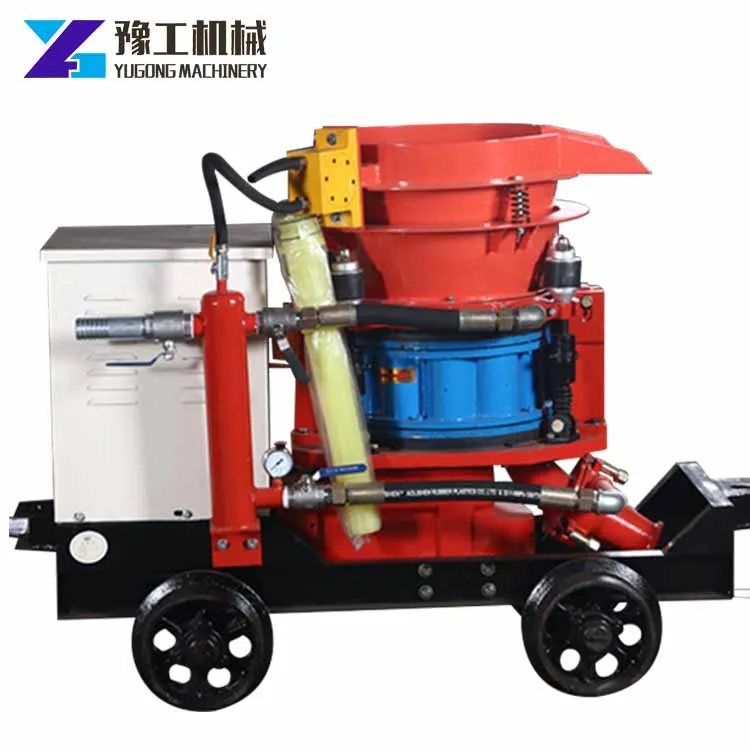

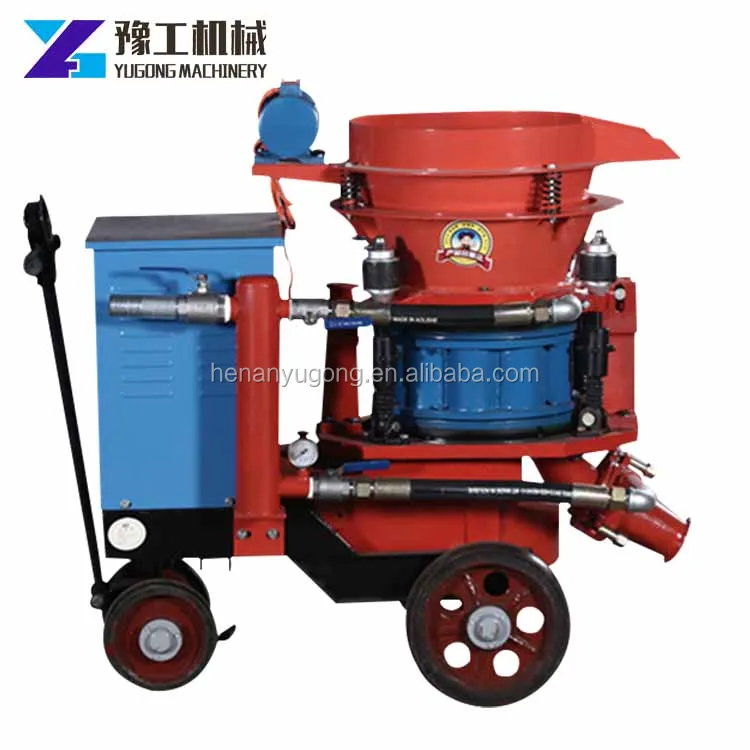

Shotcrete machine also called concrete spraying machine. It is widely used in building wall spraying slopes, slope protection,tunnel construction and other places where there is no harmful gas and concrete spraying is required. It is mainly used for slope protection and anchoring, foundation pit reinforcement, tunnel spraying and anchoring.
Dry shotcrete machine can also be used for tide spraying, so it is also called tide shotcrete machine.
Dry shotcrete machine can also be used for tide spraying, so it is also called tide shotcrete machine.
Technical Parameters

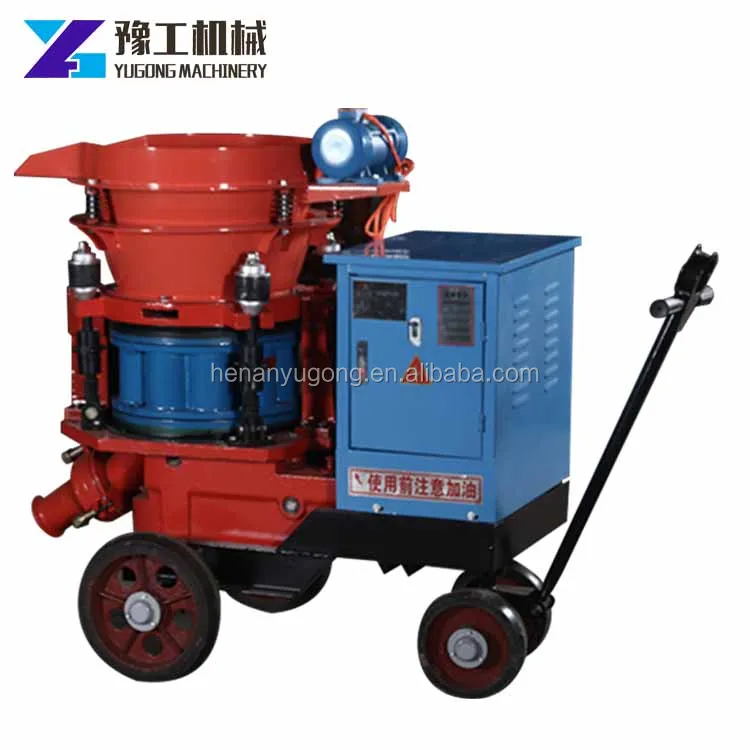

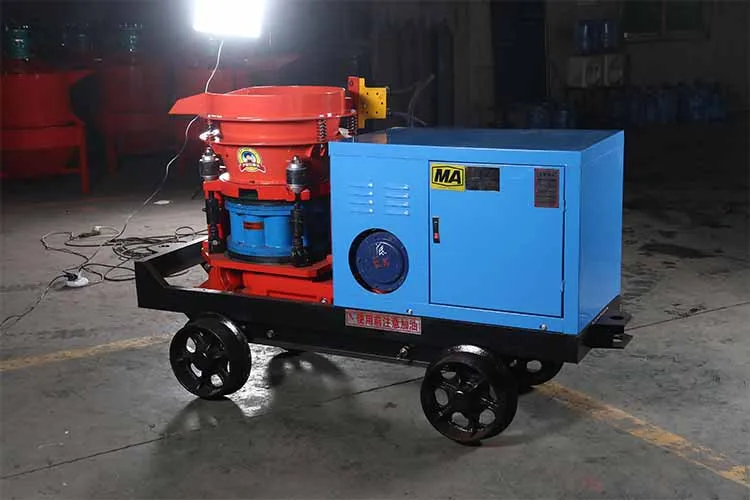

Dry Shotcrete Machine | ||||||
Model | YGD-3 | YGD-6 | YGD-7 | |||
Production capacity | 3 m³/h | 6 m³/h | 7 m³/h | |||
Maximum conveying distance | 200m | 200m | 200m | |||
Applicable material water-cement ratio | <0.4 | <0.4 | <0.4 | |||
Maximum bone fire particle size | 20mm | 20mm | 20mm | |||
Rotor body diameter | 350mm | 440mm | 480mm | |||
Working pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.6-0.8Mpa | |||
Air consumption | 3-4m³/h | 6-8m³/h | 7-8m³/h | |||
Motor Power | 3kw | 5.5kw | 7.5kw | |||
Dimension | 1040*550*950mm | 1040*550*950mm | 1600*750*1200mm | |||
Weight | 260kg | 600kg | 700kg | |||

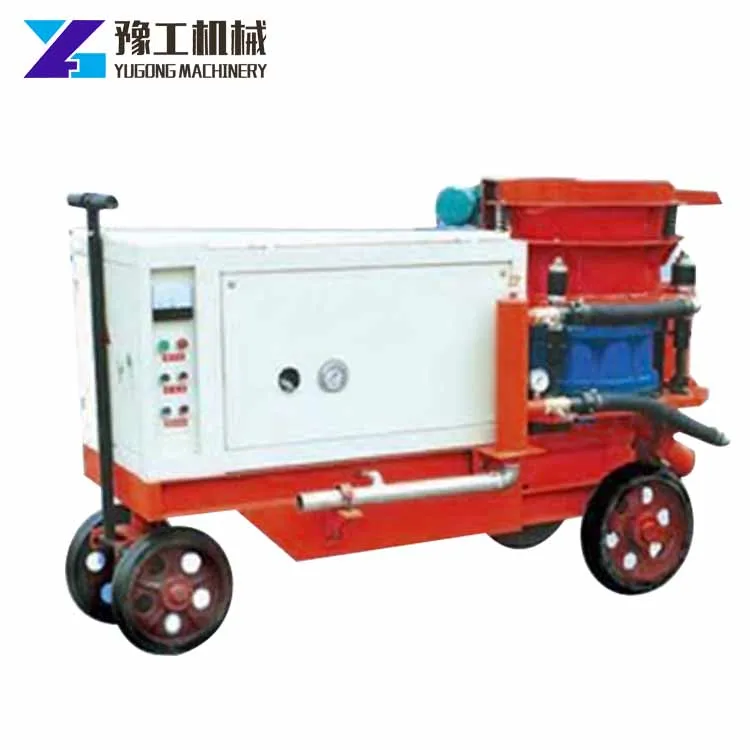

Wet Shotcrete Machine | ||||
Model | YGW-5 | YGW-7 | ||
Production capacity | 5m³/h | 7m³/h | ||
Lift | Horizontal 30m Vertical 20m | Horizontal 30m Vertical 20m | ||
Maximum particle diameter | 15mm | 15mm | ||
Motor Power | 5.5kw | 7.5kw | ||
Dimension | 1280*700*1280mm | 2000*800*1300mm | ||
Weight | 700kg | 800kg | ||
Principle
1. The mixed materials are fed into the jet hopper through the vibrating screen through the discharging port of the batching mixer (or manual mixing and feeding).
2. The feeder is moved by the feeder to inject into the straight-through cavity of the rotor, and swirl along with the rotor to the outlet.
3. Compressed air is introduced from the air chamber here, the material is blown into the discharge elbow, and another pressure air is introduced by the cyclone, which is in a multi-head wind spiral state to blow the material, accelerate, and make it swirl and float. Enter the feeding pipe.
4. After reaching the nozzle, add a small amount of supplementary water (when wet spray) or liquid quick-setting agent (when wet spray) and spray it out.
2. The feeder is moved by the feeder to inject into the straight-through cavity of the rotor, and swirl along with the rotor to the outlet.
3. Compressed air is introduced from the air chamber here, the material is blown into the discharge elbow, and another pressure air is introduced by the cyclone, which is in a multi-head wind spiral state to blow the material, accelerate, and make it swirl and float. Enter the feeding pipe.
4. After reaching the nozzle, add a small amount of supplementary water (when wet spray) or liquid quick-setting agent (when wet spray) and spray it out.
Features
1. Straight-through rotor type non-adhesive material cavity, smooth discharge, high efficiency and time saving.
2. Four-point elastic compensation and compression, good sealing effect, less dust around the machine, and long service life of wearing parts.
3. Adopt low-pressure and high-speed vortex air flow to overcome adhesion, pipe blockage and pulse in material transportation problems such as flushing, breaking, etc., uniform material flow, continuous and stable
4. New sprinkler head, discharge elbow device, improve spraying effect, less rebound, and high spray layer quality.

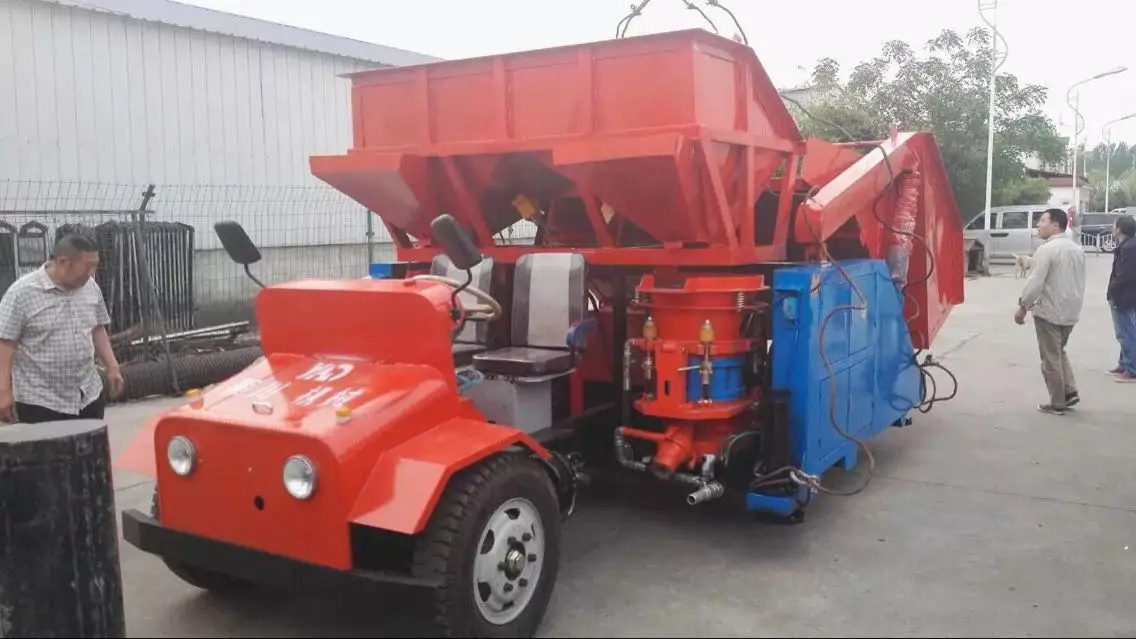

5. The chassis of the machine can be assembled into tire type, skid type and rail wheel type with various gauges
2. Four-point elastic compensation and compression, good sealing effect, less dust around the machine, and long service life of wearing parts.
3. Adopt low-pressure and high-speed vortex air flow to overcome adhesion, pipe blockage and pulse in material transportation problems such as flushing, breaking, etc., uniform material flow, continuous and stable
4. New sprinkler head, discharge elbow device, improve spraying effect, less rebound, and high spray layer quality.
5. The chassis of the machine can be assembled into tire type, skid type and rail wheel type with various gauges

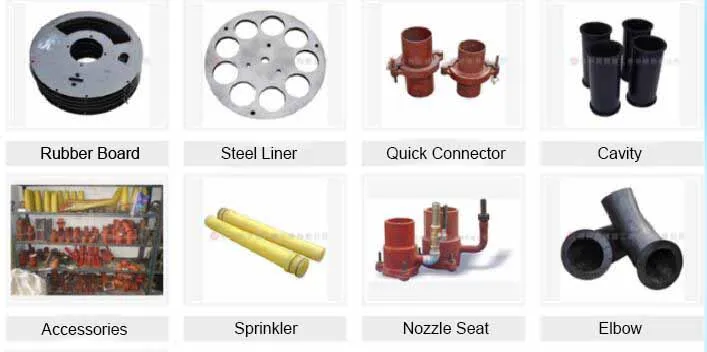

Composition
1. Driving device (main motor, reducer, etc.)
2. Rotor assembly (rotor body, material cavity, rotor liner, etc.)
3. Wind road system
4. Injection system
5. Electrical control system
6. Walking system.
2. Rotor assembly (rotor body, material cavity, rotor liner, etc.)
3. Wind road system
4. Injection system
5. Electrical control system
6. Walking system.

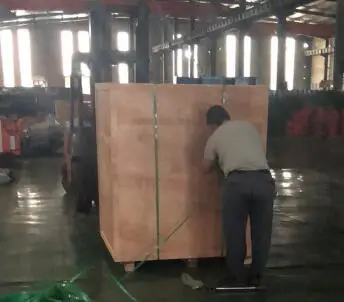

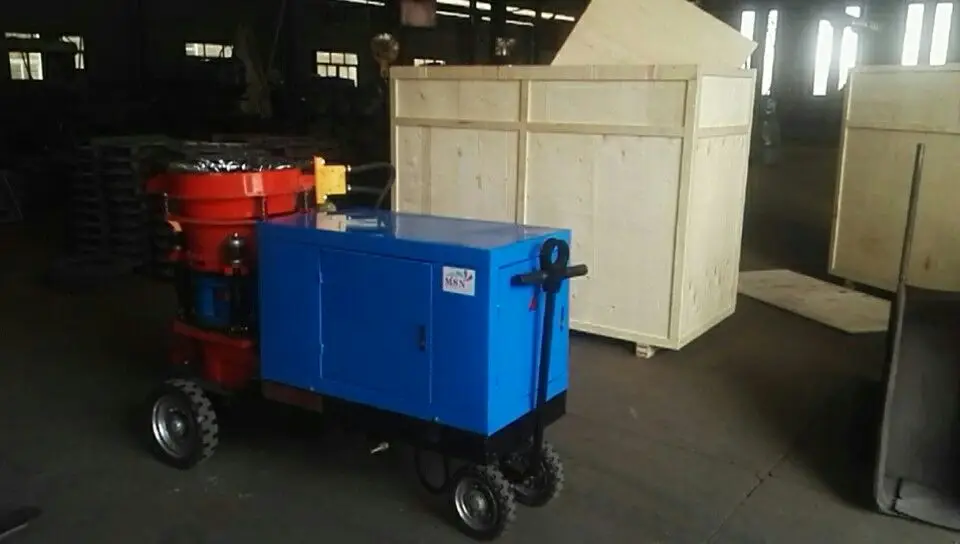

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Henan Yugong Machinery Co., Ltd, located in Zhengzhou, has kept its record in Administration Bureau for Industry and Commerce. The company is a lawful operation. Located in central China, transportation convenience, advanced technology and scientific management guarantee our steady development.
We are a large engineering machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we provides you the top products. All the products with high quality meet international standards. Our equipments are highly estimated by the clients, and are well known at home and abroad.
All the staff in our company are professional trained, so we are familiar with the products and can recommend you the most appropriate equipment. We will keep to provide you professional and perfect service.
We are a large engineering machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we provides you the top products. All the products with high quality meet international standards. Our equipments are highly estimated by the clients, and are well known at home and abroad.
All the staff in our company are professional trained, so we are familiar with the products and can recommend you the most appropriate equipment. We will keep to provide you professional and perfect service.
