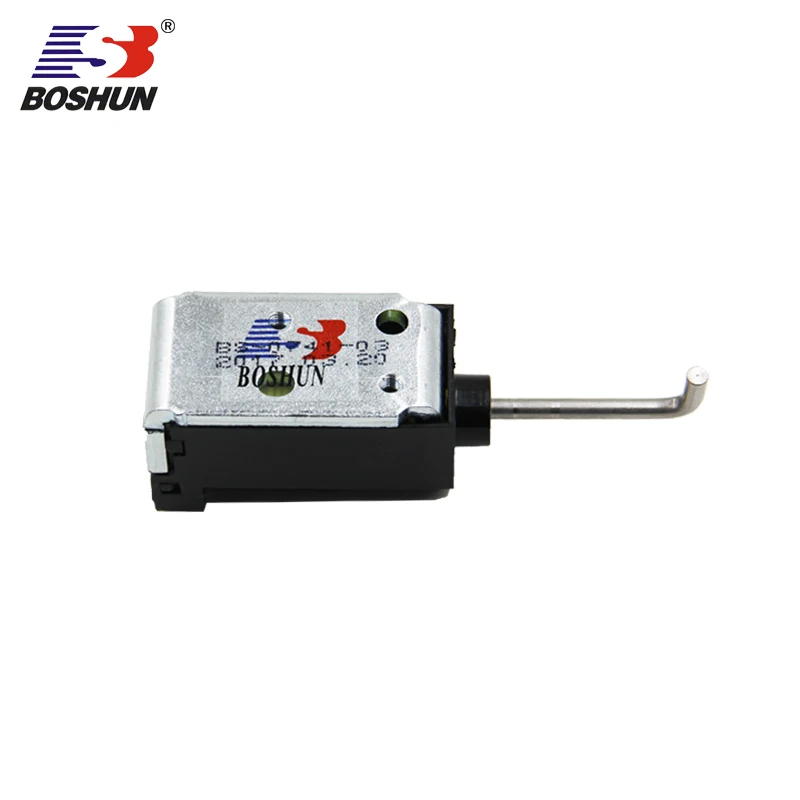

BS-0741-07 хорошего качества пуш-ап Тип Линейный соленоид
- Категории: >>>
- Поставщик: Dongguan,Boshun,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| Product parameters | |
| 1.Name model (P / N) | BS-0741-09 GOOD quality push pull frame solenoid |
| 2. Standard test conditions | |
| 2.1 Ambient temperature | -20℃-45℃ |
| 2.2 Relative humidity | 5%~60%RH |
| 2.3 Rated voltage | DC12V |
| 2.4 Power consumption | 5W(DC5V,R=5Ω±10%) |
| 2.5 OPERATION CYCLE | pass: break = 0.05 seconds: 1 second (maximum power-on time 3 seconds power-on frequency ED 10%) |
| 3. Appearance | no damage, crack, rust, surface stain |
| 4. Electrical characteristics | |
| 4.1 Working voltage | DC12V±10% |
| 4.2 Potence | Powered DC5V,iron core activity flexible. |
| 4.3 Insulation resistance | DC500V,≥50MΩ |
| 4.4 High voltage | AC700V 50/60Hz-1 sec, leakage current up to 1 mA (between coil and housing) |
| 5.0 Life | 200,000 times or more in normal use. |

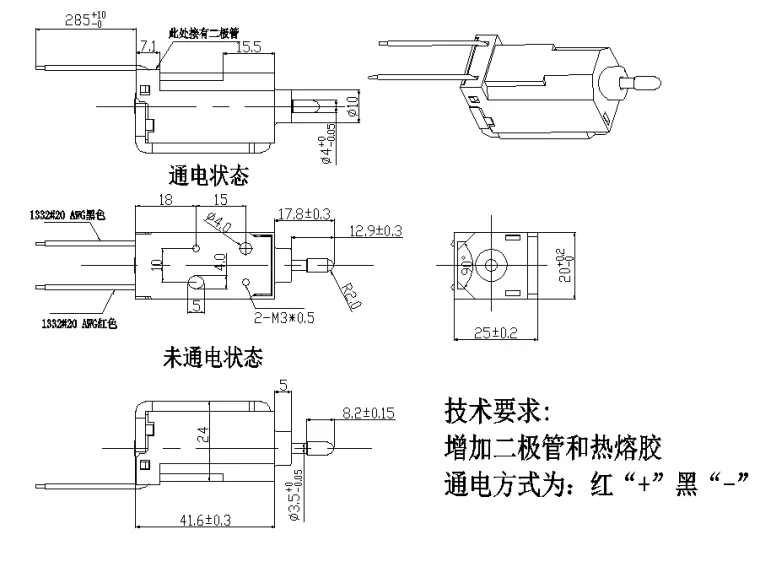

Product drawing:
Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.
View more
BS-0730 Size(width*height*length) 14*16*30
| BS-0731 Size(width*height*length) 16*20.5*30.7
| BS-0741 Size(width*height*length) 20*25*41.5
| BS-0826 Size(width*height*length) 22*25*41.5
|
BS-0837 Size(width*height*length) 20*26*37
| BS-0940 Size(width*height*length) 19.8*15*41.7
| BS-0946 Size(width*height*length) 19*23*45.9
| BS-1037 Size(width*height*length) 26*20*37
|
BS-1039 Size(width*height*length) 26*20*39
| BS-1040 Size(width*height*length) 24*29*40
| BS-1041 Size(width*height*length) 29*24*40
| BS-1230 Size(width*height*length) 22*32*30
|

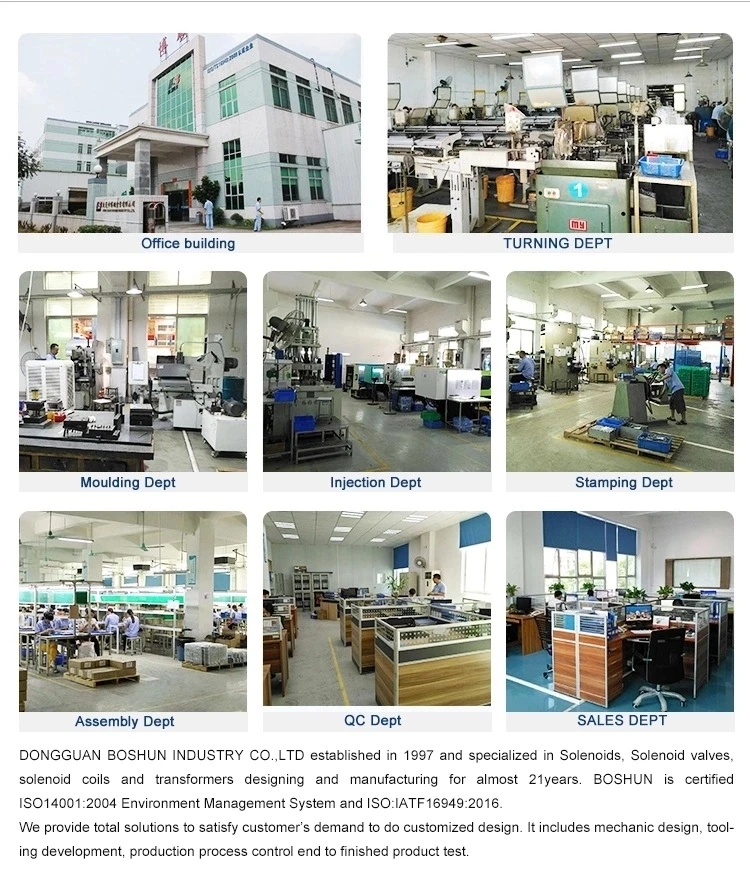

Company Information
cooperation client

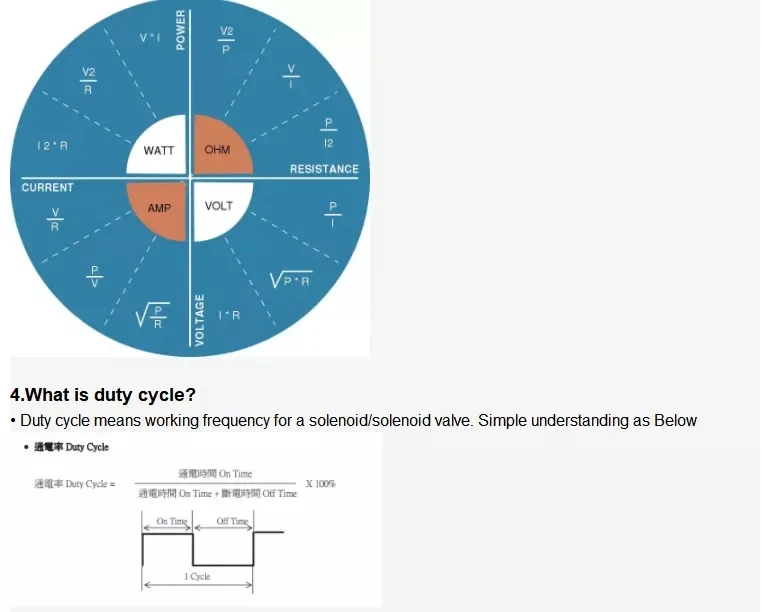

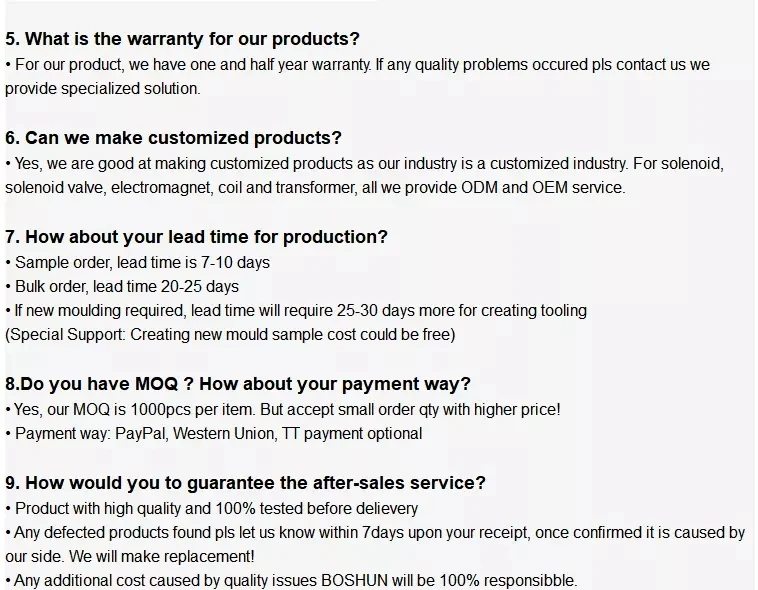

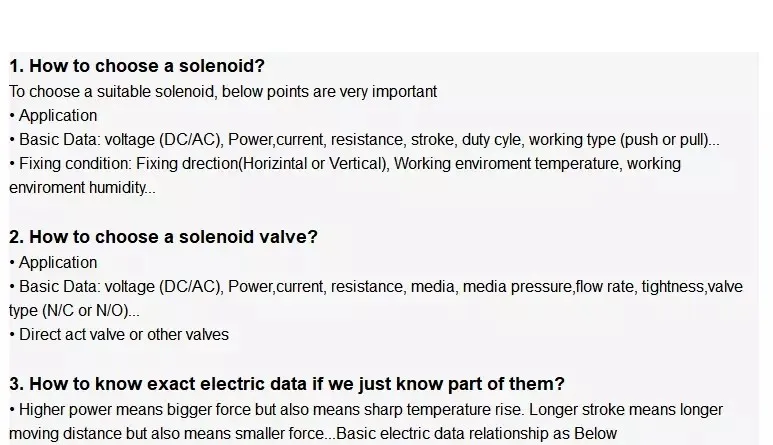

FAQ
