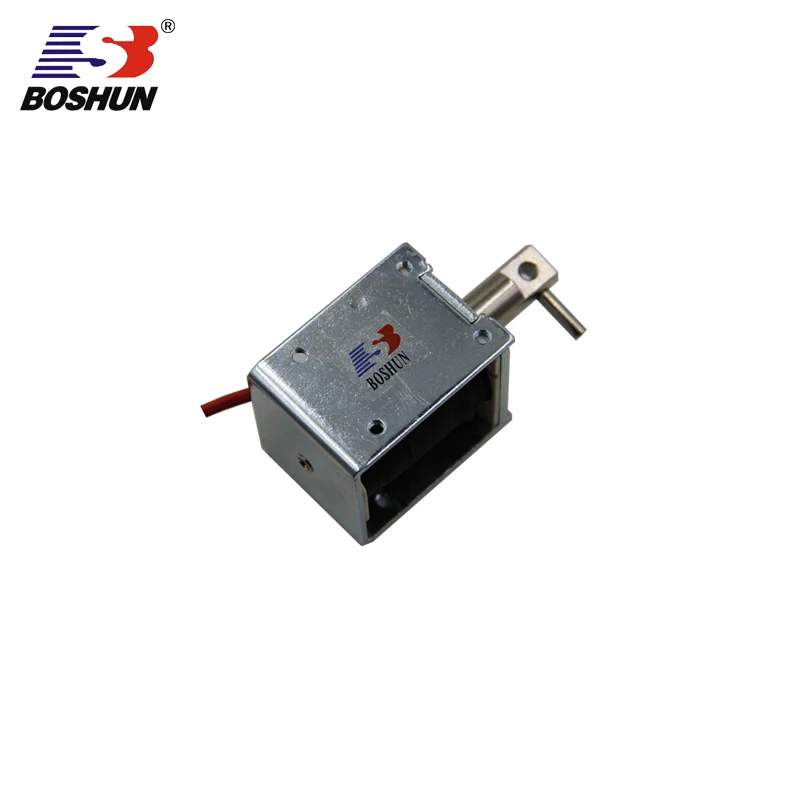

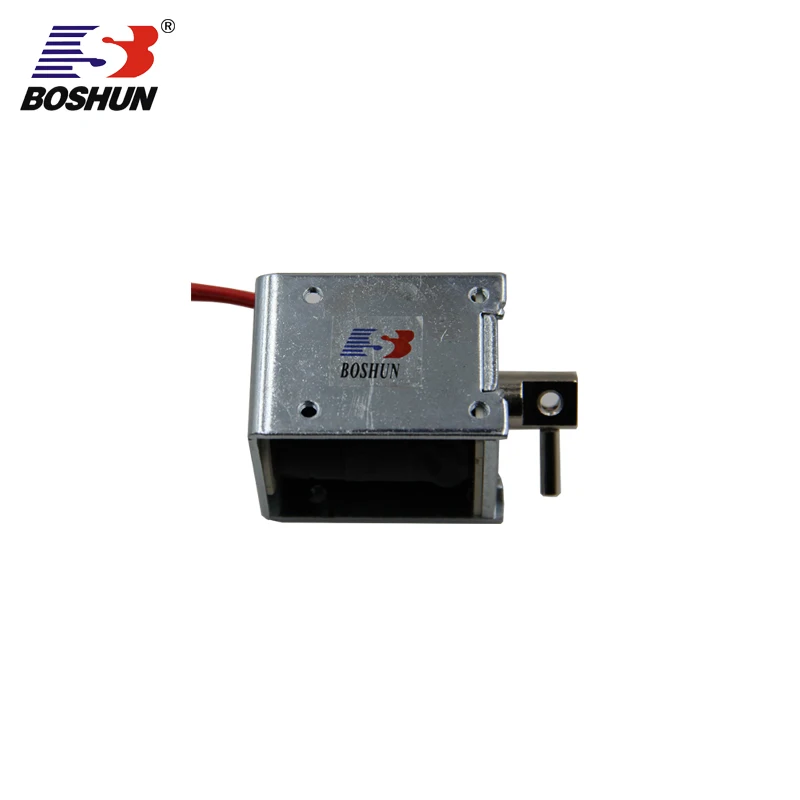

BS-1250-46 оптовая продажа Электромагнит открытый соленоид
- Категории: >>>
- Поставщик: Dongguan,Boshun,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| Product main parameters | |
| Name model | BS-1250-46 |
| Standard Test Conditions | 2.1 Temperature range: —20℃~+65℃,5%~95%RH 2.2 Relative humidity: —20℃~+45℃,5%~60%RH 2.3 rated voltage: DC24V 2.4 power consumption (wattage): 44.3W(DC24V,R=13Ω±10%) 2.5 PERATION CYCLE: pass: break = 0.05S: 0.15S (maximum power-on time 5S, power-on frequency 25%) |
| Facies | no damage, cracks, rust, surface stains |
| Electrical characteristics | 4.1 Working voltage: DC24V±10% 4.2 Potence: 15mm pull: ≥400g (DC24V) 4.3 Insulation resistance: DC500V, ≥50MΩ (between coil and skeleton) 4.4 High voltage: DC700V 50/60Hz-1 sec, leakage current up to 1 mA (between coil and case) |
| life | 300,000 times or more in normal use. |

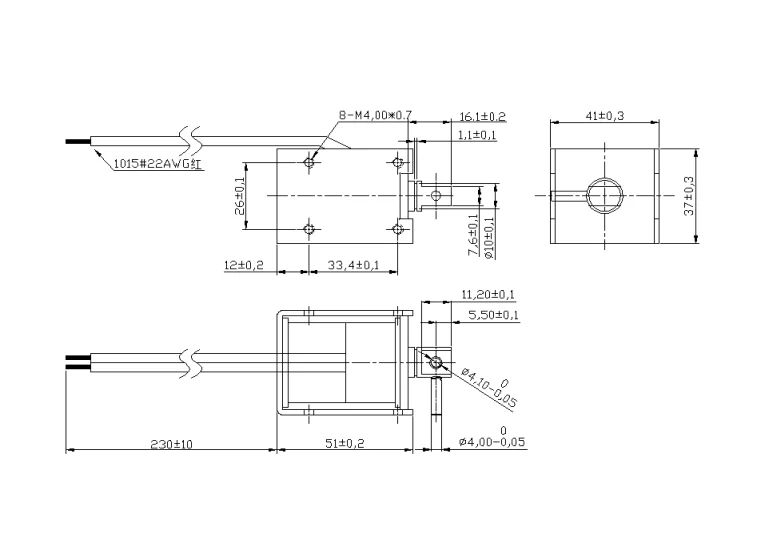

product drawing:
Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.
View more
BS-0730 Size(width*height*length) 14*16*30
| BS-0731 Size(width*height*length) 16*20.5*30.7
| BS-0741 Size(width*height*length) 20*25*41.5
| BS-0826 Size(width*height*length) 22*25*41.5
|
BS-0837 Size(width*height*length) 20*26*37
| BS-0940 Size(width*height*length) 19.8*15*41.7
| BS-0946 Size(width*height*length) 19*23*45.9
| BS-1037 Size(width*height*length) 26*20*37
|
BS-1039 Size(width*height*length) 26*20*39
| BS-1040 Size(width*height*length) 24*29*40
| BS-1041 Size(width*height*length) 29*24*40
| BS-1230 Size(width*height*length) 22*32*30
|
Application 1
