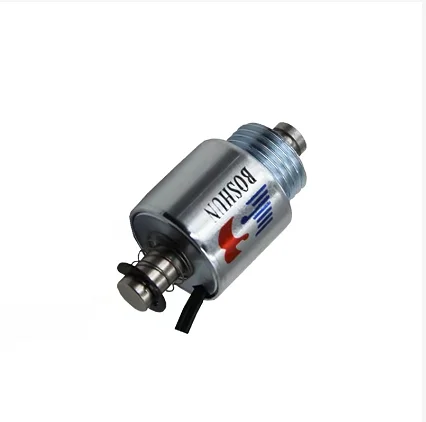

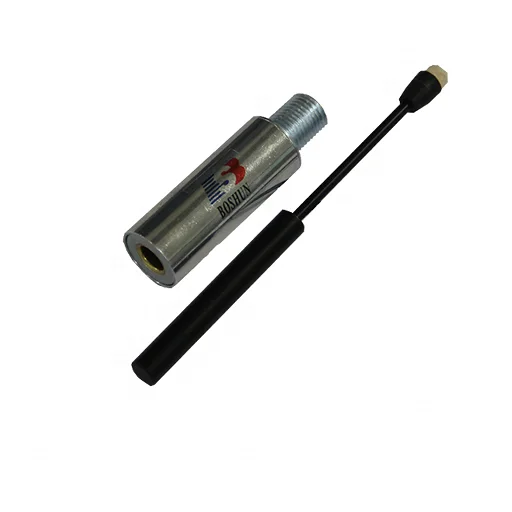

BS-1325T-01Top производительность Дизайн Электромагнит
- Категории: >>>
- Поставщик: Dongguan,Boshun,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| Product parameters | |
| Name model | BS-1325T-01 |
| Standard test conditions | 2.1 Ambient temperature: —20℃~+45℃,5%~95%RH 2.2 Relative humidity:—20℃~+65℃,5%~60%RH 2.3 Rated voltage: DC12V 2.4 Power consumption (wattage):14.4W(DC12V,R=10Ω±10%) 2.5 OPERATION CYCLE: :intermittent type |
| Appearance | no damage, crack, rust, surface stain |

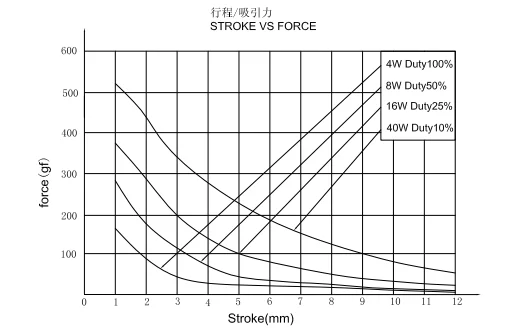

| Electric characteristics | 4.1 Working voltage: DC12V±5% 4.2 Potence: when input is DC12V,stroke at 6mm,force above 40g. 4.3 Insulation resistance: DC500V,≥50 0MΩ(Between the coil and the skeleton) 4.4 High voltage: AC700V 50/60Hz-1second,maximum leakage current 1 mA (between coil and housing |
| biometryal | more than 200,000 times in normal used. |

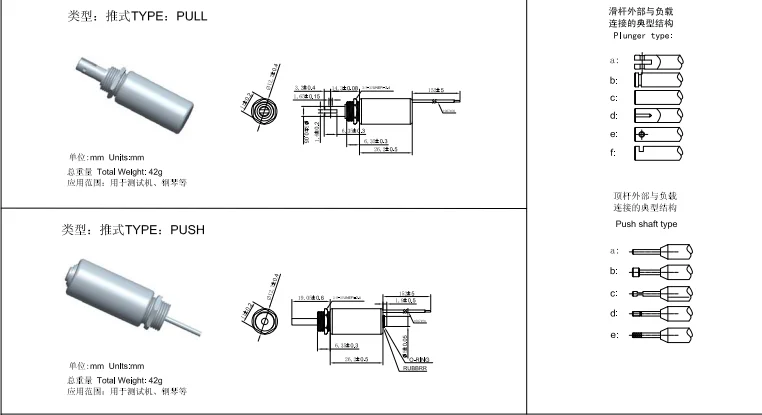

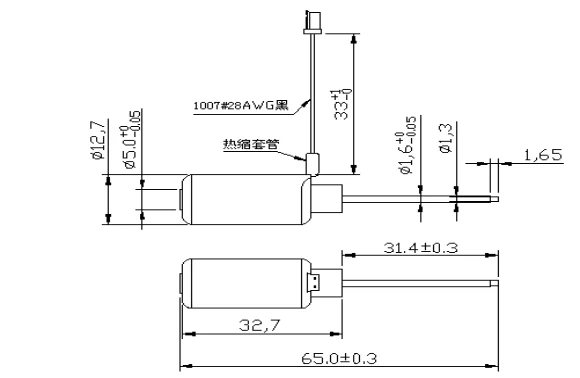

Product Drawing
Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.

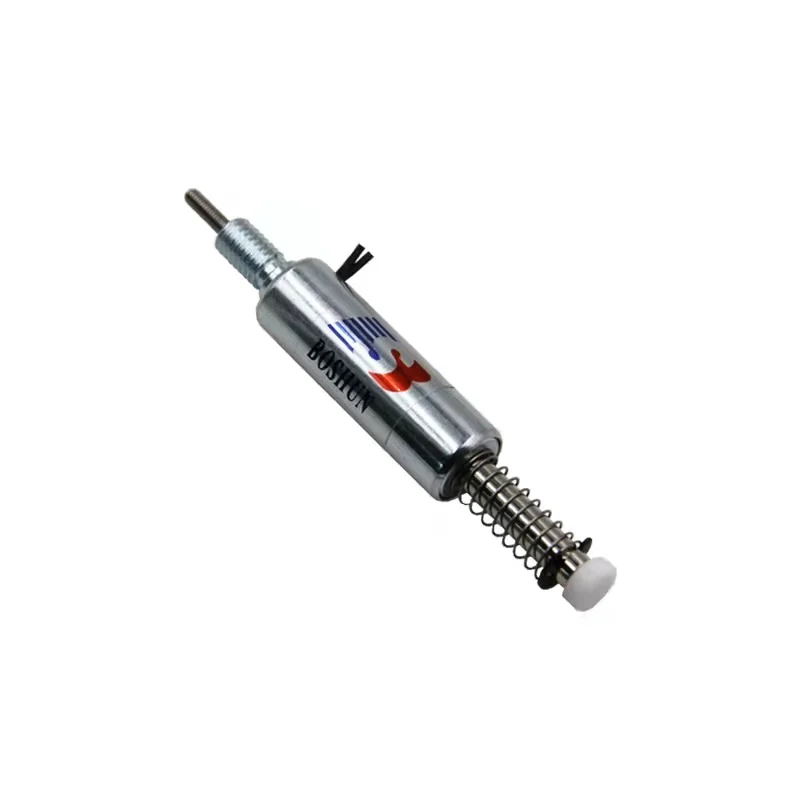

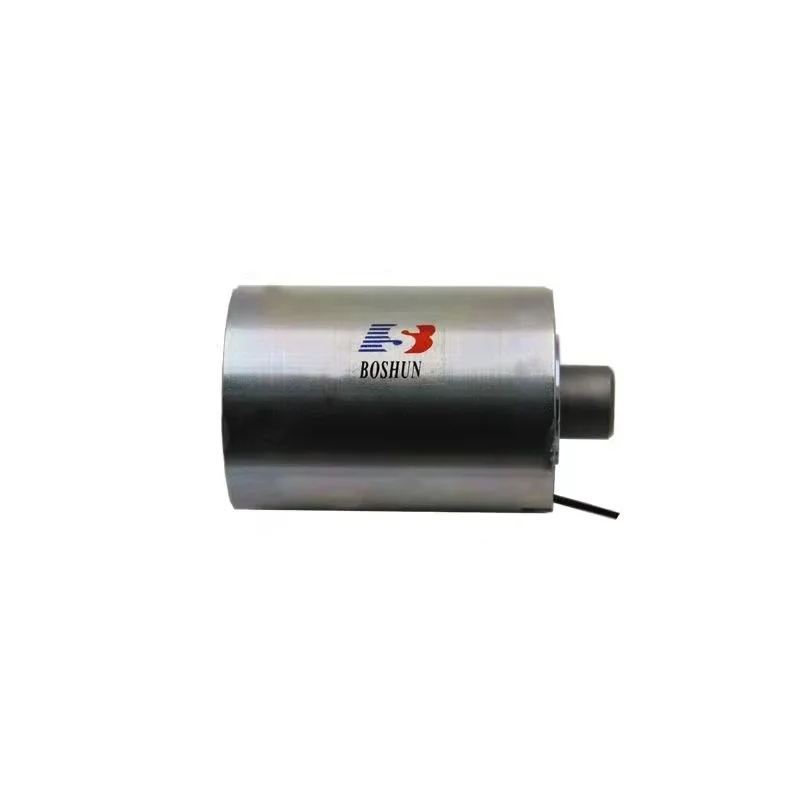

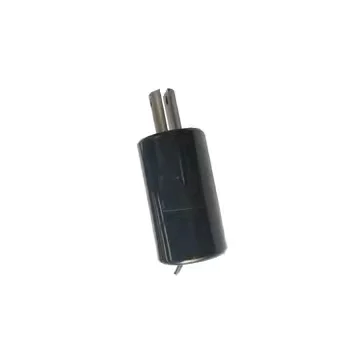

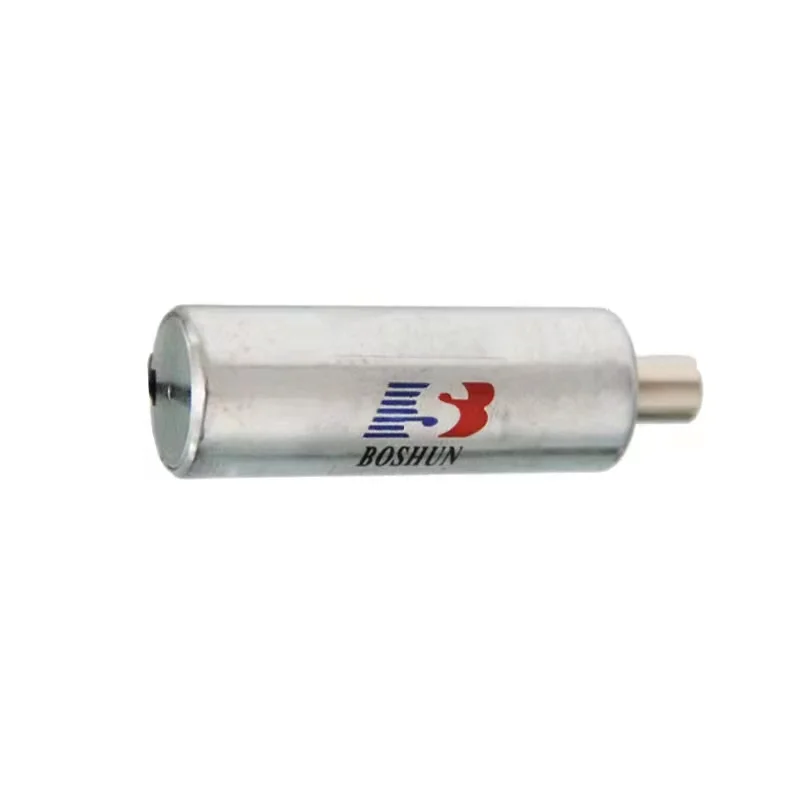

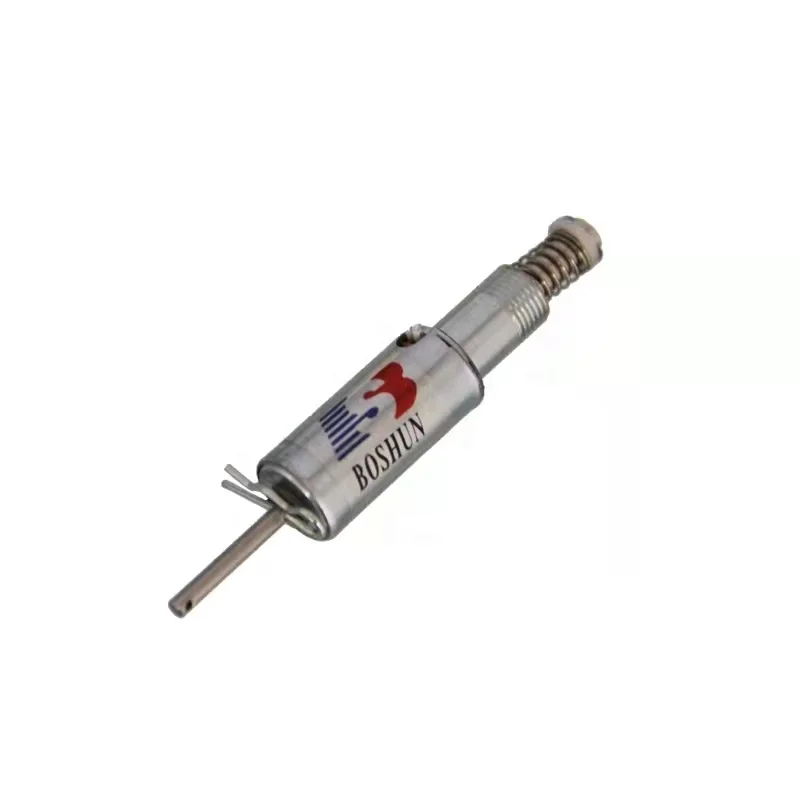

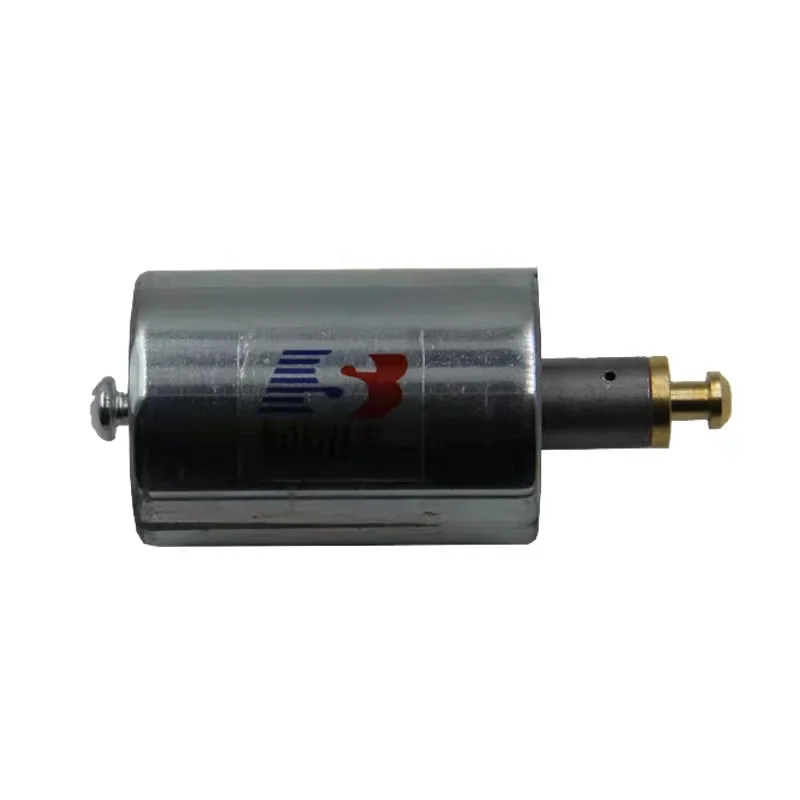

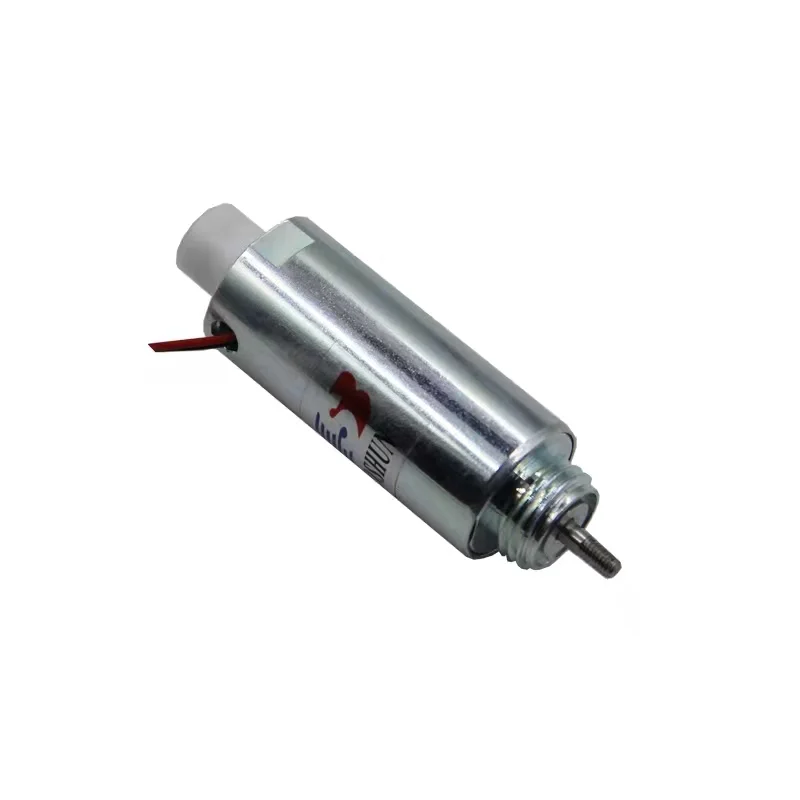

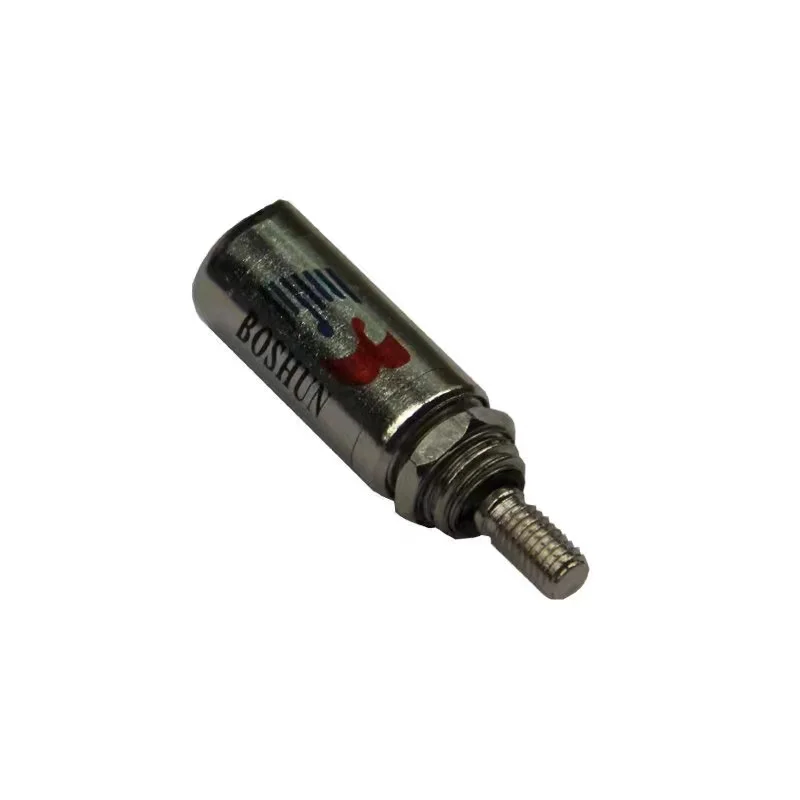

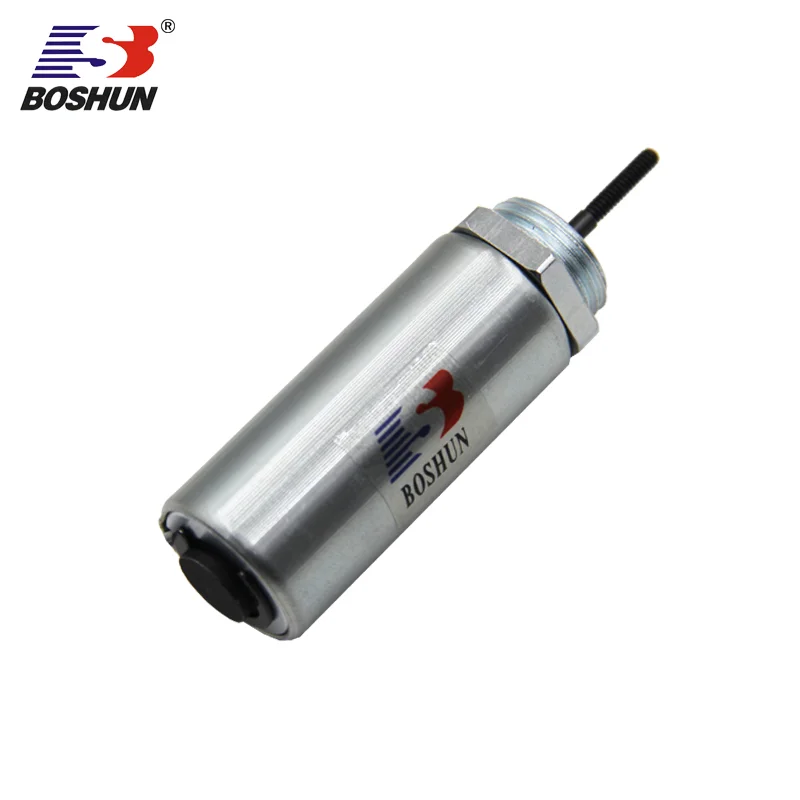

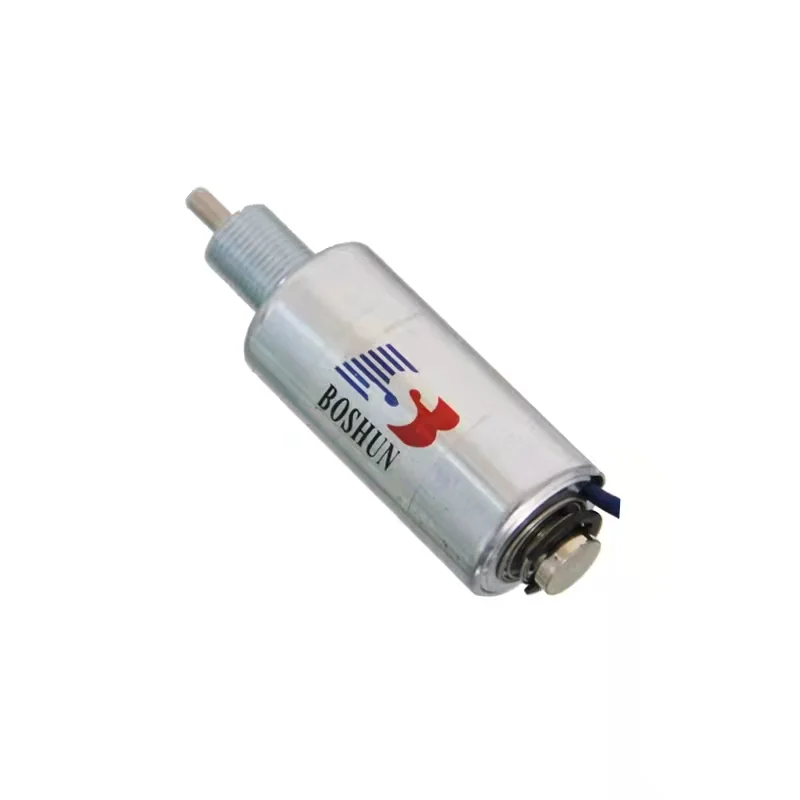

Tubular solenoid
BS-0812T Size(Diameter*Length) 8*12
| BS-1236T Size(Diameter*Length) 12*36
| BS-1325T Size(Diameter*Length) 13*25
| BS-1327T Size(Diameter*Length) 13*27
|
BS-1939T Size(Diameter*Length) 19*39
| BS-1950T Size(Diameter*Length) 19*50
| BS-1953T Size(Diameter*Length) 19*53
| BS-2045T Size(Diameter*Length) 20*45
|
BS-2220T Size(Diameter*Length) 22*20
| BS-2226T Size(Diameter*Length) 22*26
| BS-2351T Size(Diameter*Length) 23*51
| BS-2551T Size(Diameter*Length) 25*51
|

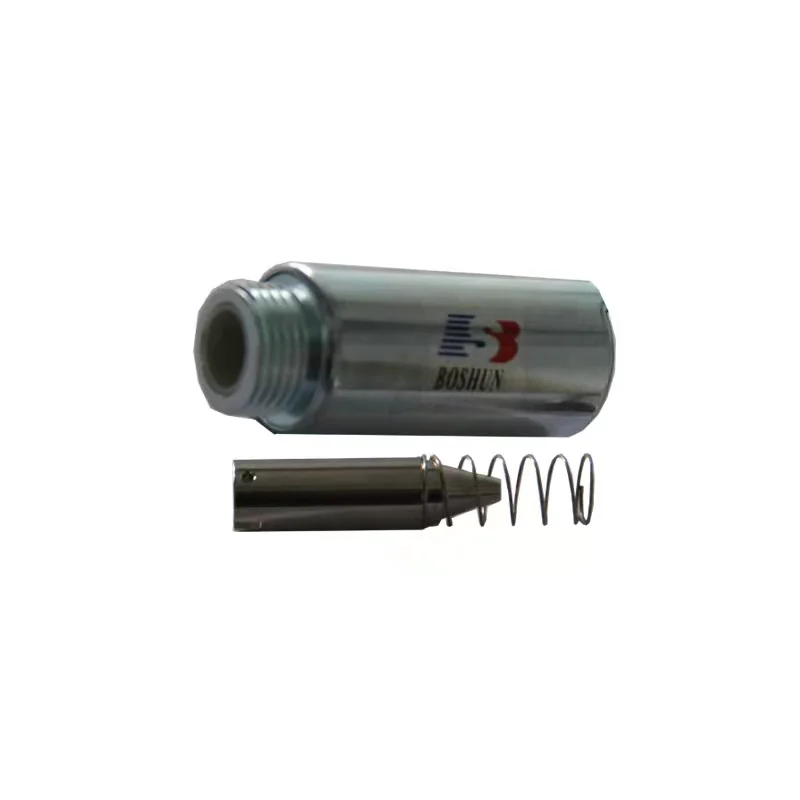

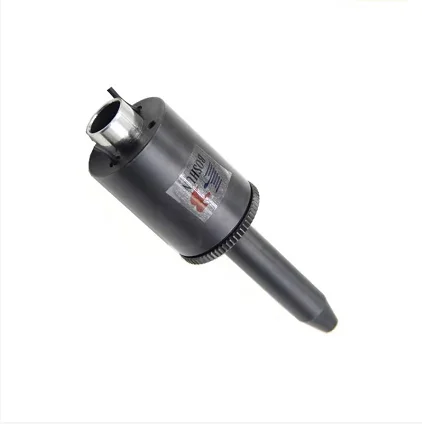

tubular solenoid
BS-2840T Size(Diameter*Length) 28*40
| BS-3039T Size(Diameter*Length) 30*39

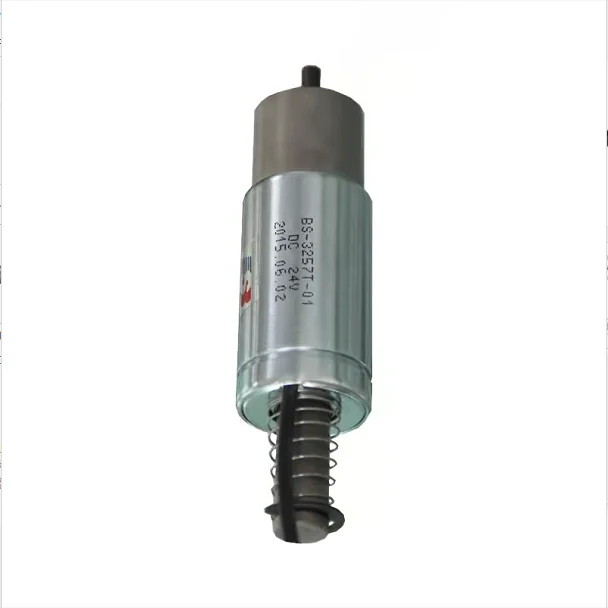

| BS-3257T Size(Diameter*Length) 32*57
| BS-3755T Size(Diameter*Length) 37*55
|
BS-4020T Size(Diameter*Length) 40*20
| BS-4563T Size(Diameter*Length) 45*63
| BS-5070 Size(Diameter*Length) 50*70
| BS-5156T Size(Diameter*Length) 51*56
|

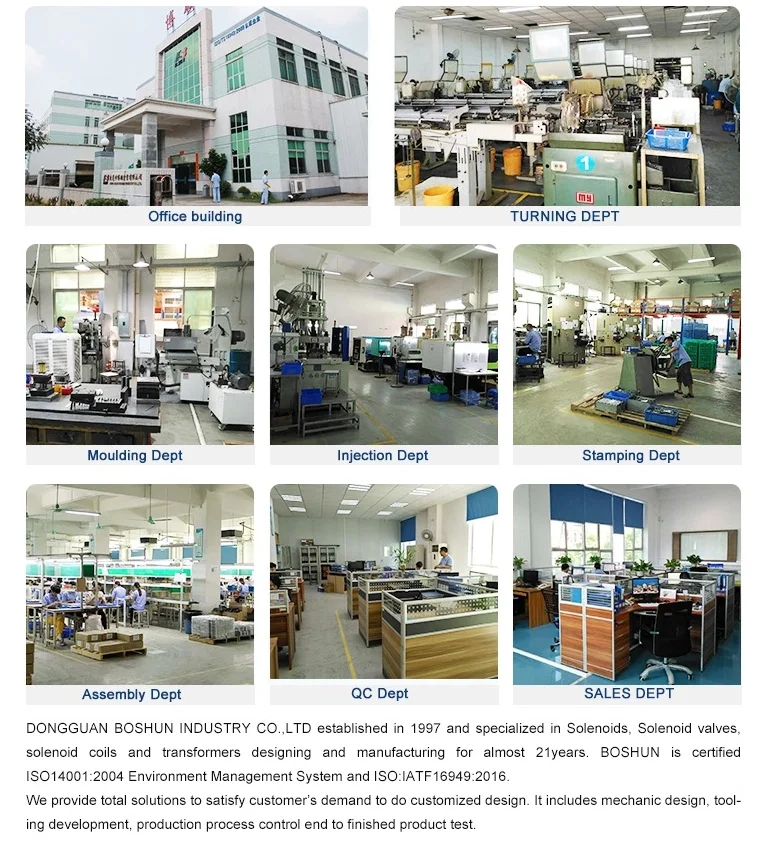

Company Information
Dongguan Boshun electromagnet manufacturers in accordance with the iso-ts16949 quality management system production,focus on tooling in the production line full inspection, to ensure that the rate of shipment of good products fully meet the standard.
cooperation client
Our Services
1.How to chose a solenioid?
- To choose a suitable, below points are very important
- Application
- Basic Data: Volatage(DC/AC), Power, Current, resistance, stroke, duty cyle, working type(push or pull)
- Fixing condition: Fixing drection (Horizintal or Vertical), Working enviroment temperature,working enviroment humidity....
2.How to choose a solenoid valve?
- Application
- Basic Data: voltage (DC/AC), power, current, resistance, media,media pressure, flow reta, tightness, valve type(NC.NO)..
- Direct act valve or other valves
3.What is the warranty for our products?
- For our product, we have one and half year warranty, If any quality problems occured pls contact us we provide specialized solution.
4.Can we macke customized products?
- Yes, We are good at making customized as our industry is a customized industry. For solenoid, solenoid valve, electromagnet, coil and transformer, all we provide OEM and ODM service.
5.How about your lead time for production?
- Sample order, lead time is 7-10 days
- Bulk order, lead time is 20-25 days
- If new moulding required, lead time will require 25-30 days more for creating tooling (Special Support: Creating new mould sample cost could be free)
6.Do you have MOQ? How about you payment way?
- Yes, Our MOQ is 1000pcs per item, But accept samll order qty with higher price!
- Payment way: PayPal, Western Union, TT payment optional
7. How would you to guarantee the after-sales service?
- Product with high quality and 100% tested before delivery
- Any defected products founds pls let us know within 7 days upon your receipt, once confirmed it is caused by our side. We will make replacement!
- Any additional cost caused by quality issure BOSHUN will be 100& responsibble.
