COMAM8 China factory bearing radial spherical plain bearing COMA-M8
Product Description
Descriptions of Spherical Plain Bearing
The Spherical Bearing is a heavy-duty self-aligning sliding bearing. Highly resistant to impact loads, this product is most fitted to the oscillating section under slow, heavy loads.
Maintenance Required
1. Outer ring pressed around inner ring
2. Outer race lined with PTFE fabric
3. Inch dimensions series

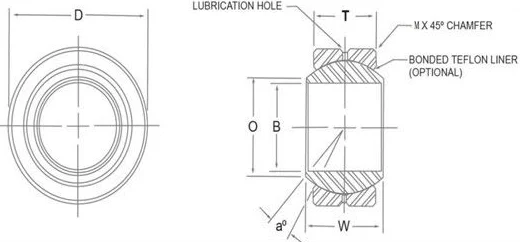

Drawing
Specifications
| BEARING NO. | B | D | W | T | O | M | BALL | a° | |
| DIA. | DIA. | WIDTH | WIDTH | FLAT DIA. | CHAMFER | DIA. | MIS. | ||
| REF. | REF. | REF. | REF. | REF. | REF. | REF. | ANGLE | ||
| REF. | |||||||||
| COMA-M3 | 3 | 12 | 6 | 4.5 | 5.19 | 0.5 | 7.93 | 13.5 | |
| COMA-M5 | 5 | 16 | 8 | 6 | 7.68 | 0.5 | 11.1 | 12.5 | |
| COMA-M6 | 6 | 18 | 9 | 6.75 | 8.93 | 0.5 | 12.7 | 12.5 | |
| COMA-M8 | 8 | 22 | 12 | 9 | 10.35 | 0.8 | 15.88 | 14 | |
| COMA-M10 | 10 | 26 | 14 | 10.5 | 12.88 | 0.8 | 19.05 | 13.5 | |
| COMA-M12 | 12 | 30 | 16 | 12 | 15.39 | 0.8 | 22.23 | 13 | |
| COMA-M14 | 14 | 34 | 19 | 13.5 | 16.86 | 1 | 25.4 | 16 | |
| COMA-M16 | 16 | 38 | 21 | 15 | 19.34 | 1 | 28.58 | 15 | |
| COMA-M18 | 18 | 42 | 23 | 16.5 | 21.89 | 1 | 31.75 | 15 | |
| COMA-M20 | 20 | 46 | 25 | 18 | 24.35 | 1 | 34.93 | 14.5 | |
| COMA-M22 | 22 | 50 | 28 | 20 | 25.84 | 1.5 | 38.1 | 15 | |
| COMA-M25 | 25 | 56 | 31 | 22 | 29.6 | 1.5 | 42.86 | 15 | |
| COMA-M30 | 30 | 66 | 37 | 25 | 34.81 | 1.5 | 50.8 | 17 | |

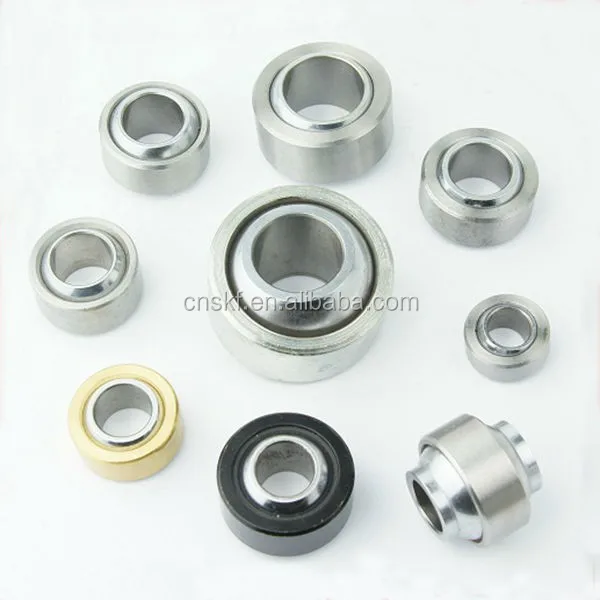

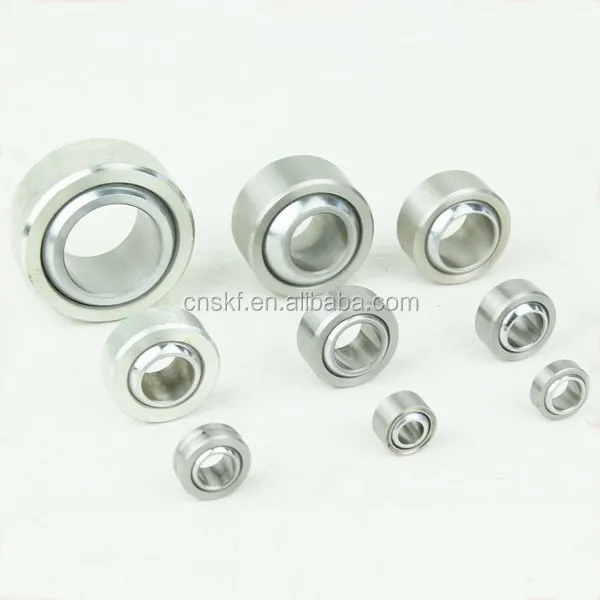

Pictures show
Company Information
Anhui KaiFu Bearing Import&Export Co., Ltd.Specializing in the production of bearings stainless steel and so on. Products of high quality, fashionable, widely use.We have plentif experiance in doing business with different countries.Both our company and products enjoy a good reputation from home and abroad.With so many talented workers here, we sincerely hope to have a cooperation with you in the future.

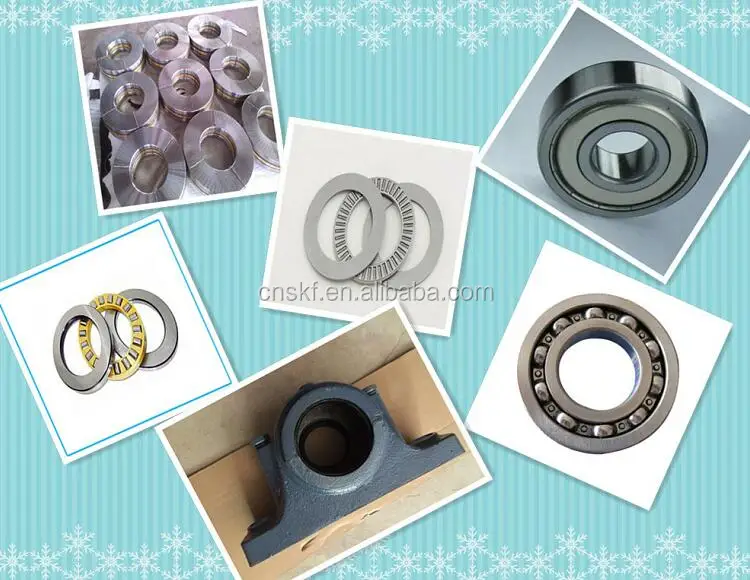

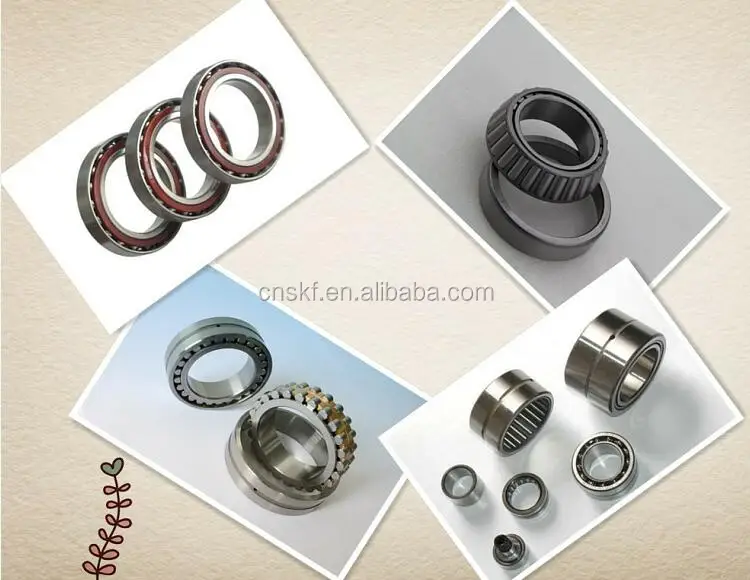

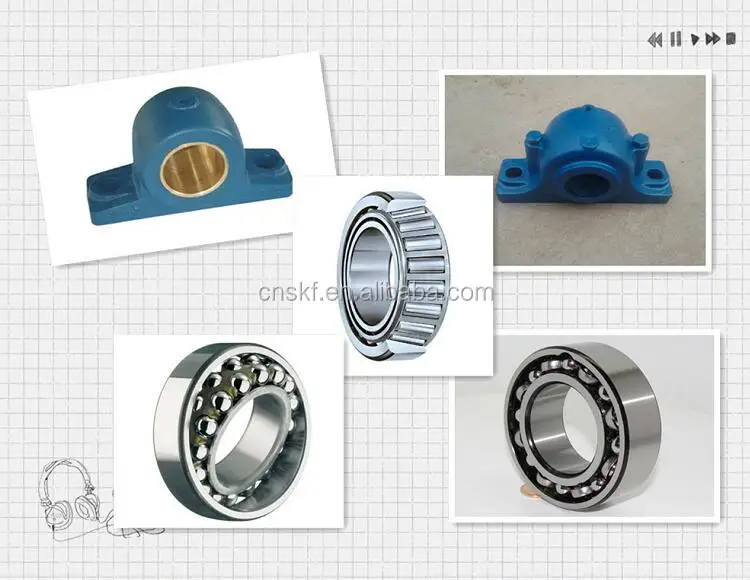

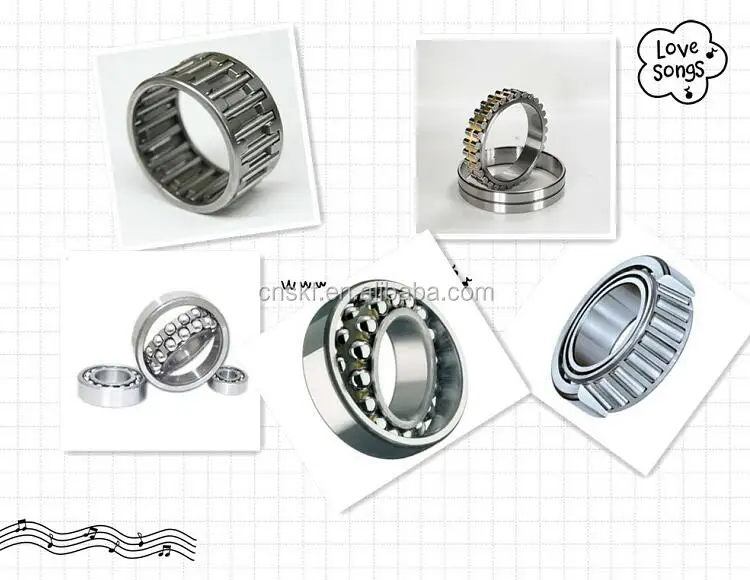

Similar Product
