AG bearing Square bore bearing agricultural bearing W208PPB5 DS208TT5, 1AS08-1-1/8
Square bore bearing W208PPB5 supply
1,ISO:9001:2008
2.EXW price OEM service
3.One year guarantee
4,3% discount for order now
About AG bearing Square bore bearing agricultural bearing W208PPB5 DS208TT5, 1AS08-1-1/8:
Agricultural machinery requires better seals for contaminated conditions, provisions for misalignment, and economical mountings for shafts and housings. Lily Bearings offers bearings for disc harrows, planters, mowers, rakes, all types of balers, tillage, seeding and forage harvester equipment, combines, cotton pickers/stripers, and other agricultural equipment like silo unloaders and grain elevators.

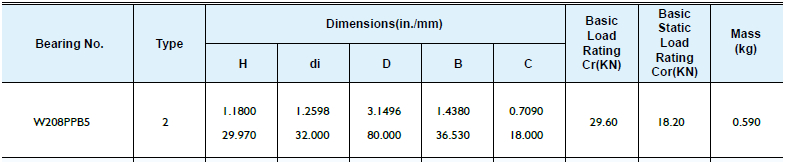

AG bearing Square bore bearing agricultural bearing W208PPB5 DS208TT5, 1AS08-1-1/8 design draft :
| Bearingstypes | W208PPB5 |
| categories | AG bearing / Agrucultural bearing |
| brands | SHR /OEM |
| Metric size : | 29.97*80*36.53 mm |
| Inch size : | 1.18*3.1496*1.438 inch |
| Weight | 0.59 KG |
Square bore bearing W208PPB5 Features and Benefits:
1. High grade through hardened bearing steel for improved fatigue resistance and load carrying capacity.
2. High grade balls have improved roundness and finish to extend bearing fatigue life.
3. Raceway formation and finishes to provide long life and load carrying capacity.
4. Seal designs for all operating conditions, loads and speeds.
5. Premium grease types and fill amounts for optimal bearing life
Applications for AG bearing :
Agriculture - Combines, Tillage equipment, Hay Balers, Mower Conditioners, Cotton Strippers, Augers, Planters/Grain Drills, wheel bearings, disc bearings.
Lawn & Garden - Lawn Mowers wheels and spindles.
Conveyors - Grain, Aggregate
AG bearing range :
Round bore Non-relubricable
Square bore Non-relubricable
Round & Square bore Non-relubricable
Round bore Relubricable
Square bore Relubricable
200 series
87000 series
88000 series
Square bore bearing W208PPB5 other model series : ( INCH SIZES )
| Boundary dimensions(in) | Mass(Kg) | Bearing Number | |||
| d | D | B | C | (Approx.) | SHR |
| 1.7850 | 3.5433 | 1.189 | 1.189 | 0.79 | W210PPB5 |
| 2.1880 | 3.9370 | 1.311 | 1.311 | 0.97 | W211PPB2 |
| 1.7717 | 3.3464 | 1.189 | 1.189 | 0.65 | W209PPB2 |
| 1.5350 | 3.3464 | 1.189 | 1.189 | 0.75 | W209PPB4 |
| 1.9380 | 3.5433 | 1.189 | 1.189 | 0.71 | W210PPB2 |
| 1 | 3.1496 | 1.189 | 0.708 | 0.64 | W208PPB7 |
| 1.7811 | 3.3464 | 1.437 | 0.866 | 0.64 | W209PPB11 |
| 1.9380 | 3.9370 | 1.311 | 1.311 | 1.02 | GW211PPB10 |
| 2.1880 | 3.9370 | 1.311 | 1.311 | 0.97 | GW211PPB2 |
| 2.1940 | 3.9370 | 1.311 | 0.984 | 0.92 | GW211PPB9 |
| 1.5350 | 3.3464 | 1.189 | 1.189 | 0.75 | GW209PPB4 |
| 1.9380 | 3.5433 | 1.189 | 1.189 | 0.71 | GW210PPB2 |
| 1.7850 | 3.5433 | 1.189 | 1.189 | 0.79 | GW210PPB5 |
| 1.1880 | 3.1496 | 1.437 | 0.708 | 0.72 | GW208PPB6 |
| 1.7811 | 3.3464 | 1.437 | 0.866 | 0.64 | GW209PPB11 |
| 1.7717 | 3.3464 | 1.189 | 1.189 | 0.65 | GW209PPB2 |

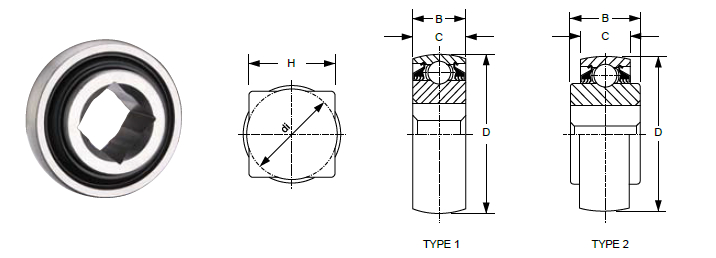

AG bearing Square bore bearing agricultural bearing W208PPB5 DS208TT5, 1AS08-1-1/8 pictures series :
Packages
Bearing packages :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
BEARING APPLICATION
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
