Product Description
MDEU35 Sprag Type Bearing Backstop Cam Clutch Overrunning Clutch MDEU 35
Product Introduction
1. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7.
2. Built in roller type bearing, due to the structure of cam and roller.
3. When installing the Cam Clutch on the shaft, press the clutch inner race slightly.
4. Never apply thrust loads to the Cam Clutch. Other devices Should be provided to take up thrust loads applied to the Cam Clutch.
5. In case of large radial loads applied to the Cam Clutch like installing with pulley, another bearing should be prepared so that the point of the loads can be hanged on the bearing.
2. Built in roller type bearing, due to the structure of cam and roller.
3. When installing the Cam Clutch on the shaft, press the clutch inner race slightly.
4. Never apply thrust loads to the Cam Clutch. Other devices Should be provided to take up thrust loads applied to the Cam Clutch.
5. In case of large radial loads applied to the Cam Clutch like installing with pulley, another bearing should be prepared so that the point of the loads can be hanged on the bearing.
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |

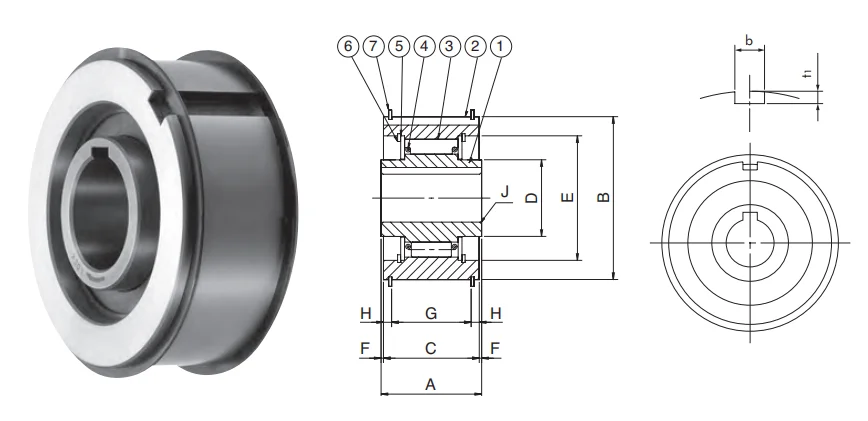

Drawing
PS: Please contact us if didn't find the bearing number you need~
