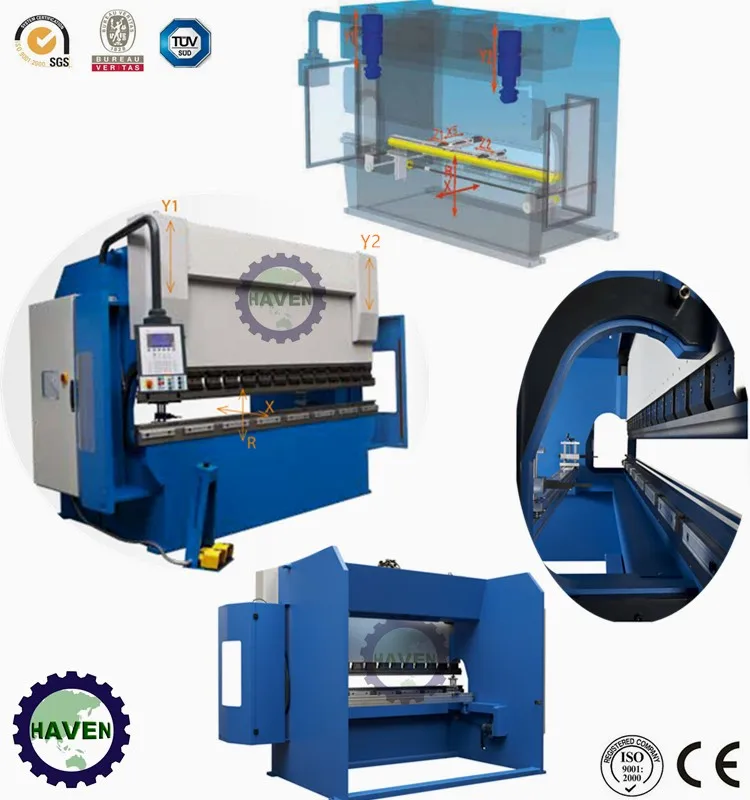

full cnc synchronized cnc press brake machine with multi-axis control
Product Description

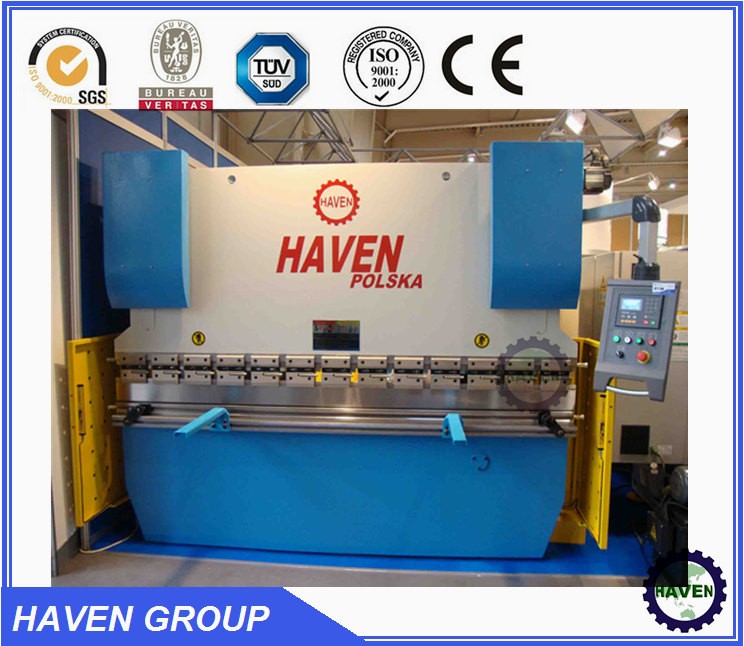

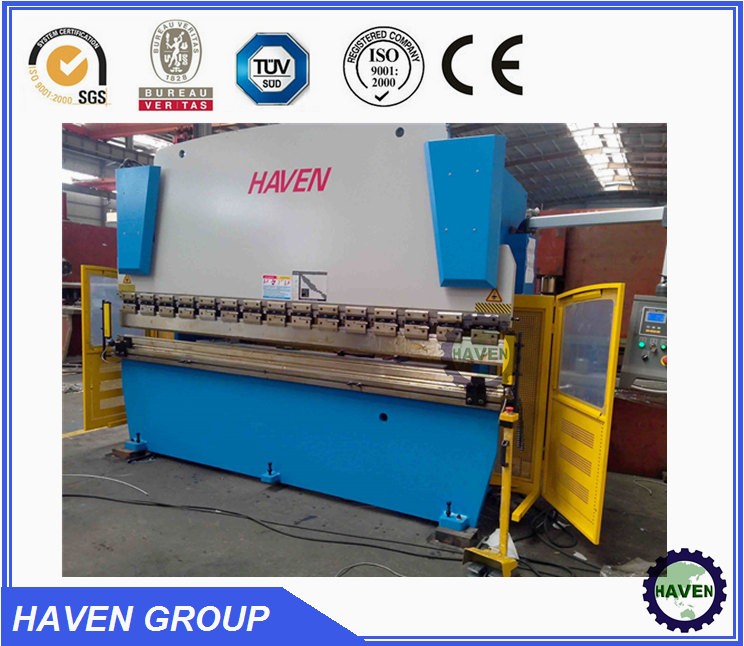

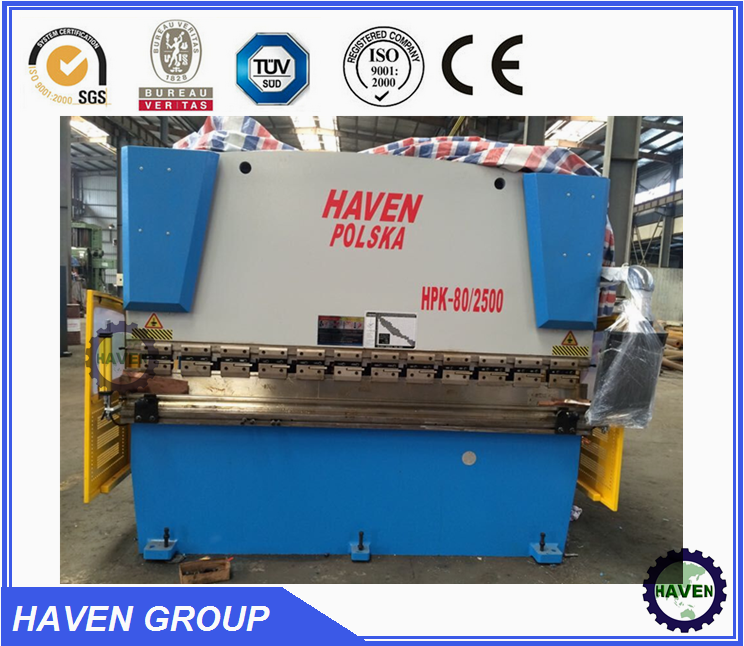

WC67Y series hydraulic press brake

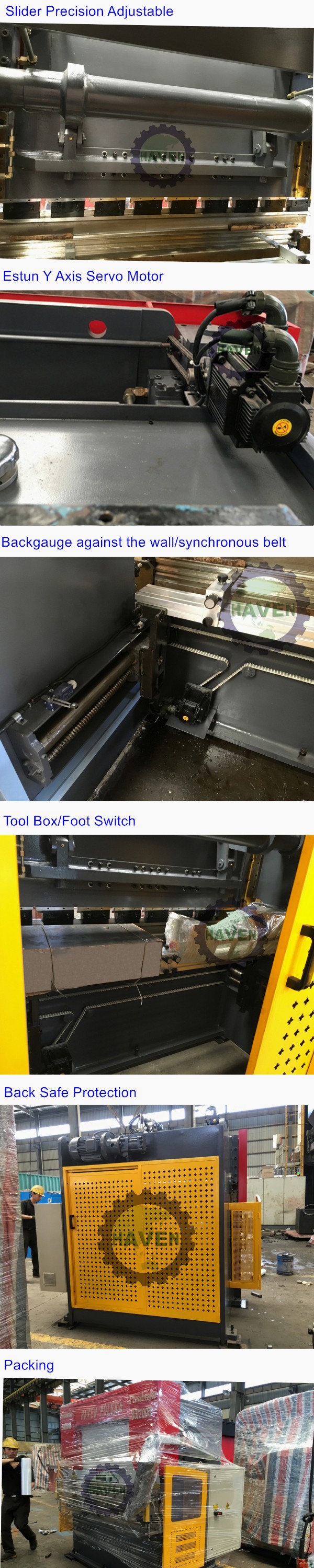

(1) Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity;
(2) Hydraulic top-drive, steadiness and reliability
(3) Mechanical stop, steel torsion bar to maintain synchronization, high precision;
(4) Motorized-adjusting device of back-gauge and rams stroke, fine adjusting by hand wheel, numerical display;
(5) Deflection compensation unit installed on the top die, manual crowed bottom die holder is adopted for the
machine above 250tons;
(6) Travel limit protection.
(7) Remote pedal control device

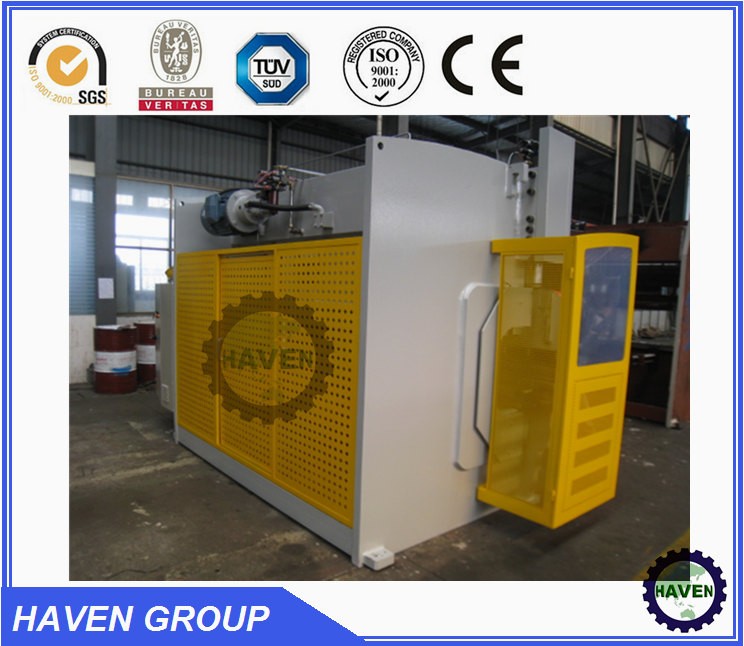

(8) Full machine guarding with safety interlocker.
(9) Duplex linked press brake is available as per clients demand.
(10) Electric components are from SIEMENS
(11) Oil-seal rings are imported from Japan
(12) NC control system are imported from DELEM , Netherland ( NC control system is at extra cost )
Main Specification
Specification | 40 2000 | 40 2500 | 63 2500 | 80 3200 | 100 3200 | 100 4000 | 125 3200 | 160 3200 | 200 3200 | 250 3200 | 300 4000 | 300 5000 | 400 4000 | 400 6000 |
Nominal pressure (KN) | 400 | 400 | 630 | 800 | 1000 | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 | 3000 | 4000 | 4000 |
Working width (mm) | 2000 | 2500 | 2500 | 3200 | 3200 | 4000 | 3200 | 3200 | 3200 | 3200 | 4000 | 5000 | 4000 | 6000 |
Ram stroke (mm) | 100 | 100 | 100 | 100 | 120 | 120 | 120 | 200 | 200 | 200 | 250 | 250 | 300 | 300 |
Stroke adjustment (mm) | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 160 | 160 | 160 | 300 | 300 | 320 | 320 |
Max. Stroke number (/min) | 11 | 11 | 10 | 8 | 8 | 8 | 8 | 8 | 7 | 7 | 6 | 6 | ≥3 | ≥3 |
Motor power (k w) | 3 | 3 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 15 | 20 | 22 | 22 | 30 | 30 |
Net weight ( t ) | 2.6 | 3.1 | 4.5 | 6.5 | 8.2 | 9.5 | 8.7 | 10.5 | 13.5 | 15.5 | 21 | 26 | 29 | 44 |
Company introduction
Contact us
Shaanxi HAVEN Equipment Co.,LTD
TEL: 0086-29-88135303
MOB: 0086-18681851123
Wechat:havenmachine
