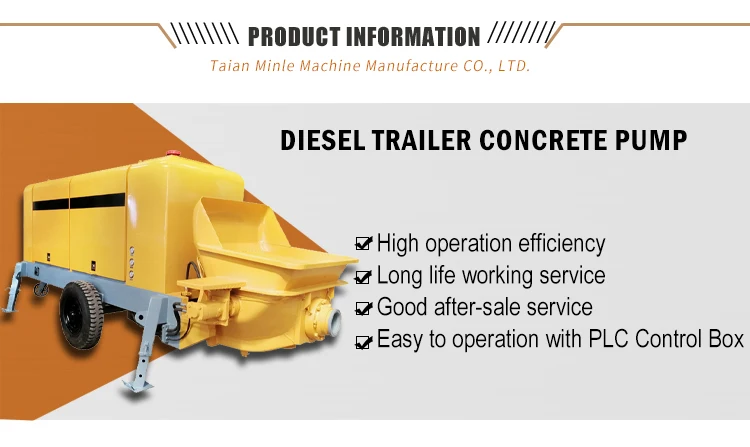

good price diesel driven concrete shooting equipment shotcrete pump hot


Поделиться:

Цена:1 423 089,72 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

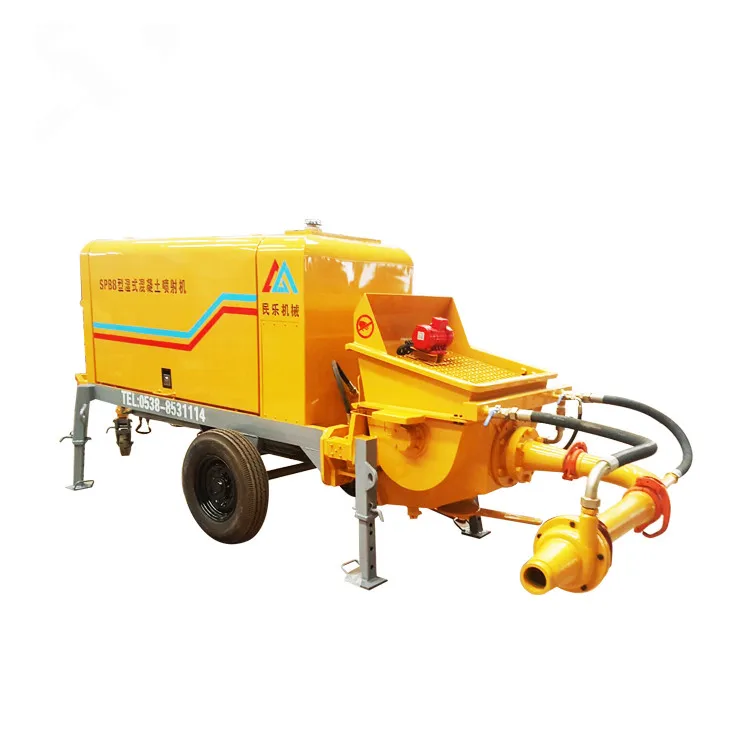

diesel driven concrete shooting equipment concrete shotcrete pump hot sale



Americal construction concrete machine

Americal construction concrete machine



_20191106095002

 v_



Product Description



Item

HBTS20-8-50R

Max Theoretical Concrete Output(m³/h)

20

Max Concrete outlet Pressure(Mpa)

8

Concrete slump (mm)

120—230

Aggregate Size (mm)

gravel≤20

Powder (KW)

Diesel motor 50

Conveying Cylinder Diameter (mm)

Ø 160/1000

Oil Tank Capacity (L)

200

Hopper Capacity (m³)

0.35

Filling Height (mm)

1100

Maximum Theoretical Conveying Distance  (vertical/Horizontal) (m)

120/400

Overall Dimension (mm)

4300×1500×1650

Total Weight (kg)

2000



_04







Americal construction concrete machine

_05Americal construction concrete machine

good quality competitive price concrete pump diesel driven pumping equipment







main parts

1.Power system concrete shotcrete pump

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted. Diesel power: Germany Deutz, Weichai, Schneider, Japan Siemens, Mitsubishi are adjusted. The main power could be adjusted by the user

2. Electrical control system concrete shotcrete pump
Completely closed electrical control box can make sure the operation of the machine in harsh environment.
The main electrical components adopt Schneider, Mitsubishi. Panasonic and other world-renowned brands.
Programmable Logic Controller (PLC) electronic control system making electric circuit simple, function well.
Wired remote control, operating excellence

3.Hydraulic system concrete shotcrete pump

Flip-side door make operation, maintenance, maintenance is very convenient. The special craftsmanship of the door can effectively reduce noise. Hydraulic system adopts double pump and double circuit; A complete set of imported hydraulic components ( Germany Rexroth or Japanese Kawasaki)and special anti-wear hydraulic oil are the guarantees of high efficiency and long service life. Compulsory aircooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.

4.Pumping system concrete shotcrete pump

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to  meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of theconcrete into the delivery pipe maximally,  and prolong the service life of the S pipe outlet.

5.Lubrication System concrete shotcrete pump

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.  The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6.Cooling System concrete shotcrete pump

Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the  whole hydraulic system works at normal status.



Packaging & Shipping







_08





concrete pump 7







Company Information







Taian Minle Machine Manufacture is a family enterprise. Minle Factory has been providing high quality concrete pumps in China area for over 20 years and for the past 10 years we started International trade business, exported our concrete equipment all over the world, and are committed to maintaining the highest ideals and standards in the scientific research, production, sales and after-sales service.


concrete pump 5



concrete pump 5




Concrete Equipment we offer:

♥Diesel engine concrete pump
♥Electric motor concrete pump
♥Diesel concrete mixer with pump
♥Electric concrete mixer with pump

♥Truck mounted concrete mixer with pump
♥Truck mounted concrete pump
♥Concrete boom pump truck
♥Mine concrete pump(Iron ore, copper, coal .ect)











concrete pump export













 _07



Contact: Michael

good quality new concrete spray machines SPB7-G for hot sale

Mobile: 008615066732025



TradeManager: cn1501548936

Americal construction concrete machineAmerical construction concrete machinegood quality competitive price concrete pump diesel driven pumping equipment
