Product Description

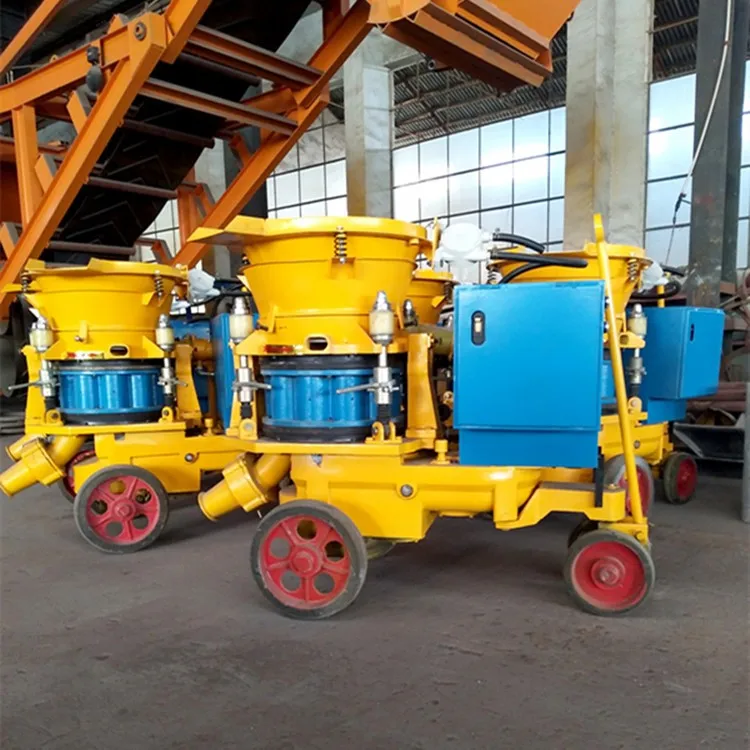

Electric dry Shotcrete machine PZ-3 concrete spraying plaster machines for sale


1. Xinyu PZ-3 gunning machine is mainly used for tunnel, hydro-power engineering,mines, underground engineering, civil engineering and slope stabilization, etc.


2. Refractory material spraying and repair for industrial kilns or kilns's inner .





2.Features:


1. Advantages: This is a high-effective shotcrete machine, which is mainly used for dry-   mix, damp-mix shotcreteing and steel fiber reinforced shotcreting.

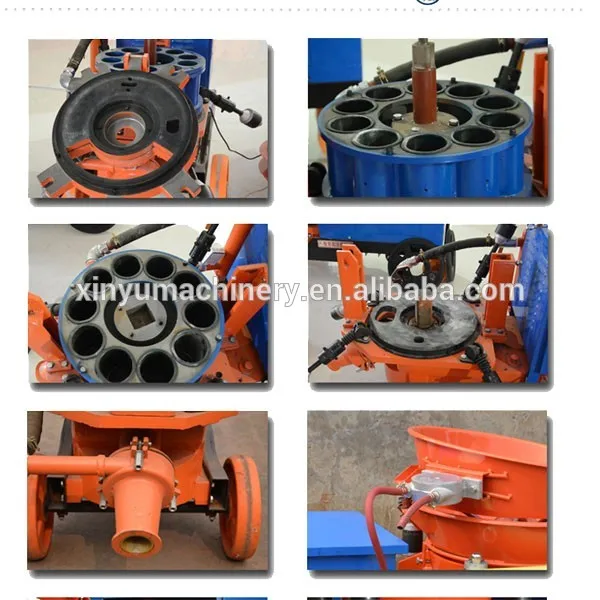

 2. Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.


3. Four-point clamping device make it easy to adjust the press between seaing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.

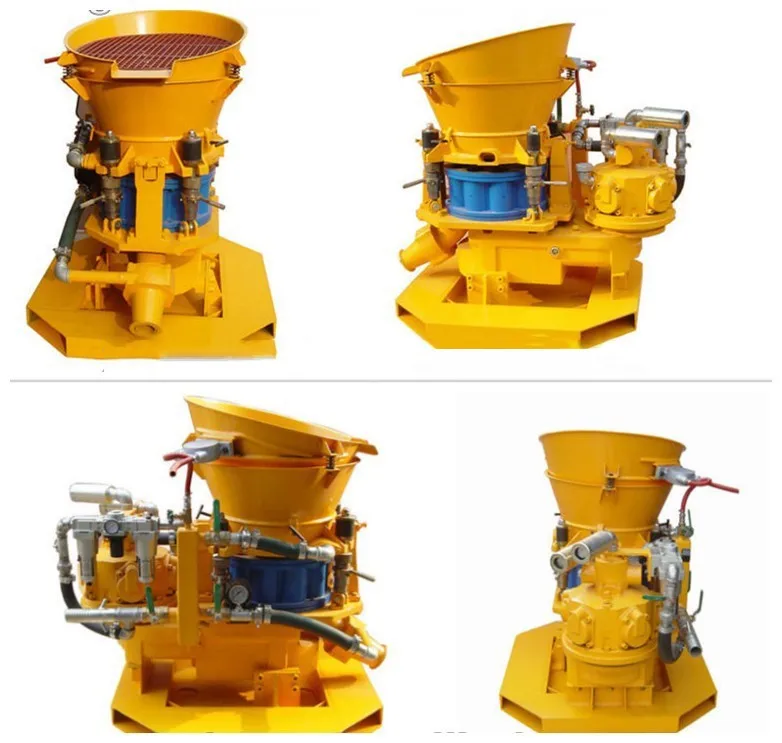

PZ. .jpg


4.Technical Parameters:


















































 Item



PZ-3



Output



3m3/h



Max. conv. dist



200m



Water cement ratio



0.4



Max. Aggregate. size



10mm



Hose inner size



42mm(2'')



Operating air pressure



0.2~0.6MPa



Air consumption



5~6m3/min



Motor power



3kW(4hp)



Voltages



380v,440v,660v,1140v 50HZ/60HZ



Basic chassis



 type , skid ,rail wheel





PZ.... (2).jpg

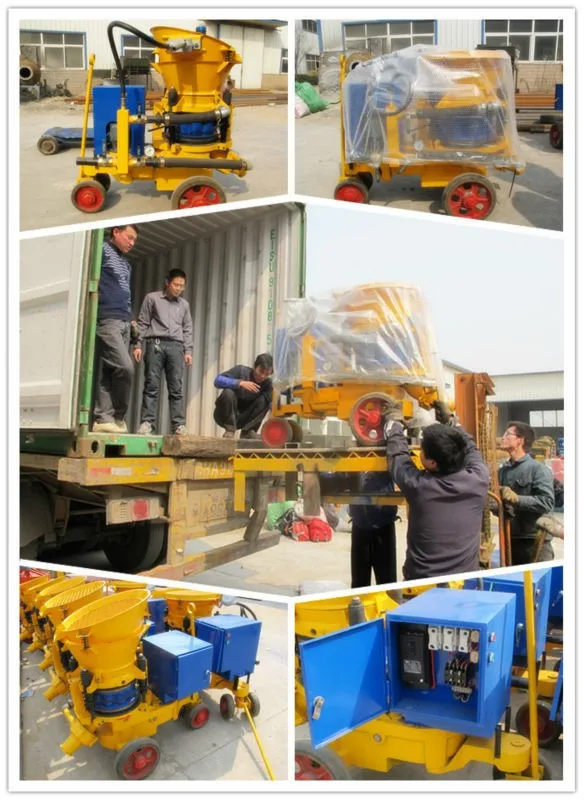

Packaging & Shipping





According to the size of the machine you need,we have adopted the different packing.


If you have special circum stanstances according to your requirments packing.


Packing:Standard Export Packing;


 Shipping:delivery within 7 working days.


The model of transportations:road,rail and sea.







FAQcontact us1
