Небольшая электрическая огнеупорная распылительная
- Категории: Машина для торкретирования >>>
- Поставщик: Zhengzhou,Wode,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

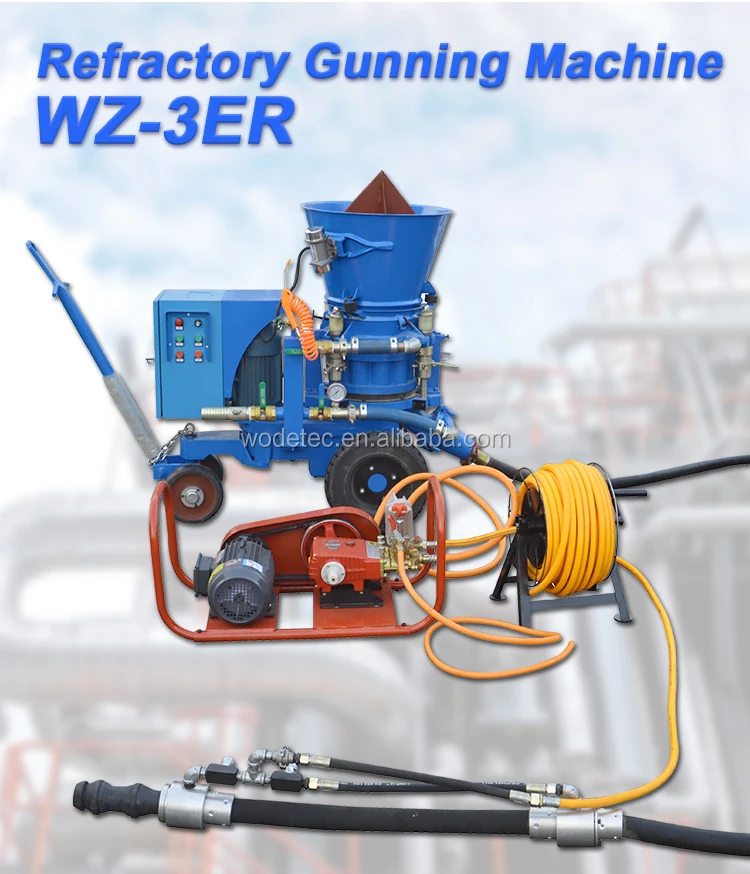

Small Electric Refractory Spray Shotcrete Gunning Machine
Product Description
WZ-3ER refractory spraying gunite rated output is 3m3/h, max. horizontal conveying distance is 100m, max. aggregate size is 10mm.
With this WZ-3ER, you can get low dust and high performance spraying flow in nozzle.

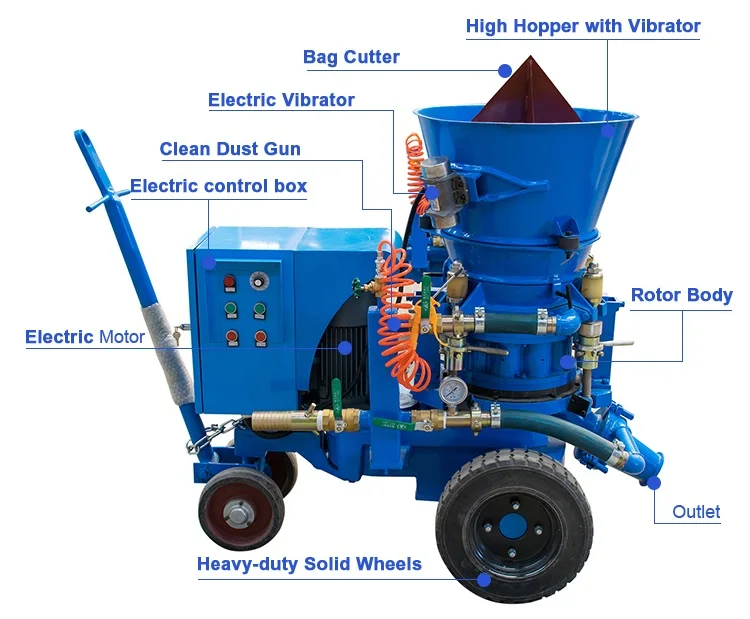

Product Structure:
Product Parameter
|
Model |
WZ-3ER |
|
Rate Output |
1-3m3/h(2-6 tons/h) |
|
Max.conveying Distance |
100m |
|
Motor Power |
4kw |
|
Max.Aggregate Size |
10mm |
|
Conveying Hose ID |
32/38mm |
|
Air Consumption |
5-6m3/min |
|
Operating Air Pressure |
0.2-0.4MPa |
|
Rotor Speed |
0-13.2r/min |
|
Weight |
500kg |
|
1.35*0.7*1.3m |

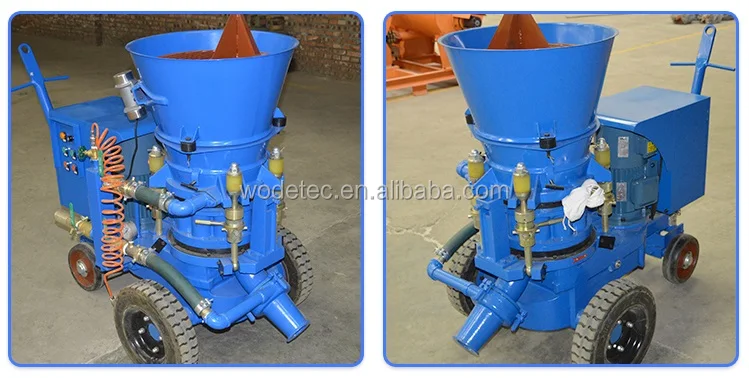

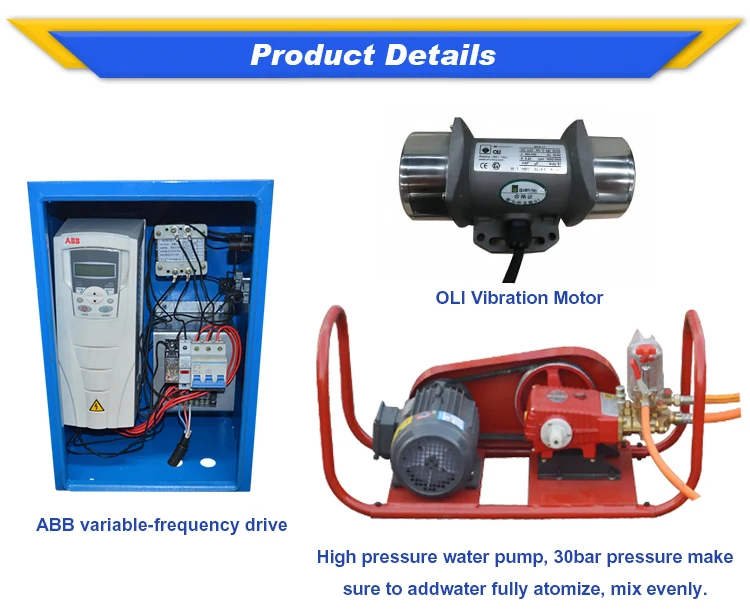

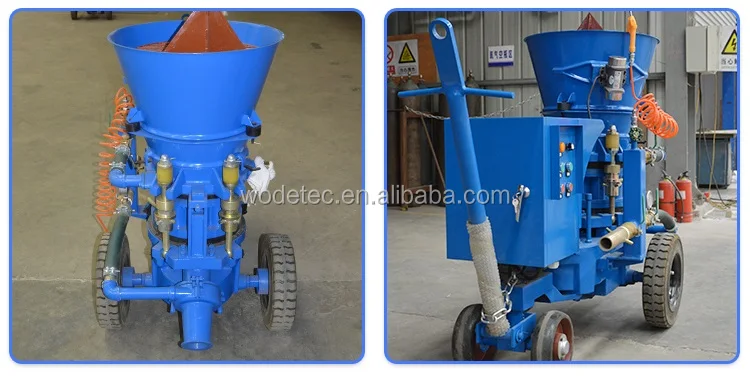

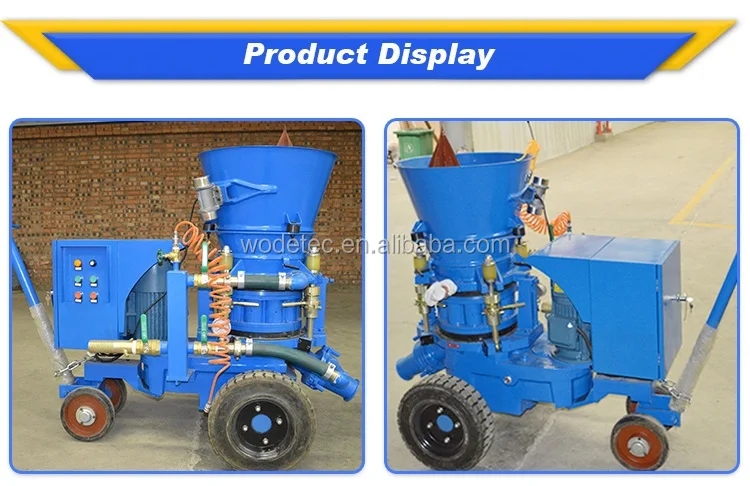

Product Details
Product Feature
WZ-3ER refractory spraying machine has the following features:
1. Variable Output with ABB variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coupling and clamp

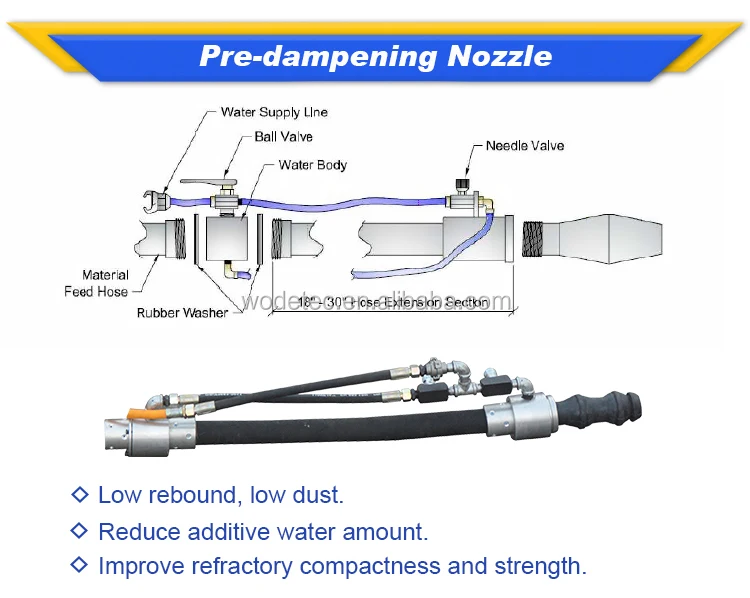

7. New type pre-dampening nozzle assy
8. Blast rubber hose

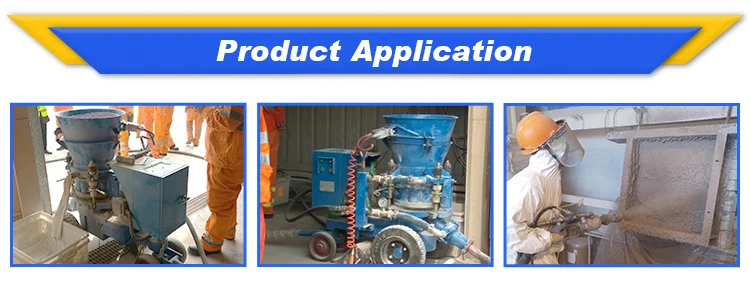

Product Application
Related Products
Company Introduction
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Zhengzhou Wode Heavy Industry Co., Ltd. (short:"Wodetec") owns the advanced imported production equipment and complete production technology.
Wodetec is a manufacturer specialized in R&D and sale of refractory shotcrete machine.
WODETEC have reached intern ational standards.Based on continuous technological innovation, design capabilities of mini concrete pumps, hose pumps, grouting pump/station, shotcrete machine, , refractories mixing and gunning machine, foam concrete machine etc.
