PZ серия сухой Gunite Shotcrete Машина Для Распыления Бетона на

Описание и отзывы

Характеристики



Introduction of PZ Series Dry Gunite Shotcrete Machine Concrete Spraying Machine For Sale



1,Advantages: This is a high-effective shotcrete machine, Dry Gunite Shotcrete is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.



2,The Gunite Shotcrete Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.



3,Four-point clamping device make the Dry Gunite Shotcrete easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.



4,Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.                       zmwm02

Main Parameter of PZ Series Dry Gunite Shotcrete Machine Concrete Spraying Machine For Sale

Item	PZ-3	PZ-5
Output	3.5m3/h	5m3/h
Max. convey dist	Horizontal:200m Vertical: 20m	Horizontal:200m Vertical: 20m
Water cement ratio	≤0.4	≤0.4
Max. Aggregate. size	20mm	20mm
Hose inner size	38mm	51mm
Operating air pressure	0.4~0.6MPa	0.4~0.6MPa
Air consumption	3-4 m3/min	7-8 m3/min
Rotor  diameter	350mm(150)	438mm
Motor power	Y112M-6-3KW	Y132-6-5.5(KW)
Voltages	380v or as your requirements	380v as your requirements
Overall dimension(mm)	1040X550X940	1280x700x1280
Whole weight	260kgs	600kgs
wheel	Nylon wheel or Rubber wheel

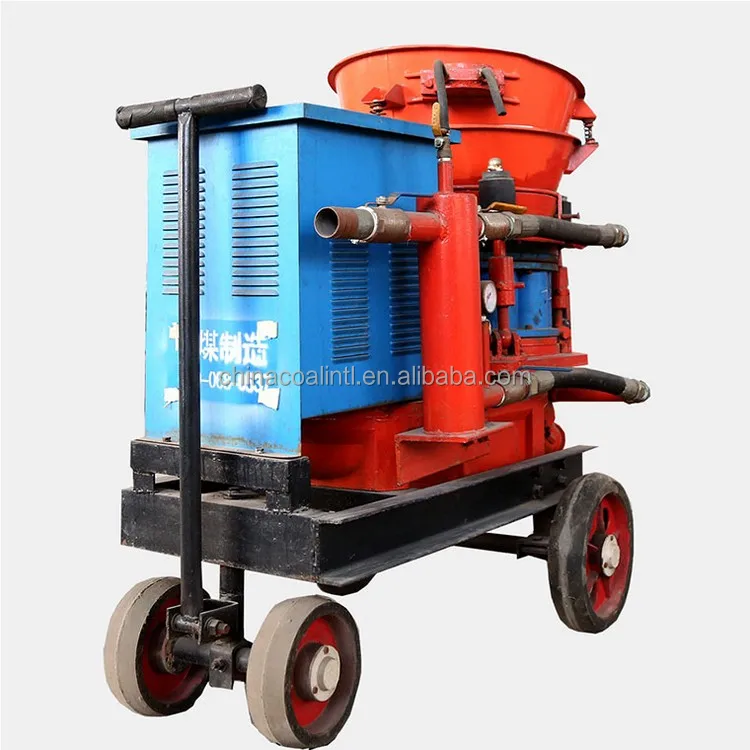

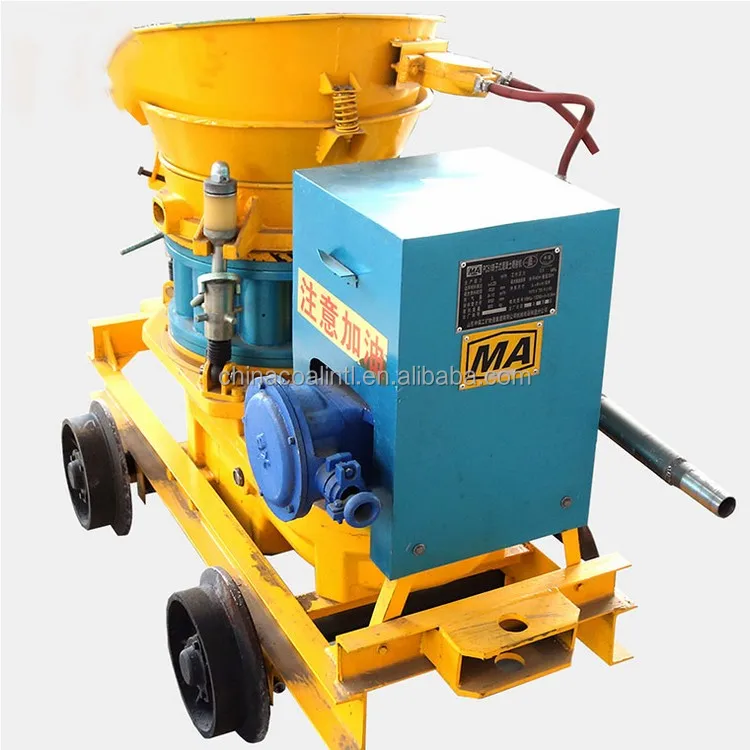

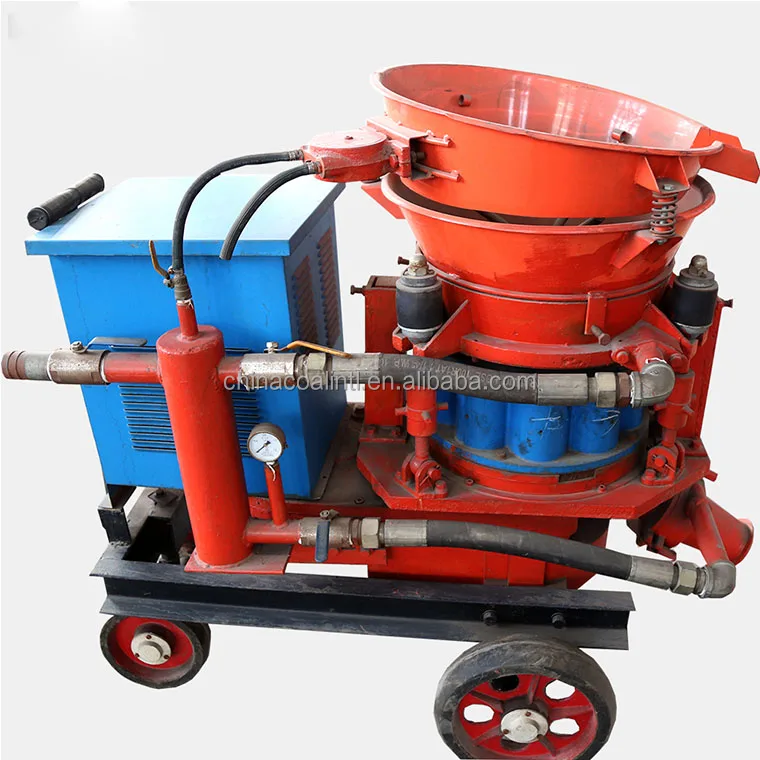

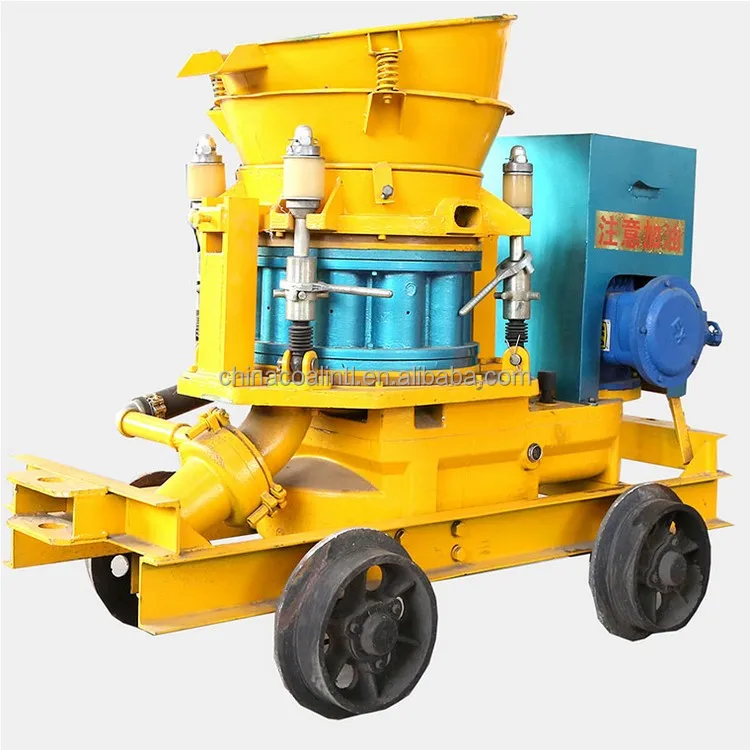

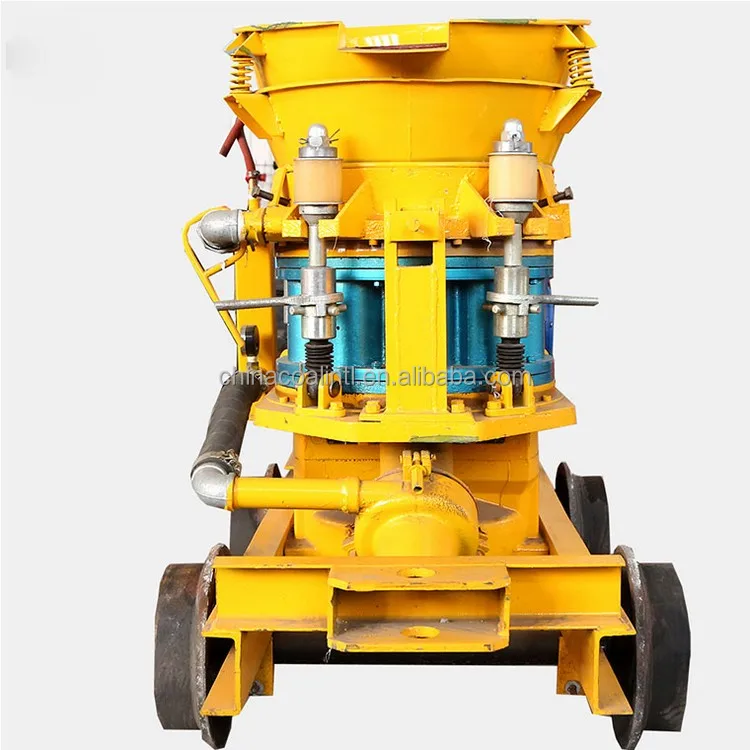

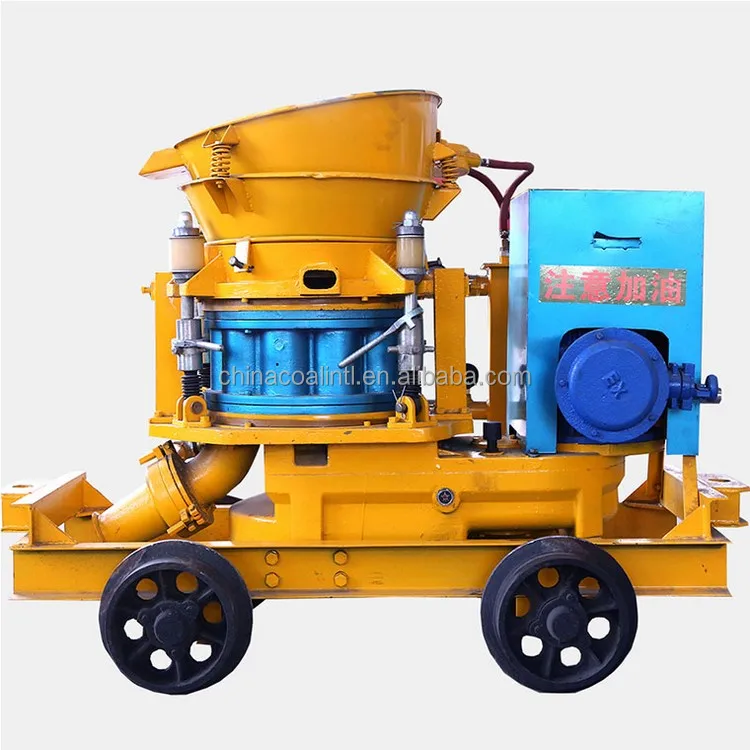

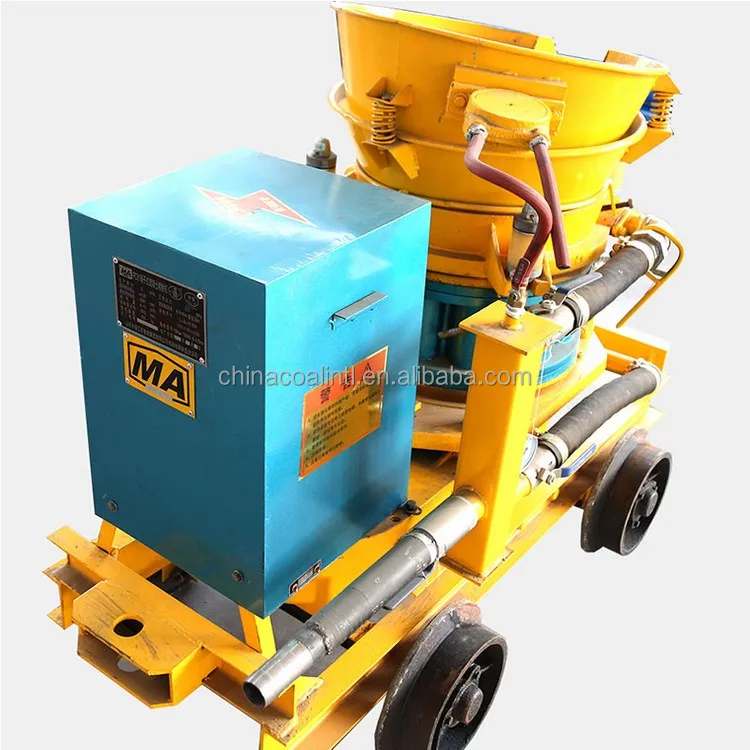

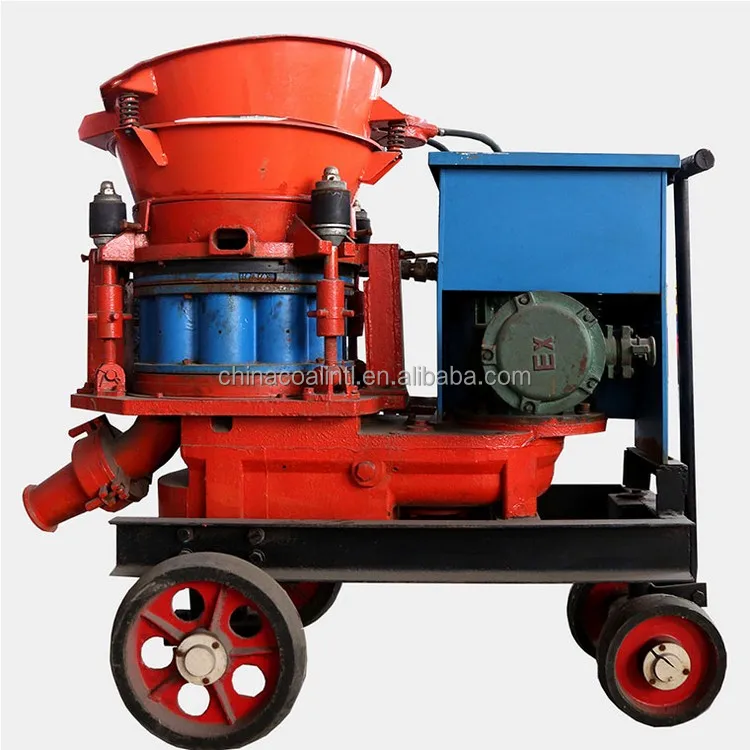

Photos of PZ Series Dry Gunite Shotcrete Machine Concrete Spraying Machine For Sale
