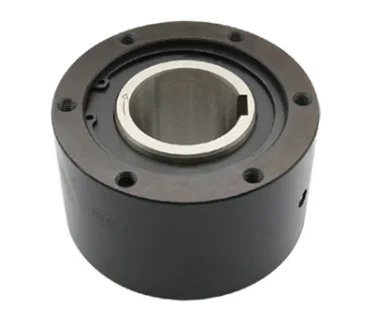

BS30 Sprag торцевой подшипник задний стоп односторонний
- Категории: Другие роликовые подшипники >>>
- Поставщик: Changzhou,Tianniu,Transmission,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product description

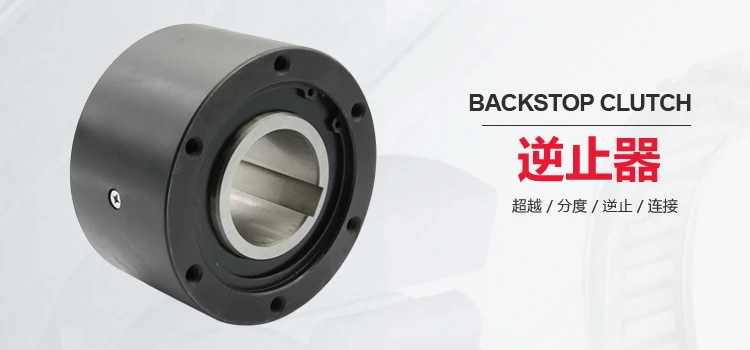

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery.
| Medel No. | BS30 |
| Size(ID*OD*L) | 30*90*64mm |
| Bore Tolearance | H7 |
| PCD(mm) | 80 |
| Torque Capcity(N.m) | 294 |
| Weight(KG) | 21 |
| Delivery time | 10-15 Days |
| Torque Arm is also Available | |
Notes:
1. The tolerance of Stock Finished Bore is H7.
2. Items hilighted in bold type are stock items, the others are built to order.
3. BS Cam Clutch can be bored according to your specification. Specify the bore diameter with
tolerance and keyway dimensions. Please be sure to specify.

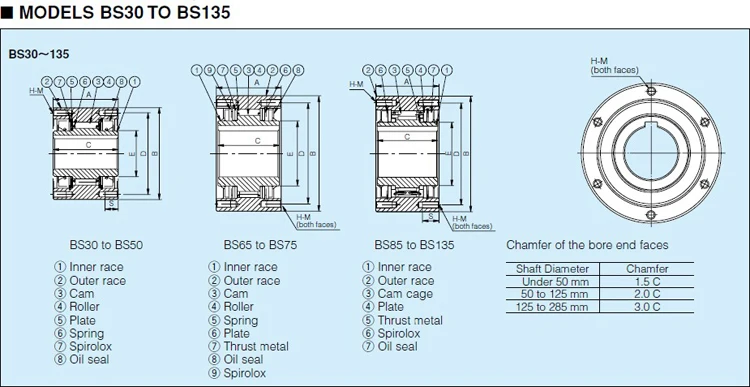

Mounting Example
|
| Max. |
|
|
|
|
|
|
|
|
|
|
BS30 | 294 | 350 | 0.58 | 64 | 90 | 64 | 80 | 45 | 13 | M 6 ×P1.0×4 | - | - |
BS50 | 784 | 300 | 0.98 | 67 | 125 | 67 | 110 | 70 | 16 | M 8 ×P1.25×4 | - | - |
BS65 | 1570 | 340 | 3.92 | 90 | 160 | 85 | 140 | 90 | 20 | M10 ×P1.5×6 | - | - |
BS75 | 2450 | 300 | 5.88 | 90 | 170 | 85 | 150 | 100 | 20 | M10 ×P1.5×6 | - | - |
BS85 | 5880 | 300 | 7.84 | 115 | 210 | 110 | 185 | 115 | 30 | M12 ×P1.75×6 | - | - |
BS95 | 7840 | 250 | 9.8 | 115 | 230 | 110 | 200 | 130 | 30 | M14 ×P2.0× 6 | - | - |
BS110 | 10800 | 250 | 14.7 | 115 | 270 | 110 | 220 | 150 | 30 | M16 ×P2.0× 6 | - | - |
BS135 | 15700 | 200 | 19.6 | 135 | 320 | 130 | 280 | 180 | 30 | M16 ×P2.0× 8 | - | - |
|

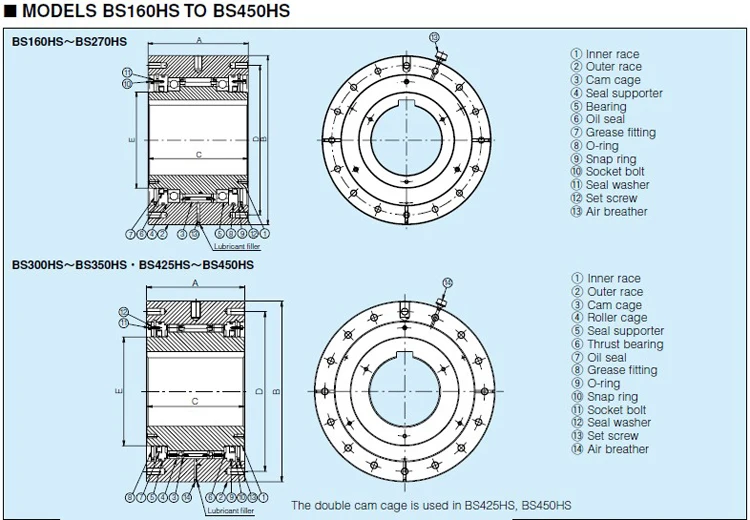

| Max. |
|
|
|
|
|
|
|
|
|
|
|
BS160 | 24,500 | 100 | 33.1 | 130 | 360 | 130 | 315 | 220 | 40 | M20 × P2.5 ×10 | 100 to 160 | 98.1 | 85.6 |
BS200 | 37,200 | 100 | 44.1 | 150 | 430 | 145 | 380 | 265 | 40 | M22 × P2.5 × 8 | 100 to 200 | 167 | 140 |
BS220 | 49,000 | 80 | 73.5 | 235 | 500 | 230 | 420 | 290 | 40 | M20 × P2.5 ×16 | 150 to 220 | 301 | 264 |
BS250 | 88,200 | 50 | 93.1 | 295 | 600 | 290 | 530 | 330 | 50 | M24 × P3.0 ×16 | 175 to 250 | 580 | 523 |
BS270 | 123,000 | 50 | 98 | 295 | 650 | 290 | 575 | 370 | 50 | M24 × P3.0 ×16 | 200 to 270 | 620 | 562 |
BS300 | 176,000 | 50 | 108 | 295 | 780 | 290 | 690 | 470 | 60 | M30 × P3.5 ×16 | 230 to 300 | 952 | 885 |
BS335 | 265,000 | 50 | 137 | 305 | 850 | 320 | 750 | 495 | 70 | M36 × P4.0 ×16 | 250 to 335 | 1,140 | 1,040 |
BS350 | 314,000 | 50 | 157 | 320 | 930 | 360 | 815 | 535 | 70 | M36 × P4 ×16 | 250 to 350 | 1,600 | 1,470 |
BS425 | 510,000 | 50 | 216 | 440 | 1,030 | 450 | 940 | 635 | 70 | M36 ×P4.0 ×18 | 325 to 425 | 2,450 | 2,240 |
BS450 | 686,000 | 50 | 245 | 450 | 1,090 | 480 | 990 | 645 | 80 | M42 × P4.5 ×18 | 350 to 450 | 2,820 | 2,580 |
Packaging&Shipping
Certificate
Company Information
Production Flow
Clients Visit
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
