9m 3/ч дизельный дробкрит Машина Для Распыления Бетона на
- Категории: Shotcrete Machine >>>
- Поставщик: Zhengzhou,Gaode,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

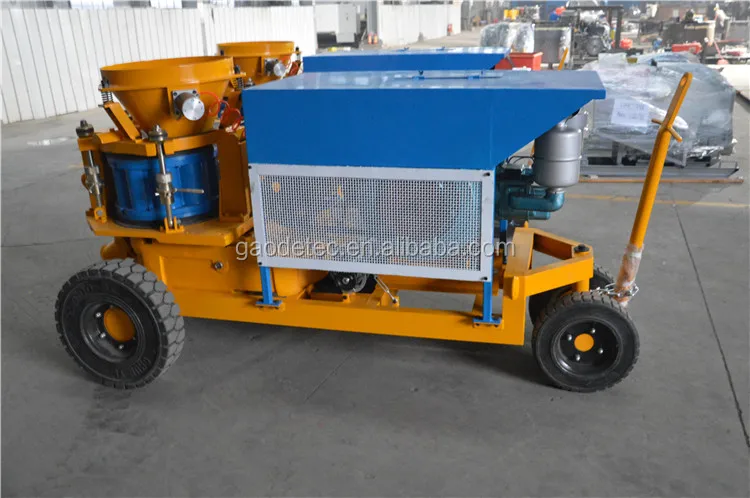

9m3/h diesel shotcrete concrete spraying machine for sale
GZ-9D is diesel large-sized shotcrete machine for the spraying process.
GZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
Product Paramenters
Output Capacity | 6-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |
Diesel Engine | 20hp, 2200rpm, Radiator Cooling |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100, Oli |
Overall Dimension(length×width×height) | 2.66×1.11×1.50m |
Net Weight | 950kg |

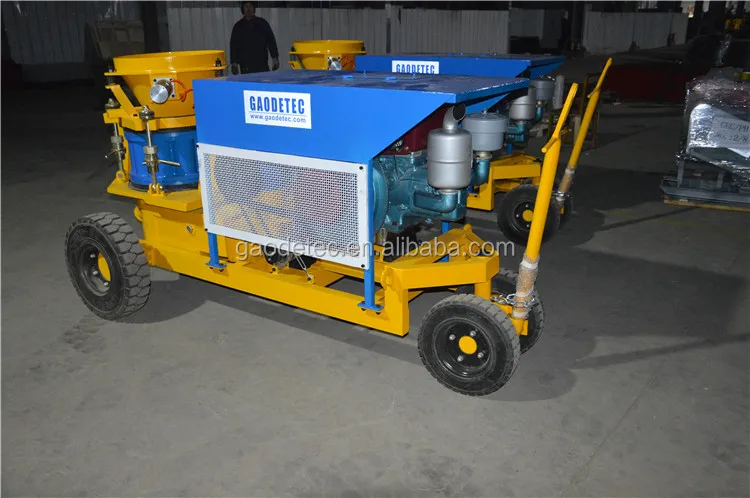

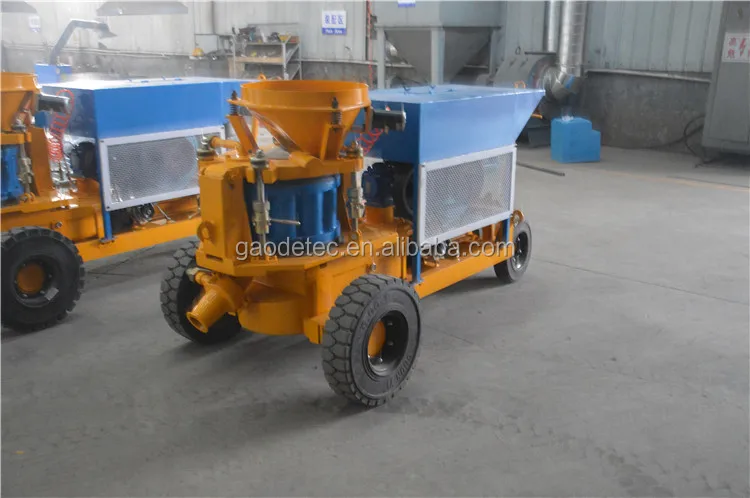

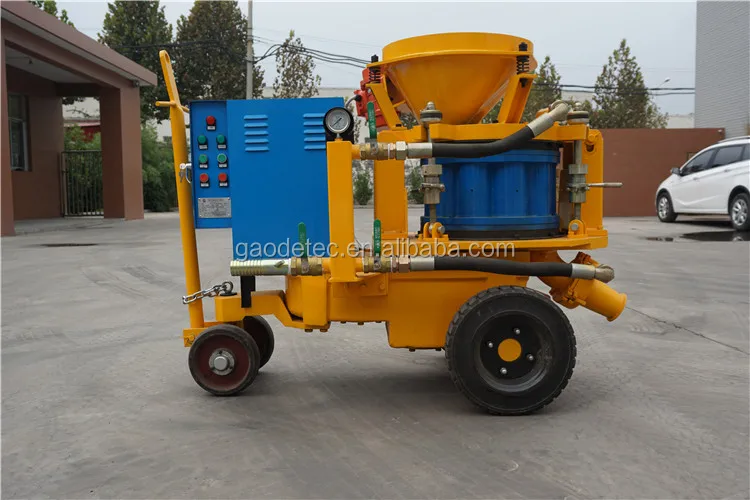

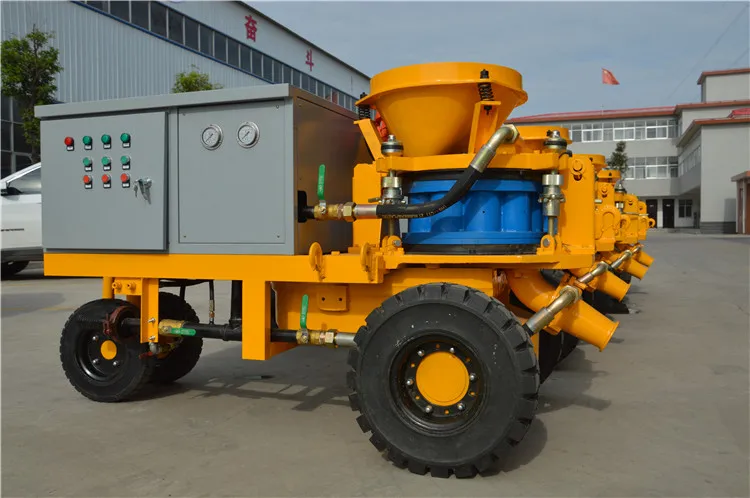

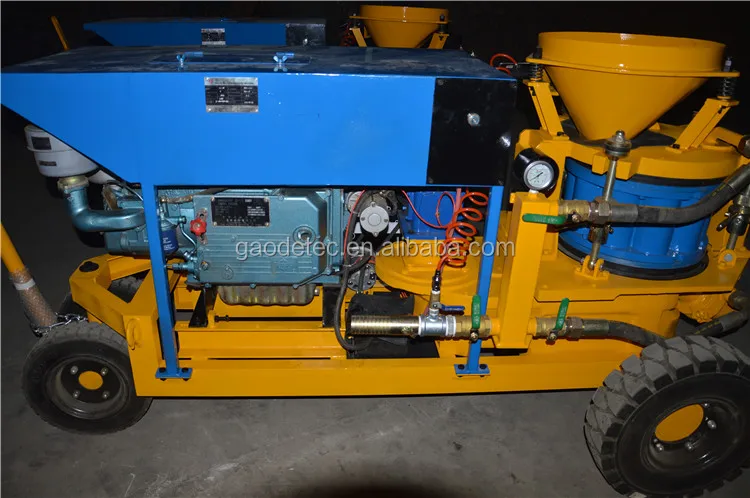

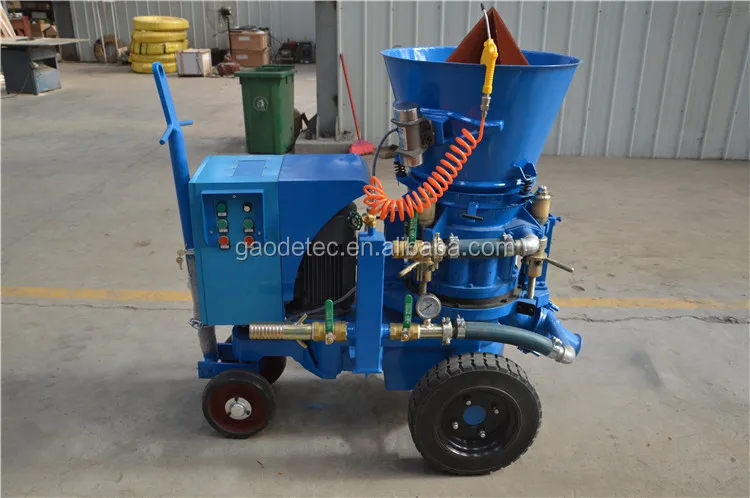

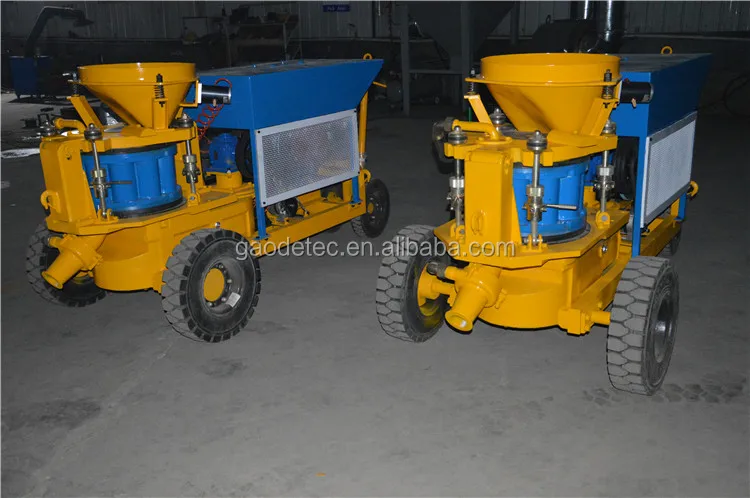

Detailed Images

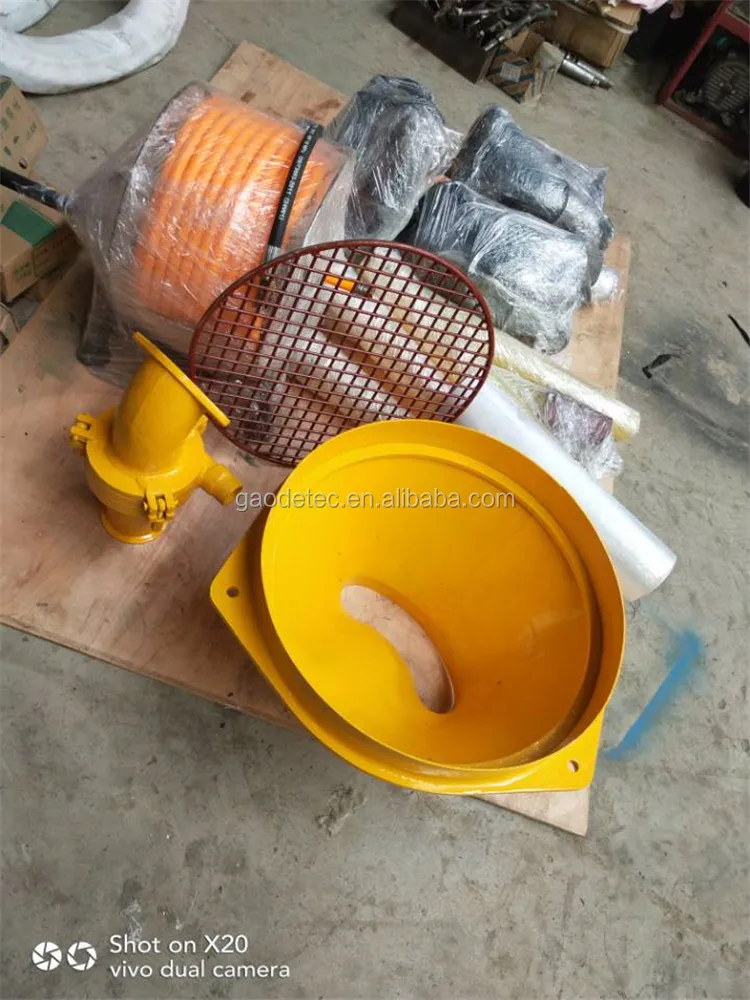

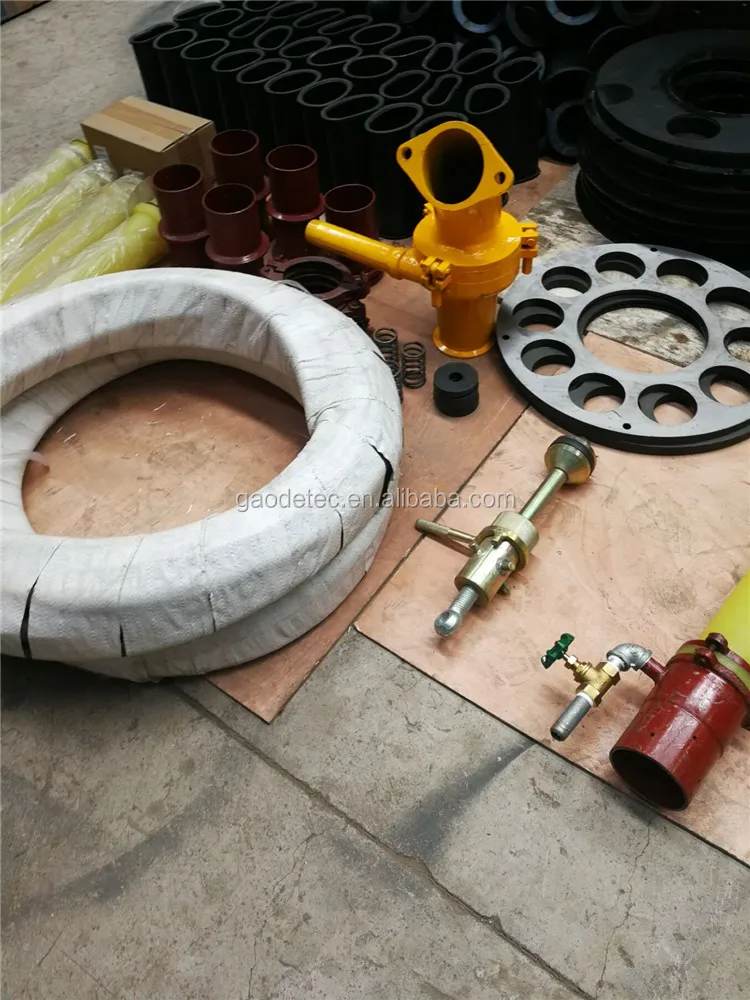

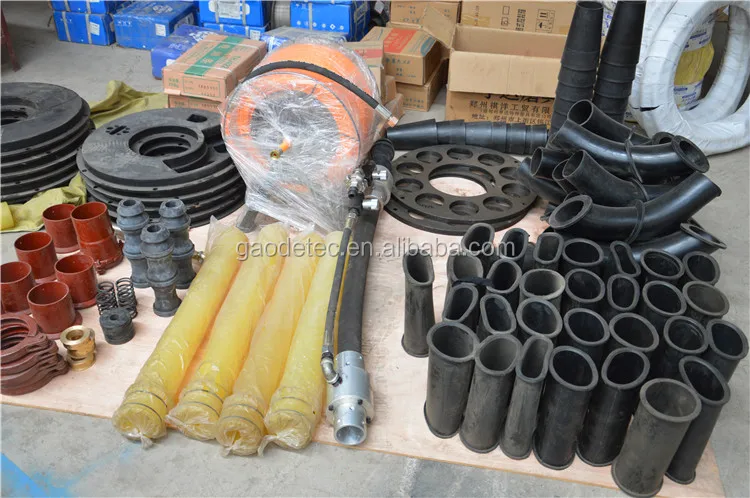

Accessories
A complete set of GZ-9 shotcrete machine | ||||||||
No. | Description | Quantity | Unit | Remarks | ||||
1 | GZ-9 Main Machine | 1 | set | |||||
2 | Nozzle Assy | 1 | set | |||||
3 | Conveying Hose, ID64mm, 50ft.Length | 1 | piece | |||||
4 | Water hose with hose hoop | 1 | piece | |||||
5 | Rubber Hose Joint | 3 | piece | Fitting | ||||
6 | Quick Coupling | 3 | piece | |||||
7 | Upper Sealing Plate | 1 | piece | |||||
8 | Lower Sealing Plate | 1 | piece | |||||
Application
GZ-9D shotcrete gunning machine application
1. Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Packing&Shipping

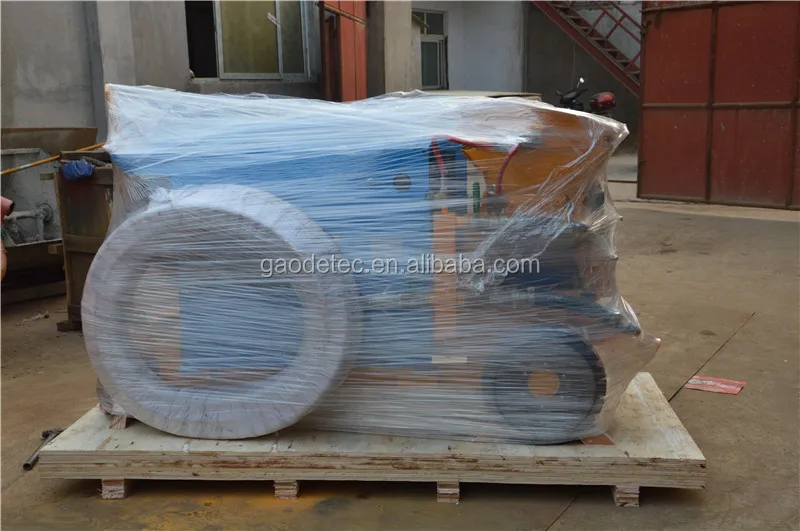

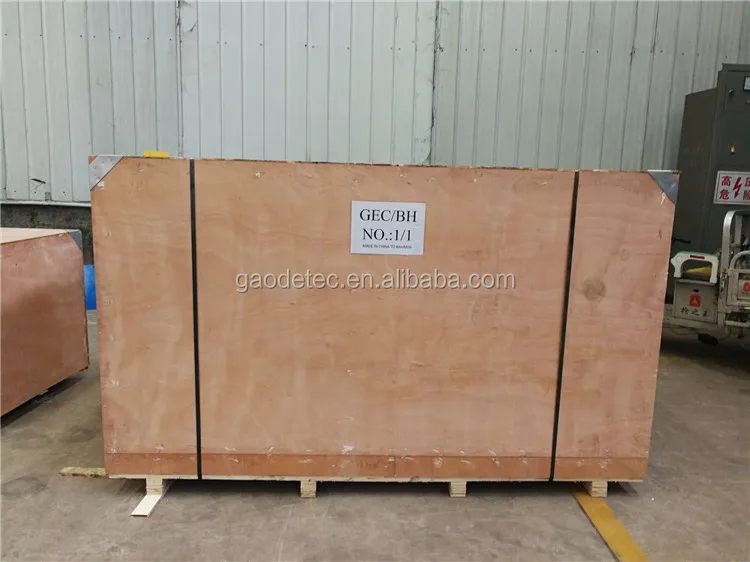

1. Plastic wrap, plywood case, free-fumigation, standard export packing. as shown below.
2. Or customised
