ЖК-модуль 20x4

Описание и отзывы

Характеристики







Features:

20 Characters x 4 Lines + Y-G LED Backlight
Structure: COB

LCD display type: STN, Positive, Transflecitve /Can be Customized

Viewing direction: 6 O' clock
Drive IC: S6A0069 or Compatible IC
Backlight: LED Yellow-Green

Operation Voltage: 5V



Mechanical data:

Outline: 146.0 x 62.5 x 14.0mm
V.A area: 123.5 x 43.0mm
Character size: 4.84 x 9.22mm
Dot Size: 0.92 x 1.10mm



Temperature range:

Item	Min.	Max.
Operating Temperature (°c)	-20	70
Storage Temperature (°c)	-30	80



OEM & ODM are accepted.

Various LCD display mode available
Various temperature range available
Various backlight available



Products Range:

1) TN, HTN, STN, FSTN CSTN LCD panels

2) Segment LCD Modules, Character LCD Modules, Graphic LCD Modules

3) COB, COG, TAB LCD Modules and Touch Panel TP

4) Customized LCD Panels / Modules

5) Small TFT LCD Modules

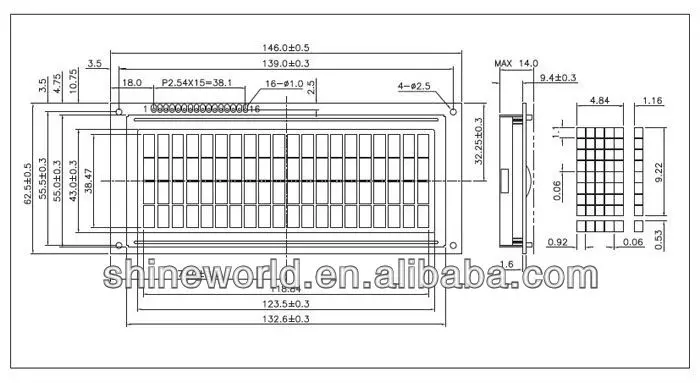

Outline Drawing:

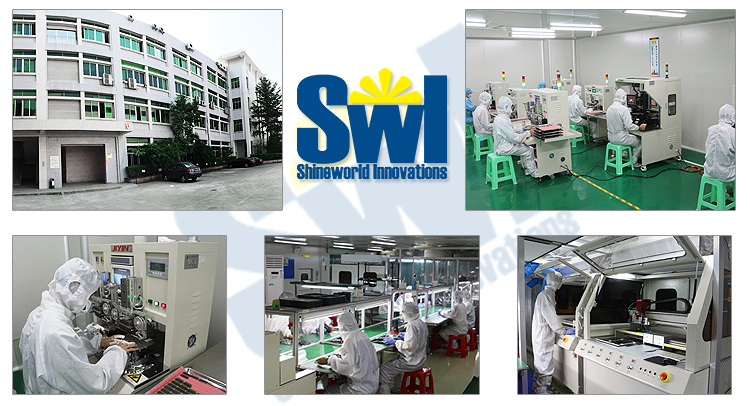

The RD engineers are all with over 15 years of experience. We provide customizable solutions to customers according to the requirements in different application areas. Our stringent quality assurance and investment in sophisticated in-house manufacturing methods and facilities enable us to deliver high-grade quality products. Our technical knowledge and dedication to R&D make us a trusted and preferred supplier of customizable solutions. We brought our customers quality products, timely delivery and great service in the past. Today, we are proud to keep doing better. We are continually striving to create value for customers and improve our capabilities.

At SWI, we are committed to building a bright future for employees, partners and shareholders. We value employees' contributions and reward them accordingly. We also participate in activities of social responsibility and environment sustainability.

Inquire Today. Contact us for more information.
