Модный дизайн 20X2 синий символ ЖК-дисплей

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Fashionable design 20x2 blue character lcd display module

Product Description

1. FUNCTIONS & FEATURES

Product parameters
Characters	20×2 Lines
LCD Mode	STN
Controller IC	SPLC780D or Equivalent
Driving Method	1/16 Duty; 1/5Bias
Viewing Angie	6 O’clock direction
Interface	6800 serial 8-Bit/4-Bit MPU
Backlight	LED
Operating Temperature Range	-20 to +70℃
Storage Temperature Range	-30 to +80℃
Module Size	116.0L×37.0W×12.8(max)H mm
View Area	82.6×18.4mm
Character Size	3.2×5.55mm
Character Pitch	3.7×5.95mm

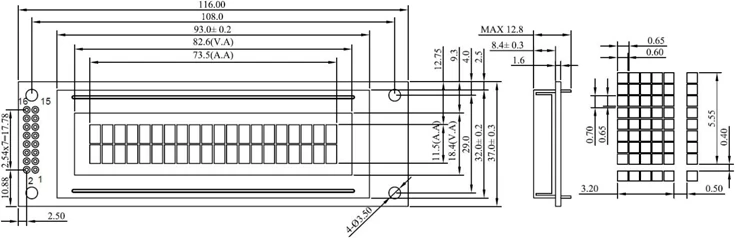

2.EXTERNAL DIMENSIONS

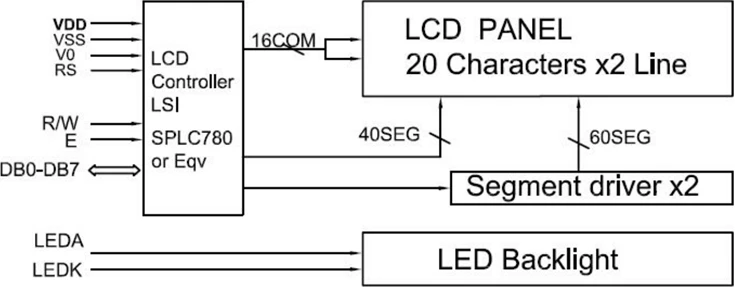

3.BLOCK DIAGRAM

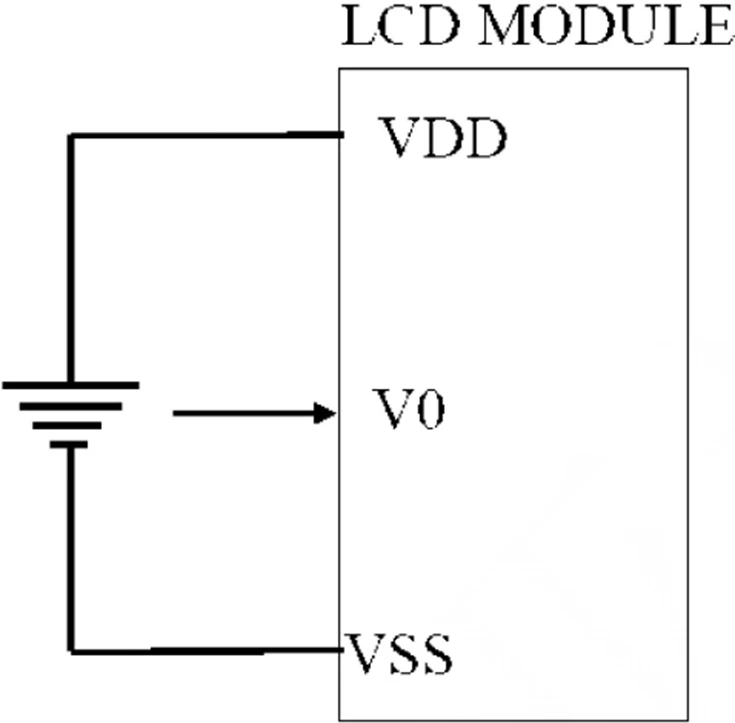

4. POWER SUPPLY

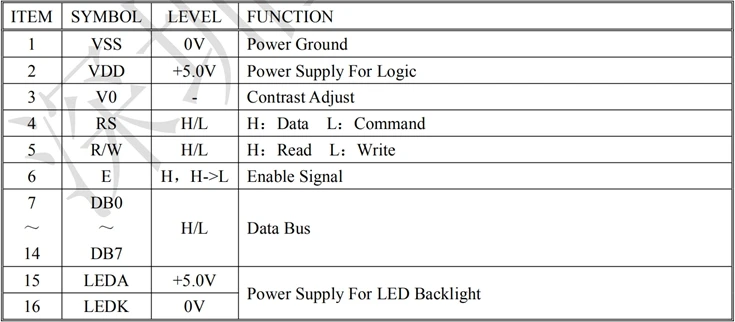

5. PIN DESCRIPTION

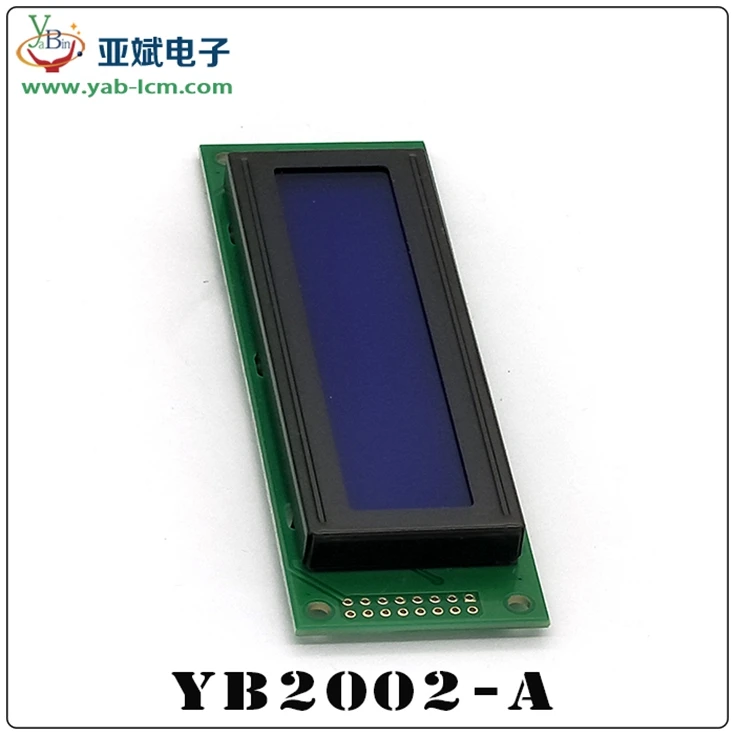

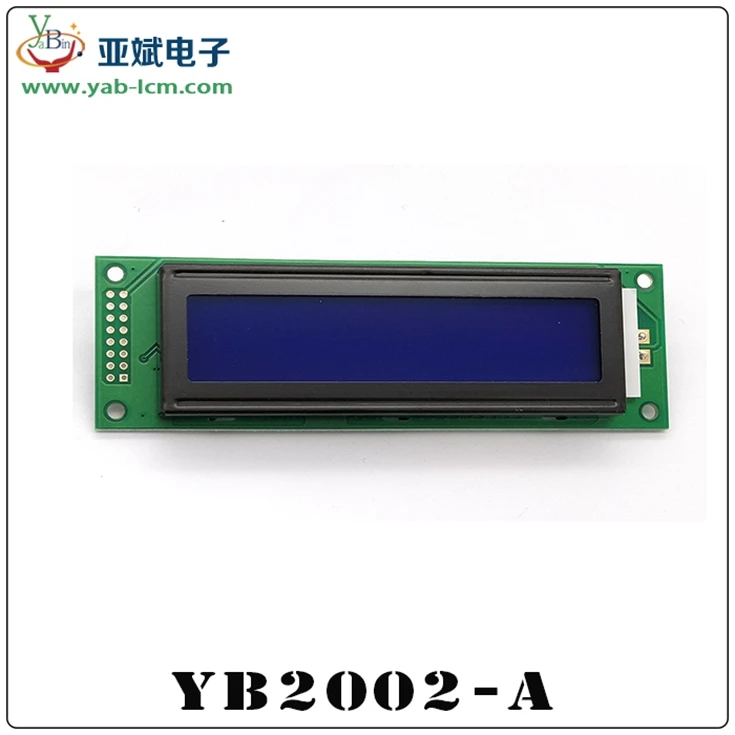

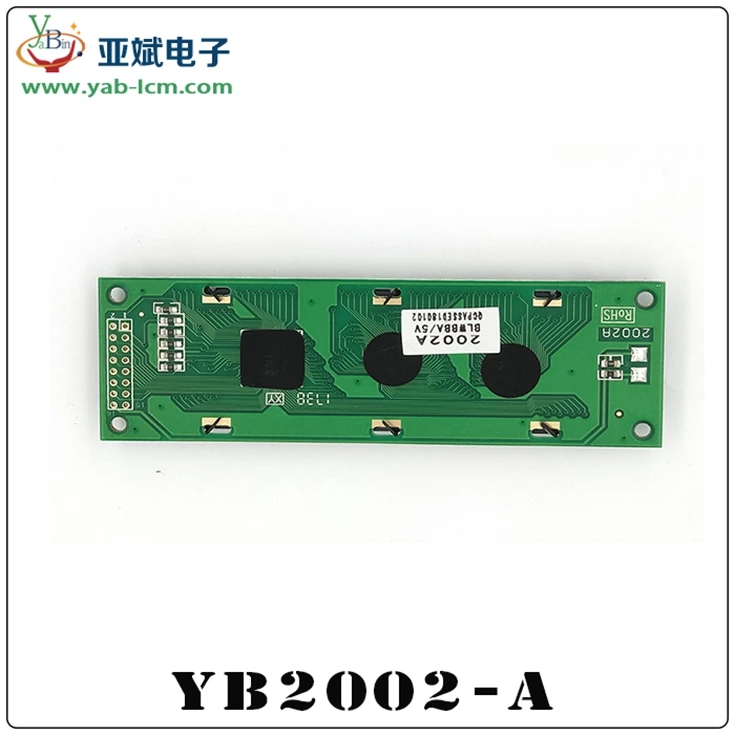

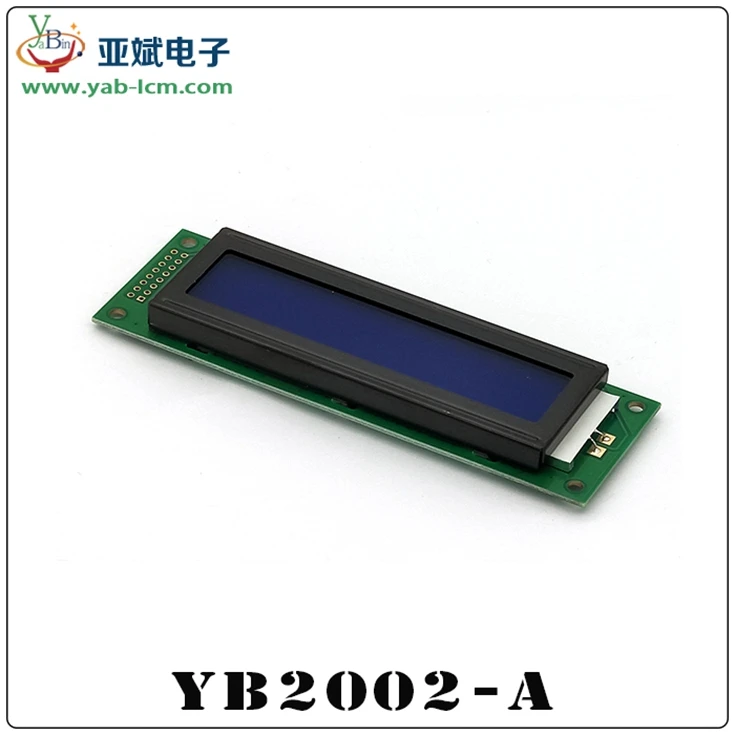

6.PRODUCT PICTURE

About us

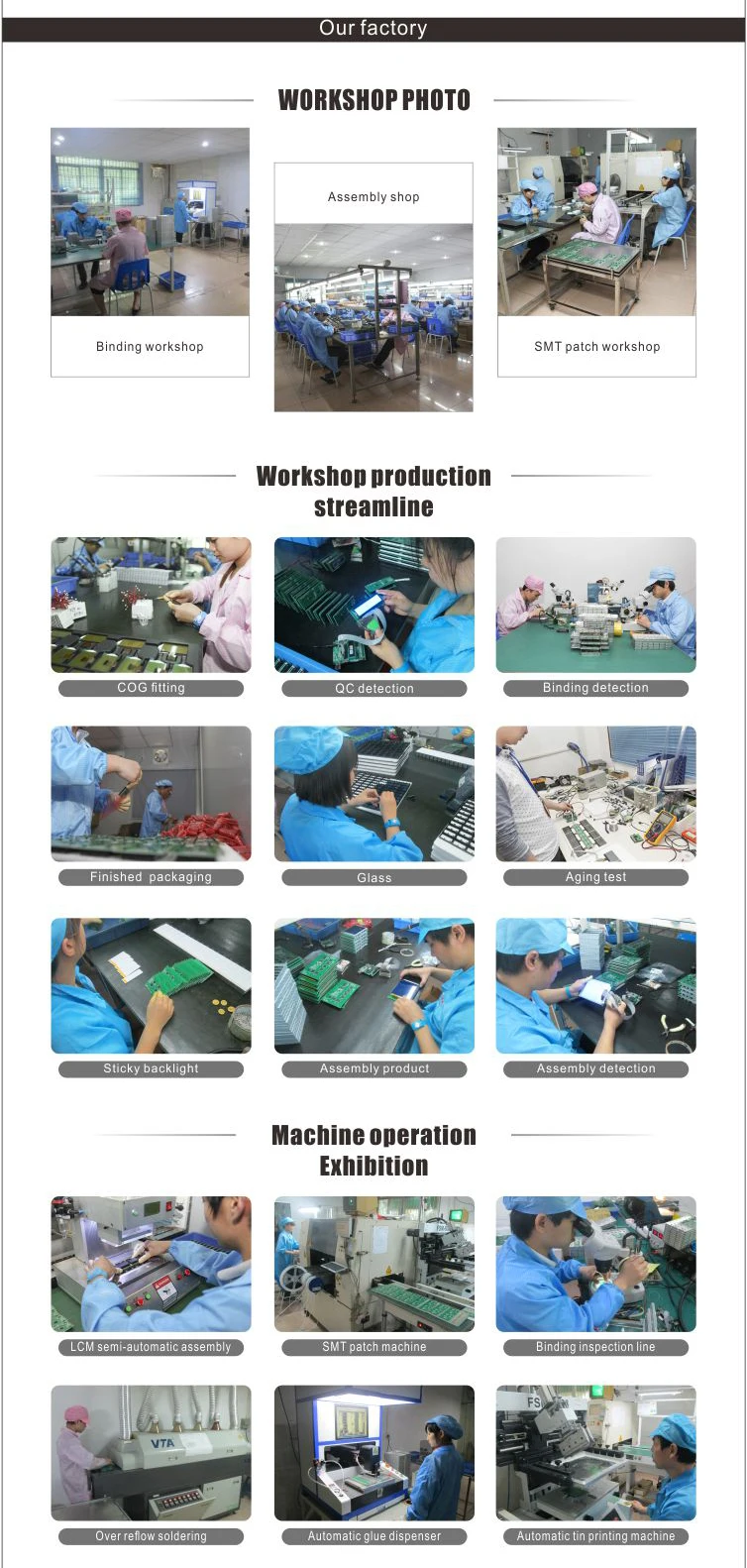

Our factory

production process

Packaging display

Certificate
