Монохромный ЖК-дисплей 1602 Mdulo LCD

Категории: Character Display >>>
Поставщик: Formike,Electronic,Co.,Ltd.,(Dongguan)

Цена:3,10 $ - 7,50 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

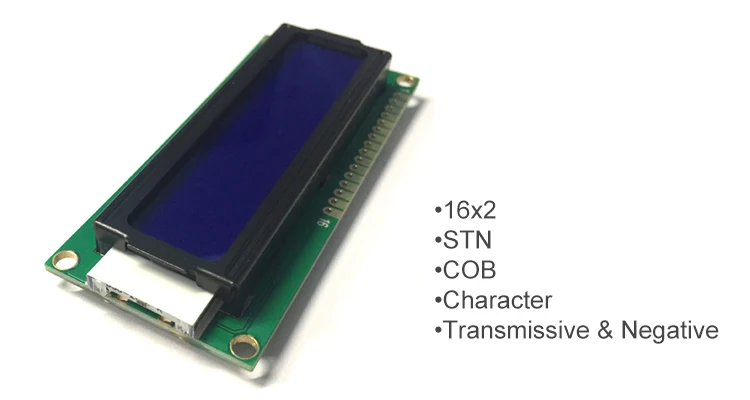

Character LCD Display 1602 Mdulo LCD 16x2 Monochrome LCD Display Module

•1602 Character LCD Display

•COB Module

•STN LCD & Transmissive, Negative

Product Description

Product Name	Character LCD Display 1602 Mdulo LCD 16x2 Monochrome LCD Display Module
Model	WC1602A1SGW6B-D
Type	COB LCD Display, Character Display
Dot Format	16x2 Dots
Display format	16character*2line
Display mode	STN, Transmissive , Negative
Color	White Display Dot Blue Background
Backlight	White Backlight
Brightness	500cd/m²
Outline Dimension	80.00x 36.00 x 12.50mm
Viewing Area	64.00x16.00mm
Active Area	56.21x11.50mm
Dot Size	0.56x0.66mm
Dot Pitch	0.60x0.70mm
Viewing Direction	6 O'Clock
Interface	4-bit or 8-bit MPU, 16 Pin
Drive IC	ST7066U-0A
Driving Method	1/16 Duty, 1/5 Bias
Supply Voltage	5.0V
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

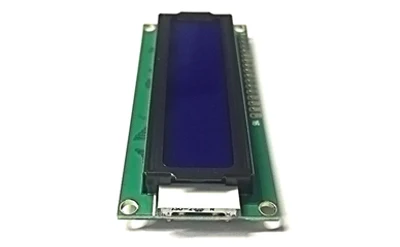

Detailed Images

Packing & Delivery

Packing	Standard carton, corrugated paper+outer carton.
Delivery	In Stock: Delivery time is within 5-8 working days after received your full payment. No Stock: Wifi Module Products——About 2-4 weeks LCD Products——About 5-6 weeks Phone LCD/Backlight Products——About 1-4 weeks Phone Front Glass Lens/Cover Glass Products——About 7-15 days
Payment	50-100% deposit in advance and balance before shipping upon the payment amout.
Loading Port	Shenzhen, Hongkong
Shipping	By sea, by air, express

Certifications

Company Profile

Formike Group was founded in 1999, which engaged in R&D, design, manufacture and sales of LCD display and accessories parts as well as Wi-Fi modules. All our operations are under ISO 9001:2000 and ISO 14000 standards. The company has a professional customer service team to answer questions for customers.With the help of our 50-people strong R&D team, we can also realize your ODM ideas into a real item within 20 days.

Perfect quality assurance system

We source our key materials and components from Japan and Germany, where over 10 suppliers have been working with us for over five years. Our 100 QC members conduct strict inspections during the entire production process to ensure our quality meets your requirements. According to the ISO quality inspection system to monitor the quality, the IQC sampling pass rate of the client is above 98%.

Advanced production equipment

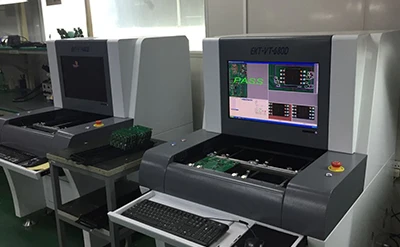

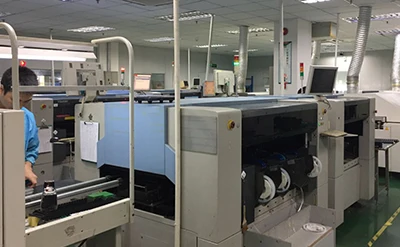

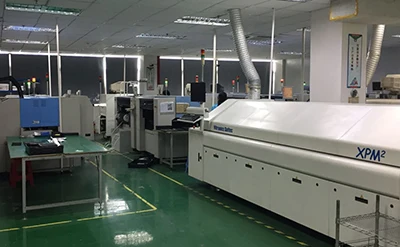

We have 100 CNC machines, 12 polarizer attach machines, 10 2D measuring projectors complete equipment, eight ultrasonic cleaners, six liquid crystal machines, two fully automatic bonding machines, etching machines, fully automatic sticking film machines, cutting machines, UV machines and more apply in our process to ensure that our quality and capacity can always support customers' demand.
