Модуль ЖК-дисплея 20x4

Описание и отзывы

Характеристики

lcd module 4x20 blue transmissive

Product information:





Product description:



Character LCD 20x4 (5 x 8 dots)
STN-YG / STN-Blue / STN-Gray /FSTN-Gray
+3.3V / +5.0V power supply
Viewing Direction: 6H / 12H
Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

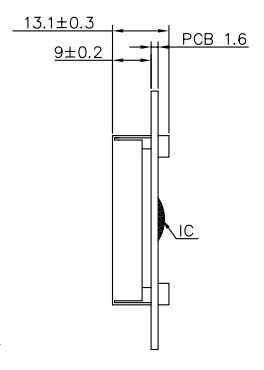

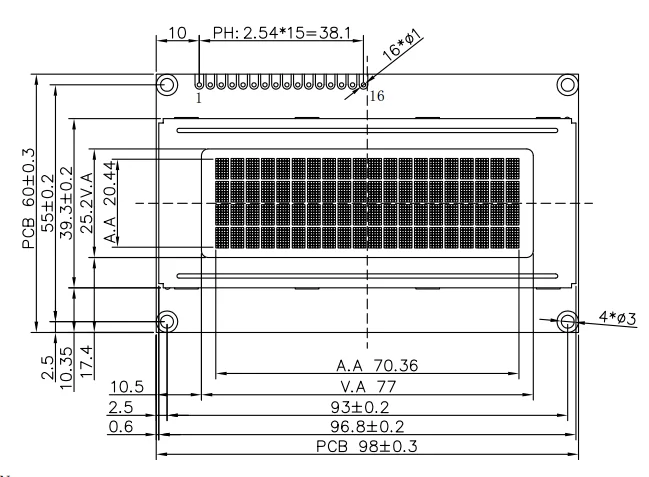

Mechanical Diagram:



Interface Pin Description:



No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Supply Voltage for Logic (+5.0V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7--14	DB0—DB7	Data Bus
15	LED_A	LED Power Supply + (5.0V)
16	LED_K	LED Power Supply - (0V)
