Низкая цена STN 16x2 символьный ЖК-дисплей производитель модуля 1602A с 16-контактным контроллером
- Категории: Character Display >>>
- Поставщик: Hua,Xian,Jing,Display,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
Module No.: | HSM1602A-8 |
Display Type: | 16 Characters x 2 Lines |
Encapsulation: | COB |
Outline Size: | 80 x 36 x11 mm |
Viewing Area: | 64.5 x 14.5 mm |
Screen Color: | Yellow-Green/Blue/Gray |
Backlight Color: | Yellow-Green/Green/White/Blue/Orange/Red |
Backlight:: | Side LED |
Driver IC: | AIP31066 |
Connector: | Conductive Silicon Rubber |
Pin Number: | 16 |
Interface: | 8-bit MPU interface |
Driver Condition: | 1/16 Duty,1/5 Bias |
Viewing Direction: | 6 O’Clock |
Operating Voltage: | 5V/3.3V |
Operating Temperature: | -20~+70℃ |
Storage Temperature: | -30~+80℃ |
Character LCD 16x2 (5 x 8 dots)
STN-YG / STN-Blue / STN-Gray /FSTN-Gray
+3.3V / +5.0V power supply
Viewing Direction: 6H / 12H
Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
STN-YG / STN-Blue / STN-Gray /FSTN-Gray
+3.3V / +5.0V power supply
Viewing Direction: 6H / 12H
Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

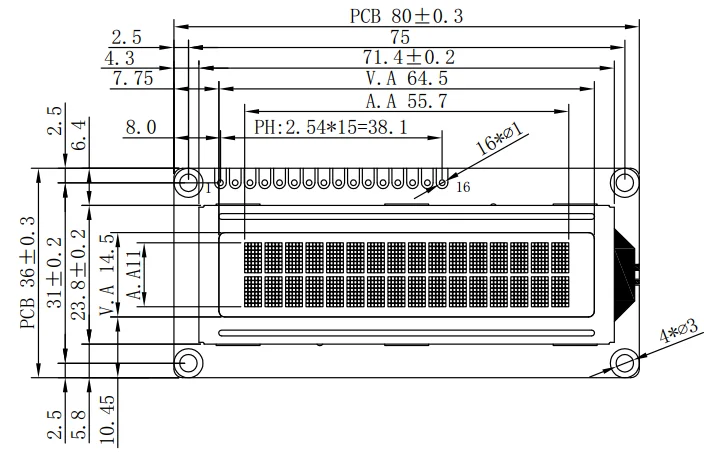

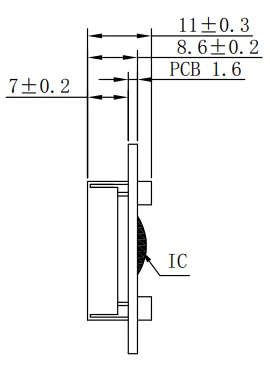

Mechanical Diagram
Interface Pin Description:
No. | Symbol | Function |
1 | VSS | Ground (0V) |
2 | VDD | Supply Voltage for Logic (+5.0V ) |
3 | VO | Contrast Adjustment |
4 | RS | Data/Instruction Select |
5 | R/W | Read/Write Select |
6 | E | Enable Signal |
7 | DB0 | Data Bus |
8 | DB1 | Data Bus |
9 | DB2 | Data Bus |
10 | DB3 | Data Bus |
11 | DB4 | Data Bus |
12 | DB5 | Data Bus |
13 | DB6 | Data Bus |
14 | DB7 | Data Bus |
15 | LED_A | LED Power Supply + (5.0V) |
16 | LED_K | LED Power Supply - (0V) |
